Product Overview

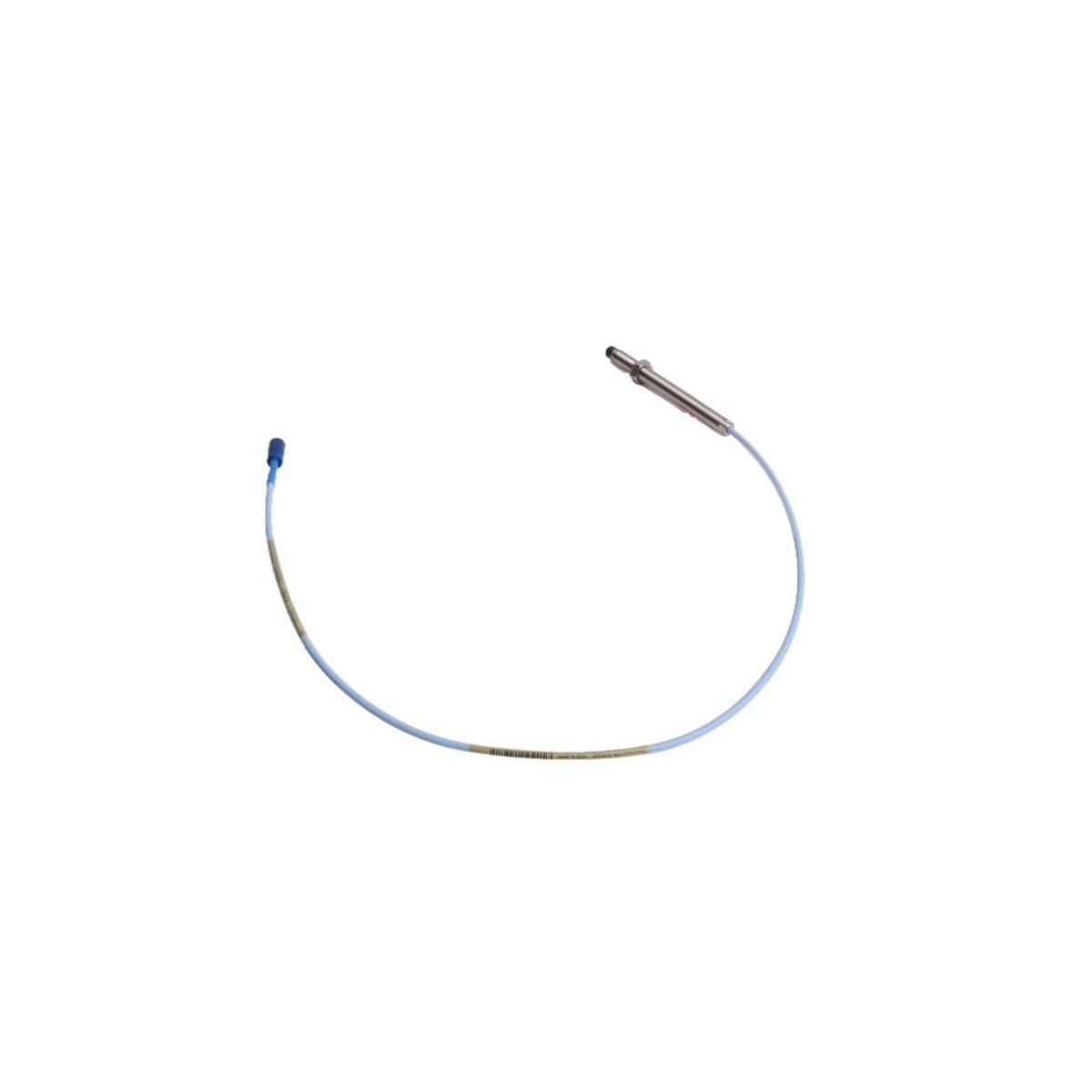

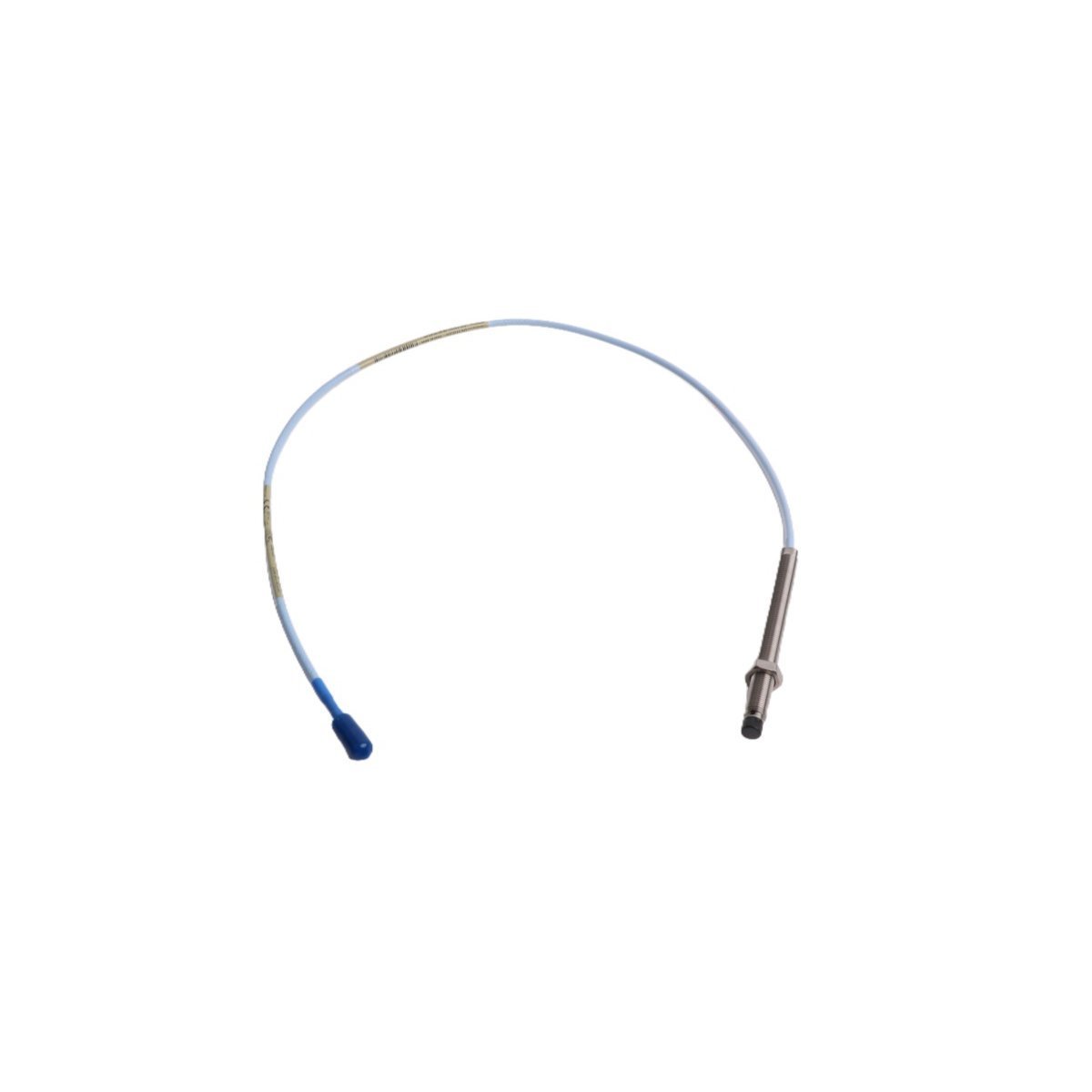

The Bently Nevada 330101-00-40-05-02-05 3300 XL 8mm Proximity Probe serves as the definitive industry standard for non-contacting vibration and displacement measurement. Engineered for the most demanding rotating machinery environments, this probe provides the high-fidelity data required by the Bently Nevada 3500 Monitoring System to ensure asset integrity. It excels in monitoring shaft vibration, radial position, and axial thrust in critical equipment such as steam turbines, centrifugal compressors, and large-scale motors.

By delivering an exceptionally stable 200 mV/mil scale factor, the 3300 XL series allows operators to identify subtle rotor instabilities before they escalate into catastrophic mechanical failures. This probe maintains absolute signal accuracy across a wide temperature range, making it the preferred choice for Turbine Supervisory Instrumentation (TSI) upgrades and new plant installations. Its ruggedized design ensures maximum uptime for mission-critical assets connected to Honeywell Experion or other enterprise-level DCS platforms.

Technical Suffix Interpretation

330101-00-40-05-02-05 Hardware Configuration

This alphanumeric string defines the precise physical and electrical characteristics of the probe, ensuring it matches the mechanical requirements of the machine housing.

Unthreaded Length (-00)

The 00 suffix indicates a 0.0-inch unthreaded length. The entire probe case features standard 3/8-24 UNF-2A threads, providing maximum depth adjustment flexibility within the mounting bracket.

Overall Case Length (-40)

The 40 suffix specifies a 4.0-inch overall case length. This mid-sized body provides the necessary reach to penetrate machine casings while maintaining high mechanical stiffness to resist vibration-induced signal noise.

Total Length (-05)

This designates a 0.5-meter (approx. 20-inch) integral lead cable. To achieve a complete 5.0m or 9.0m system calibration, this probe must be paired with the corresponding 3300 XL extension cable.

Connector and Protection (-02)

This model includes a miniature coaxial connector paired with a factory-installed connector protector. This protector is critical for preventing oil and moisture ingress from degrading the electrical signal at the junction point.

Agency Approvals (-05)

The 05 code represents Multiple Approvals (ATEX, IECEx, CSA). This certification enables the probe to be safely deployed in Zone 0 and Class I, Div 1 hazardous locations globally.

Technical Performance Profile

Precision Commissioning Guidelines

Gap Voltage Adjustment

Proper gapping is paramount for signal accuracy. Set the quiescent gap voltage to -10.00 VDC at the Proximitor output during installation. This centers the sensor within its 80-mil linear range, allowing for maximum shaft excursion without signal clipping or non-linearity.

Target Surface Requirements

The 3300 XL system is factory-calibrated for AISI 4140 steel targets. If your shaft material differs, you must apply a specific correction factor to the monitor settings. Ensure the target surface is smooth and free from mechanical "runout" to prevent false vibration readings.

Cable Management and Routing

Maintain a minimum bend radius of 25.4 mm (1.0 inch) for the integral lead. Avoid kinking the coaxial cable, as mechanical deformation changes the electrical impedance. Use the provided connector protector to ensure the signal junction remains isolated from conductive bearing oil.

Field Performance Advantages

Superior Thermal Stability

The 3300 XL probe utilizes advanced polyphenylene sulfide (PPS) tip material, ensuring that the probe tip remains dimensionally stable despite extreme thermal cycling. This prevents the "DC gap drift" often seen in lower-quality sensors during machine warm-up phases.

Industrial Grade Resilience

The gold-plated ClickLoc connectors provide a low-resistance connection that resists oxidation in humid or corrosive atmospheres. The patented tip-to-case bonding process prevents the internal coil from shifting, maintaining calibration even under high-frequency mechanical stress.

Seamless System Integration

This sensor acts as the primary eyes of your machinery protection suite. It integrates flawlessly with Bently Nevada 3500/42M monitors and communicates vital data to System 1 diagnostic software, facilitating predictive maintenance strategies and reducing unplanned outages.

Global Fulfillment Standards

Accelerated Logistics

We provide a delivery time of 3-5 days when payment finish. All international orders ship via premium air freight through DHL, FEDEX, or UPS. This ensures door-to-door tracking and rapid deployment for critical plant maintenance windows.

High-Integrity Packaging

Every 330101-00-40-05-02-05 probe is dispatched in New Original Pack condition. Our logistics team utilizes specialized anti-static industrial packaging and reinforced cushioning to protect the precision-machined threads and sensitive coaxial components during worldwide transit.

Engineering Support FAQs

Q1: How do I verify the probe's electrical health in the field?

A1: Measure the DC resistance between the center pin and the outer shell of the connector. A healthy 3300 XL 8mm probe typically measures between 4.0 and 11.0 ohms. An infinite or "open" reading indicates a broken internal coil.

Q2: What happens if I use the 0.5m probe without an extension cable?

A2: The Proximitor sensor requires a specific total system length (typically 5m or 9m) to maintain its resonant frequency. Operating the 0.5m probe alone will result in massive scale factor errors and non-linear data.

Q3: Can I replace a 330101 probe with a 330102 model?

A3: No. The 330101 uses standard 3/8-24 threads, while the 330102 uses metric M10x1 threads. Attempting to swap them will result in cross-threading and permanent damage to your machine housing.

Q4: Is the -05 approval valid for North American Class I Div 1 areas?

A4: Yes. The -05 Multiple Approval includes CSA/NRTL certifications for North America, alongside ATEX and IECEx for international hazardous zones, making it a universal spare part.
