Product Overview

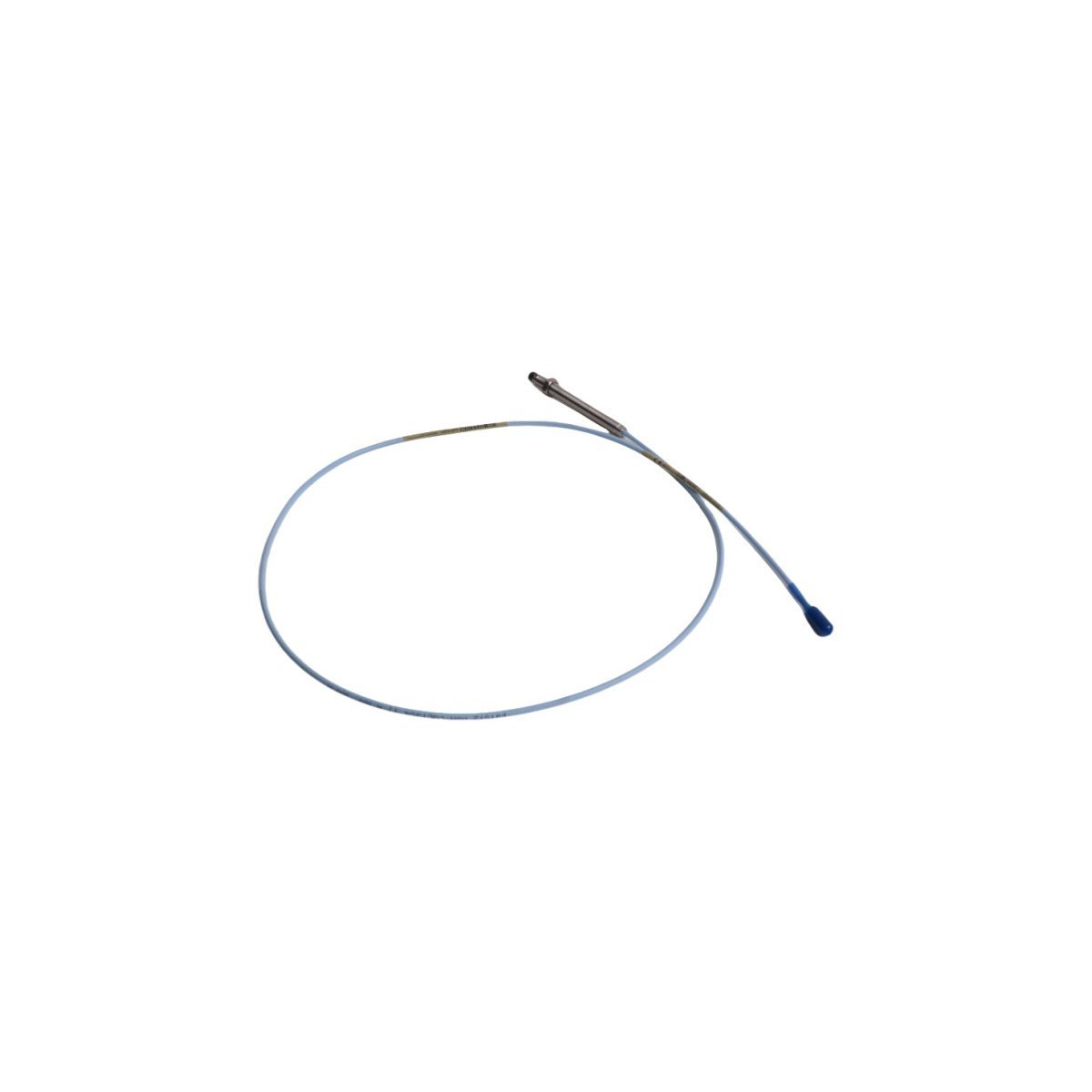

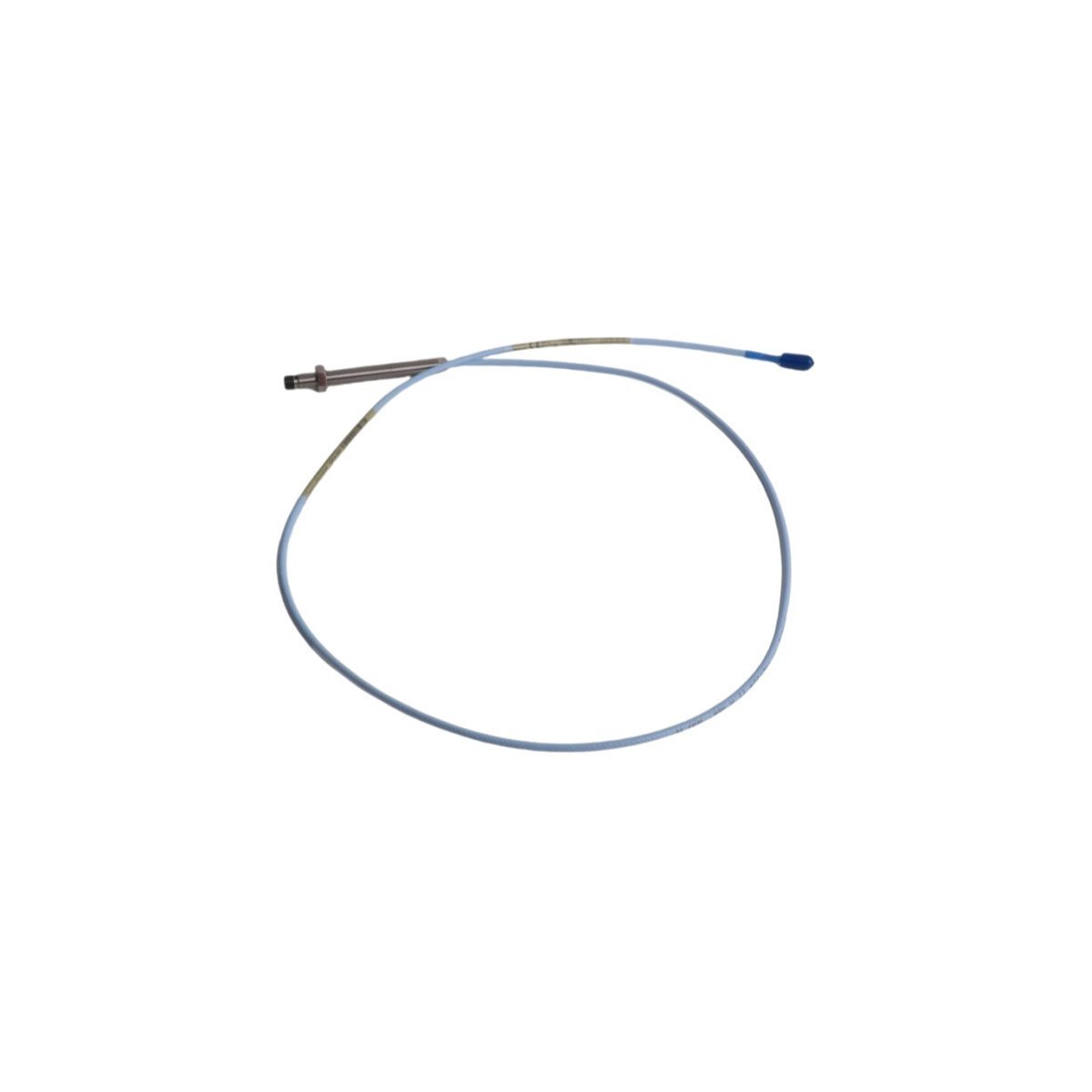

The 330101-00-36-05-02-00 is a high-performance eddy current proximity transducer belonging to the Bently Nevada 3300 XL 8 mm series. This non-contacting displacement sensor is engineered to provide precise measurements of the gap between the probe tip and a conductive target, typically a rotating shaft. As a foundational element of Turbine Supervisory Instrumentation (TSI), it delivers real-time data for radial vibration, axial thrust position, and eccentricity monitoring. This specific model features a 3/8-24 UNF threaded body and a 0.5-meter integrated cable, designed for localized installation on high-speed rotating assets such as steam turbines, centrifugal compressors, and industrial pumps.

Technical Configuration and Hardware Specs

The alphanumeric designation 330101-00-36-05-02-00 defines a specific mechanical and electrical profile tailored for industrial reliability:

• Model Number: 330101 (Standard 3/8-24 UNF thread, No Armor)

• Unthreaded Body Length: 0.0 inches (Fully threaded case)

• Overall Case Length: 3.6 inches

• Total System Length: 0.5 Meters (approx. 1.6 feet)

• Connector Interface: Miniature coaxial ClickLoc connector (02 option)

• Agency Approval: Multiple certifications including ATEX, IECEx, and CSA (05 option)

• Linear Range: 2.0 mm (80 mils)

• Scale Factor: 7.87 V/mm (200 mV/mil) when paired with a 3300 XL Proximitor

Core Engineering Characteristics

The 3300 XL series incorporates proprietary manufacturing advancements that significantly improve field longevity compared to legacy sensors:

• TipLoc Molding: A specialized process that chemically bonds the probe tip to the stainless steel body, creating a vacuum-tight seal that prevents oil or process fluids from wicking into the sensing coil.

• CableLoc Anchoring: An internal cable securing system providing a 330 N (75 lbf) pull strength, protecting the coaxial lead from mechanical stress during installation or maintenance.

• Advanced RFI/EMI Immunity: Engineered to meet European CE mark standards, the probe operates reliably in high-frequency interference environments without the need for specialized shielded conduits.

• Polyphenylene Sulfide (PPS) Tip: The 8 mm tip is encapsulated in high-durability PPS plastic, offering superior chemical resistance and thermal stability across a wide operating range.

System Integration and Applications

This proximity transducer is designed for seamless inclusion in comprehensive machinery protection strategies and is fully compliant with API 670 standards:

• Total Interchangeability: Probes, extension cables, and Proximitor sensors of the same system length (0.5m) can be swapped without the need for manual bench calibration.

• Backward Compatibility: Electrically and physically compatible with non-XL 3300 series 5 mm and 8 mm components, facilitating cost-effective facility upgrades.

• Keyphasor Capability: Optimized for providing timing and speed reference signals (Phase Angle) for vibration analysis and RPM tracking.

• Hazardous Area Readiness: Certified for deployment in Zone 0, 1, and 2 environments, ensuring safe operation in oil, gas, and power generation facilities.
