Product Overview

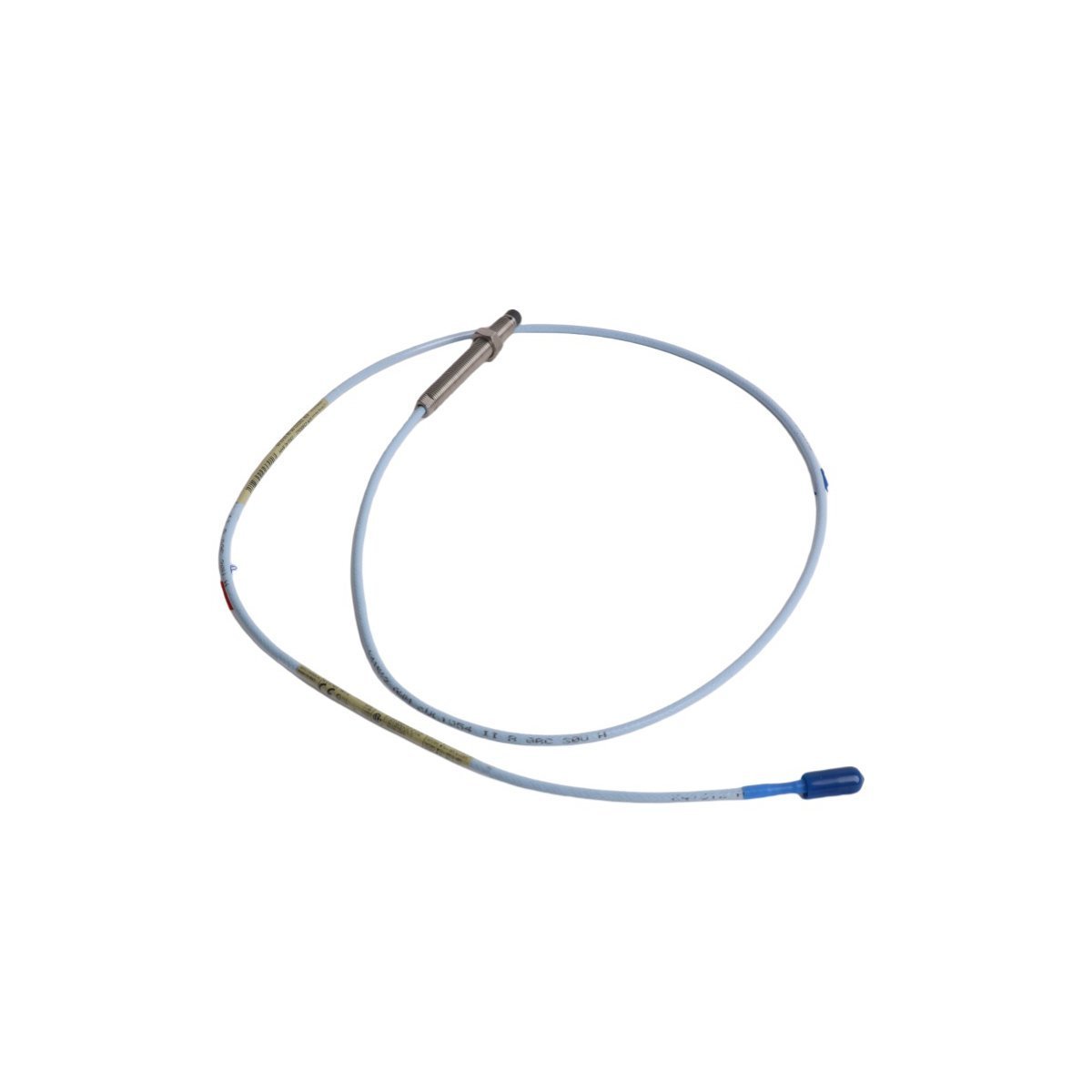

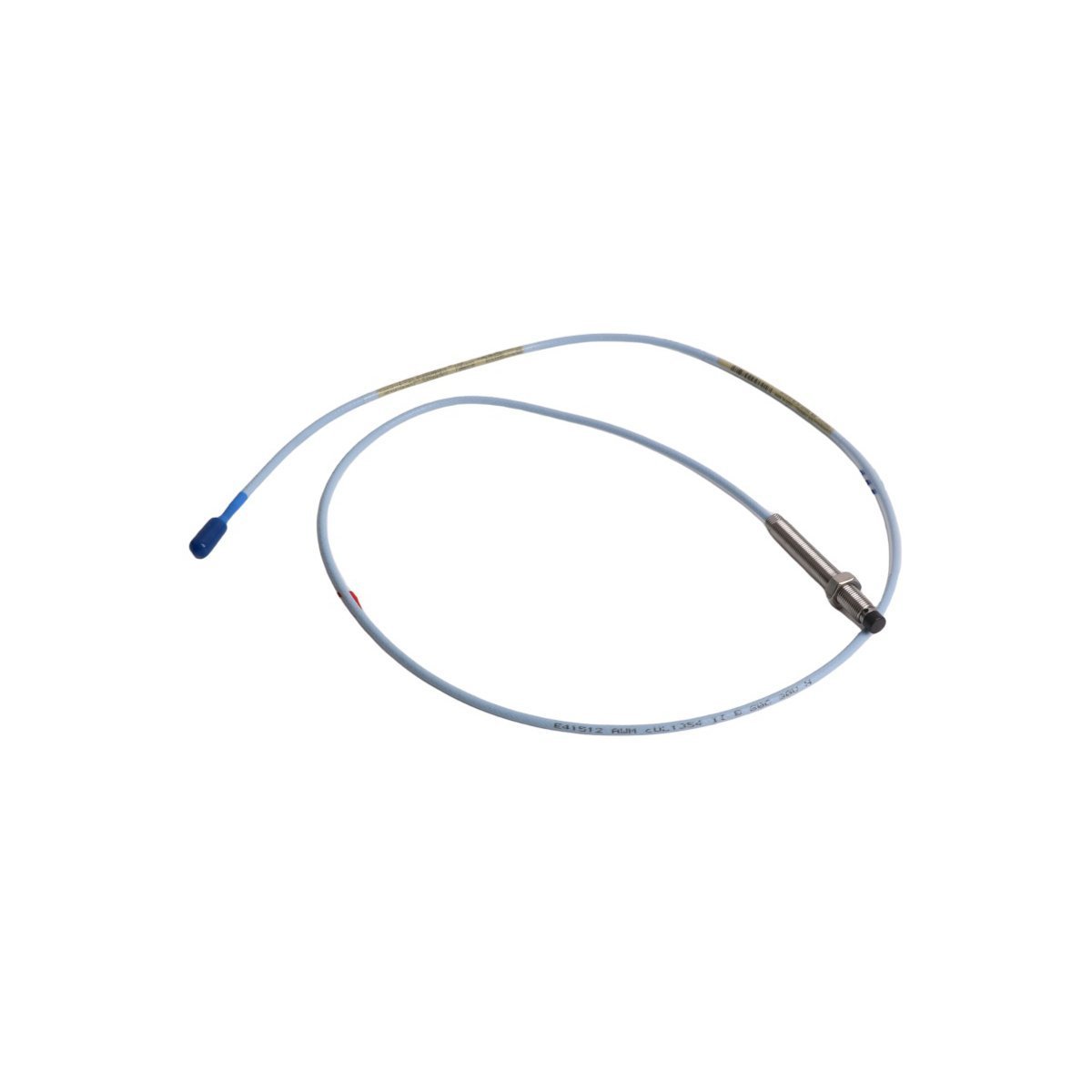

The Bently Nevada 330101-00-28-10-02-05 3300 XL 8 mm Proximity Probe establishes critical, non-contacting eddy current sensing boundaries within high-speed rotating machinery. Operating as a baseline physical layer for automated safety frameworks, this probe measures sub-micron changes in fluid-film bearing clearances, radial shaft vibration profiles, and axial thrust displacements. The sensor outputs a high-fidelity analog voltage signal that routes directly to Bently Nevada 3500 monitoring racks, critical emergency shutdown systems (ESD), and dominant plant distributed control systems (DCS). Featuring an unarmored, thin-profile cable coupled with extensive hazardous area certifications, this variant provides maximum routing flexibility within tight machine casings on utility-scale steam turbines, high-capacity centrifugal pumps, and process compressors.

Parameter Matrix and Suffix Code Logic

330101 Case Thread and Mechanical Style

The base model denotes an 8 mm proximity probe body equipped with a standard 3/8-24 UNF imperial thread pattern. This configuration omits the external flexible stainless steel armor sleeve, resulting in a minimized cable outer diameter that facilitates effortless installation within tight internal conduits and tight cable runs.

00 Unthreaded Barrel Segment

The 00 suffix dictates a 0.0-inch unthreaded barrel length. The casing is fully threaded across its entire body down to the sensing tip capsule, allowing field technicians to maximize thread engagement and achieve granular depth positioning inside custom mounting brackets.

28 Overall Case Length Option

The 28 option code specifies a 2.8-inch overall case length profile. This case envelope ensures rigid physical placement within the bearing block housing, maintaining baseline sensor stability and preventing parasitic mechanical resonances under high-frequency operation.

10 Integrated Telemetry Allocation

The 10 suffix establishes a calibrated 1.0-meter (3.3 feet) integrated standard cable. This precise dimension guarantees perfect electrical matching with standard system extension lines, keeping signal velocity uniform and preventing phase reference errors.

02 Connectivity and Termination Standard

The 02 option equips the cable with a miniature coaxial ClickLoc connector. This lock-in interface creates a secure, low-resistance connection that resists accidental decoupling caused by continuous machinery vibration, maintaining absolute shielding integrity.

05 Hazardous Area Certification Matrix

The 05 option integrates a comprehensive international agency approval package, carrying CSA, ATEX, and IECEx certifications. This options architecture allows immediate deployment within hazardous, explosive atmospheres and intrinsically safe zones.

Component Physical and Metrological Properties

On-Site Mechanical Positioning and Calibration Protocol

Securing stable signal returns depends entirely on setting the correct mechanical gap voltage during field commissioning. Thread the unarmored probe assembly into the mounting boss until the raw DC gap voltage monitored at the 3300 XL Proximitor sensor output reads exactly -10.00 VDC. This electrical baseline indicates that the target shaft surface sits precisely at the midpoint of the sensor's linear calibration profile.

Verify this target window using a high-impedance digital multimeter before locking the external hex jam nut down to its final position. Because this model omits an armored sleeve, technicians must maintain a strict minimum bend radius of 25.4 mm (1.0 inch) during cable routing to prevent structural degradation of the internal coaxial shield.

Isolate the low-voltage sensor lines from high-power AC motor feeds and variable frequency drives (VFDs), terminating the outer shield mesh exclusively at the 3500 monitoring rack ground bus to eliminate stray electromagnetic noise injection.

Advanced Turbine Supervisory Instrumentation Capabilities

Extreme Thermal and Chemical Resiliency

The polyphenylene sulfide (PPS) tip capsule and stainless steel barrel construction exhibit exceptional thermal stability across a broad temperature band. This structural design resists chemical degradation, high-pressure hot fluid submersion, and synthetic lubrication oils common to heavy industrial environments.

Universal DCS Fieldbus Interoperability

The proximity transducer provides seamless, plug-and-play synchronization with Turbine Supervisory Instrumentation (TSI) setups. It interfaces directly with Honeywell Experion PKS, Siemens S7, and other major plant DCS environments via the matching Proximitor block, routing real-time machinery health parameters upstream without requiring mid-tier signal interpolation blocks.

Supply and Procurement Manifest

Every processed order package contains the following instrumentation items:

(1) New Bently Nevada 330101-00-28-10-02-05 3300 XL 8 mm Proximity Probe featuring standard unarmored coaxial cabling.

(2) Factory-installed miniature coaxial ClickLoc connector socket.

(3) Premium imperial hex locknut for secure physical positioning.

(4) Complete factory inspection calibration documentation detailing nominal electrical baseline parameters and structural compliance.

Packing Controls and Expedited Dispatch Logistics

This asset profile operates on an expedited 2-7 days dispatch framework following complete payment finish. We route all international B2B freight through premier express networks including DHL, FedEx, and UPS to guarantee fast transport timelines and continuous end-to-end tracking visibility.

The physical hardware travels inside multi-layer, anti-static industrial packaging featuring custom vacuum-sealed enclosures and shock-absorbing foam inserts, keeping the sensitive inductive coil structures safe from static charge build-up and physical freight transit vibrations.

Field Instrumentation Engineering FAQs

Q1: What specific installation advantage does the unarmored cable option provide over armored versions?

A1: Armored cables incorporate a rigid stainless steel outer sleeve that increases the total outer diameter and stiffness of the line. The unarmored standard cable option reduces physical bulk, allowing technicians to pull the wire through tight internal casing channels, narrow conduits, and tight bearing housing bends where armored lines would bind or suffer structural damage.

Q2: Why is the shipping size box length listed at 123 cm for a 1.0-meter probe assembly?

A2: The elongated packaging format holds the calibrated 1.0-meter coaxial cable in a long, sweeping loop during transport. Tight folding or coiling strains the internal copper core and alters the precise dielectric spacing, creating impedance anomalies that corrupt the Proximitor sensor's calibration values.

Q3: How do engineers distinguish between a physical shaft rub event and an instrument fault?

A3: An instrument fault, such as a broken internal coil or disconnected ClickLoc interface, triggers an immediate "Not OK" status alarm at the 3500 monitoring rack, forcing the channel voltage to approach the full negative supply rail (-24 VDC). A physical shaft rub event generates genuine, high-frequency AC dynamic components riding on the DC gap voltage without dropping the baseline "OK" circuit status.
