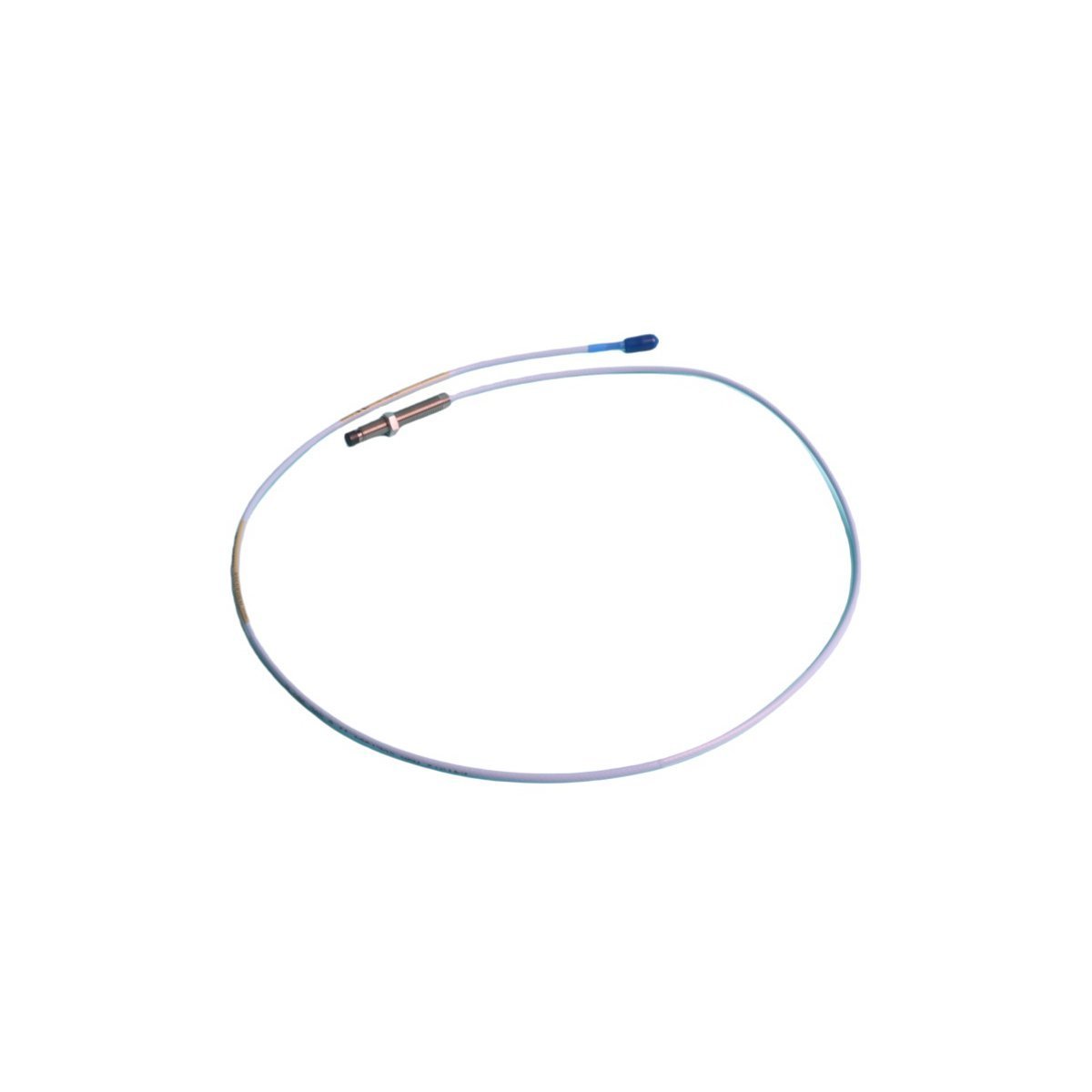

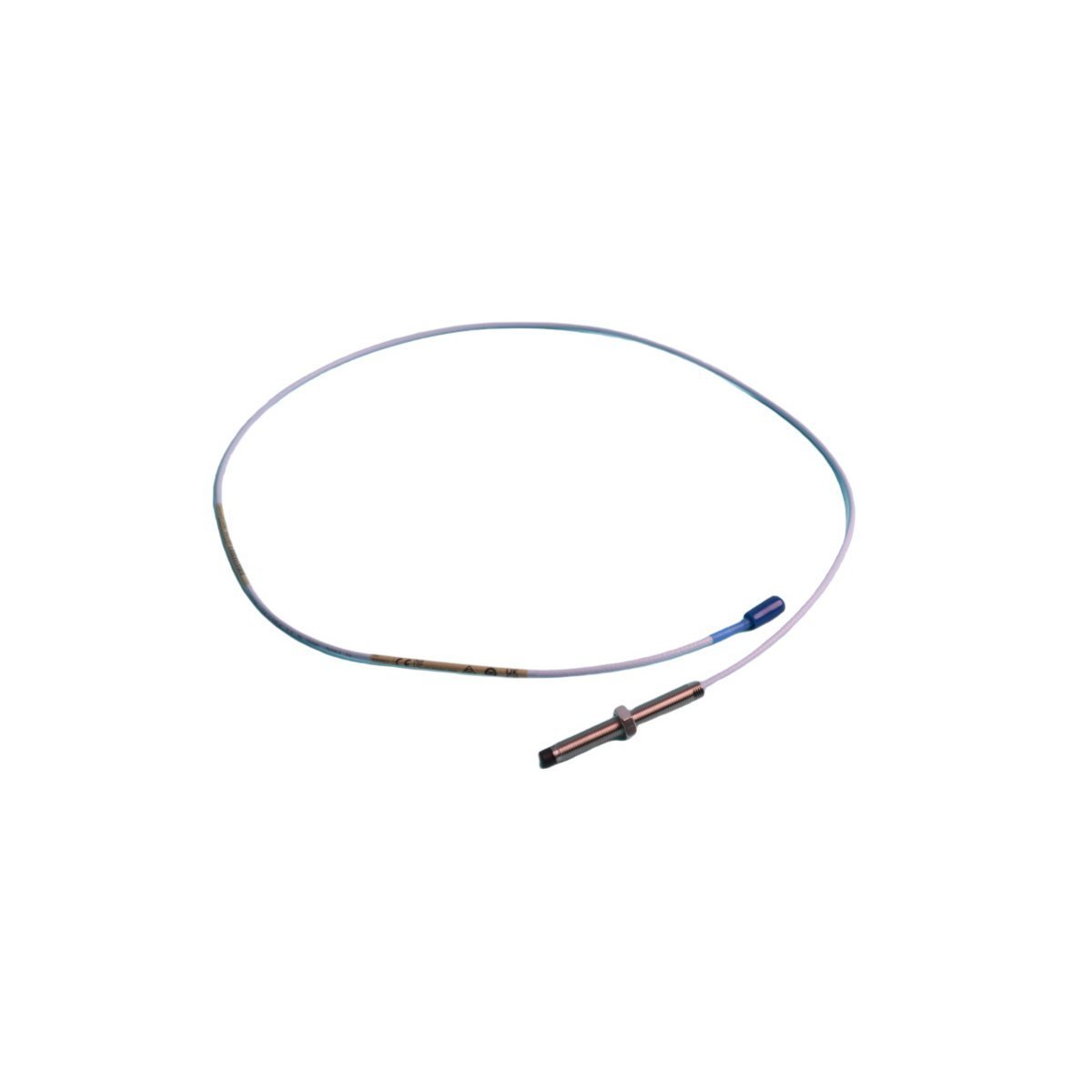

The Bently Nevada 330101-00-27-50-02-00 serves as the primary 330101 Proximity Sensors utilized to execute contactless eddy-current displacement processing across 3300 XL 8 mm platforms. The probe assembly channels high-frequency radio frequency fields to detect microscopic distance gaps between the sensor tip and the observed rotating machine target.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The 330101-00-27-50-02-00 requires strict calibration matching targeted eddy-current probe scaling configurations to ensure uninterrupted linearity across the 80 mils tracking window. Manual gap voltage validation (-10 VDC targets) must be checked during machine stoppage to align the sensor face within the middle of the calibrated voltage slope. Maintaining structural tuning over the 5.0 meters electrical loop protects data harvesting lines from impedance degradation, optimizing cross-talk suppression inside crowded fluid-film bearing housings where dense rotor dynamics observations occur.

Technical Queries and Engineering Review

Q: What structural dimensions are defined by the specific option codes in this part number?

A: The option codes indicate physical body metrics: 00 specifies an unthreaded length of 0.0 inches, 27 establishes a 2.7-inch total case length, 50 sets the 5.0 meters total system length, and 02-00 denotes the standard ClickLoc miniature coaxial connector without fluid leakage protection.

Q: Can this 5.0 meters total system probe be linked directly with a 9.0 meters rated extension cable?

A: No. Mixing system lengths modifies the cumulative capacitance of the circuit loop. A 5.0 meters total length probe must interface with a matching 5.0 meters Proximitor sensor core to preserve the nominal 200 mV/mil output scaling.

Q: Is this proximity probe designed to support hot-swapping under live monitor power?

A: No. Disconnecting or joining the miniature coaxial ClickLoc interface while the driver loop is energized can cause static discharges that fault the parent TSI rack card. Always isolate power before mating connectors.

Field Component Assembly Protocols

• Confirm that the host machine track is powered down and static before attempting probe insertion.

• Maintain strict clearance distances around the 8 mm probe tip to prevent side-loading interference from adjacent mechanical bracket walls.

• Avoid exceeding the maximum structural installation torque values specified for 3/8-24 UNF threads during counter-nut lock down.

• Use specialized flexible conduit protection rings over exposed cable segments to mitigate mechanical rubbing or crushing hazards.

• Clamp the outer shield ground path of the extension cable link to the primary copper ground bus bar within the junction container.

Material Kit Contents

• 1 x 330101-00-27-50-02-00 Proximity Probe Assembly

• 2 x Brass Hex Lock Nuts (3/8-24 UNF Threaded)

• 1 x ClickLoc Connector Protective Overboot

Packaging and Freight Processing

Components are sealed inside high-durability anti-static industrial packaging to negate electrical static hazards and environmental contamination during transit. Standard tracking schedules verify arrival within 2-7 days when payment finish using premium DHL/FEDEX/UPS express air freight services.
