Product Overview

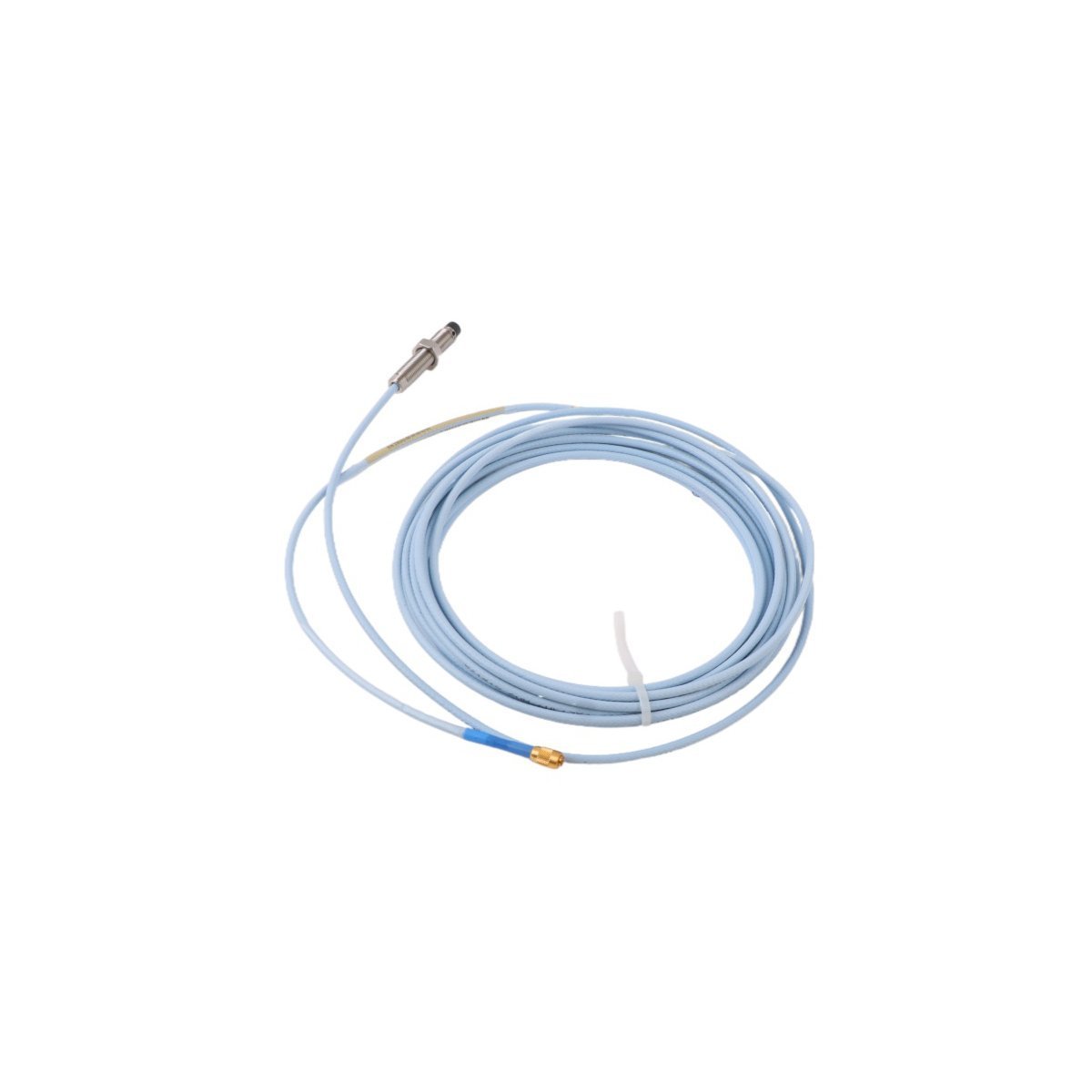

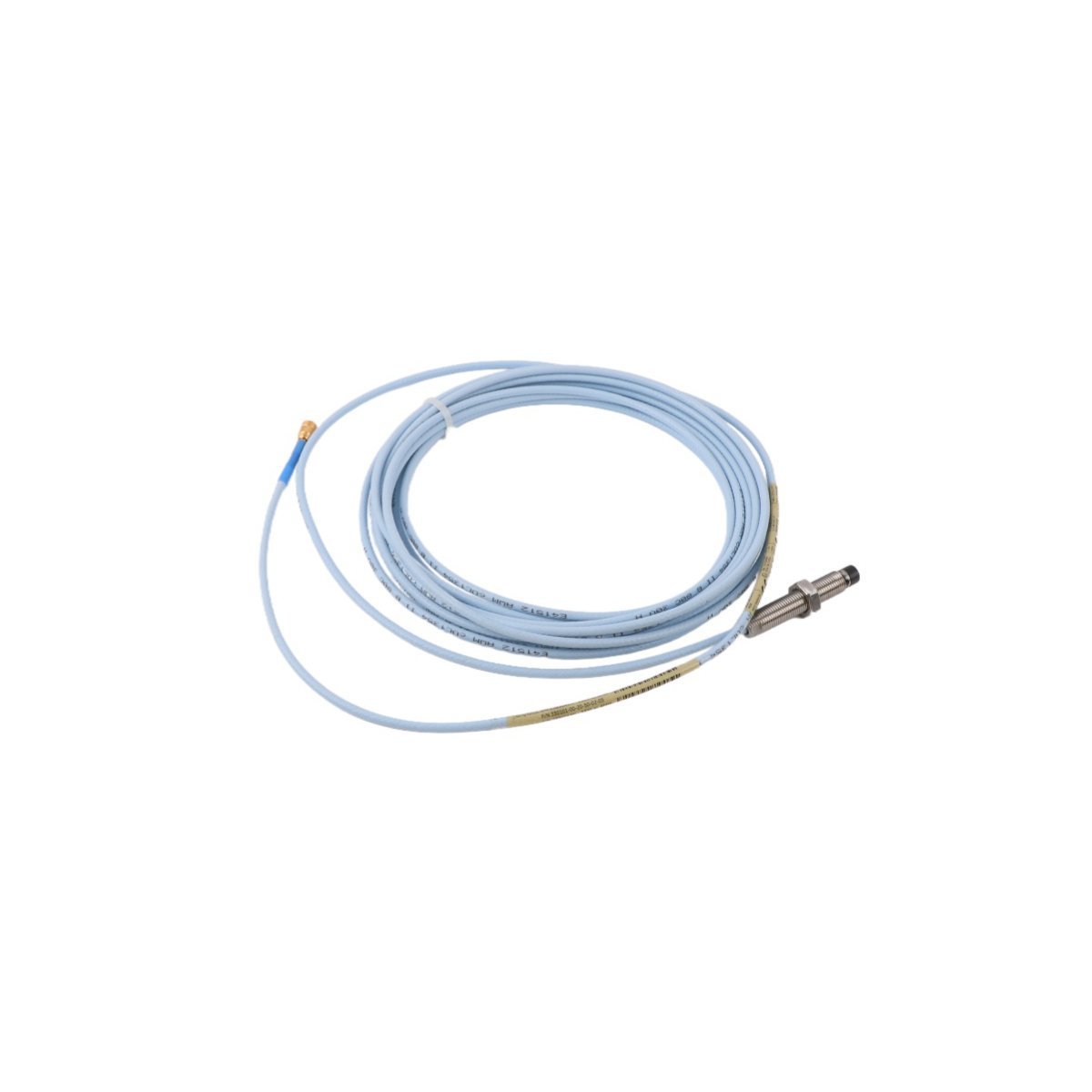

The Bently Nevada 330101-00-20-20-02-00 acts as a mission-critical sensing interface for high-performance machinery protection systems. As part of the 3300 XL 8mm series, this proximity probe provides industrial-grade displacement measurements, essential for monitoring radial vibration, axial thrust, and speed on rotating shafts. It excels in extreme industrial environments, delivering the high-resolution data required by Bently Nevada 3500 racks and integrated DCS platforms like Honeywell Experion. Engineering teams deploy this probe in critical assets—such as centrifugal compressors and steam turbines—to facilitate real-time condition monitoring and automated emergency shutdown protocols. Its design focuses on long-term calibration stability and resistance to "oil soak," ensuring your Turbine Supervisory Instrumentation (TSI) maintains absolute accuracy under continuous thermal cycling and heavy industrial stress.

Configuration Analysis and Suffix Logic

Detailed Part Number Decoding

The alphanumeric suffix for the 330101 series precisely defines the mechanical footprint and cable interface required for specific machine housings:

Unthreaded Length (00): 0.0 inches. This indicates a fully threaded probe body, allowing for maximum flexibility when depth-matching against the internal bearing housing or mounting bracket.

Overall Case Length (20): 2.0 inches. This case length supports standard mounting configurations and ensures the probe tip reaches the target shaft without structural interference.

Total Length (20): 2.0 meters (6.6 feet). This total length requires an extension cable to meet the system calibration of either 5.0m or 9.0m.

Connector Option (02): Miniature coaxial ClickLoc connector with standard cable. The ClickLoc mechanism prevents accidental disconnection due to high-frequency machine vibration.

Agency Approval (00): No specific approvals. This configuration is intended for general industrial areas where hazardous area certifications (like ATEX or CSA) are not required.

Technical Specifications

Field Commissioning Protocol

Achieving a valid measurement depends entirely on correct gap calibration. Technicians must utilize a high-impedance digital voltmeter (DVM) to set the static "Gap Voltage" to -10.0 VDC, representing the center of the probe's linear range for vibration monitoring. Ensure the probe tip maintains a minimum radial clearance of 16 mm (twice the tip diameter) from any adjacent metal surfaces to prevent side-wall interference. During cable routing, maintain a minimum bend radius of 25.4 mm (1.0 inch) to preserve the internal coaxial impedance and signal fidelity. Ensure the ClickLoc connector remains clean and dry prior to mating to avoid signal attenuation or "Not OK" status indicators.

Engineering Advantages and Asset Reliability

The 330101-00-20-20-02-00 probe offers seamless integration with the Bently Nevada 3500/42M Proximitor/Seismic Monitor. Its high-performance Polyphenylene Sulfide (PPS) tip resists chemical degradation from synthetic lubricants, ensuring the sensor remains operational for years of service. This hardware provides the high-fidelity raw signal necessary for System 1 diagnostic software to generate orbit plots, waterfalls, and time-base waveforms. By adhering to strict API 670 standards, this probe reduces "Scale Factor Error" caused by fluctuating temperatures within the turbine housing, empowering reliability engineers to distinguish between minor shaft motion and critical bearing wear with absolute confidence.

Ordering info

• Bently Nevada 330101-00-20-20-02-00 Proximity Probe

• Integrated 2.0-meter Coaxial Cable

• One Miniature Coaxial ClickLoc Connector (Mated)

• Standard Installation Kit (includes two stainless steel locknuts and one lock washer)

• Sealed Original Manufacturer Packaging with Anti-Static Protection

Logistics and Handling Details

Delivery time: 3-5 days when payment finish. All high-precision sensors ship globally via premium carriers including DHL, FEDEX, or UPS. We implement a rigorous quality control process, utilizing anti-static industrial packaging and heavy-duty moisture-barrier seals to protect the sensitive magnetic properties of the probe tip. Every shipment is reinforced with shock-absorbent cushioning to ensure the precision-machined threads and internal dielectric arrive in factory-sealed condition, ready for critical path installation.

Technical Asset FAQs

Q1: Can I use this 2.0m probe with a 9.0m Proximitor sensor?

A1: Yes, but you must pair it with a 7.0m extension cable. The 3300 XL system is length-sensitive; the total electrical length (Probe + Extension Cable) must equal the length the Proximitor was calibrated for (typically 5.0m or 9.0m).

Q2: What should I do if the monitor indicates a "Not OK" status after installation?

A2: Check the gap voltage. A reading near 0V or -24V usually indicates a short or open circuit in the cable or a probe tip touching the shaft. Verify that the ClickLoc connector is fully seated and dry.

Q3: Does the unthreaded length (00) suffix affect the signal?

A3: No. The unthreaded length is purely a mechanical mounting feature. A (00) suffix means the entire body is threaded, which provides the maximum range of adjustment for thin-walled machine casings.

Q4: Is the PPS tip resistant to turbine oil?

A4: Absolutely. The probe tip material is specifically selected to be chemically inert to most industrial lubricants and fuels, preventing "oil soak" which is the leading cause of signal degradation in inferior sensors.
