Product Overview

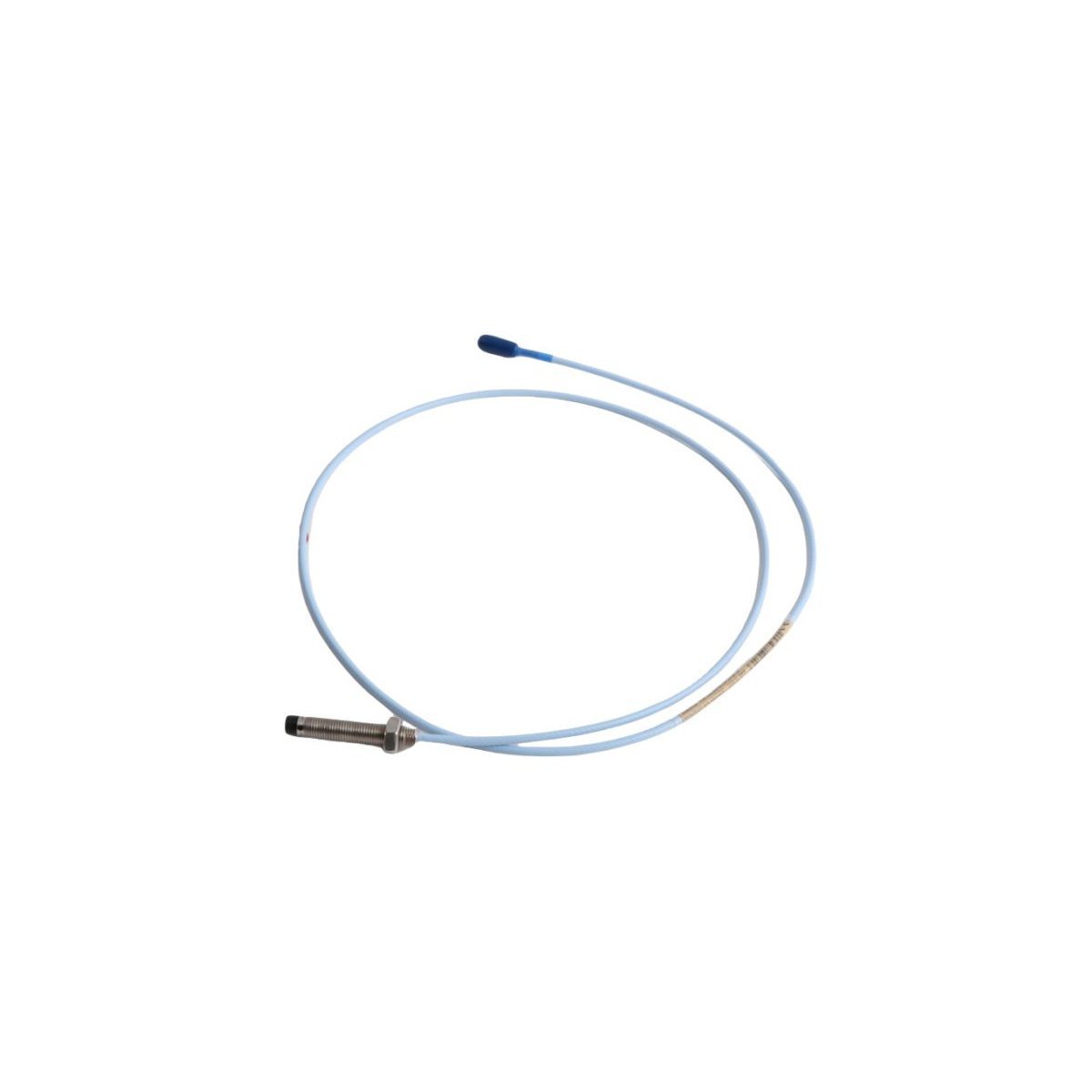

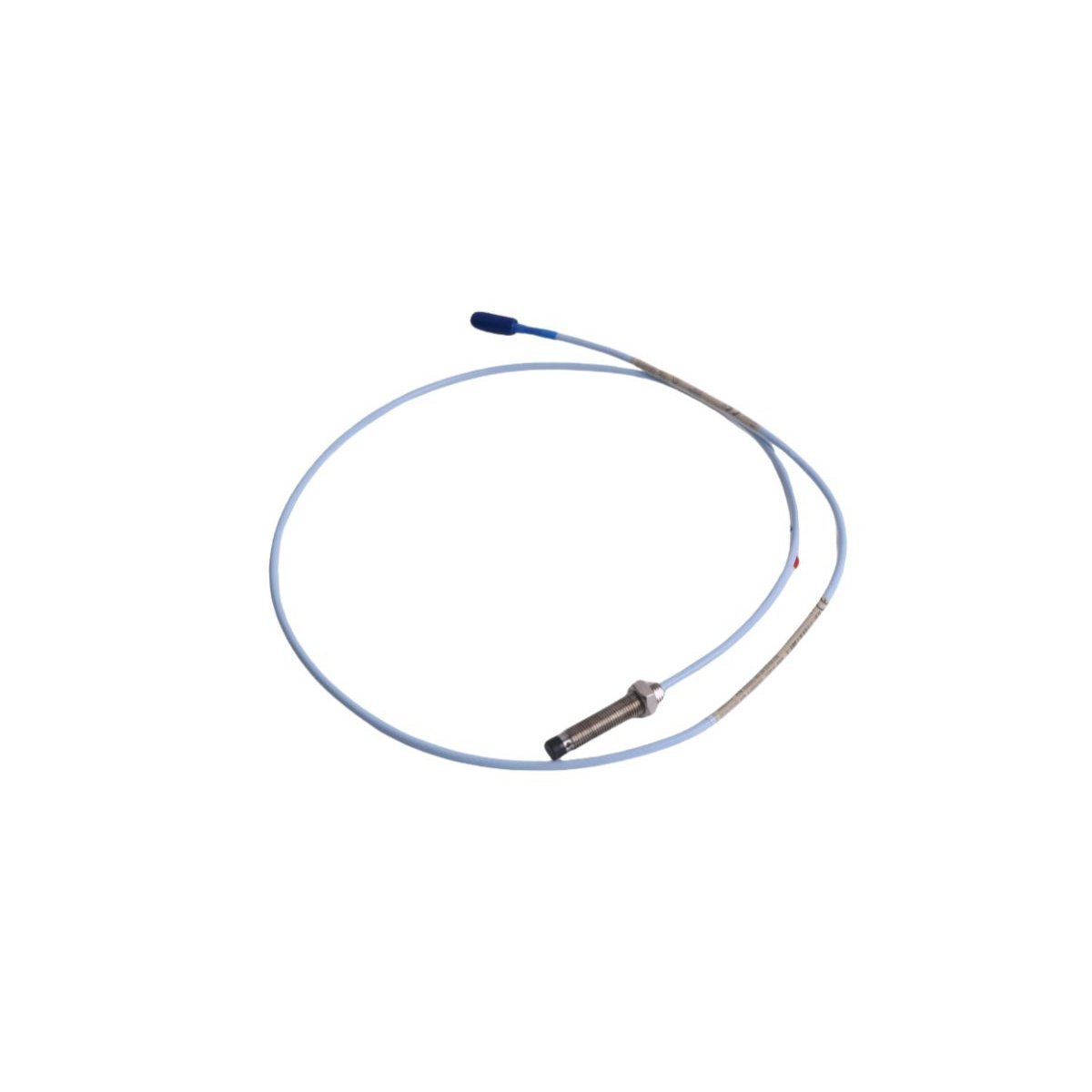

The 330101-00-14-10-02-00 is a high-precision 8 mm eddy current proximity probe belonging to the Bently Nevada 3300 XL series. This transducer is specifically engineered for non-contacting displacement and vibration measurements on rotating machinery. By detecting the gap between the probe tip and a conductive target—typically an AISI 4140 steel shaft—it provides critical data for condition monitoring systems. The probe is built with a ruggedized design featuring PPS plastic encapsulation for the internal coil, ensuring long-term stability in harsh industrial environments. Its integration into the 3300 XL Transducer System allows for seamless interfacing with monitoring hardware to prevent catastrophic equipment failure through early vibration detection.

Vital Hardware Specifications

• Model Number: 330101-00-14-10-02-00

• Probe Diameter: 8 mm

• Target Material: AISI 4140 Steel (Standard)

• Standard Gap: 1.27 mm (50 mils)

• Power Requirement: -24 Vdc

• Connection Type: Gold-plated ClickLoc coaxial connectors

• Tensile Strength: CableLoc design supports up to 330 N (75 lbf)

• Weight: 0.06 kg

• Physical Dimensions: 1.8 x 1.6 x 123 cm

• Origin: United States

• HS Code: 8537101190

Primary Industrial Applications

The 330101-00-14-10-02-00 probe is utilized across various sectors where rotating asset protection is mandatory. It is frequently deployed in Turbine Supervisory Instrumentation (TSI) systems to monitor radial vibration and axial thrust position. Common machinery installations include centrifugal compressors, steam and gas turbines, and large-scale industrial pumps. In power generation and oil and gas facilities, these probes serve as the primary sensing element for automated trip systems, ensuring that if vibration levels exceed safety thresholds, the machinery is safely powered down to avoid mechanical damage.

FAQ

Q: Does this probe require specialized tools for cable connection?

A: No, the 3300 XL 8 mm probe features ClickLoc connectors which are designed for finger-tight installation. The locking mechanism is specifically engineered to prevent loosening under vibration without the need for torque wrenches.

Q: What is the benefit of the TipLoc molding process used in this model?

A: TipLoc provides an enhanced chemical and mechanical bond between the probe tip and the probe body. This prevents the tip from becoming detached or allowing moisture ingress, which is a common failure point in lesser proximity sensors.

Q: Is the 330101-00-14-10-02-00 probe compatible with older Bently Nevada systems?

A: While part of the 3300 XL series, this probe is generally backwards compatible with many 3300 series systems, provided the scaling and Proximitor sensor calibration match the 8 mm probe specifications.

Q: How does the CableLoc feature improve the lifespan of the sensor?

A: CableLoc is a patented design that significantly increases the pull strength of the cable-to-probe connection. By supporting up to 330 N of force, it prevents internal wire breakage during installation or accidental cable tension during maintenance.

Q: Can this probe be used with targets other than AISI 4140 steel?

A: While optimized for AISI 4140, it can be used with other conductive materials; however, this requires custom calibration of the Proximitor sensor to account for the different electrical properties of the target metal.
