Mission-Critical Machinery Protection

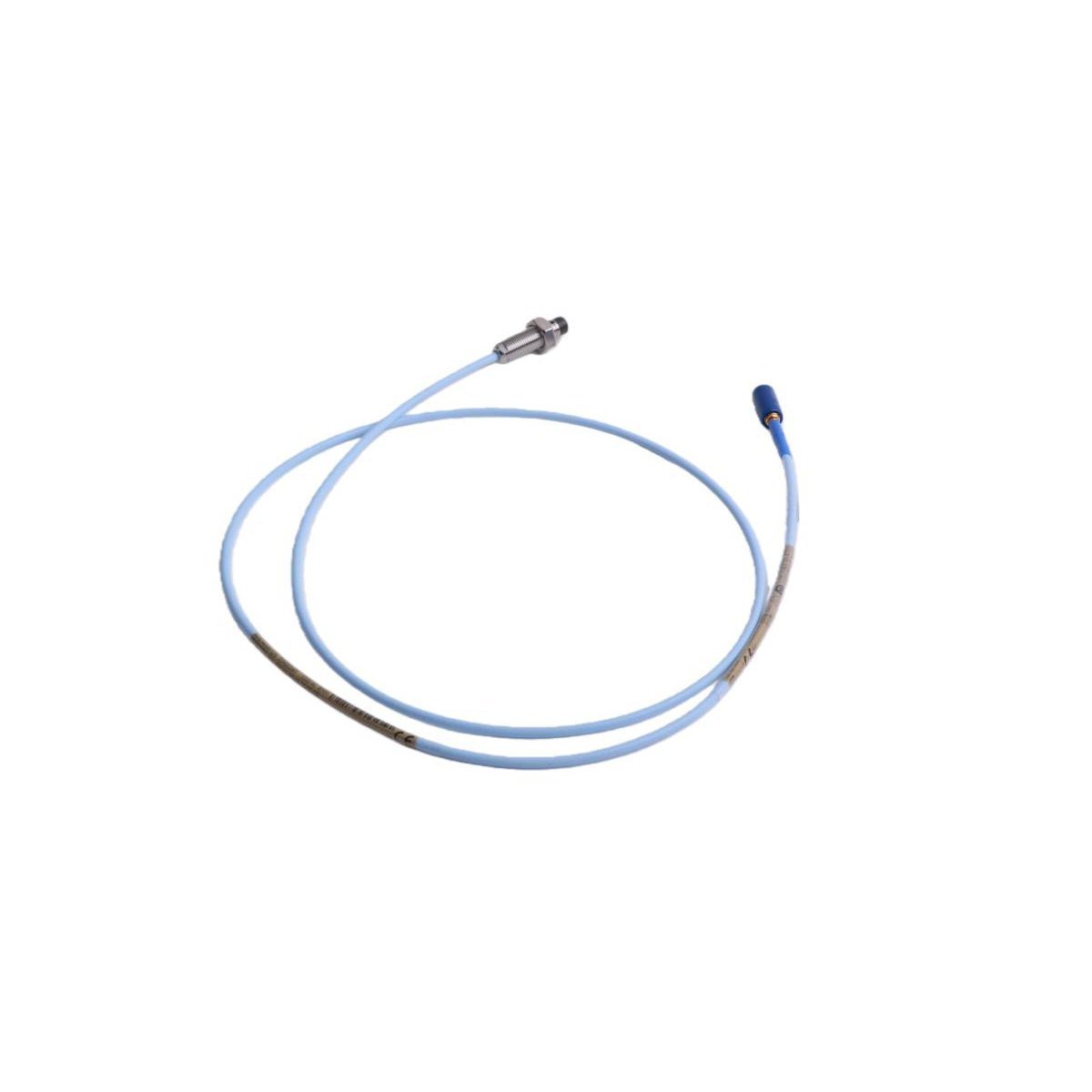

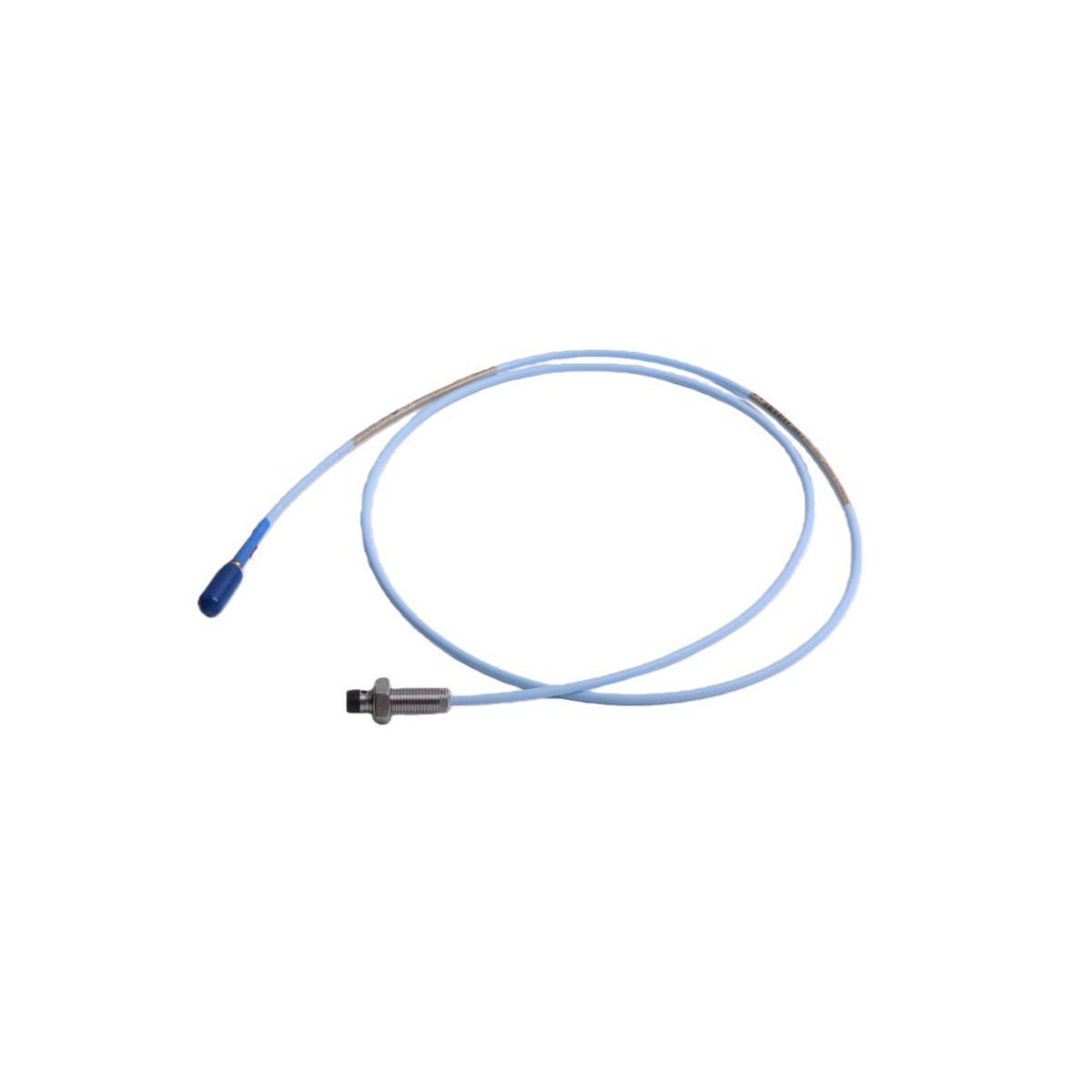

The Bently Nevada 330101-00-12-05-02-02 8mm Proximity Probe serves as the industry-standard sensor for non-contacting shaft vibration and displacement measurements. Specifically engineered for the 3300 XL series, this probe delivers exceptional precision in monitoring radial vibration and axial position on high-speed turbines, compressors, and pumps. Its advanced eddy-current technology provides a high-resolution signal to the Bently Nevada 3500 machinery protection system, enabling real-time diagnostics and rapid response to mechanical excursions. By utilizing the 3300 XL’s enhanced scale factor linearity and thermal stability, this probe ensures that critical industrial assets remain operational under the most rigorous conditions, preventing catastrophic failures and optimizing maintenance cycles.

Suffix Configuration and Mechanical Logic

330101 - 3300 XL 8mm Proximity Probe

Specifies the standard 8mm tip diameter sensor utilizing a 3/8-24 UNF threaded body, designed for high-performance machinery protection applications.

00 - Unthreaded Length (Dimension A)

Designates a 0.0 inch (0 mm) unthreaded length. This fully threaded body offers maximum mounting flexibility for standard bracket installations.

12 - Overall Case Length (Dimension B)

Indicates a 1.2 inch (30.5 mm) total threaded case length. This compact design is ideal for bearing housings where space is limited but precise gapping is required.

05 - Total Length Option

Confirms a 0.5 meter (1.6 feet) integrated lead cable. This short lead configuration is typically paired with a 4.5m or 8.5m extension cable to complete the total system electrical length.

02 - Connector and Cable Option

Features a miniature coaxial ClickLoc connector with standard cable. The ClickLoc design provides a secure, moisture-resistant connection that eliminates the need for specialized tools during field installation.

02 - Agency Approval Option

Confirms ATEX, IECEx, and CSA certifications for hazardous area installations. This approval ensures the probe meets global safety standards for intrinsically safe and non-incendive environments.

Technical and Environmental Specifications

Precision Field Commissioning

Achieving the correct gap voltage is the foundation of accurate vibration monitoring. During installation, use a digital multimeter to monitor the DC output at the Proximitor; adjust the probe position until the bias voltage reads -10.0 VDC (the center of the linear range). Ensure the 3/8-24 UNF lock nut is torqued to 13.6 N·m (120 in·lb) to prevent mechanical drift due to machine vibration. The coaxial lead must be routed through protective conduit and secured with a minimum bend radius of 25.4 mm (1.0 inch) to maintain signal integrity and prevent internal conductor fatigue.

Resilience in High-Demand Environments

The 330101-00-12-05-02-02 thrives in aggressive industrial atmospheres. Its polyphenylene sulfide (PPS) tip provides a hermetic seal against pressurized oil and moisture, while the epoxy-filled probe head prevents fluid wicking into the lead cable. This probe integrates seamlessly with Bently Nevada 3500/42M monitors and high-level control platforms like Honeywell Experion PKS. This seamless integration allows for comprehensive Turbine Supervisory Instrumentation (TSI) strategies, providing engineers with the high-fidelity data needed to distinguish between actual shaft vibration and signal noise in electromagnetically noisy environments.

Logistics and Packaging Excellence

Delivery time: 3-5 days when payment finish, BY DHL/FEDEX/UPS.

We prioritize the arrival condition of your instrumentation. Every probe is dispatched in anti-static industrial packaging with the ClickLoc connectors capped and the probe tip protected by a dedicated sleeve to ensure factory-calibrated signal integrity.

Technical Operations FAQ

Q1: What does the 0.5m total length (05 suffix) signify for my system setup?

A1: This means the integrated probe lead is 0.5 meters long. To achieve a standard 5.0m or 9.0m system, you must pair this with a 4.5m or 8.5m extension cable respectively.

Q2: Can I install this probe in a Class I, Division 1 hazardous area?

A2: Yes. The -02 approval suffix confirms that this probe is certified for hazardous areas when used with appropriate Bently Nevada Proximitor sensors and safety barriers.

Q3: How do I identify a "Not OK" signal condition?

A3: A "Not OK" status usually indicates the probe is gapped outside its linear range (too close or too far) or there is a break in the coaxial connection. Check the DC gap voltage to verify the probe is within the -2V to -18V window.
