Product Overview

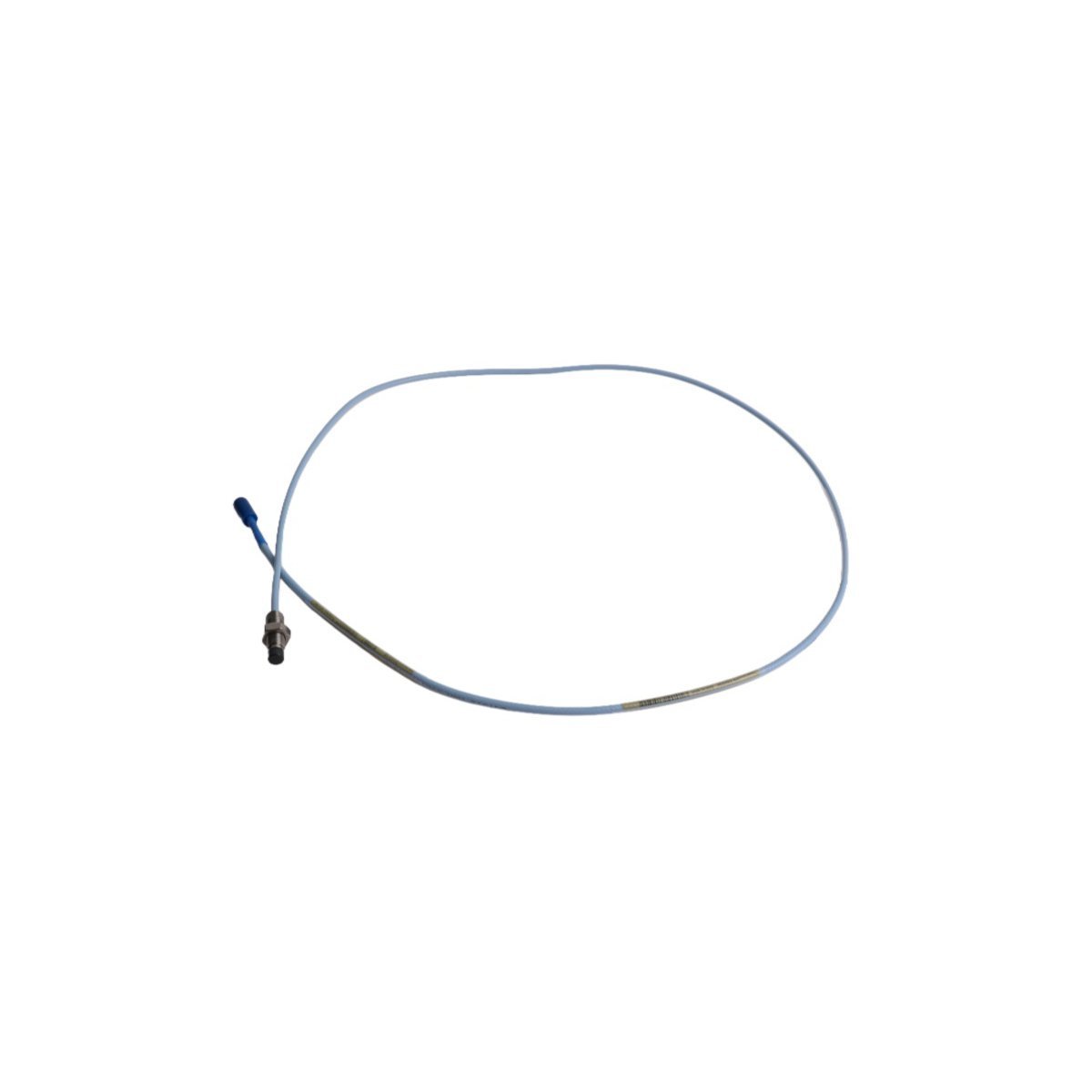

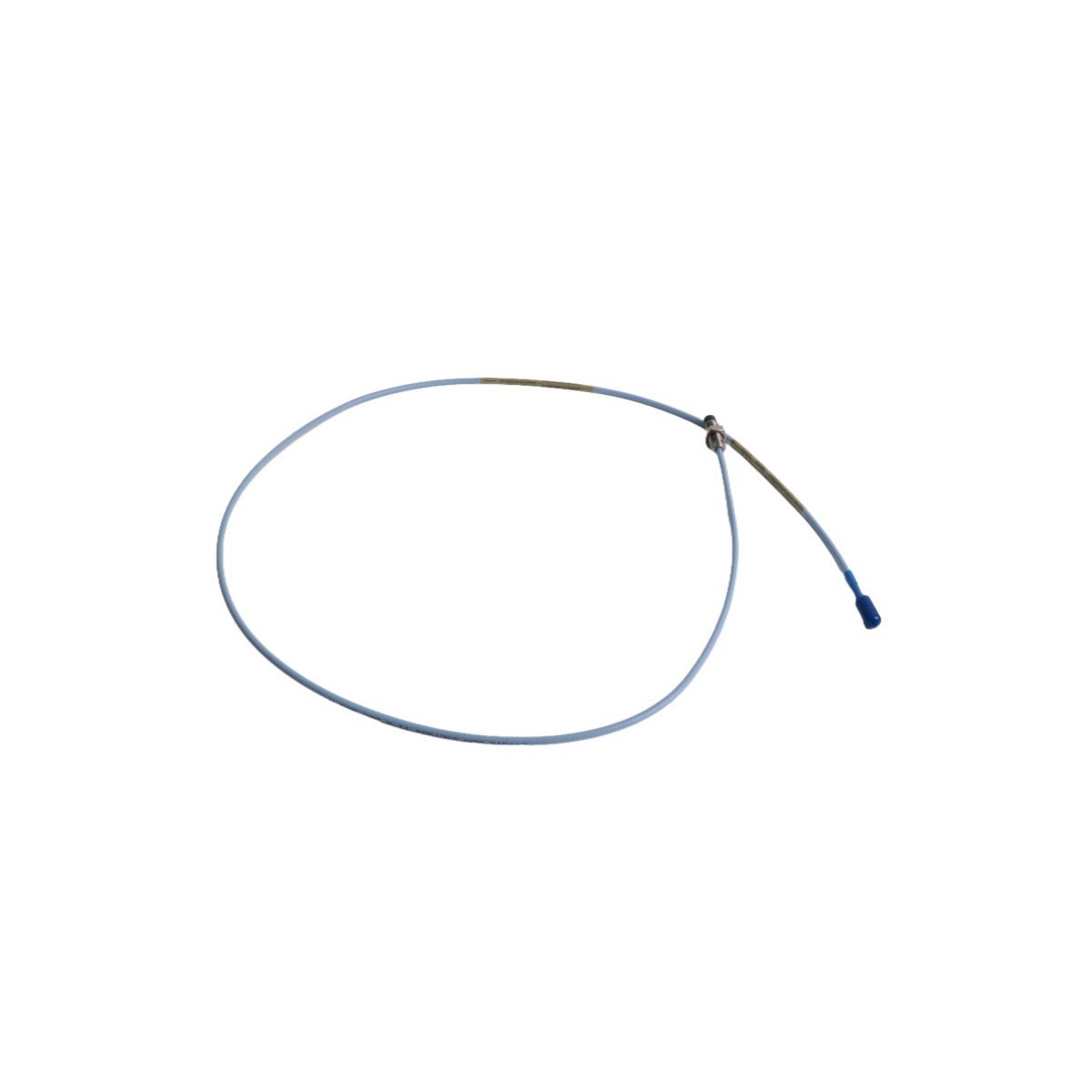

The Bently Nevada 330101-00-10-05-02-05 represents the industry standard for high-fidelity, non-contacting shaft displacement measurements. As a fundamental component of the 3300 XL 8mm system, this probe delivers critical data for monitoring radial vibration and axial thrust position on high-speed rotating assets. In demanding environments such as steam turbine protection, centrifugal compressor diagnostics, and high-pressure pump monitoring, this probe ensures the Bently Nevada 3500 system receives accurate, real-time signals to execute emergency shutdown (ESD) logic. Its exceptional thermal stability and resistance to electromagnetic interference make it a cornerstone of Turbine Supervisory Instrumentation (TSI), allowing operators to detect subtle shaft dynamics before they escalate into catastrophic mechanical failure.

Hardware Configuration and Suffix Variables

The 330101-00-10-05-02-05 model utilizes a precise mechanical architecture designed for seamless integration into bearing housings. The -00 suffix indicates a 0.0-inch unthreaded length, while the -10 designates a total case length of 1.0 inch. The -05 option confirms a 0.5-meter (approx. 1.6 feet) integrated cable length, which is engineered for short-reach routing to an extension cable immediately outside the machine casing. The -02 suffix specifies the miniature coaxial connector featuring Click-Loc and FluidLoc technology, effectively preventing process fluids from wicking through the cable core. Finally, the -05 suffix denotes Multiple Agency Approvals, certifying the unit for global use in hazardous areas including ATEX, IECEx, and CSA Class I, Division 1 environments.

Performance and Mechanical Data

Field Commissioning and Calibration

Successful deployment of the 330101-00-10-05-02-05 requires precise gapping against a 4140 steel target. Technicians must utilize a digital multimeter to set the Gap Voltage to approximately -10.0 VDC, centering the probe within its 80-mil linear window. During installation, maintain a minimum side-view clearance of 15 mm from any adjacent metallic surfaces to prevent parasitic eddy current interference that could skew vibration readings. For cable management, strictly observe a minimum bend radius of 25.4 mm (1.0 inch). Always verify that the combined electrical length of the probe and extension cable matches the Proximitor’s calibrated length—typically a 5.0m or 9.0m total system—to maintain the accuracy of the 200 mV/mil scale factor.

Machinery Protection Synergy

The 3300 XL 8mm series offers unmatched resilience against the harsh chemicals and high thermal gradients found in modern industrial housings. This probe integrates flawlessly with Honeywell Experion PKS or Siemens SIMATIC S7 architectures via the Bently Nevada 3500/42M monitor, enabling high-resolution orbit plots and shaft centerline diagnostics. Its Polyphenylene Sulfide (PPS) probe tip provides exceptional chemical resistance, while the FEP-jacketed cable prevents moisture ingress. By providing deterministic displacement data, the 330101 series supports API 670 compliant protection strategies, ensuring maximum plant availability and preventing unplanned downtime in offshore platforms and power generation facilities.

Global Logistics and Order Fulfillment

Shipping Schedule: Orders are prepared for worldwide dispatch within 3-5 days when payment finish.

Carrier Partners: We utilize DHL, FEDEX, and UPS for expedited international delivery, offering door-to-door tracking for mission-critical maintenance spares.

Professional Packaging: Every probe is shipped in heavy-duty anti-static industrial packaging with moisture-barrier protection to safeguard the delicate sensing tip and gold-plated connectors.

Condition Guarantee: We supply exclusively New, Sealed, and Original Pack Bently Nevada hardware. Our technical team performs a rigorous serial number verification and visual inspection prior to shipment, ensuring your protection system is ready for immediate on-site commissioning.

Technical Maintenance FAQs

Q1: Can I use this 0.5m probe with a standard 4.5m extension cable?

A1: Yes. This specific combination creates a 5.0-meter system. You must ensure your Proximitor is specifically calibrated for a 5.0-meter total system length to maintain the correct scale factor.

Q2: What is the primary function of the FluidLoc connector (-02)?

A2: The FluidLoc feature uses internal silicone seals to prevent oil, process gas, or moisture from wicking through the cable interior, protecting your junction boxes and instrumentation cabinets from fluid ingress.

Q3: How do I identify a damaged probe at the monitor rack?

A3: A "Channel Not OK" status or a Gap Voltage reading that remains at 0 VDC or -24 VDC usually indicates a short circuit or an open connection in the probe tip or coaxial cable.

Q4: Is this probe compatible with the older 3300 series (non-XL) monitors?

A4: Yes. 3300 XL probes are downward compatible with 3300 series Proximitors. However, we recommend using a 3300 XL Proximitor to achieve the full benefit of improved temperature stability and linear range.
