Product Overview

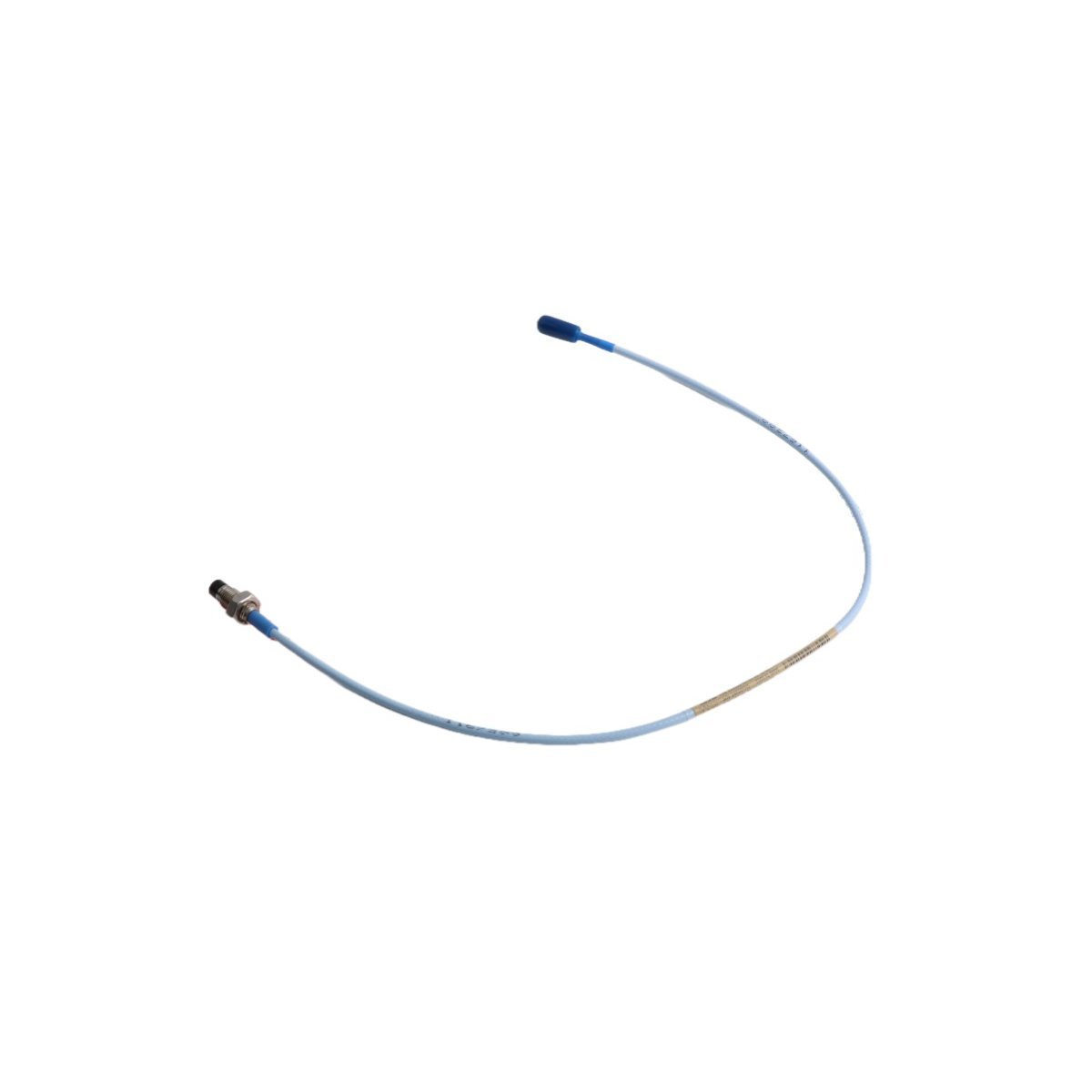

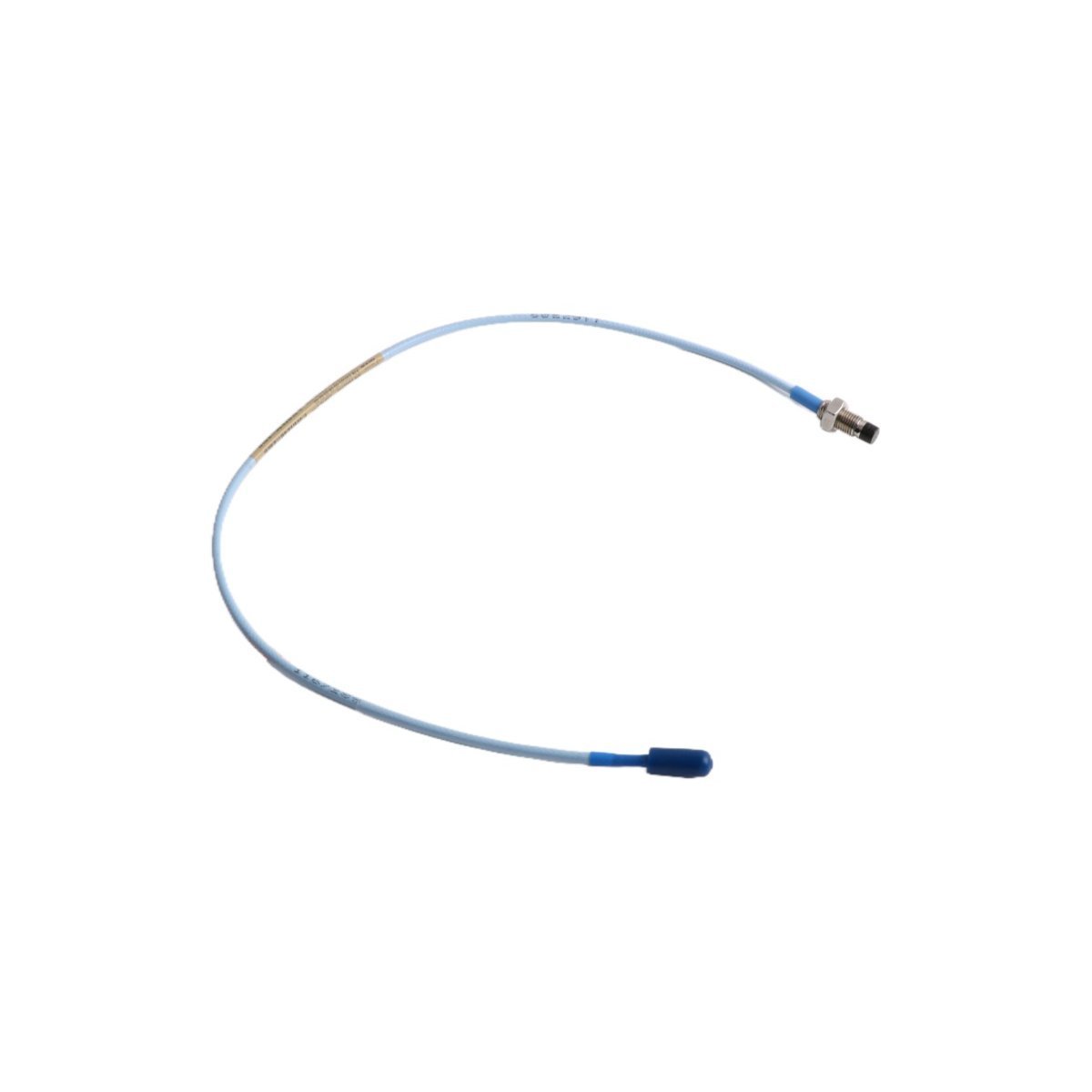

The Bently Nevada 330101-00-08-05-02-00 delivers ultimate machinery protection and diagnostic precision through non-contacting eddy current measurement technology. This 3300 XL 8 mm proximity probe tracks critical shaft dynamics, matching the rigid demands of high-speed steam turbines, centrifugal compressors, and massive industrial pumps. It continuously feeds drift-free analog metrics regarding radial vibration and axial displacement directly into Bently Nevada 3500 monitoring racks or plant-wide Distributed Control Systems (DCS). Operating as a rugged front-line sensor node within automated Emergency Shutdown (ESD) control loops, this device captures sub-micron structural anomalies early. Implementing this probe within your machinery asset architecture reduces unexpected mechanical breakdowns, secures capital infrastructure investment, and ensures production stability in heavy process environments.

Suffix Option Architecture

Bently Nevada utilizes an organized alphanumeric suffix matrix to specify the exact mechanical profile, case sizing, cable geometry, and certification path of this 3300 XL assembly.

330101 Base Model Code

This string establishes the sensor layout as a standard-mount 3300 XL 8 mm proximity probe incorporating standard 3/8-24 UNF structural casing threads.

Unthreaded Length Identifier (-00)

The 00 suffix dictates a 0.0-inch unthreaded length, which means the mounting threads cover the entire case body to provide complete mechanical depth adjustment options during bracket positioning.

Overall Case Depth Specification (-08)

The 08 option defines a 0.8-inch overall case length, establishing a highly compact mechanical footprint ideal for standard, low-clearance industrial bearing housing covers.

Integrated Coaxial Cable Length (-05)

The 05 suffix indicates a 0.5-meter (1.6 feet) total integrated probe cable length, terminating in a low-loss miniature coaxial connector interface.

Conduit Protection Option (-02)

The 02 option adds a flexible stainless steel armor layer over the extension line, shielding the underlying transmission core from sharp metallic debris, tool scrapes, and hot oil sprays.

Agency Safety Certification (-00)

The 00 designator represents the standard construction without specialized regional hazardous area markings, utilizing the underlying electrical isolation architecture of the standard 3300 XL line.

Physical and Mechanical Operational Parameters

Field Commissioning and Mechanical Alignment

Precise mechanical gapping directly dictates the accuracy of your dynamic vibration loop. Field technicians must monitor the raw DC gap voltage across the Proximitor Sensor terminals using a high-impedance digital multimeter during physical assembly. Advance the threaded probe body into the mounting bracket until the multimeter registers exactly -10.0 VDC, confirming the target shaft face rests in the center of the probe tip's linear calibration range.

Observe rigid routing guidelines to protect the armored cable from internal coaxial kinks. The flexible stainless steel armor conduit requires a minimum physical bend radius of 25.4 mm (1.0 inch). Technicians must contain all miniature coaxial connector joints inside dedicated, sealed terminal junction boxes to prevent fluid contamination and eliminate electromagnetic noise. Ensure the probe case remains electrically isolated from the local machine casing, grounding the shield drain wire exclusively at the 3500 monitoring rack chassis ground terminal strip.

Harsh Environment Survivability

This 3300 XL proximity sensor withstands the punishing conditions of heavy industrial processing, including extreme thermal cycling, heavy casing vibration, and continuous oil submersion inside turbine housings. It integrates natively into comprehensive Turbine Supervisory Instrumentation (TSI) upgrades. The low-impedance analog output signal travels across long distances without degradation, interfacing cleanly with modern process control engines like Honeywell Experion PKS or Siemens S7 PLC architectures to feed plant asset management software with clean dynamic data for real-time diagnostic plotting.

Procurement Inventory and Box Contents

Every ordered procurement kit includes the essential hardware components required for rapid field deployment. The original factory carton contains:

(1) New Bently Nevada 330101-00-08-05-02-00 8 mm proximity probe with an integrated 0.5-meter armored cable.

(2) Factory-milled locknuts to secure the final mechanical depth position against intense machinery vibration.

(3) Transparent connector insulation sleeves to isolate the miniature coaxial mating point from moisture.

(4) Complete material traceability records along with the original manufacturer linear calibration datasheet.

Supply Chain Logistics and Secure Transit

Our global distribution framework prioritizes fast, secure transit to your industrial facility.

Logistics Dispatch Window

Your consignment ships out within 2-7 days when payment finish, relying on elite global courier providers such as DHL, FEDEX, or UPS to secure automated tracking and rapid international customs processing.

Protective Warehousing Protocols

We pack all industrial infrastructure elements within specialized anti-static industrial packaging and high-density foam stabilization blocks, neutralizing physical impact forces and electrostatic hazards encountered during over-the-road or air freight transit.

Field Engineering Diagnostics FAQ

Q1: What does the -08 suffix indicate regarding the probe structure?

A1: The -08 suffix designates a compact 0.8-inch total case length. This shorter body profile allows the probe to install smoothly inside shallow spaces or low-clearance bearing caps where a longer probe body would stick out too far.

Q2: Can I run this 0.5-meter probe without adding an extension cable?

A2: No, you must use an extension cable. Standard 3300 XL Proximitor Sensors require a total matched loop length of either 5.0 meters or 9.0 meters. Since this integrated probe cable measures 0.5 meters, you must attach a 4.5-meter or 8.5-meter extension cable to complete the loop circuit and keep the calibrated 200 mV/mil scale factor accurate.

Q3: How do I choose the correct payment method for international procurement?

A3: We accept verified commercial telegraphic wire transfers (T/T), standard proforma invoicing, and secure corporate credit accounts to expedite the financial clearance phase for international engineering procurement.

Q4: What does a steady DC gap voltage reading of -1.5 VDC tell the maintenance team?

A4: A reading of -1.5 VDC indicates that the probe tip is positioned dangerously close to the shaft surface, placing it outside the linear calibration zone. The Bently Nevada 3500 monitor rack will display a "Not OK" status fault and disable channel trip logic to prevent accidental machine trips until you adjust the physical gap back to -10.0 VDC.
