Product Overview

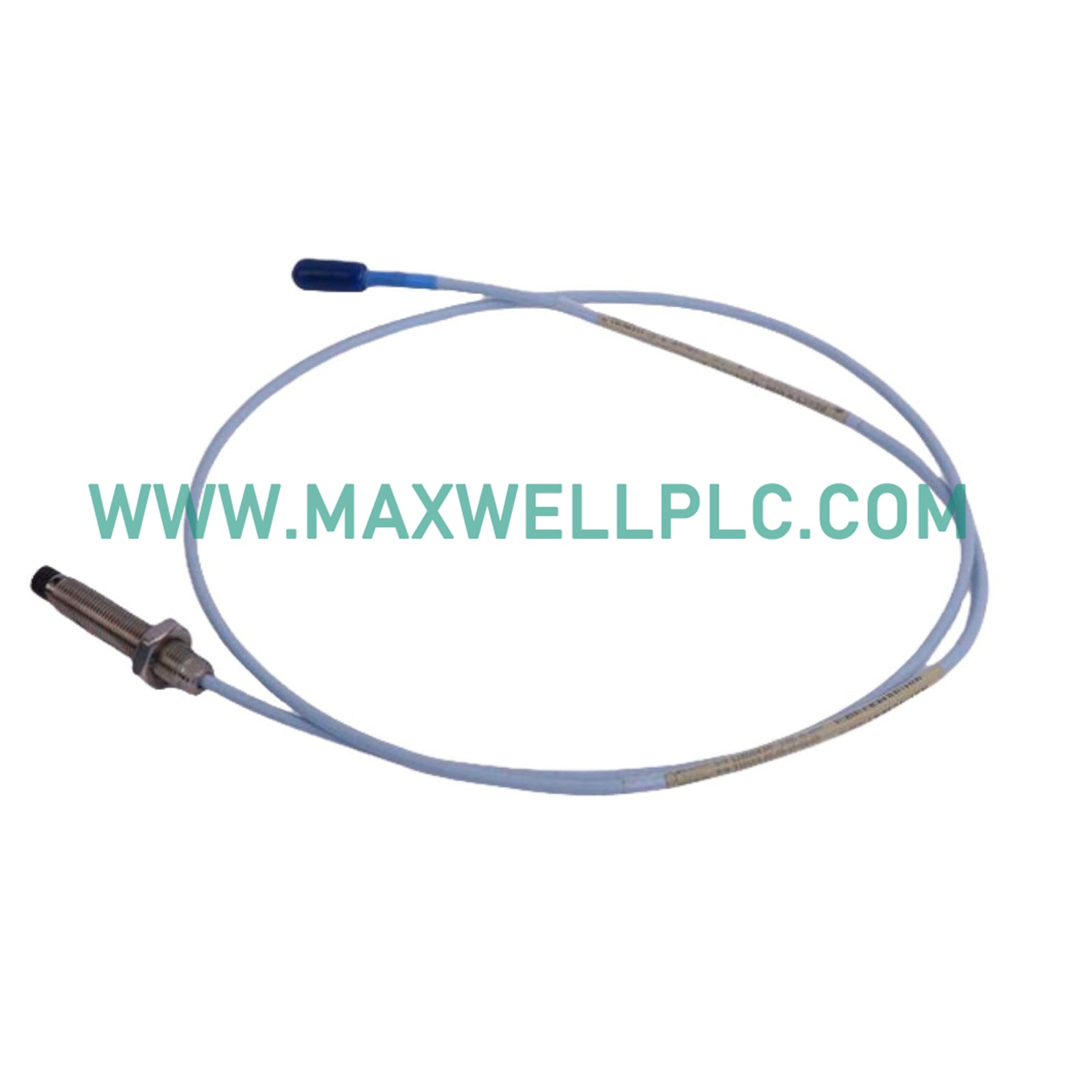

The Bently Nevada 3309330-060-04-05 serves as a precision-engineered NSv extension cable designed for demanding industrial vibration monitoring applications. This cable is specifically optimized for use in tight installation spaces where standard transducer components cannot be accommodated. It provides a reliable interconnect between the proximity probe and the Proximitor sensor, ensuring high-fidelity signal transmission with an average scale factor of 7.87 V/mm (200 mV/mil). As an engineered replacement for legacy 3300 RAM, 3000-series, and 7000-series 190 transducer systems, this cable maintains strict impedance matching to uphold the accuracy of critical machine protection loops in turbine and compressor monitoring.

Core Technical Architecture

• 3309330: Base part number for the 3300 NSv Extension Cable
• 060: Cable length configuration (6.0 meters)
• 04: Connector option (Connector with standard protector)
• 05: Agency approval (Multiple international standards compliance)
• Compatibility: Designed for NSv Proximity Transducer Systems, providing a direct upgrade path for legacy Bently Nevada instrumentation.

Hardware Technical Specifications

Precision Mounting & Installation Protocols

• Verify the coaxial cable routing path to avoid sharp bends that exceed the minimum bend radius, as this can degrade the internal shielding and introduce noise.
• Ensure all connector interfaces are clean and free of moisture or oil before mating to prevent signal attenuation and oxidation.
• Utilize the included connector protectors to seal the junction against environmental contaminants in harsh industrial turbine environments.
• Check that the cable is secured with appropriate strain relief clamps to prevent vibration-induced movement at the terminal junction.
• Confirm that the Proximitor and probe have been calibrated for the specific 6.0 meter cable length to ensure accurate system-wide voltage scaling.

Engineering Advantages

The NSv (Near-field) technology integrated into this cable architecture allows for reliable signal acquisition in small-clearance applications where conventional probes fail. Its robust construction ensures consistent performance in high-EMI environments, maintaining signal integrity from the machine housing to the control rack. By consolidating legacy 3000 and 7000-series systems into this modern 3300 NSv standard, users achieve better diagnostic granularity and simplified inventory management while preserving the stringent safety requirements of turbine supervisory instrumentation.

Ordering info

(1) 3309330-060-04-05 NSv Extension Cable

(2) Connector protector sleeve

(3) Installation reference guide

(4) Compliance certification document

Logistics & Handling

Delivery time: 3-5 days after confirmed payment receipt.

Shipping methods: DHL, FEDEX, or UPS courier services.

Packaging standards: Each extension cable is individually wrapped in high-grade anti-static industrial packaging to prevent damage from static discharge during transit and storage.

Technical FAQs

Q1: Why is this cable required to replace 3000-series systems?

A1: The 3300 NSv system offers improved linearity and noise rejection compared to legacy 3000/7000-series components, providing more reliable data for modern monitoring hardware.

Q2: Can I cut or extend this 6.0 meter cable?

A2: No. The extension cable is a calibrated component of the transducer system. Altering the length will change the system impedance and invalidate the factory-specified scale factor.

Q3: Does this cable require special grounding?

A3: The cable shield should be grounded through the probe or Proximitor housing. Ensure all mounting points have a low-impedance path to the machine frame.

Q4: What happens if the connector protector is missing?

A4: Without the protector, moisture or oil can ingress into the coaxial connection, causing significant signal drift, erratic monitoring values, or complete system failure.

Q5: Is this system compatible with 3500-series monitoring racks?

A5: Yes, the 3300 NSv system is fully compatible with standard Bently Nevada 3500-series monitoring racks when paired with the appropriate I/O cards.
