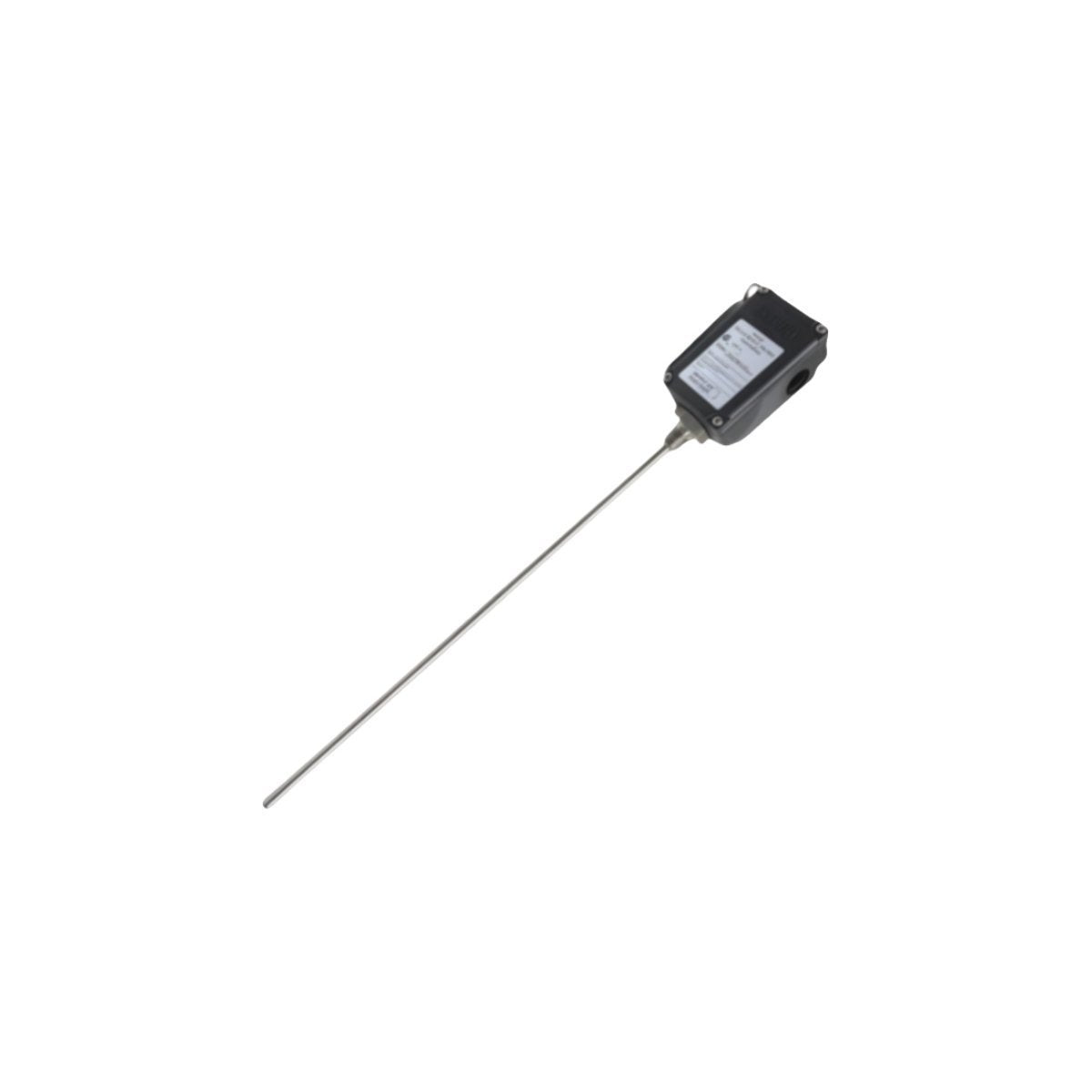

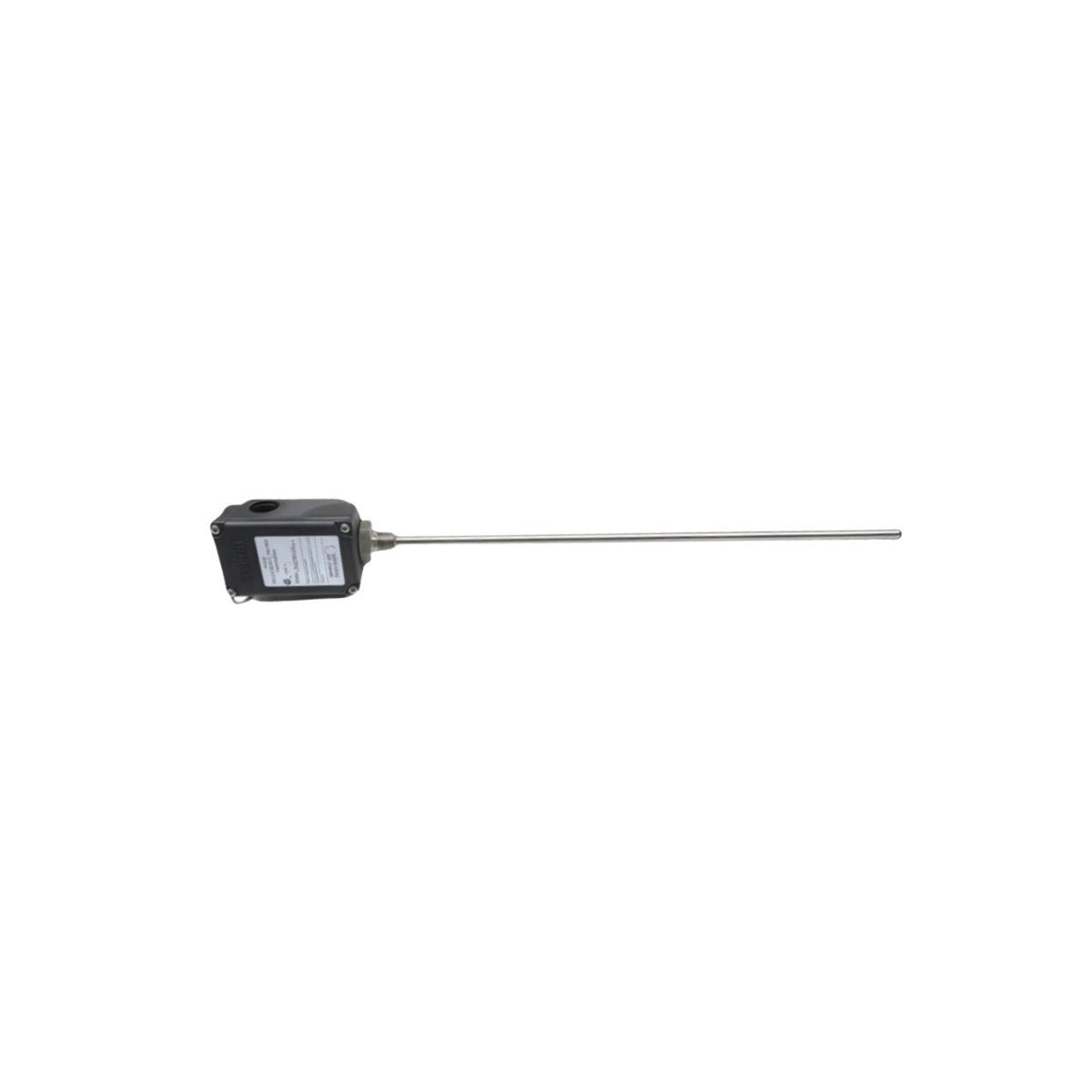

The Bently Nevada 32000-16-05-08-070-03-02 serves as the primary 32000 Proximity Probe Housing Assembly utilized to execute mechanical encapsulation and external positioning across 3300 XL Series platforms. This hardware configuration functions as a sealed environmental shield for an internal proximity sensor tracking dynamic shaft radial vibration or Keyphasor phase reference measurements. It enables physical access to the probe barrel and extension cable connection point from outside the machine case, allowing calibration or probe replacement tasks to proceed without exposing or disabling the internal machine case boundary elements.

Technical Suffix Selection Analysis

• 32000: Metric Proximity Probe Housing Assembly Base

• -16: 3300 XL 8 mm proximity probe installation

• -05: 0.5 m (20 in) integrated sensor cable length

• -08: 80 mm standoff adapter length configuration

• -070: 70 mm internal probe sleeve penetration depth

• -03: Two plugs, one M20 conduit fitting, and one armored cable seal grip with matching internal grommets

• -02: 3/4-14 NPT outer sleeve process mounting thread configuration

Physical Hardware Parameters

Rotor Dynamics and Gap Voltage Validation

This metric housing assembly provides rigid physical reinforcement to preserve sensor positioning accuracy under extreme rotor dynamics and casing acceleration profiles. The conductive-fiber infused glass-reinforced PPS main body controls mechanical high-frequency sleeve vibration that could induce measurement error into the transducer loop. Maintaining co-axial alignment over the metric M10 X 1 probe thread helps prevent drift in the eddy-current probe scaling metrics over time. This architectural rigidity secures a stable field trajectory for the RF signal, verifying precise gap voltage validation within the standard -10 VDC target zone for radial tracking loops.

Component Maintenance Diagnostics

Q: How can field technicians execute gap voltage validation without breaching the machine casing?

A: Unfasten the captive screws on the housing cover to expose the internal extension cable connection. A high-impedance digital multimeter can be connected directly across the raw signal pins to check the -10 VDC target midpoint without introducing a vacuum or pressure leak to the engine case.

Q: Is this modular plastic housing rated to contain internal explosion pressures?

A: No. The housing assembly is engineered to provide environmental protection matching NEMA 4X and IP66 water ingress specifications only. It is not an explosion-proof assembly. For explosive gas atmospheres requiring an explosion-proof design, use alternative housings CA21000 or CA24701.

Q: What structural limits apply when the metric option dimensions are extended?

A: When combined standoff adapter length and probe penetration depth total dimensions surpass 305 mm (12 in), structural resonance risks arise inside the sleeve assembly. This condition requires an independent external probe support or oil seal assembly (part number 37948-01) to eliminate vibration feedback to the sensor tip.

Field Assembly Procedures

• Process Thread Interfacing: Thread the AISI 303 stainless steel outer sleeve into the machine case port. Verify that the machine casing is fully secured to the bearing liner to block relative movement discrepancies. Ensure a minimum of 5 full thread engagements into the NPT entry.

• Retaining Nut Tightening: Slide the internal probe sleeve through the outer mounting assembly and position the probe face at the correct mechanical gap distance. Position the retainer plate beneath the primary retaining nut and torque the nut to exactly 29.4 N-m (260 in-lb).

• Conduit and Port Sealing: Attach the M20 conduit fitting to the cable routing lines. Insert the supplied metal blanking plugs into all unused entry ports on the plastic base shell, and torque the plug clamping nuts to 0.5 N-m (5 in-lb) to block entry of particulate matter.

Shipping Kit Matrix

• 1 x Bently Nevada 32000 Conductive PPS Main Terminal Housing

• 1 x Pre-Installed 3300 XL 8 mm Reverse Mount Proximity Probe (0.5 m Lead)

• 1 x Metric Standoff Adapter & Probe Sleeve Sub-Assembly

• 2 x Threaded Sealing Plugs with Washers

• 1 x M20 Conduit Fitting and Armored Cable Seal Gland Assembly

Supply Logistics Profile

Delivery time: 2-7 days when payment finish verification is achieved by the warehouse team. Shipment processing proceeds through global express networks including DHL, FEDEX, or UPS. Components are locked within customized anti-static industrial packaging sheets containing high-density contour protection blocks to preserve all threaded connections, internal seals, and fiber configurations from structural damage during transit.
