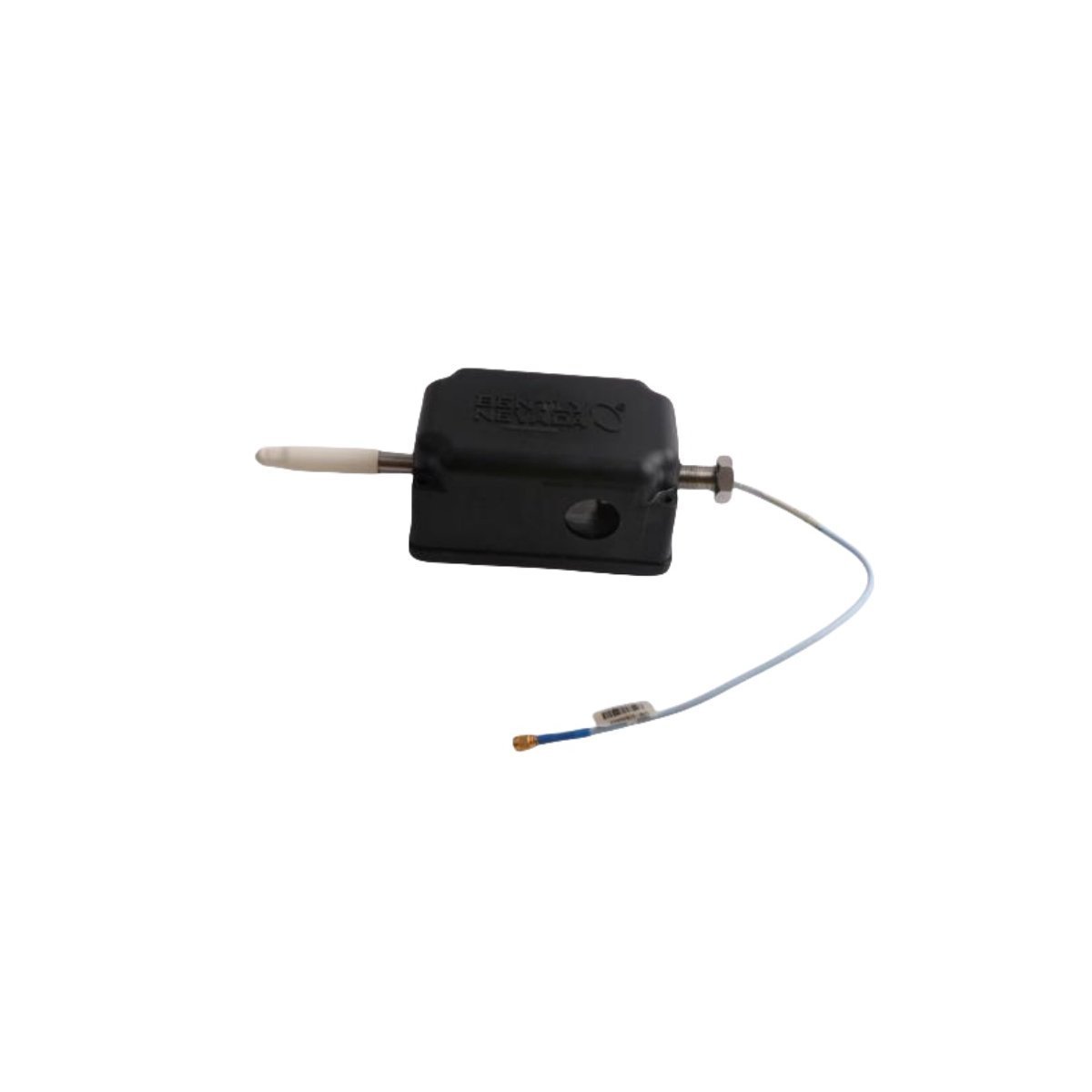

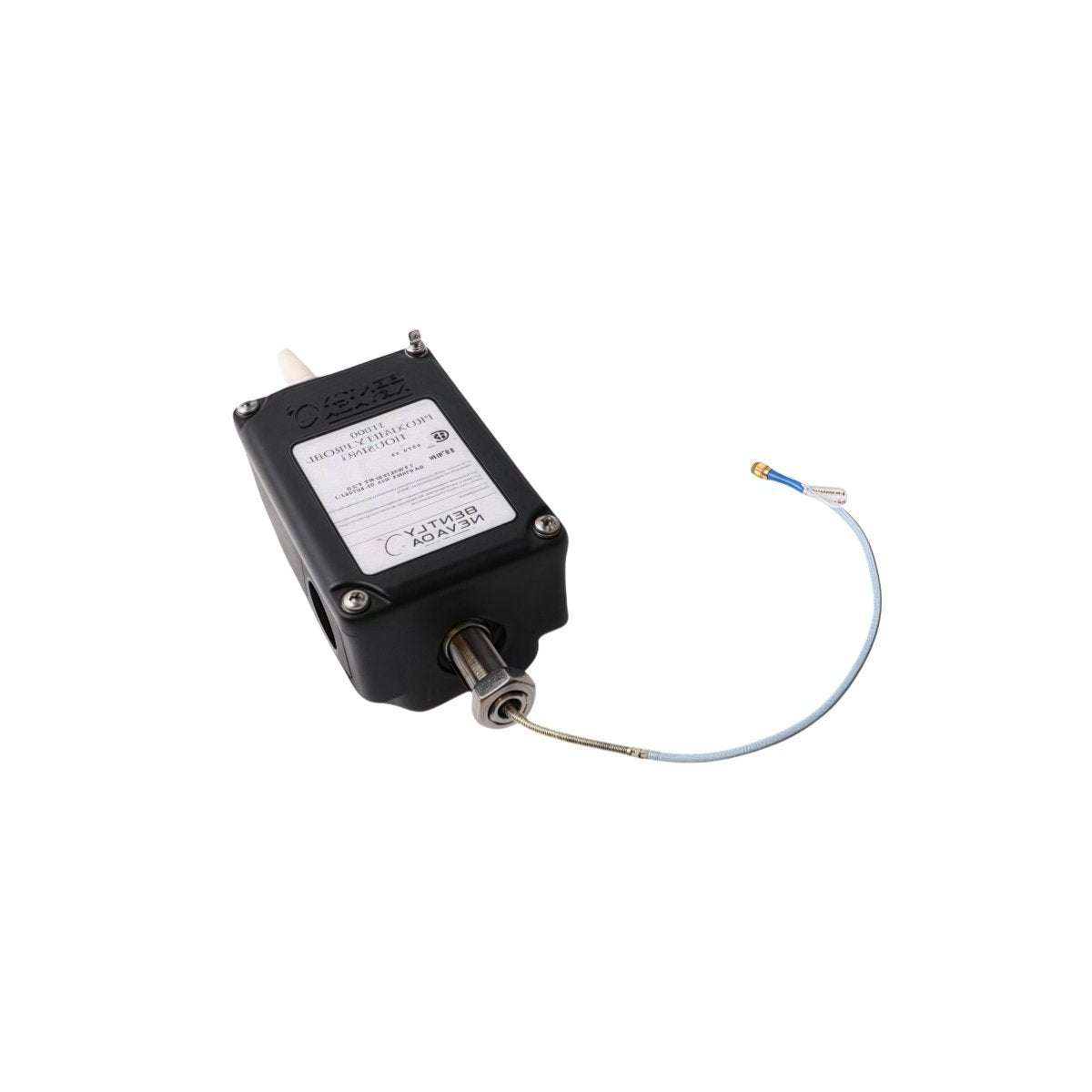

The Bently Nevada 31000-30-05-40-14-03-02, also cataloged as the 31000 Proximity Probe Housing, operates as a dedicated hardware component for external mounting and environmental protection of proximity transducers within 3300 or 7200 proximity probe systems. This explosion-proof housing assembly allows external adjustment of the internal proximity probe mechanical gap relative to the rotating shaft target without requiring dismantling of the machinery casing.

Physical & Environmental Specifications

Gap Voltage Validation & Rotor Dynamics Protection

The physical positioning established by the 31000-30-05-40-14-03-02 assembly directly affects the accuracy of eddy-current probe scaling used to measure rotor dynamics. Correct locknut torque parameters maintain stable mechanical placement, ensuring a reliable gap voltage validation target of -10 VDC at the physical geometric center of the sensor sweep. The metallic enclosure provides complete cross-talk suppression against neighboring electromagnetic interference fields, protecting raw high-frequency displacement signaling pathways from external signal degradation.

Infrastructure Design Questions

Q: How is the physical gap voltage validation (-10 VDC target) set when using this housing?

A: The internal sleeve is advanced or retracted using the external adjustment thread. While monitoring the Proximitor sensor output via a digital multimeter, the probe is positioned until the target voltage stabilizes at the center of its linear scale.

Q: Does the replacement or removal of this housing compromise active monitoring loops?

A: Adjusting the external housing positions changes the physical distance between the probe and target. This action shifts the DC bias voltage and will affect active monitor calibration readings unless the sensor loop is bypassed first.

Q: What environmental mechanisms protect the internal extension cable interfaces inside the unit?

A: The body features NPT threaded interface ports designed to accept liquid-tight conduit couplers, isolating internal coaxial connection joints from moisture, process oil paths, and airborne contamination.

Mechanical Installation Steps

• Verify that all matching threads conform to standard NPT engagement specifications (minimum 5 full thread turns) before applying pressure during assembly.

• Coat the external mounting threads with a thin film of conductive, high-temperature anti-seize compound to prevent binding or thread galling within the machine casing port.

• Check that the internal probe lead does not twist or bind when rotating the adjustment sleeve into position.

• Tighten the primary locknut assembly to the specified torque limits to verify that long-term machine structural vibration will not alter the established sensor position.

Standard Logistics Items

• 1 x Bently Nevada 31000 Series Proximity Probe Housing

• 1 x Internal Adjustment Sleeve Kit

• 2 x Neoprene Sealing O-Rings

Freight Operations & Packaging Standards

Delivery time: 2-7 days when payment finish verification is complete, handled via global transportation networks including DHL, FEDEX, or UPS. The component is sealed within robust anti-static industrial packaging and surrounded by specialized high-density impact insulation to avoid physical deformation or electrical damage during transit phases.
