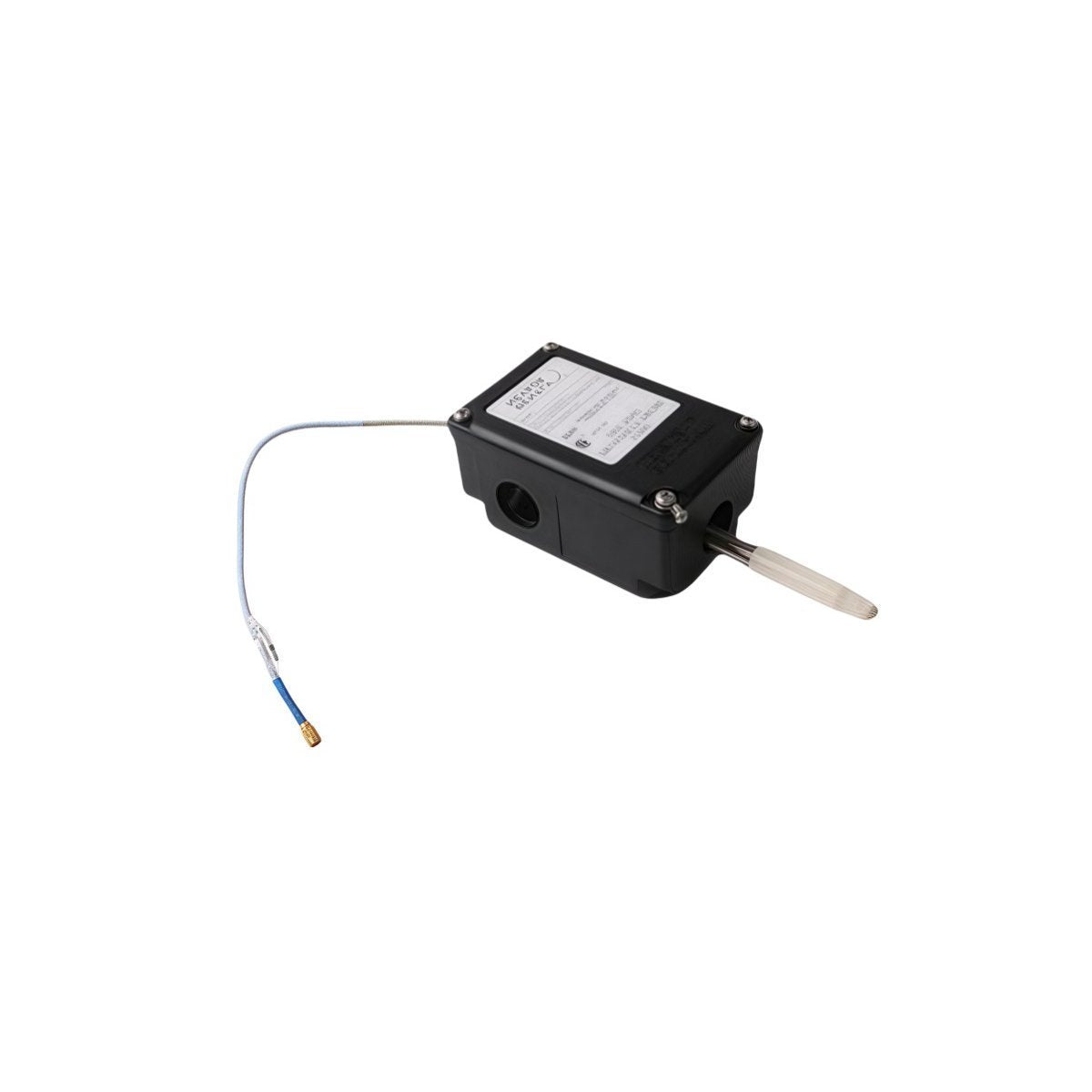

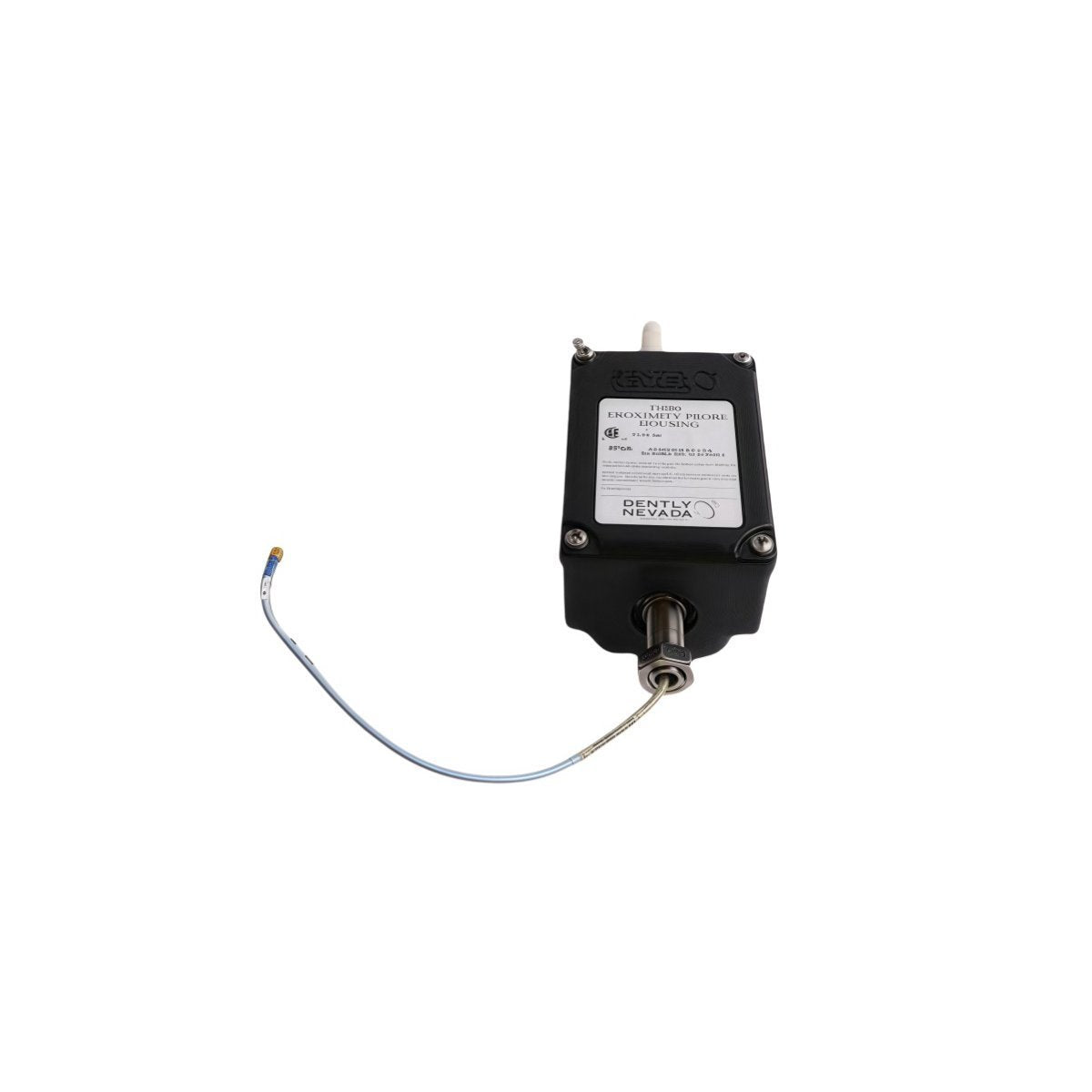

Configured for mechanical encapsulation and positioning in Machinery Protection Systems, the Bently Nevada 31000-30-05-15-049-03-02 (31000 Proximity Probe Housing Assembly) provides direct physical/electrical execution. This externally accessible housing acts as a sealed deployment sleeve for an internal proximity transducer tracking shaft radial vibration or Keyphasor measurements. It permits precise mechanical gap modification and sensor extraction without requiring the breakdown or disassembly of the main machine casing boundary. The system achieves full compliance with the American Petroleum Institute (API) 670 Standard requirements for externally mounted proximity probe housings.

Suffix Component Identification Matrix

• 31000: Base English Proximity Probe Housing Assembly

• -30: 3300 XL 8 mm probe with connector protector, multiple approvals

• -05: 0.5 m (20 in) probe cable length

• -15: 1.5 in (38 mm) standoff adapter length

• -049: 4.9 in probe penetration depth

• -03: Two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT SST reducer, and one cable seal grip with grommets

• -02: 3/4-14 NPT outer sleeve mounting thread configuration

Technical Parameters

Rotor Dynamics and Cross-Talk Suppression Matrix

The structural integration of glass-reinforced Polyphenylene Sulfide (PPS) infused with conductive fibers acts as a rigid, low-resonance chassis for the transducer system. When tracking severe rotor dynamics or high-frequency fluid film bearing instabilities, the housing suppresses mechanical sleeve resonance that could skew the dynamic measurement path. Maintaining strict coaxial alignment over the 3/8-24 UNF sensor barrel stabilizes eddy-current probe scaling metrics across the full operating temperature band. Furthermore, when orthogonal radial probes are deployed in close proximity, the grounded stainless steel sleeve elements augment cross-talk suppression. This layout prevents electromagnetic field overlapping, protecting the integrity of the loop signal to ensure clean gap voltage validation within the standard -10 VDC target boundaries.

Technical Support Diagnostics

Q: How is the static gap voltage validation checked without dismantling the environmental housing?

A: The housing design permits external access via the top cover. While the machine casing remains pressurized or running, the technician can unfasten the captive screws, expose the extension cable connector, and attach a high-impedance digital multimeter to confirm the -10 VDC target midpoint.

Q: Can this housing configuration isolate internal machine casing pressures?

A: No. The internal Viton and Neoprene O-rings are designed to seal differential pressure between the probe tip and the housing main body to block water or oil mist migration. The plastic outer housing is certified to resist hose-directed water under NEMA 4X and IP66 parameters, but it is not rated to contain high internal pressure or explosion-induced gas expansions.

Q: What physical damage occurs if the probe sleeve is operated without supplementary structural support?

A: For options where the combined standoff length and probe penetration exceed 12 inches (305 mm), structural sleeve resonance can occur during high-velocity machine operation. This oscillation changes the relative distance to the target shaft, altering eddy-current probe scaling and adding false vibration signatures to the monitor module.

Field Installation Guidelines

• Outer Sleeve Interfacing: Insert the AISI 303 outer sleeve into the machine casing port tapping. Ensure the casing is fixed directly to the bearing housing to filter out relative motion errors. Engage at least 5 clean threads to secure the mechanical path.

• Locking Torque Execution: Thread the probe sleeve to the determined penetration depth until the live monitor indicates the required center gap voltage. Tighten the primary outer sleeve retaining nut to a terminal torque value of 29.4 N-m (260 in-lb).

• Terminal Environmental Sealing: Connect the conduit lines via the 3/4-14 NPT entry points. Fit the supplied blanking plugs into all unused ports on the housing perimeter, and secure the hole plug nuts to 0.5 N-m (5 in-lb) to seal against moisture and dust ingress.

Component Kit Contents

• 1 x Bently Nevada 31000 Thermoplastic Housing with Captive-Screw Cover

• 1 x Pre-Assembled 3300 XL 8 mm Reverse Mount Proximity Sensor (0.5 m Tail Cable)

• 1 x Integrated Connector Protector Kit

• 1 x 1.5-inch Standoff Adaptor and Sleeve Sub-Assembly

• 1 x Heavy-Duty Fitting Pack (2 x Plugs, 1 x NPT Fitting, 1 x SST Reducer, 1 x Cable Seal Grip)
