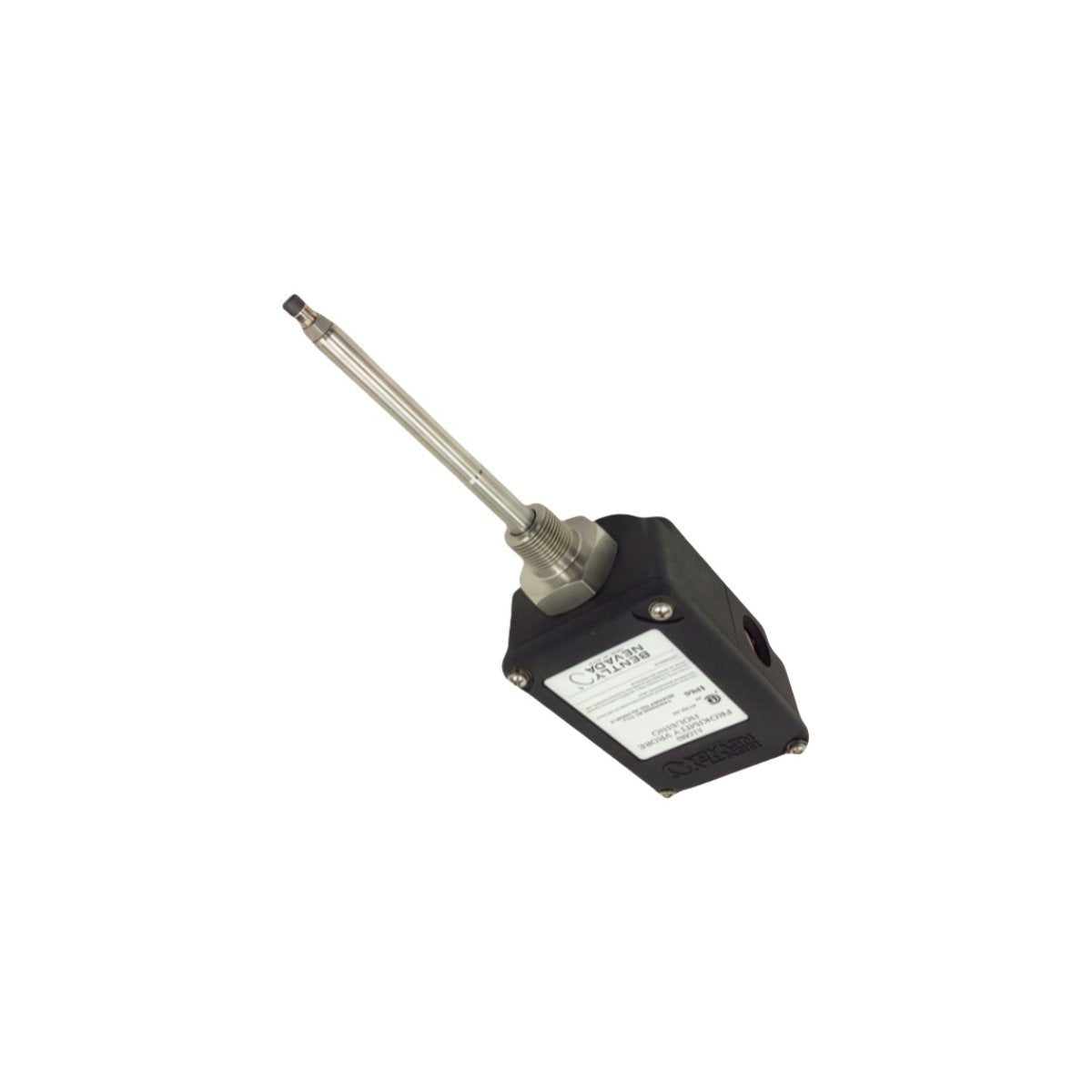

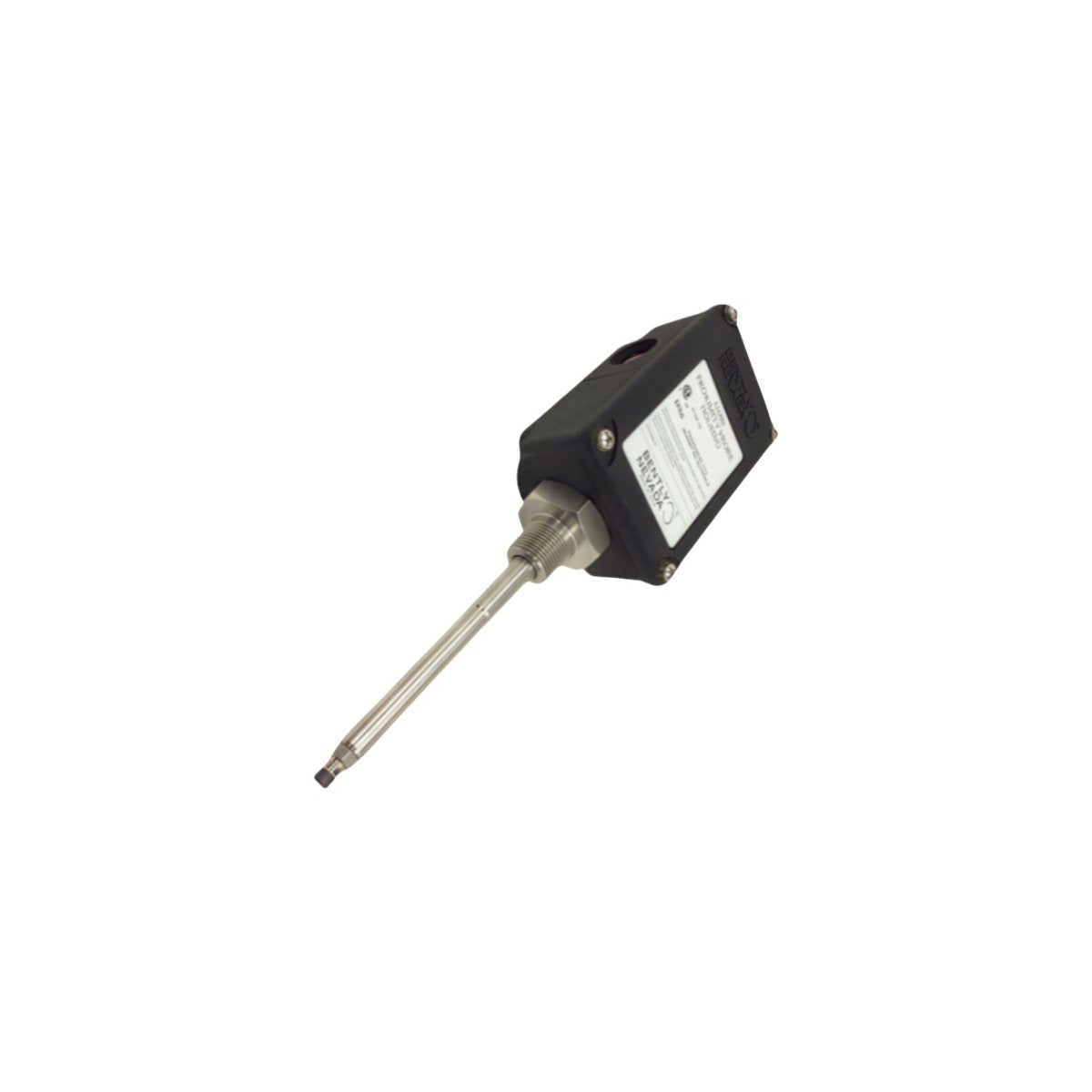

Configured for external mounting and environmental protection of proximity transducers within 3300 or 7200 proximity probe systems, the Bently Nevada 31000-28-10-00-114-03-02 (31000 Proximity Probe Housing) provides direct physical/electrical execution. This specialized explosion-proof enclosure permits precise external adjustment of the internal proximity probe mechanical gap relative to the target shaft without breaching the machinery casing or interrupting machine operations.

Mechanical Configuration

Gap Voltage Validation & Rotor Dynamics Integration

The mechanical alignment achieved by the 31000-28-10-00-114-03-02 assembly directly maintains the exact eddy-current probe scaling required for flawless rotor dynamics analysis. Mechanical adjustments lock the probe position to maintain a gap voltage validation target of -10 VDC at the physical center of the linear calibration sweep. The heavy-duty metallic construction acts as an unyielding barrier for cross-talk suppression, preventing adjacent high-frequency electromagnetic fields from corrupting the raw transducer signal paths.

Technical Infrastructure Q&A

Q: How is the physical gap voltage validation (-10 VDC target) verified through this housing?

A: The external adjustment sleeve is rotated to thread the internal probe closer to or further from the target shaft. An engineer monitors the output via a digital multimeter connected to the Proximitor sensor until the -10 VDC nominal baseline is locked.

Q: Does adjusting the sleeve under power disrupt active machinery protection loops?

A: Altering the probe position changes the physical gap and the corresponding DC bias voltage. This will modify active monitoring values and can trigger false alerts unless the monitoring channel is bypassed prior to adjustment.

Q: What environmental seals isolate the internal coaxial connection joints?

A: The assembly incorporates NPT threaded entry ports designed for liquid-tight conduit links, sealing the internal extension cable connections against moisture, splash oils, and ambient industrial contaminants.

Mechanical Installation Steps

• Ensure the housing threads match the machine casing port exactly and confirm a minimum of 5 full thread turns of NPT engagement before tightening.

• Apply a thin layer of high-temperature anti-seize compound to the external casing threads to prevent long-term binding or thread galling.

• Carefully track the internal probe extension lead during sleeve rotation to prevent cable twisting, binding, or physical insulation shear.

• Torque the primary outer locknut assembly to factory specifications to ensure industrial machine vibrations do not alter the verified probe gap over time.

Kit Manifest

• 1 x Bently Nevada 31000 Series Proximity Probe Housing

• 1 x Internal Adjustment Sleeve Assembly

• 1 x Industrial O-Ring Seal Set
