Product Overview

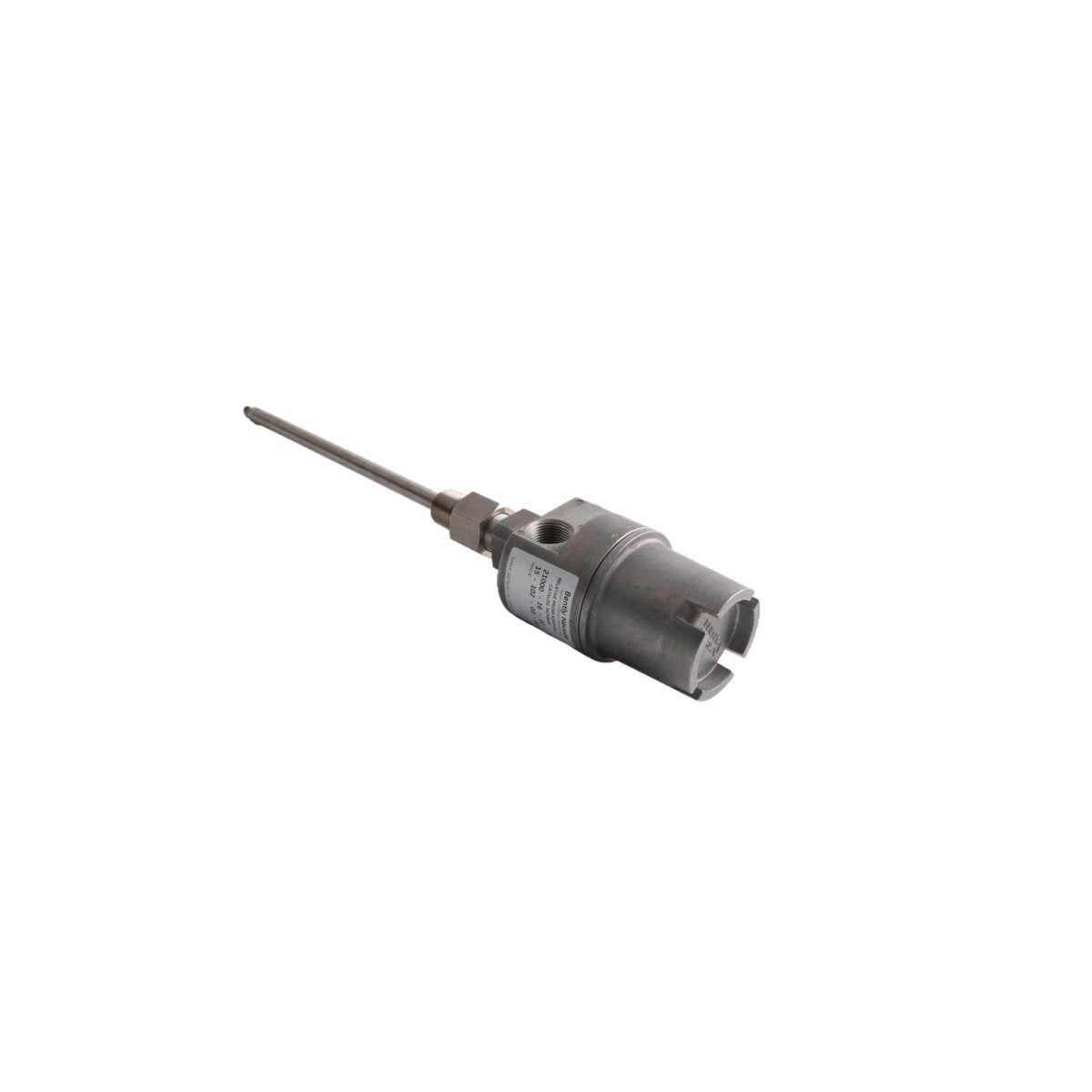

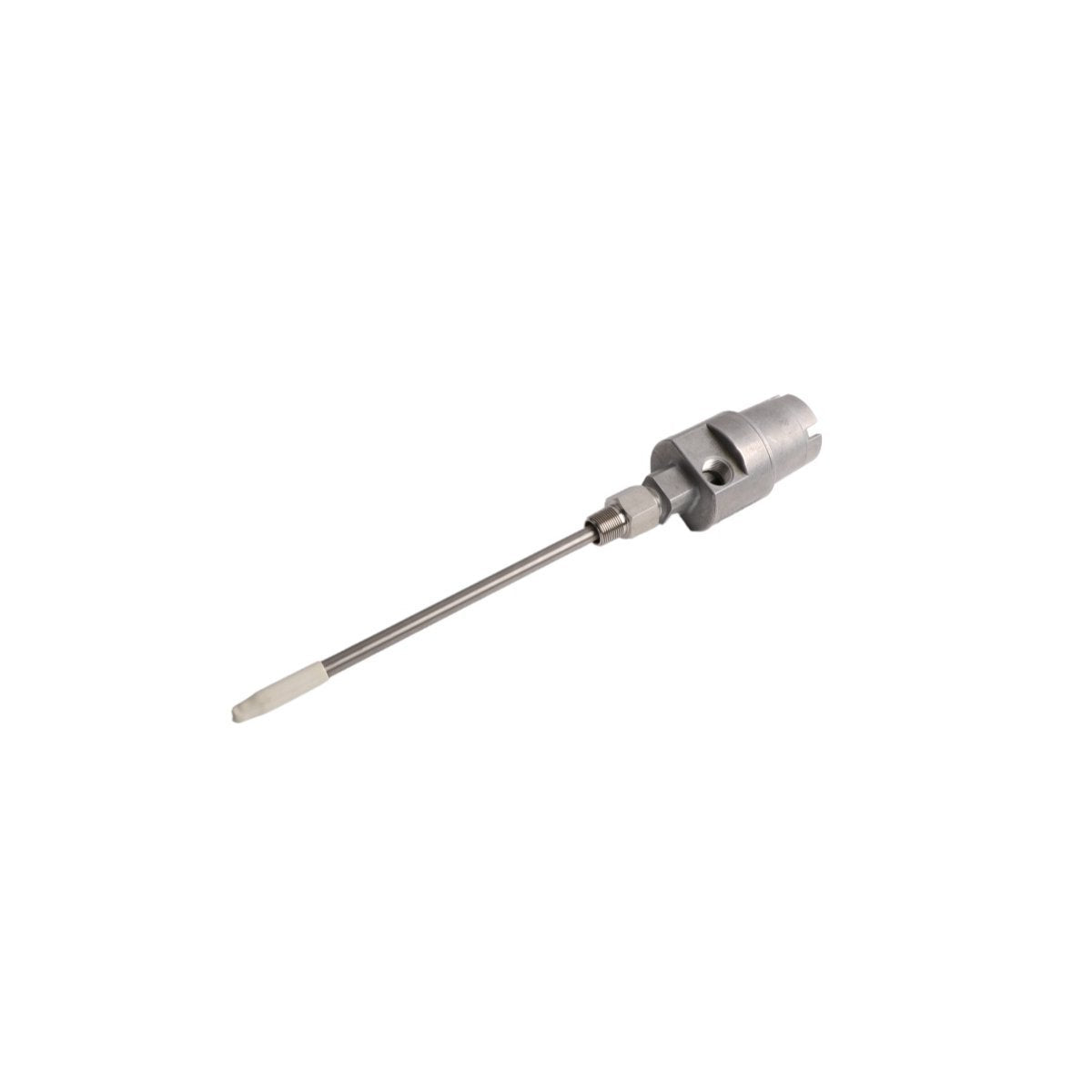

The Bently Nevada 21000-28-05-35-020-04-02 Proximity Probe Housing Assembly delivers premium physical defense and explosion-proof containment for high-precision eddy current transducers. Reliability and maintenance engineers install this externally adjustable housing directly onto critical rotating machinery assets, including high-pressure gas compressors, steam turbines, and large industrial induction motors. The structural design allows operators to calibrate or replace internal proximity probes from outside the machine casing, bypassing the need to drain lubricating oil sumps or halt live plant production. By isolating sensitive sensor elements from volatile fluids, high temperatures, and aggressive chemical washes, the housing guarantees uncompromised vibration and thrust position telemetry. It streams real-time shaft dynamics directly to central Bently Nevada 3500 protection racks, avoiding critical machine failures and reinforcing total plant operational security.

Configuration Variant Matrix Breakdown

This specific model string defines a precise combination of engineering dimensions, mounting options, and hazardous area certifications tailored for heavy industrial infrastructure.

28 — Transducer Compatibility Selection

This option configures the internal sleeve mechanism to receive and perfectly house a standard 1.0-meter length probe assembly, ensuring clean cable management inside the enclosure head.

05 — Swivel Fitting Configuration

The 05 suffix designates a specialized straight-thread swivel coupling made of heavy-duty stainless steel, which allows operators to rotate the housing body independently without twisting or straining the internal transducer cable.

35 — Mechanical Sleeve Length

This numerical identifier specifies a 3.5-inch total sleeve length, determining the structural reach required to bridge the distance between the external mounting bracket and the machine's internal bearing shell.

020 — Probe Penetration Range

The 020 code fixes the precise penetration depth configuration, enabling the proximity probe tip to extend accurately into the machine casing to achieve an optimal sensing gap relative to the target shaft.

04 — Global Explosion-Proof Certification

This suffix establishes extensive international explosion-proof and flameproof ratings, satisfying strict ATEX, IECEx, and Class I Division 1 hazardous area standards for volatile hydrocarbon and chemical processing facilities.

02 — Cable Conduit Port Entry

The 02 selection provides a standard 3/4-14 NPT threaded conduit connection port, facilitating solid, moisture-proof coupling to heavy-duty shielded cable conduit runs used in petrochemical processing zones.

Dimensional and Transducer System Specifications

Mechanical Commissioning and Probe Gapping

Mount the 21000-28-05-35-020-04-02 housing directly onto the machine casing interface, ensuring the Viton seal seats flatly to block high-velocity lubricating oil leaks. Connect a digital voltmeter to the proximal sensor lead wires to observe active gap measurements throughout the adjustment sequence.

Advance the probe sleeve downward through the casing port until the voltmeter registers exactly -10.0V DC, confirming the probe tip occupies the precise center of the linear calibration envelope for standard 8mm eddy current sensors. Maintain a loose layout for the internal coaxial cable, avoiding any bends tighter than a 30mm minimum radius inside the terminal cap. Tighten the exterior locknut assembly to 25 Nm to freeze the sleeve insertion depth, ensuring the sensor resists micro-movements caused by high-frequency machinery harmonics.

Structural Hardening and System Integration

The 21000-28-05-35-020-04-02 housing architecture exhibits outstanding survivability, functioning without degradation on turbine decks that experience intense mechanical vibrations and severe ambient thermal variations. The solid stainless steel armor bars moisture condensation, abrasive dust particles, and corrosive gases like hydrogen sulfide (H2S) from entering the terminal head or fouling the signal pins.

This mechanical interface integrates seamlessly with 3300 XL Proximitor systems and feeds raw metrics to Bently Nevada 3500 monitors or Honeywell Experion PKS automation backplanes. The heavy metallic enclosure acts as a continuous shield against electromagnetic field noise produced by large motors, providing clean, noise-free micro-inch displacement telemetry for turbine supervisory instrumentation (TSI) networks.

Fulfillment Manifest and Inventory Detail

Your industrial machine protection equipment undergoes full pressure sealing and structural thread inspections prior to worldwide dispatch. Each ordered set consists of:

(1) New Bently Nevada 21000 Stainless Steel Proximity Probe Housing

(2) Adjustable Internal Protection Sleeve Sub-Assembly

(3) Pre-Installed High-Pressure Viton O-Ring Seal Kit

(4) Explosion-Proof Certification Plate and Terminal Hardware

Cargo Distribution and Logistics Standards

We complete international dispatch processing within 2-7 days when payment finish, coordinating expedited air delivery via global courier operations including DHL, FEDEX, and UPS. Our fulfillment team wraps the heavy stainless steel housing in specialized anti-static industrial packaging and locks it inside tailored shock-absorbent foam enclosures. This protective framework isolates sensitive internal micro-threads from collision damage, prevents moisture ingress during transcontinental flights, and ensures your flameproof equipment arrives undamaged and ready for field installation.

Field Maintenance Engineering FAQs

Q1: What specific purpose does the swivel fitting option serve during field adjustment cycles?

A1: The swivel fitting allows you to rotate the primary housing body and adjust the probe's insertion depth without spinning the internal sensor cable. This prevents structural twisting, cable jacket tears, and internal solder separations within the coaxial line.

Q2: Can this housing maintain a proper seal if the machine body develops high internal oil pressure?

A2: Yes. The internal Viton sealing infrastructure withstands continuous static fluid pressures up to 50 psi. If your machinery application routinely exceeds this baseline parameter, consult our engineering department for high-pressure packing glands or custom dual-seal sleeves.

Q3: How should the external ground lug on the housing body be terminated in explosive processing zones?

A3: To maintain your certified flameproof validation, connect a heavy copper ground strap from the external housing grounding screw directly to the main structural frame of the machine. This ensures static electricity or stray electromagnetic spikes shunt directly to earth ground rather than traveling back through your sensitive monitor racks.
