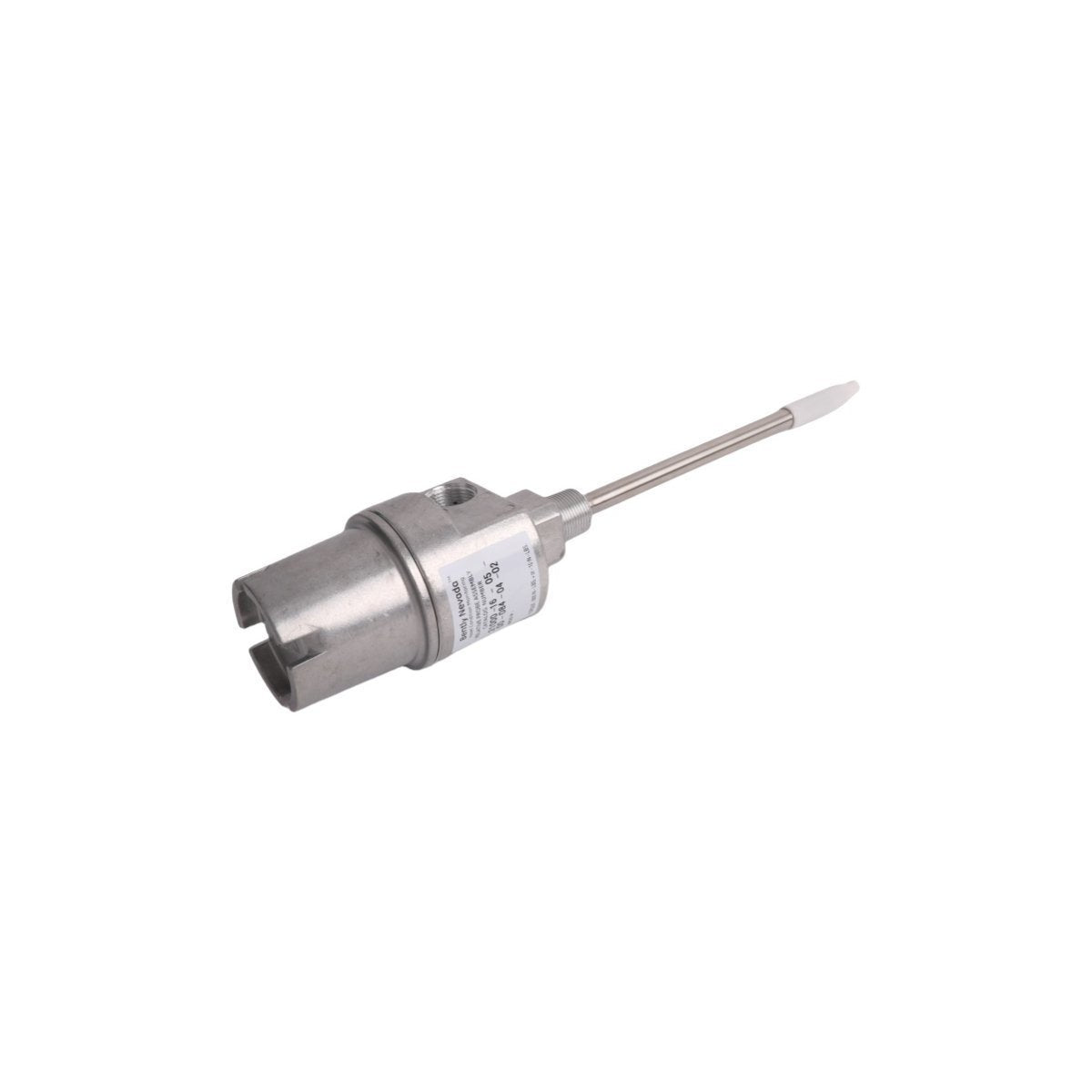

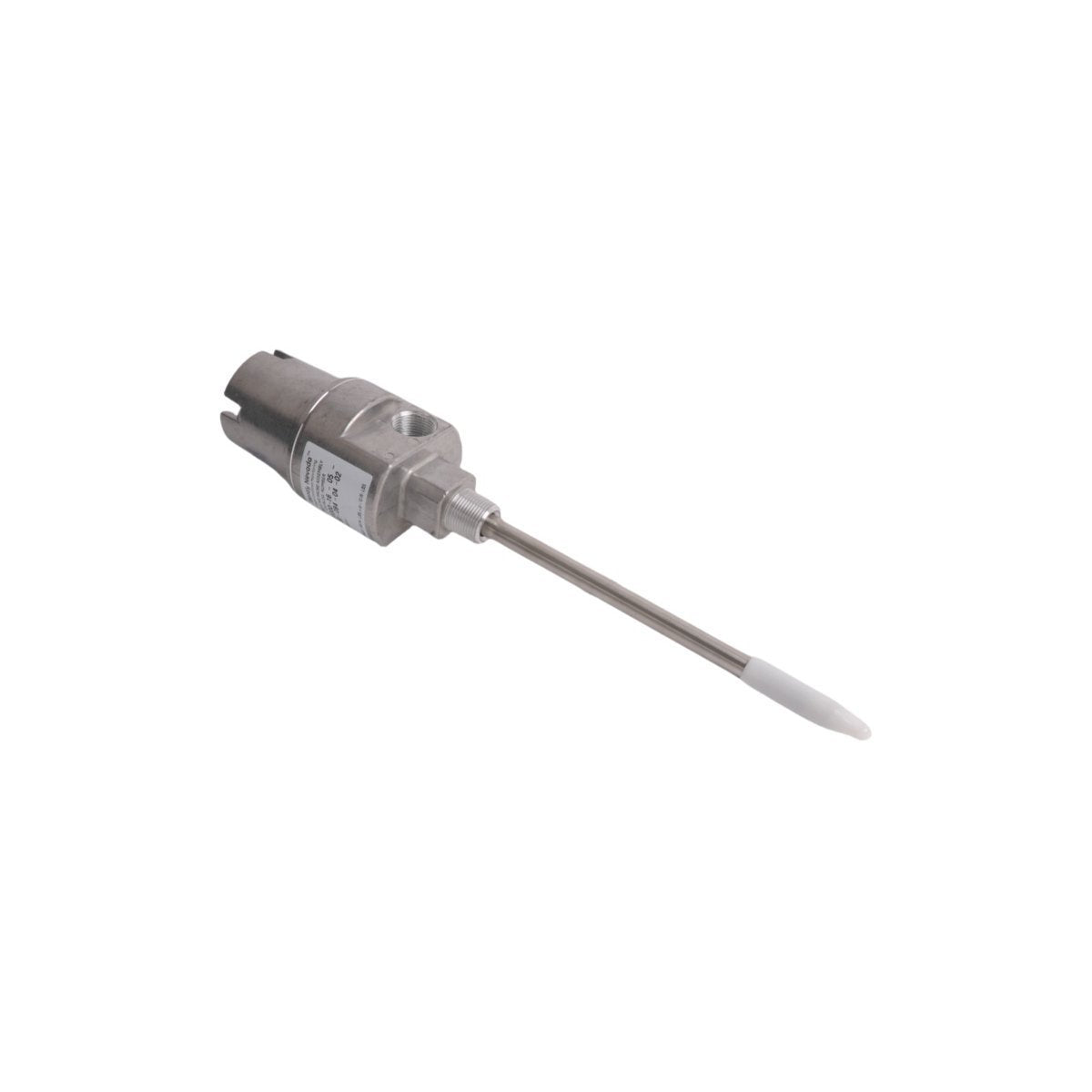

Configured for external mounting and environmental protection of proximity probes within Turbine Supervisory Instrumentation (TSI) systems, the Bently Nevada 21000-28-05-00-085-03-02 (21000 Proximity Probe Housing Assemblies) provides direct physical/electrical execution. This hardware assembly enables field adjustments and sensor replacements under live machinery operating conditions, isolating internal transducer components from high-pressure process environments.

Option Code Matrix

• 21000: Base explosion-proof proximity probe housing assembly.

• -28: Probe thread size option (M10 x 1 threads).

• -05: Conduit fitting layout option (Dual 3/4-14 NPT threads).

• -00: Material configuration option (Anodized aluminum main housing body).

• -085: Sleeve insertion depth option (8.5 inches nominal length).

• -03: O-ring compound option (Fluorocarbon Viton seals).

• -02: Reverse-mount hardware inclusion kit option.

Physical and Mechanical Data

Machinery Monitoring and Rotor Dynamics Interface

The mechanical rigidity of the 21000-28-05-00-085-03-02 enclosure supports exact eddy-current probe scaling configurations over high-speed shaft surfaces. Keeping structural vibrations from feeding back into the internal M10 x 1 probe barrel prevents tracking errors in dynamic rotor dynamics data records. Field calibration groups execute gap voltage validation (-10 VDC targets) by loosening the external locknut and mechanically sliding the internal 8.5-inch carrier sleeve. This linear translation aligns the sensor face relative to the target surface, maintaining channel isolation and minimizing high-frequency phase shift to guarantee cross-talk suppression paths function inside the paired Proximitor drivers.

Structural Clarifications

Q: How does the internal probe mounting system protect against ground loops?

A: The housing assembly incorporates non-conductive internal sleeve bushings that isolate the metallic probe barrel from the main anodized aluminum outer shell. This physical barrier blocks machine casing common-mode noise currents from entering the transducer shield loop.

Q: What are the thermal and chemical limitations of the internal -03 suffix seals?

A: The -03 suffix specifies fluorocarbon Viton O-rings, which remain stable up to +150 deg C. These seals resist degradation when exposed to synthetic lubricating oils, ammonia, and sour gas mixtures, preventing fluid blow-by into the external conduit junction.

Q: Can the internal sleeve be adjusted while the machine is running at full velocity?

A: Yes, the dual O-ring design maintains a compression seal during manual sleeve travel. Technicians can adjust the insertion depth to set the -10 VDC target gap voltage without shutting down the asset or causing process medium leakage.

Mechanical Installation Protocol

Mount the primary housing flange onto a machined, flat surface pad perpendicular to the target shaft within 0.5 degrees. Install all external 3/4-14 NPT conduit lines ensuring a minimum engagement of 5 full threads to preserve the explosion-proof integrity of the enclosure. Lubricate the internal Viton O-rings with a light film of instrument oil before sliding the 8.5-inch sleeve into the housing bore to avoid seal tearing. Torque the primary external compression locking collar to factory specifications once the final gap voltage validation is confirmed.

Procurement Package Content

• 1 x Bently Nevada 21000 Machined Aluminum Housing Body

• 1 x 8.5-Inch Adjustable Carrier Sleeve (M10 x 1 thread ready)

• 2 x Fluorocarbon Viton O-Ring Seals

• 1 x Reverse-Mount Hardware Installation Kit

• 1 x Exterior Aluminum Threaded Protection Cap

Freight and Assembly Packaging

Delivery time: 2-7 days when payment finish, routed via global premium carriers including DHL/FEDEX/UPS. Components are shipped sealed inside anti-static industrial packaging layers. The internal adjustment sleeve mechanisms and external thread arrays are enclosed in form-fitted high-density polyethylene foam sleeves to prevent structural distortion or micro-marring during transit.
