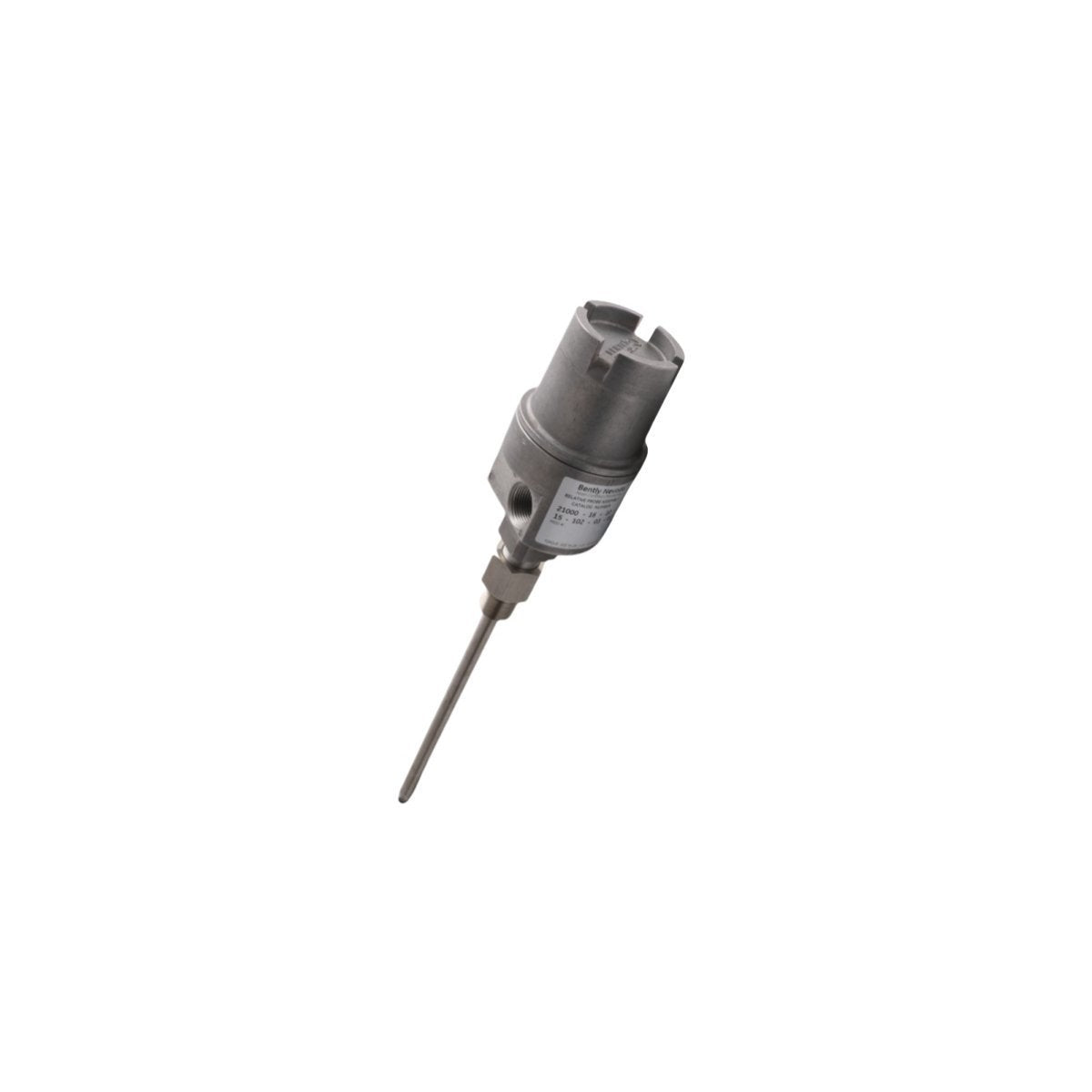

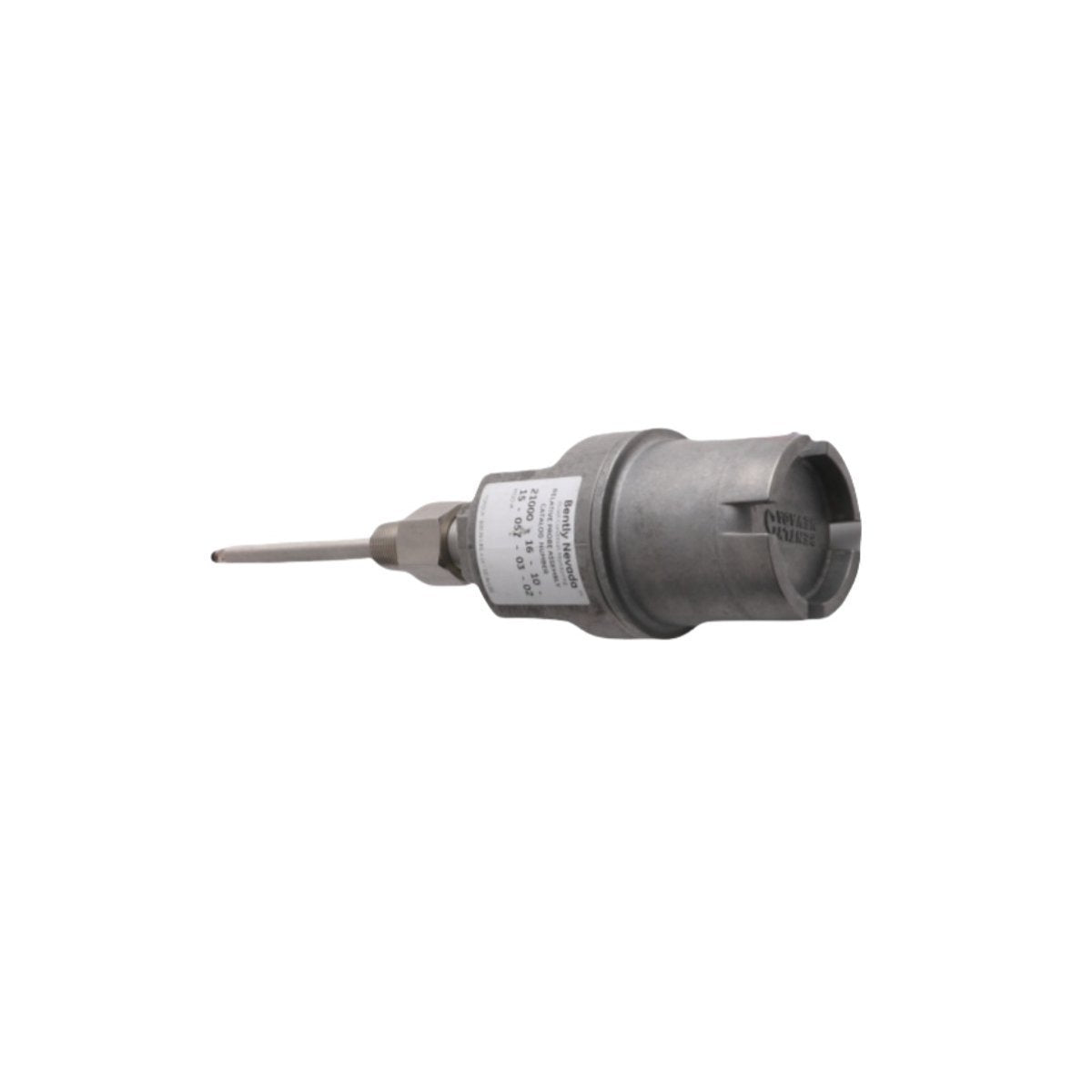

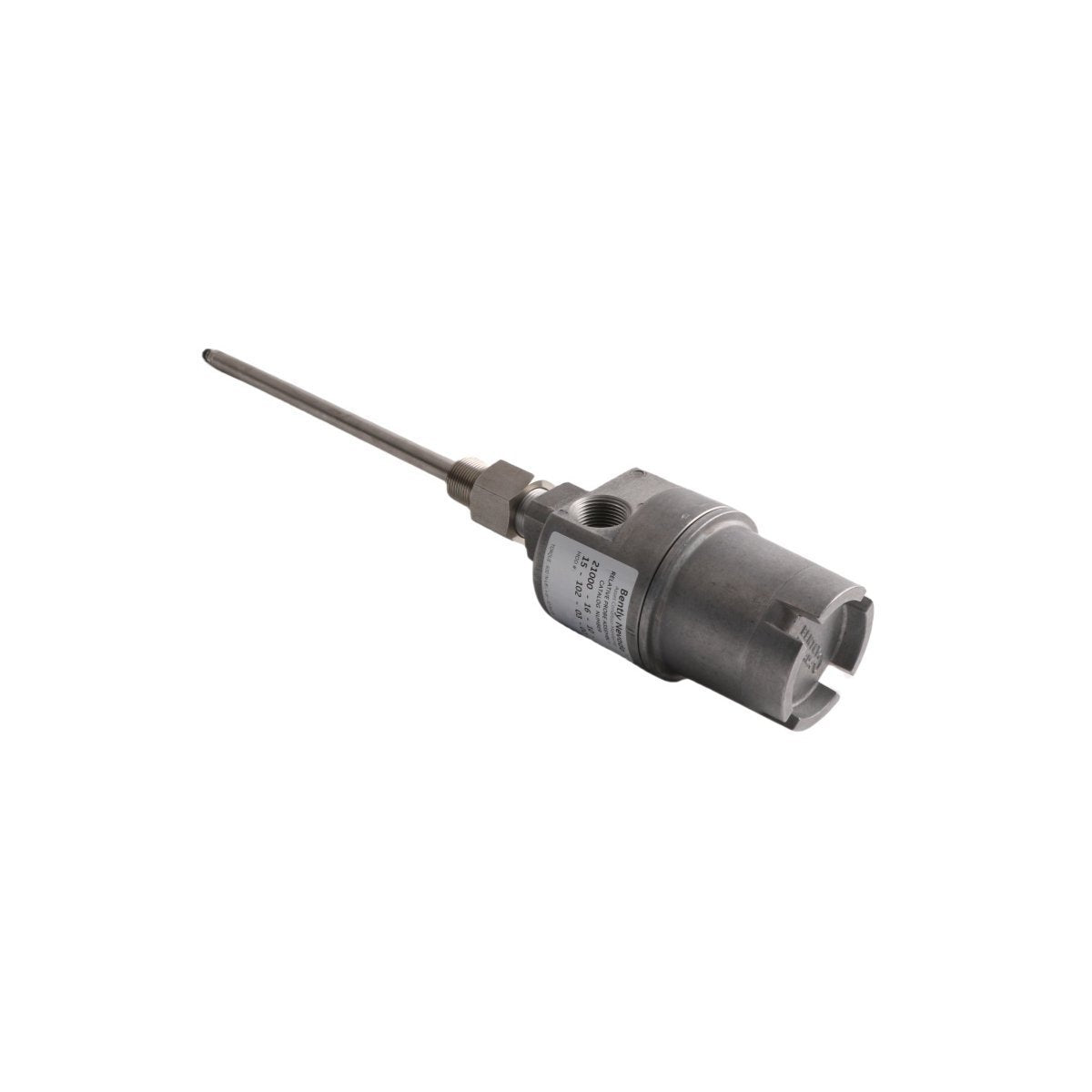

The Bently Nevada 21000-27-10-15-047-03-02, also cataloged as the 21000 Proximity Probe Housing, operates as a dedicated hardware component for mechanical encapsulation and external positioning of proximity transducers within 3300 XL Turbomachinery Instrumentation Systems (TSI). The assembly provides an environmentally sealed, explosion-proof enclosure that allows external adjustment of probe insertion depth relative to the target shaft surface while the machine is running.

Hardware Specifications

Transducer Calibration and Gap Voltage Validation

The mechanical structure is precision engineered to align eddy-current proximity probes perpendicular to the rotating shaft. This alignment is mandatory to maintain proper eddy-current probe scaling configurations within the proximity transducer system. During setup, technicians adjust the probe position through the internal sleeve to establish gap voltage validation, targeting a nominal -10 VDC baseline corresponding to the linear midpoint of the transducer calibration curve. Proper rigidity and precise concentricity of the housing suppress localized sleeve resonance, eliminating fake high-frequency variables from interfering with the accurate tracking of rotor dynamics.

Field Installation Guidelines

• Thread Engagement Limits: Mount the housing base into the machine casing thread, ensuring a minimum of 5 full threads of NPT engagement. Apply an approved industrial thread sealant to prevent lubricating oil migration through the mating surfaces.

• Transducer Insertion and Depth Setting: Insert the proximity probe into the internal calibrated sleeve assembly. Monitor the proximity sensor output loop using a digital voltmeter until the verified gap voltage validation point (-10 VDC target) is met, indicating the probe is exactly at the midpoint of its calibrated range.

• Conduit and Cable Routing Isolation: Tighten the sleeve locknut to the recommended torque specification to preserve the sensor gap distance against casing vibration. Route the transducer coaxial cable through flexible liquid-tight conduit attached to the 3/4-14 NPT port, checking that the minimum coaxial bend radius is maintained to avoid cross-talk suppression degradation.

Frequently Asked Questions

Q: Can the probe insertion distance be modified while the machine is operating under full load parameters?

A: Yes. The 21000 series housing design isolates the internal oil pressure boundary, allowing field technicians to untighten the external packing gland, adjust the sleeve depth to calibrate the gap voltage validation, and lock it back into position without shutdown or oil leakage.

Q: How does this housing suppress interference caused by external electromagnetic fields?

A: The heavy-walled metal dome provides a continuous Faraday shield around the probe connections. When the housing base is properly bonded to the machine frame ground, it achieves optimal cross-talk suppression from external industrial noise fields.

Q: What indicates an error or mechanical misalignment within the housing installation?

A: A physical misalignment changes the angle of incidence between the probe face and the target shaft. This change skews the eddy-current probe scaling factor, resulting in abnormal gap voltages drifting far from the -10 VDC target, and causing faulty rotor dynamics readings on the monitor.
