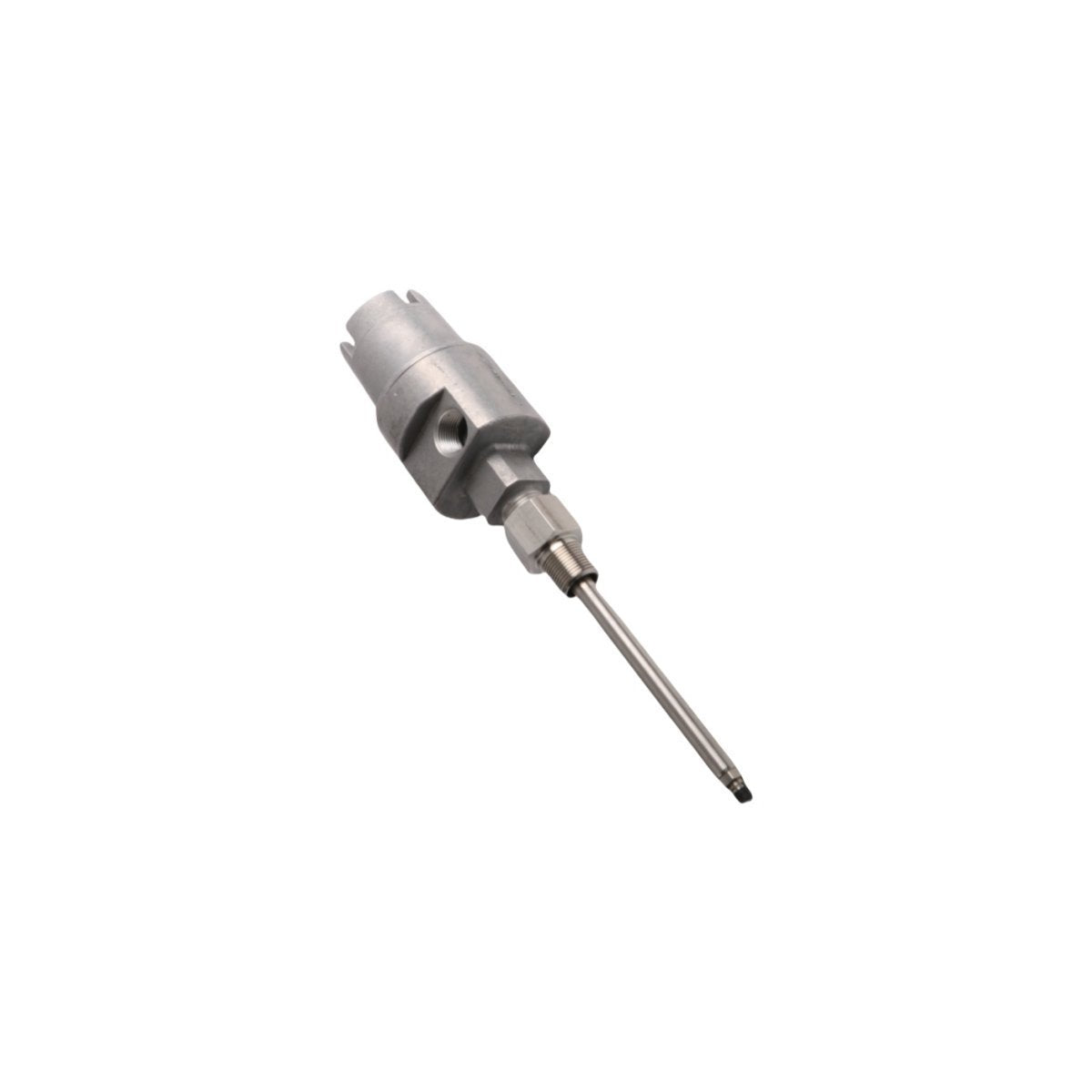

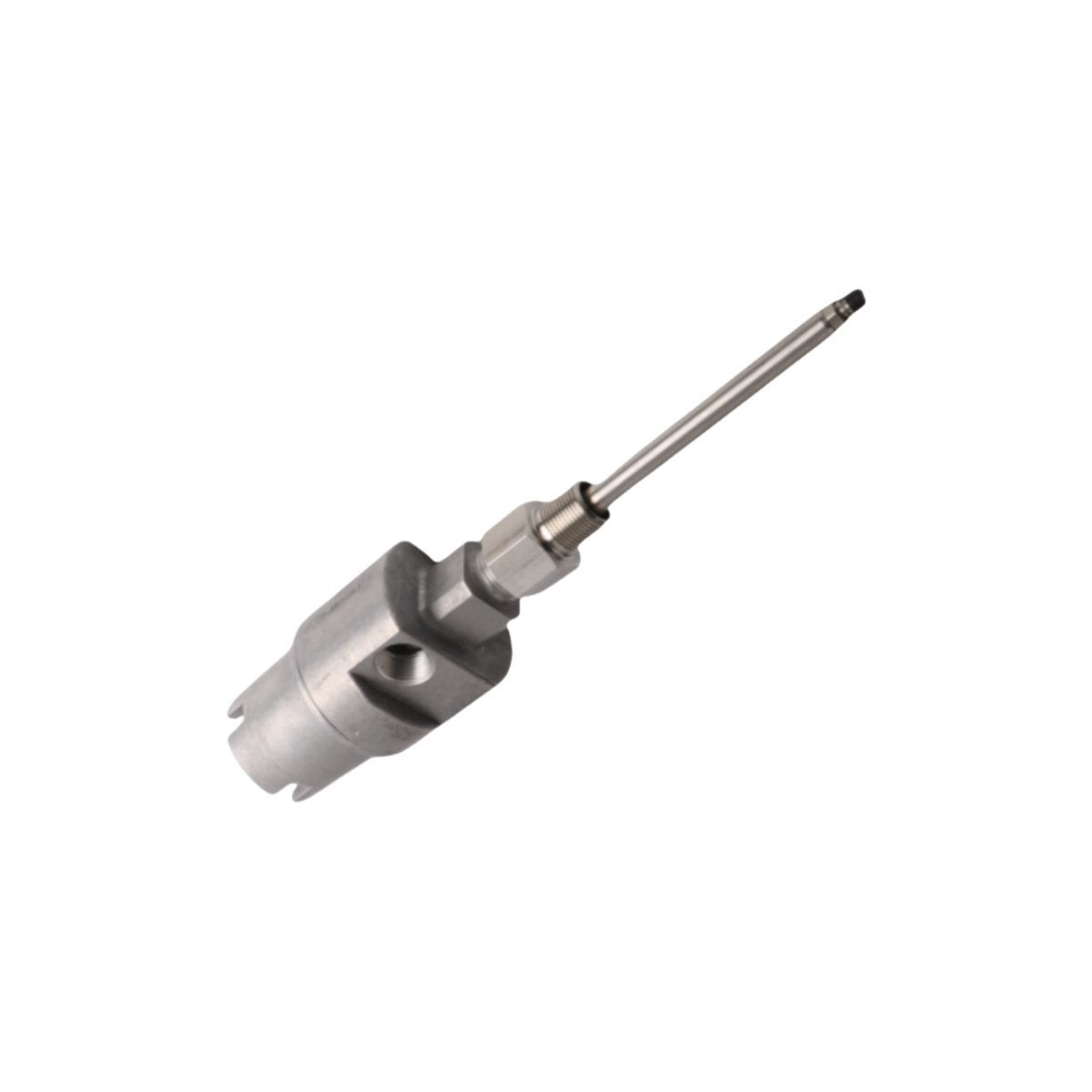

The Bently Nevada 21000-26-05-15-035-04-02, also cataloged as the 21000 Proximity Probe Housing Assemblies, operates as a dedicated hardware component for external transducer protection and mounting within 21000 Series platforms. The hardware module houses and seals proximity probes tracking high-speed mechanical displacements, facilitating direct physical insertion through machine casings while maintaining environmental isolation of internal electrical connections.

Engineering Designator Options Matrix

The descriptive alphanumeric suffix codes define the specific structural configuration of the hardware assembly:

• 21000: Base model designator for the standard explosion-isolated proximity probe housing group.

• 26: Identifies the high-purity mechanical thread specification for casing engagement.

• 05: Configures the calibrated total internal sleeve length option.

• 15: Specifies the probe insertion path clearance and locking spacer profile.

• 035: Pinpoints the absolute internal shaft depth measurement increment in millimeters.

• 04: Designates an explosion-proof terminal conduit linkage fitting type.

• 02: Approves standard internal environmental O-ring seal compounds.

Structural Performance Elements

Gap Voltage Validation and Rotor Dynamics Tracking

The mechanical rigidity and precision positioning tolerances of this housing enclosure directly affect eddy-current probe scaling baselines during prolonged machinery operations. Ensuring stable sensor retention enables exact gap voltage validation routines, maintaining the critical -10 VDC targets necessary to accurately monitor complex rotor dynamics parameters. Proper alignment within the casing eliminates micro-axial shifting, maximizing cross-talk suppression inside the 3500 monitoring framework when multiple displacement transducers are installed in close proximity.

Technical Installation Query Logs

Q: Can the probe housing assembly be adjusted while the monitored machine is running?

A: No, modifying the housing lock-nut positions or sleeve insertion depths during machine operation can cause catastrophic probe face contact with the rotating shaft, disrupting rotor dynamics data loops.

Q: How does the internal sealing mechanism handle moisture infiltration?

A: The layout leverages specialized dual synthetic O-ring layers that maintain high environmental isolation, protecting the underlying eddy-current probe scaling wire joints from fluid contamination.

Q: Does this hardware assembly require active voltage inputs from the Proximitor loop?

A: No, this is a passive structural protective housing designed to isolate and align the active electronic transducer elements.

Mechanical Rigging and Conduit Routing Rules

• Thread the housing barrel into the machine casing wall using a minimum of 5 full thread engagements to comply with industrial safety pressure guidelines.

• Measure the probe tip setback distance prior to tightening the primary lock-nut assembly to ensure alignment with the target gap voltage profile.

• Route all flexible electrical conduit lines downward from the housing junction point to establish a natural condensation moisture drop loop.

• Apply light thread-locking compound to all secondary structural fasteners to counter heavy machine vibration loads.

Packaging Content Manifest

• Bently Nevada 21000 Protective Proximity Probe Housing Shell

• Internal Adjustment Compression Sleeves and Industrial O-Ring Seals
