Product Overview

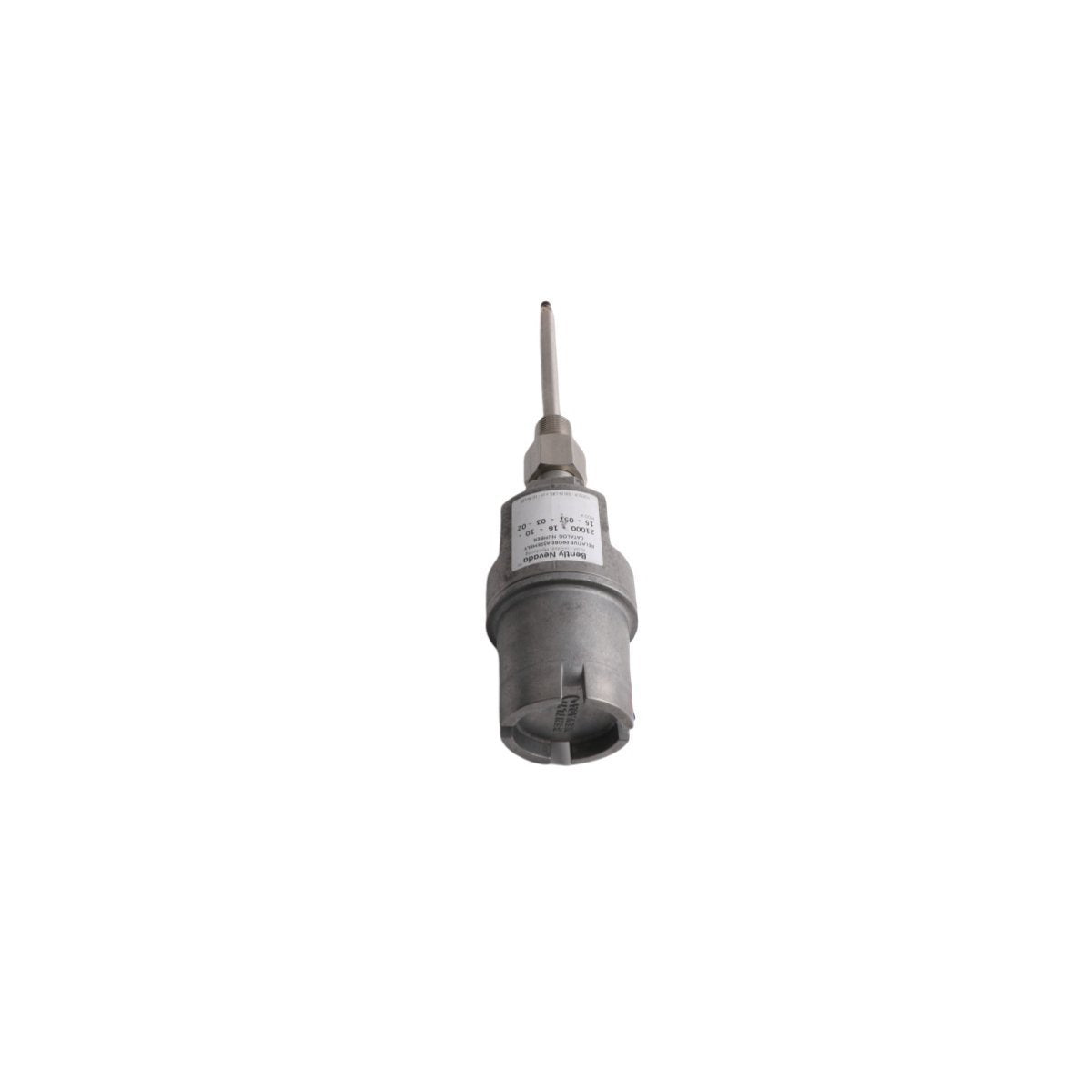

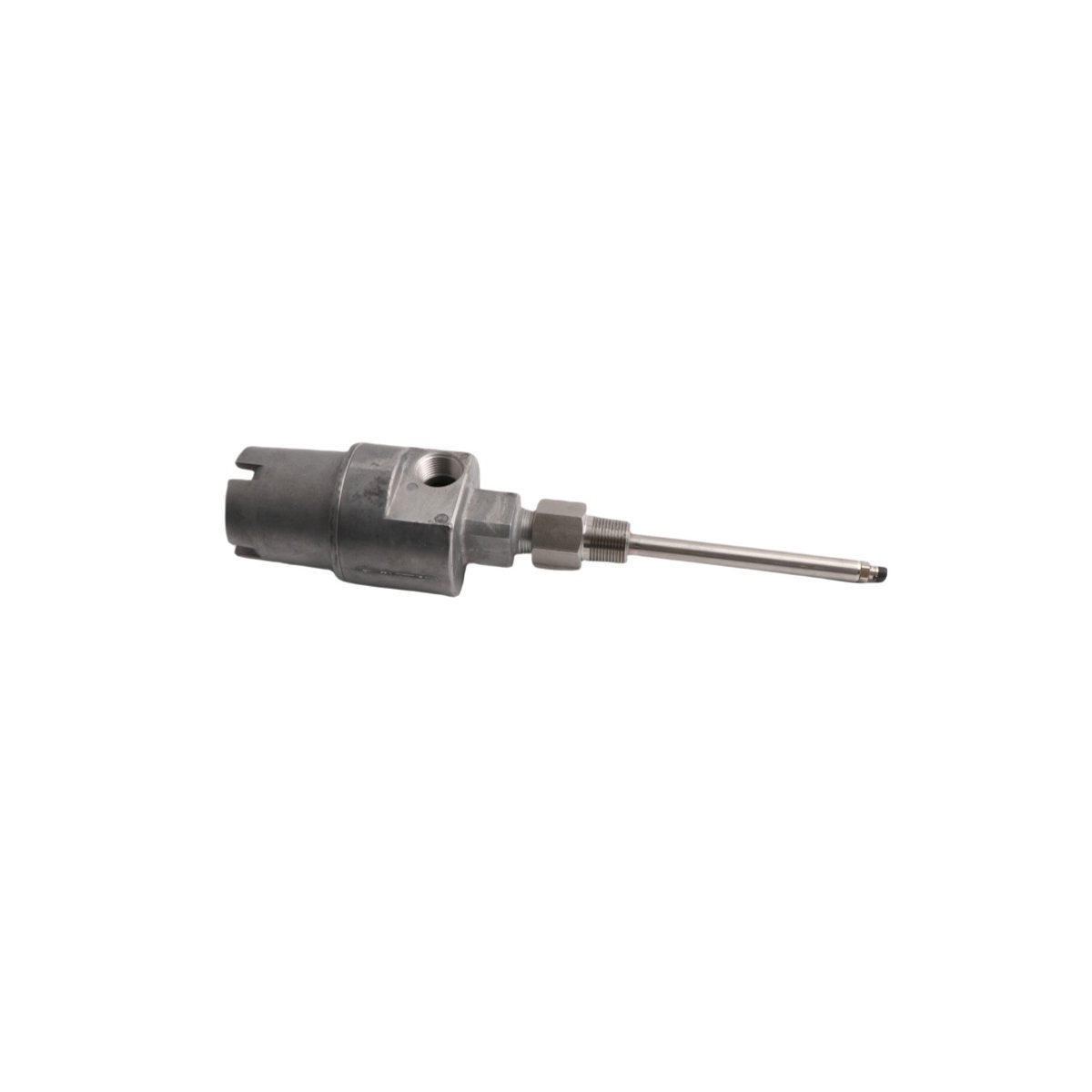

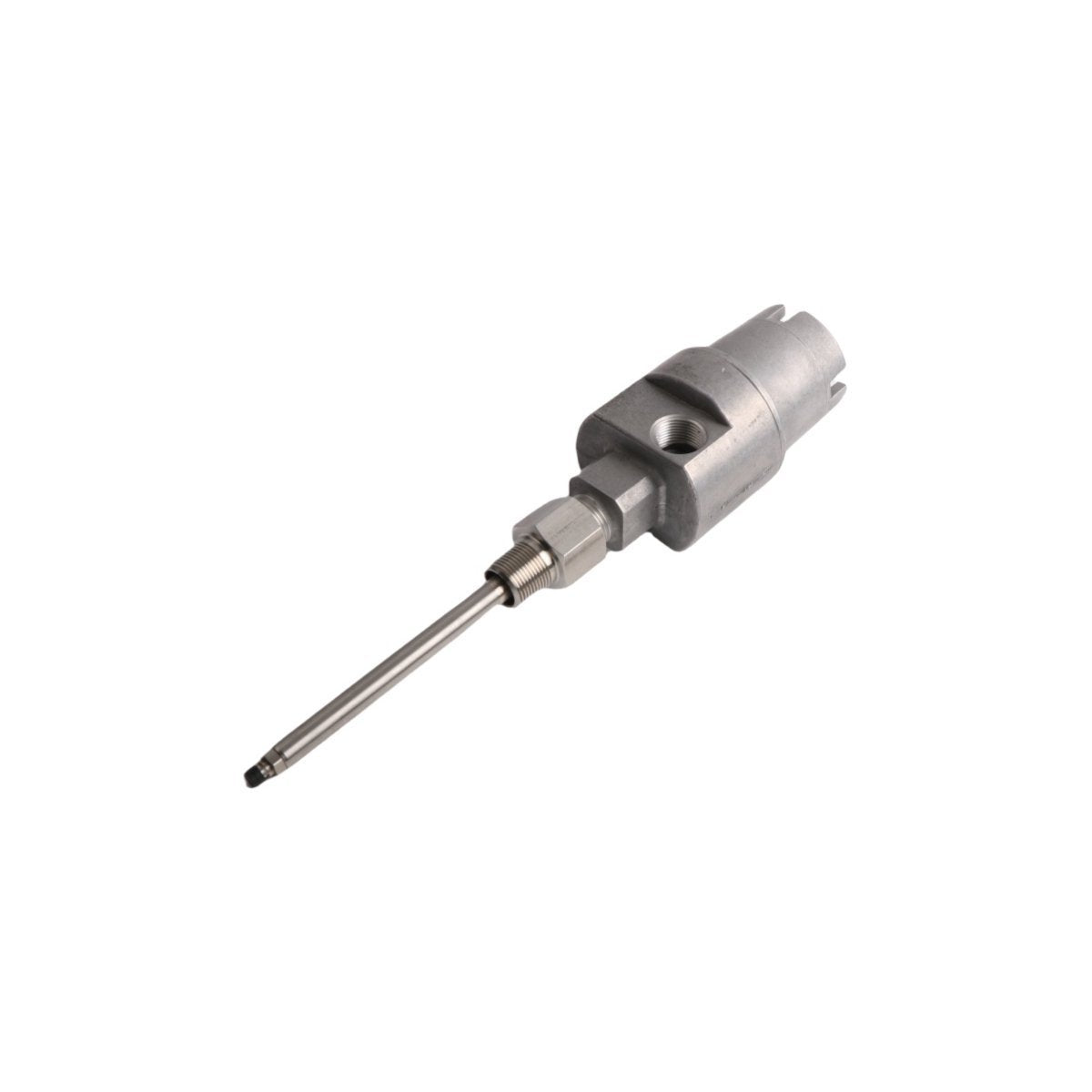

The Bently Nevada 21000-16-10-15-071-03-02 Proximity Probe Housing Assembly establishes an impenetrable protective barrier for precision eddy current displacement sensors in volatile operating zones. Engineered explicitly for critical rotating machinery monitoring, this rugged enclosure system shields delicate proximity probes mounted on high-speed steam turbines, heavy-duty centrifugal compressors, and massive industrial pumps. It eliminates measurement anomalies caused by high-pressure lubrication leaks, aggressive chemical washdowns, and shifting ambient temperatures. The hardware integrates seamlessly with the Bently Nevada 3500 monitoring platform and plant-wide Emergency Shutdown Systems (ESD). By maintaining precise, rigid sensor alignment, this assembly guarantees the delivery of highly accurate, uncorrupted shaft vibration and axial position data directly to your core control layers, preventing unexpected downtime and securing continuous operational safety.

Option Code Suffix Breakdown

21000 - Base System Style

Designates the standard explosion-proof housing series optimized for harsh, certified hazardous industrial environments.

16 - Cable Fitting Entry

Selects a 3/4-14 NPT conduit connection thread equipped with an integrated internal plastic cable grip to lock and seal field wiring.

10 - Probe Sleeve Thread

Machined with a standard 3/8-24 UNF internal thread architecture to accept matching proximity probe sleeve options.

15 - Housing Seat Variation

Specifies a specialized 1.5-inch counterbore or stepped seat configuration for non-standard mounting flanges on the machine casing.

071 - Standoff Length Rating

Defines an exact 7.1-inch total external standoff distance to lift the junction head clear of thick thermal insulation blankets.

03 - Internal Probe Penetration

Configures a maximum of 3.0 inches of variable linear sleeve adjustment range for precise internal sensor positioning.

02 - Exploded Field Fittings

Includes standard external field wiring conduit adapters to complete immediate flame-proof coupling installations on site.

Structural and Mechanical Parameters

On-Site Field Commissioning Matrix

Specialized Seating Verification

Examine the 1.5-inch stepped seat counterbore interface on the machine casing before mounting. Clean all mating surfaces thoroughly to ensure the housing sits perfectly flush, which prevents structural twisting or angled misalignment.

Dynamic Calibration Voltages

Connect the internal proximity sensor to a live Proximitor module while performing depth adjustments. Rotate the internal sleeve slowly until your digital multimeter stabilizes at exactly -10.0 VDC, securing the optimal physical center of the 3300 XL linear measurement spectrum.

Sealed Conduit Integration

Apply high-grade, explosion-proof thread sealant to the 3/4-14 NPT entries. Avoid tight bends on the internal coaxial cable by maintaining a generous bend radius inside the terminal cavity to protect the delicate signal conductors from mechanical stress.

Severe Atmosphere Survival Engineering

Resilience Against Aggressive Industrial Agents

The low-copper aluminum casing features high-durability chemistry that withstands continuous contact with sour gas ($H_2S$), saline ocean atmospheres, and caustic petrochemical fumes. This heavy-duty defense stops environmental oxidation from degrading sensitive electronic signal wires.

Direct Turbine Supervisory Alignment

By suppressing high-frequency machine-base resonance, this housing ensures that weak eddy current fields operate without physical disturbance. Clean, stable orbit and displacement waveforms flow directly into Turbine Supervisory Instrumentation (TSI) panels and host systems like Honeywell Experion PKS control nodes.

Ordering info

(1) Certified Bently Nevada 21000-16-10-15-071-03-02 Cast Aluminum Housing

(2) Heavy-Duty Threaded Aluminum End Cap with Integrated Nitrile O-Ring

(3) Internal 3.0-Inch Adjustable Sleeve and Locking Hardware Kit

(4) Explosion-Proof Field Conduit Adapters and Gasket Sheet

Global Freight & Protective Logistics

Your critical asset tracking hardware ships within 2-7 days when payment finish clearance is established. We execute all worldwide deliveries via premium express carriers including DHL, FEDEX, and UPS to guarantee fast, reliable tracking. Warehouse operators secure every housing assembly inside heavy-duty, anti-static industrial packaging and pack each unit within precision-molded, shock-absorbing foam chambers to eliminate the risk of mechanical impact during transit.

Field Support Technical Diagnostics

Q1: What specific function does the "15" suffix provide in this model?

A1: The "15" suffix specifies a modified 1.5-inch counterbore seat design, engineered to match specialized mounting ports or step-flanged bosses machined into heavy machine walls.

Q2: Can this model accommodate a 1/2-20 UNF proximity probe body?

A2: No. The "10" configuration code built into this part number dictates a 3/8-24 UNF internal thread profile, which only accepts standard matching 3/8-24 proximity probes or sleeves.

Q3: Why is the maximum internal adjustment range restricted to 3.0 inches?

A3: The "03" suffix explicitly limits the internal variable travel to a maximum of 3.0 inches to maintain optimal mechanical stability and stiffness inside the 7.1-inch standoff sleeve.

Q4: How often should I inspect the integrated cover O-ring?

A4: Inspect the nitrile O-ring whenever the housing cover is opened for sensor re-calibration. Replace the O-ring immediately if you detect cracking, compression setting, or chemical swelling to preserve the IP66 ingress rating.
