Product Overview

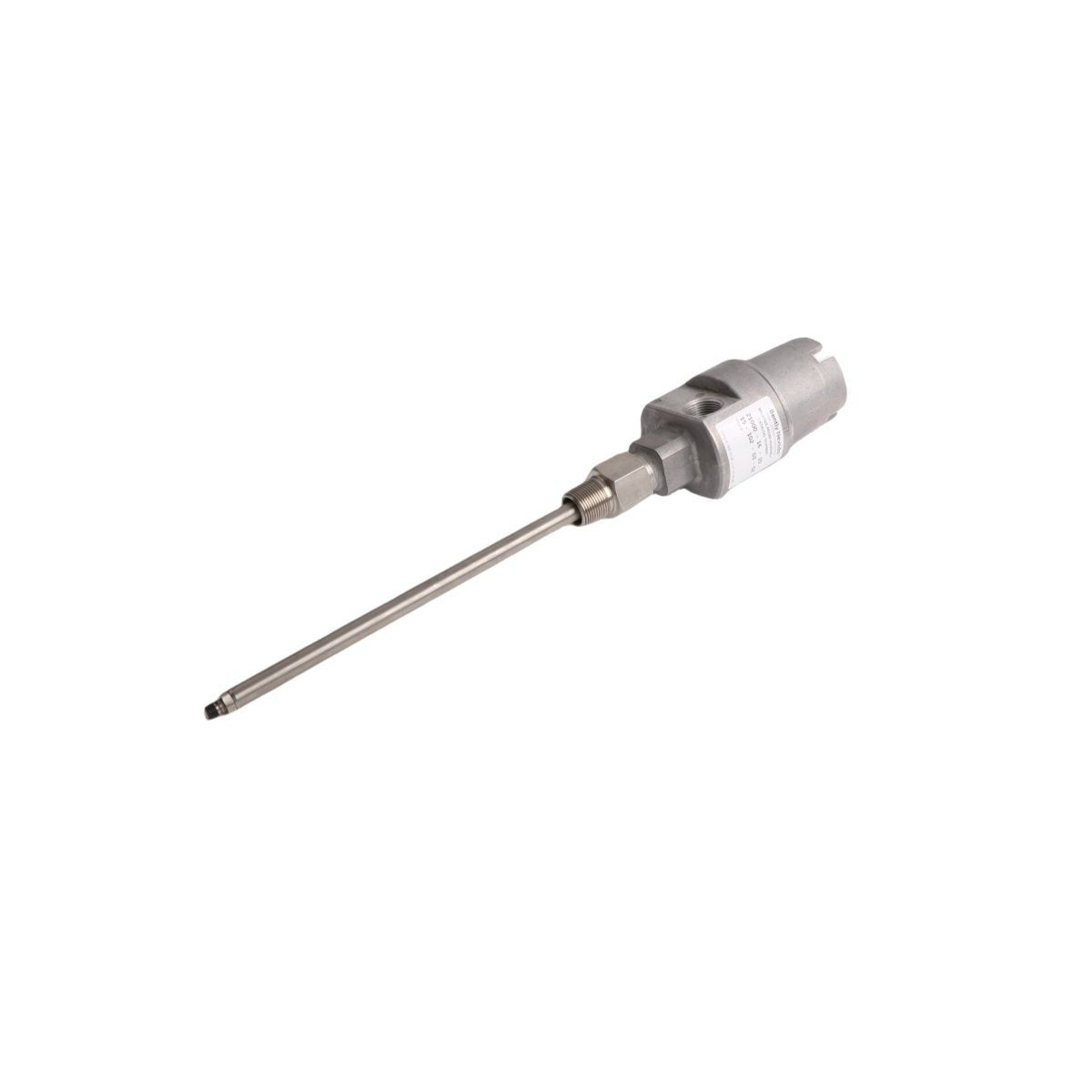

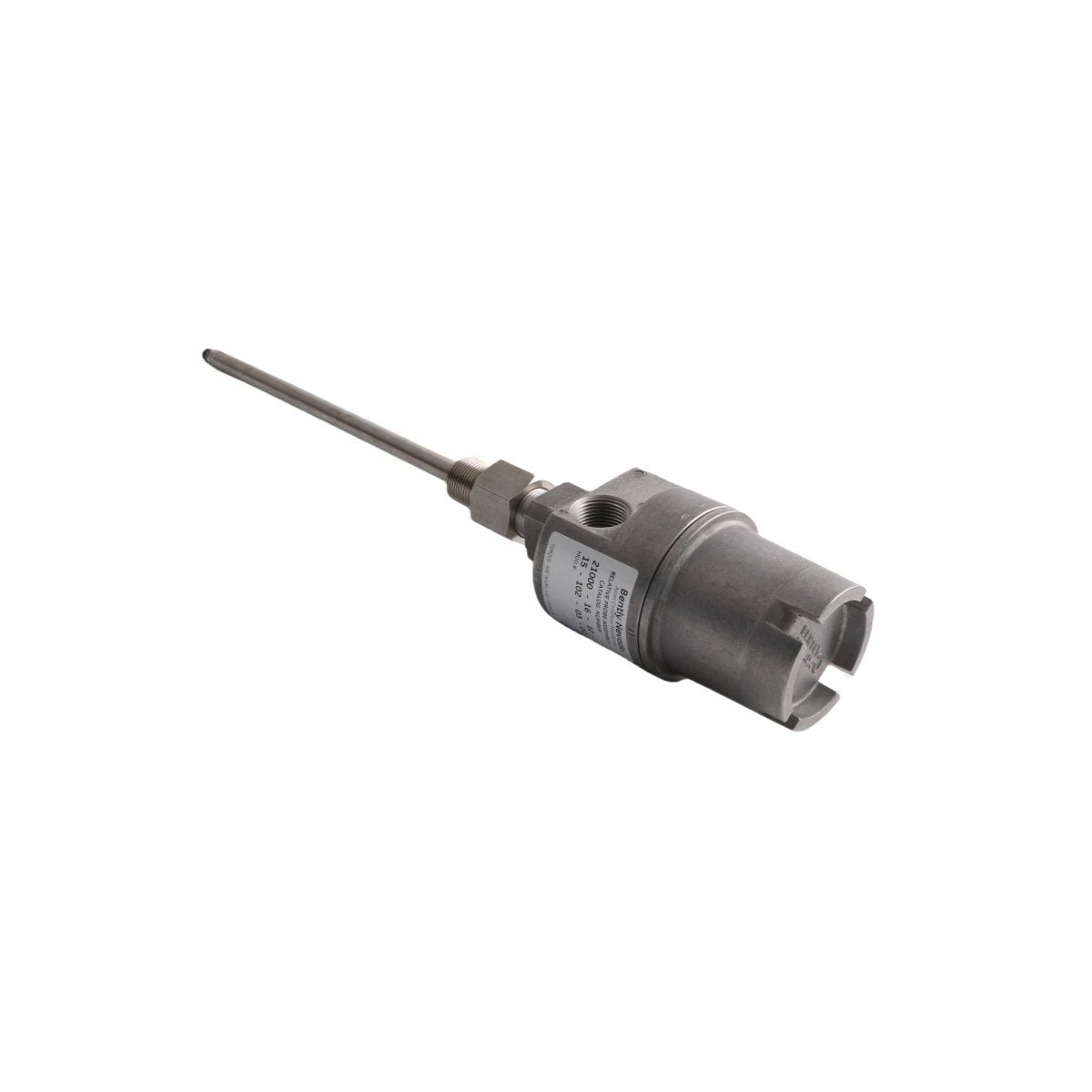

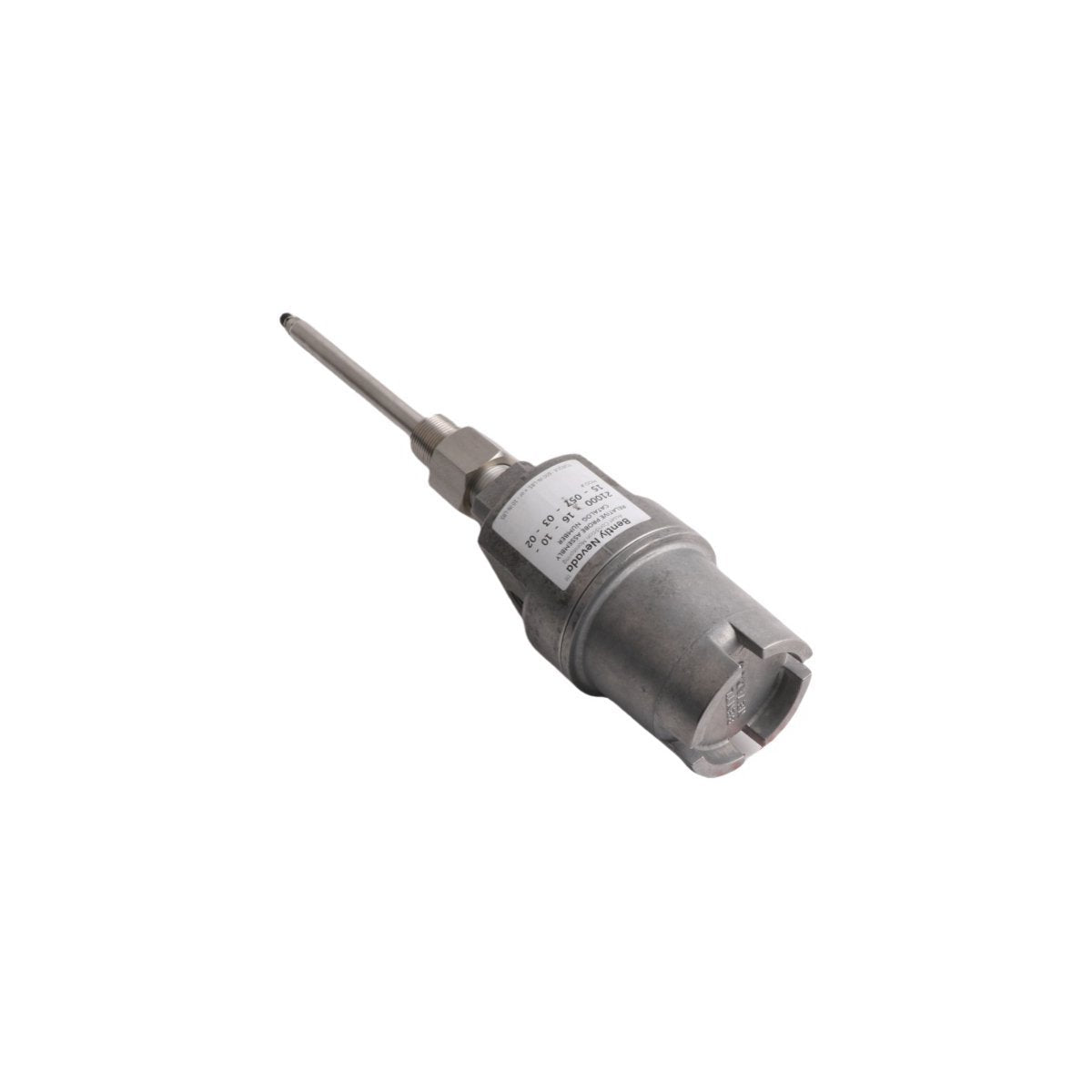

The Bently Nevada 21000-16-10-00-045-04-02 Proximity Probe Housing provides robust, explosion-proof environmental protection for proximity probes in critical rotating machinery monitoring setups. Engineered for demanding industrial environments, this housing shields delicate eddy current transducers from mechanical damage, aggressive chemical exposure, and extreme atmospheric conditions. It integrates seamlessly with Bently Nevada 3300 XL series proximity systems, feeding precise shaft vibration, position, and displacement data directly to the Bently Nevada 3500 Machinery Protection System. By maintaining absolute sensor alignment and isolation, this component eliminates signal drift caused by external environmental interference, ensuring the uninterrupted operation of safety-critical emergency shutdown systems (ESD) and critical turbomachinery assets.

Part Number Suffix Breakdown

21000 - Housing Option

Specifies the standard aluminum proximity probe housing style designed for hazardous area installations.

16 - Probe Cable Fitting Option

Defines a 3/4-14 NPT conduit connection with an internal plastic cable grip for secure wiring routing.

10 - Probe Thread Option

Selects the 3/8-24 UNF thread specification for direct probe body mounting.

00 - Seat Option

Configures a flat seat design without a specialized counterbore modification.

045 - Standoff Distance

Indicates a 4.5-inch total standoff length, determining the exact insertion depth of the probe assembly.

04 - Probe Penetration Option

Sets the internal probe adjustment range to a maximum of 4.0 inches.

02 - Fitting Option

Equips the housing with a standard field wiring fitting for immediate installation.

Mechanical and Performance Specifications

On-Site Field Installation Best Practices

Mechanical Positioning and Alignment

Verify the target surface preparation before final mounting. Ensure the probe thread engagement operates smoothly without forcing. Maintain an exact perpendicular alignment relative to the observed shaft surface to eliminate cross-axis measurement errors.

Gap Voltage Calibration

Adjust the internal proximity probe to achieve the standard baseline gap voltage, typically -10.0 VDC for linear range optimization, prior to locking the housing cover. Use a calibrated digital multimeter to verify stability across the full insertion travel.

Conduit Sealing and Environmental Protection

Apply industrial-grade thread sealant to all NPT connections to guarantee an airtight seal. Route the field wiring with an appropriate drip loop to prevent moisture migration into the internal terminal junction cavity.

Heavy-Duty Engineering Value

Survival in Aggressive Processing Zones

The copper-free aluminum casting withstands continuous exposure to corrosive chemical vapors, high ambient humidity, and salt spray. This ensures long-term structural integrity on offshore platforms, petrochemical refineries, and gas turbine decks.

Direct TSI System Integration

This housing keeps the proximity sensor perfectly rigid, eliminating high-frequency structural resonance. The stability guarantees that clean, uncorrupted orbit and overall vibration data flow directly to Turbine Supervisory Instrumentation (TSI) layers and plant-wide Distributed Control Systems (DCS).

Ordering info

(1) Bently Nevada 21000-16-10-00-045-04-02 Proximity Probe Housing Base Assembly

(2) Threaded O-Ring Sealed External Cover

(3) Internal Probe Locking Mechanism Hardware Kit

(4) Factory Certified Installation and Calibration Leaflet

Logistics and Packaging Standards

Your order dispatches within 2-7 days following confirmed payment clearance. We utilize premium global express carriers including DHL, FEDEX, and UPS to guarantee rapid worldwide transit. Every housing undergoes rigorous cleaning before sealing inside a heavy-duty, anti-static industrial packaging enclosure surrounded by high-density shock-absorbing foam to prevent physical impact damage during transport.

Technical Validation FAQs

Q1: Can I adjust the probe depth while the machine is running?

A1: No. You must shut down the machinery or ensure the specific area complies with safety lock-out procedures before opening the housing to make internal physical probe penetration adjustments.

Q2: Does this housing include the proximity probe itself?

A2: This part number designates the mechanical protective housing assembly only. You must purchase the 3300 XL proximity probe and extension cables separately based on your specific application range.

Q3: What is the benefit of the copper-free aluminum construction?

A3: Copper-free aluminum provides superior resistance against galvanic corrosion and atmospheric rusting, making it highly reliable in marine environments and sulfur-heavy oil and gas applications.

Q4: How does the 045 suffix affect my physical machine envelope?

A4: The 045 designation mandates a 4.5-inch standoff distance from the machine casing, which dictates the clear physical clearance space needed around the mounting point for installation and maintenance access.
