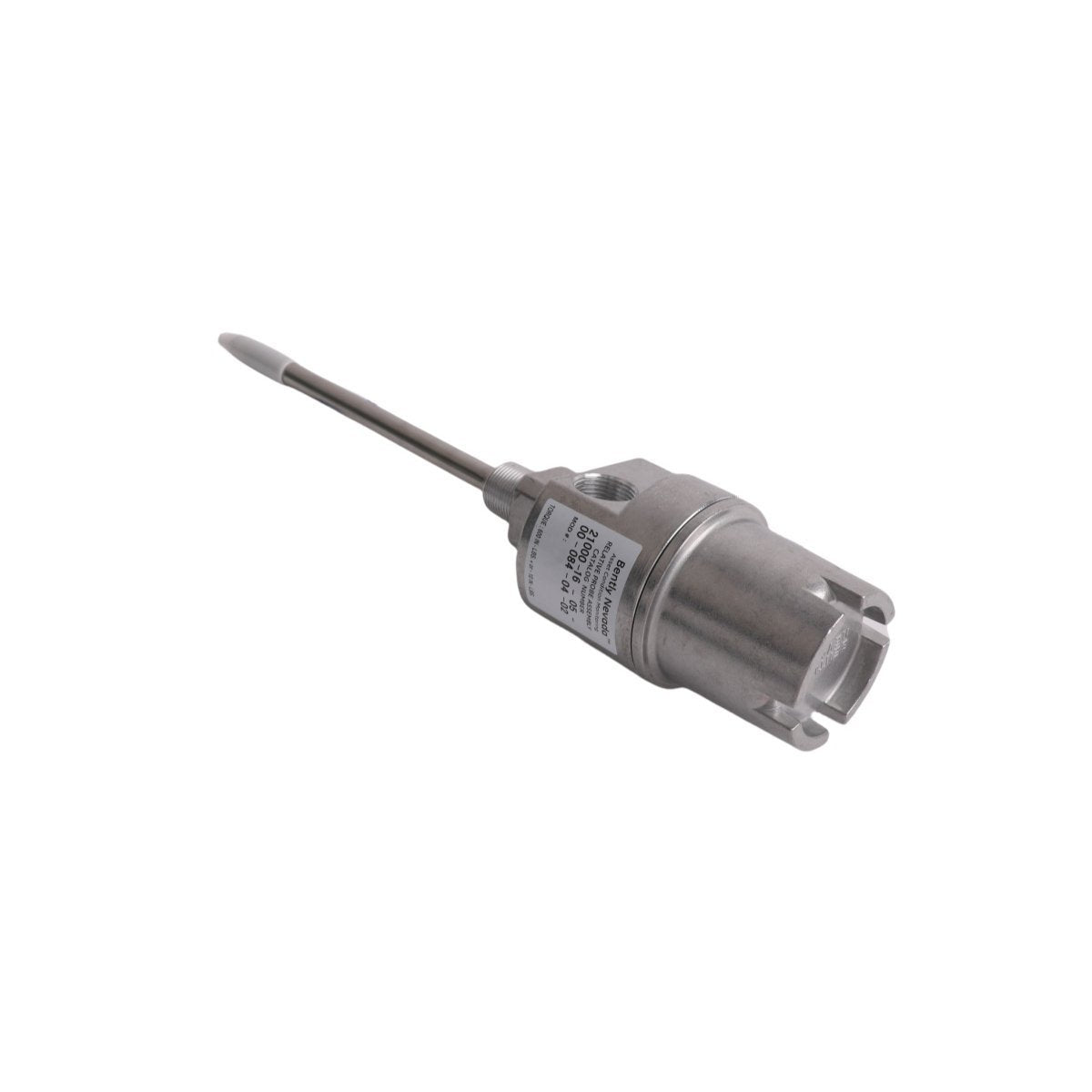

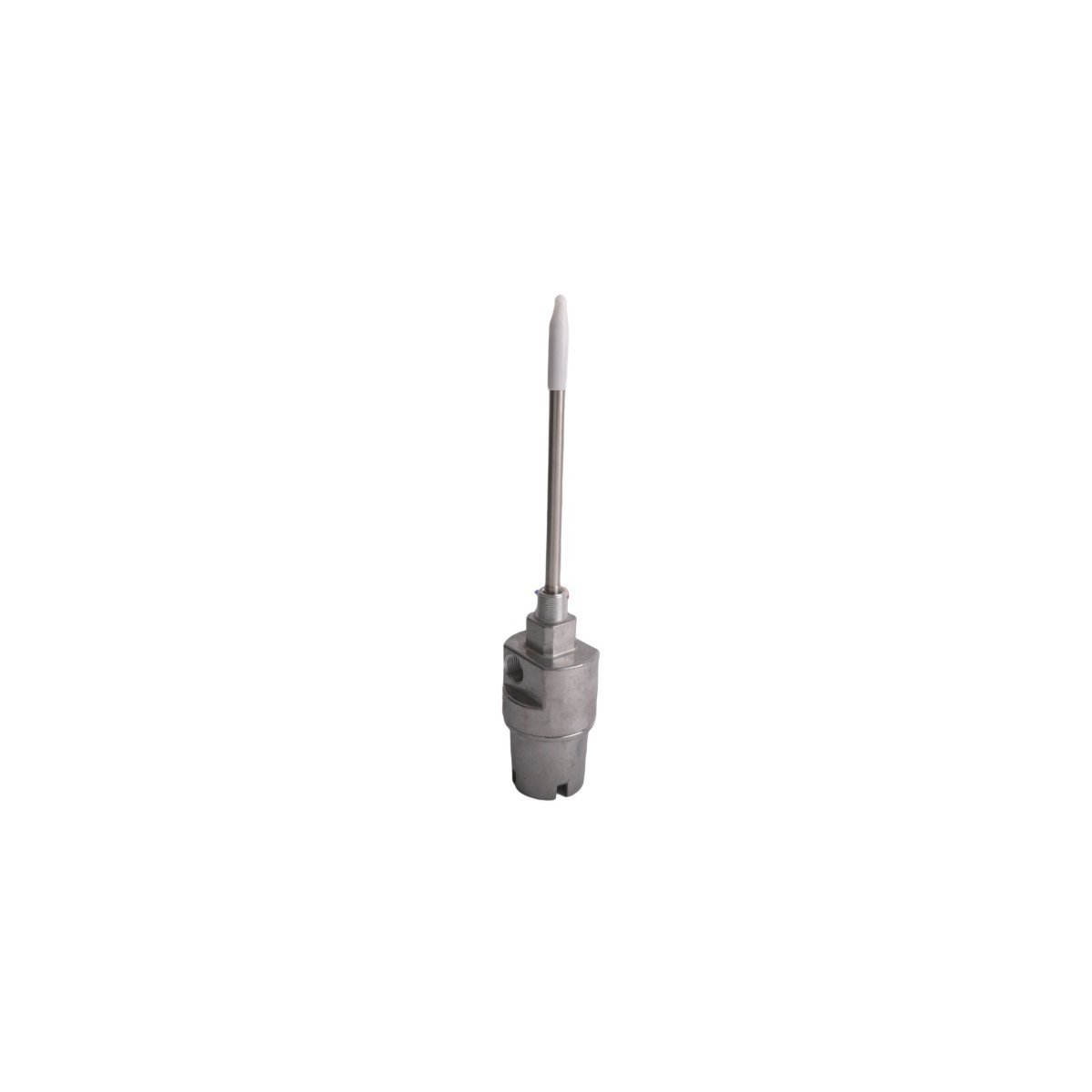

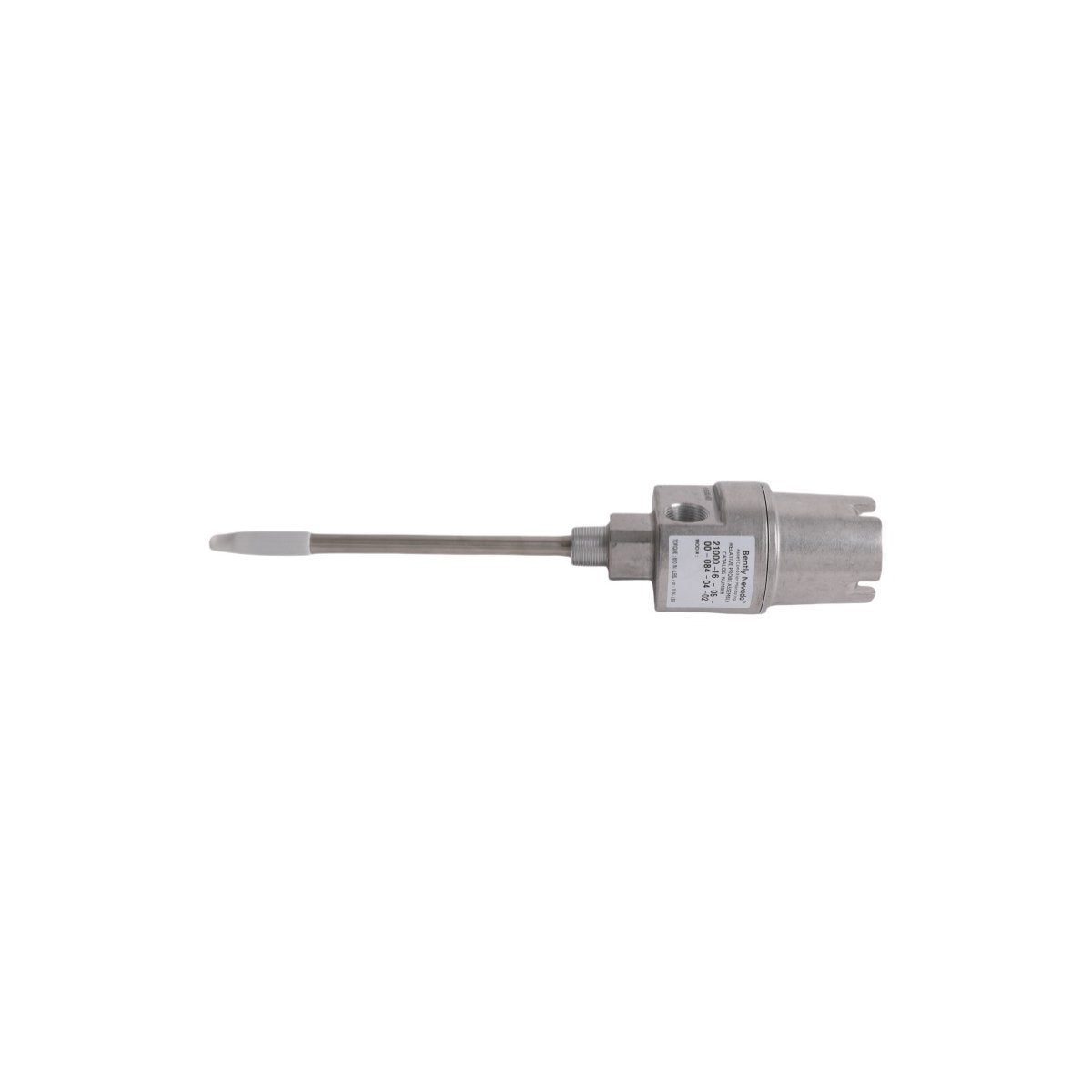

The Bently Nevada 21000-16-05-40-049-04-02 serves as the primary 21000 Proximity Probe Housing utilized to execute physical containment and external depth positioning of proximity sensors across Proximity Probe Housing Assemblies platforms. The hardware functions as an externally adjustable pressure-sealed insertion assembly, allowing calibration, adjustment, and replacement of proximity transducers through the machine casing boundary without requiring system decompression or lubrication loop interruption.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Stability

The structural assembly of the Bently Nevada 21000-16-05-40-049-04-02 housing isolates the transducer from external mechanical stress profiles that degrade eddy-current probe scaling accuracy. By establishing a rigid, non-resonant coaxial interface relative to the observed shaft target, it eliminates casing vibrations that induce measuring anomalies in high-velocity rotor dynamics profiles. This positioning stiffness ensures repeatable gap voltage validation (-10 VDC targets) during static installation routines. Additionally, the solid metallic sleeve provides a continuous grounding and shielding path, contributing to complete cross-talk suppression between adjacent sensor circuits routed within shared structural conduit banks.

Field Installation Guidelines

• Inspect the machine casing bore threads to verify exact compatibility with the housing mounting suffix (-04 option code) prior to installation.

• Achieve a minimum structural engagement of 5 full threads into the machine casing wall to guarantee appropriate mechanical pressure boundary containment.

• Guide the unshielded proximity probe into the internal sleeve assembly, preventing structural abrasion or tension along the extension cable.

• Manually advance the internal adjustable sleeve while verifying the sensor loop output with a calibrated voltmeter until gap voltage validation (-10 VDC targets) is established.

• Tighten the primary external hex locknuts against the housing body to lock the probe depth configuration against continuous machinery vibration.

Frequently Asked Questions

Q: Does the physical composition of this housing modify the factory eddy-current probe scaling?

A: No. The housing geometry around the active sensor face is non-magnetic, ensuring that the voltage-to-distance slope of the companion Proximitor sensor is unaffected by the metallic structure.

Q: How does the internal seal design withstand process pressure during online adjustment?

A: The housing relies on a compressed internal packing gland and elastomer O-ring assembly that constricts around the adjustable sleeve, forming a dynamic fluid barrier during positioning maneuvers under load.

Q: Is a dedicated grounding strap required to maintain cross-talk suppression?

A: No. Thread engagement with a properly grounded machine casing provides a direct low-impedance path to earth, ensuring continuous electrostatic shielding for effective cross-talk suppression.
