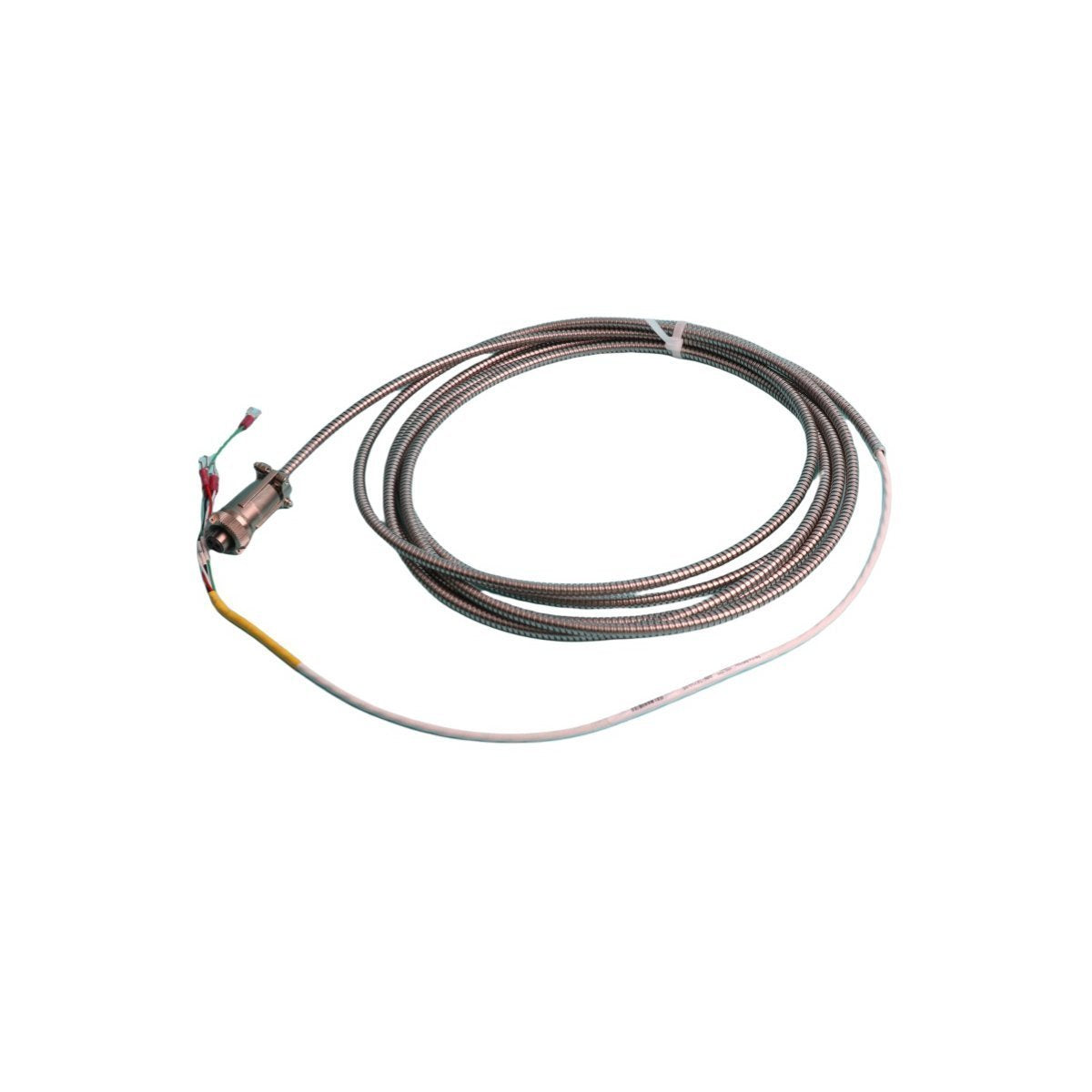

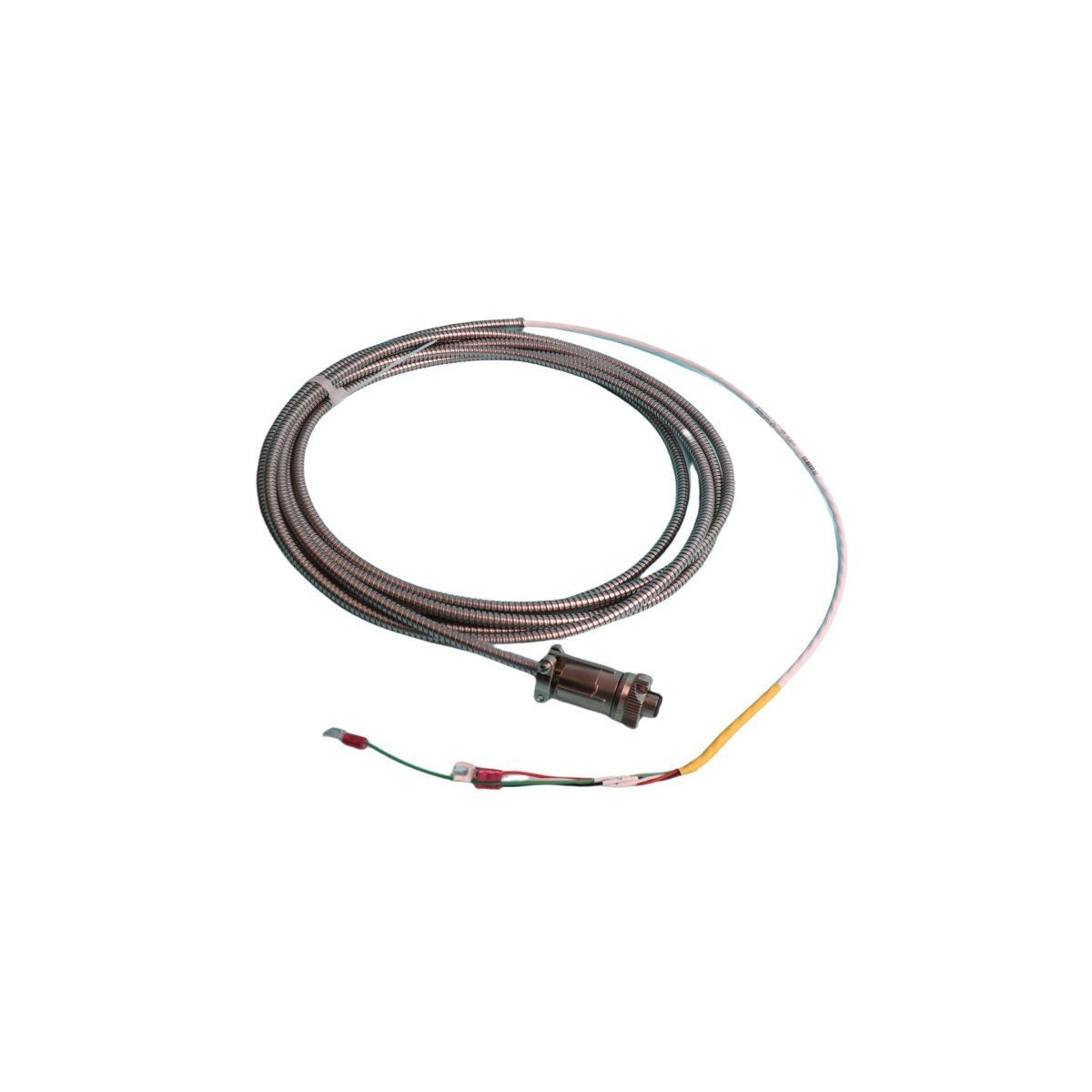

The Bently Nevada 16710-16 serves as the primary 16710-16 Interconnect Cable utilized to execute high-frequency RF signal propagation across Machinery Protection System platforms. Configured as a passive coaxial intermediate link, the assembly transfers analog displacement data from the proximity sensor head to the rack-mounted conditioning monitors without adding phase distortion or attenuation.

Loop Component Metrics

Eddy-Current Probe Scaling & Rotor Dynamics Tracking

The physical cross-section and mechanical length of this 95-\Omega coaxial extension are engineered to match strict system capacitance constants. Maintaining this electrical configuration ensures linear eddy-current probe scaling values remain unchanged during dynamic machine cycles. Precise transmission integrity allows correct gap voltage validation hitting standard -10 VDC targets at the monitoring driver stage, providing noise-free tracking of rotor dynamics and executing maximum cross-talk suppression between close-proximity radial vibration channels.

Transducer Interface Diagnostics

Q: How does modifying the 16.0 m factory physical cable length affect loop calibration?

A: Splicing or changing the physical length alters the calibrated line capacitance and resistance parameters. This structural mismatch changes the factory eddy-current probe scaling, leading to voltage translation errors at the processing monitor.

Q: What fault state signals are generated if the coaxial shield contacts the machine frame?

A: Contact between the outer cable shield and the metallic machine chassis creates a secondary parasitic path to ground. This ground loop introduces ambient noise that interrupts gap voltage validation and disrupts raw vibration measurements.

Q: Can this interconnect line be uncoupled while the monitor rack channel is fully energized?

A: Yes. Disconnecting the coaxial joint is safe for the hardware components. However, interrupting the loop causes the Proximitor output to instantly saturate to its maximum negative voltage limit, which will trip active safety interlocks unless the channel bypass mode is engaged.

Mechanical Routing and Installation Layout

• Minimum Bend Management: Maintain a strict physical bend radius limit of 25.4 mm throughout the cable routing path. Sharp kinks compress the internal dielectric spacing layer, permanently changing the 95-\Omega characteristic impedance profile.

• Connector Insulation Shielding: Torque the miniature coaxial connections to factory specifications using a connector wrench. Enclose the finished metal joint inside a dedicated connector protector sleeve or apply thick layers of self-fusing silicone tape to prevent mechanical grounding against terminal box frames.

• Separation from Power Circuits: Route the transducer cable inside dedicated rigid or flexible liquid-tight steel conduits. Do not pull this high-frequency signal line through the same trays or wireways housing heavy AC motor leads or variable frequency drive switching lines.

Procurement Package Content

• 1 x Bently Nevada 16710-16 Coaxial Interconnect Cable

• 1 x Installation Connector Clearance Guide

• Note: Proximity probes, active Proximitor drivers, and specialized locking connector protectors are excluded from this package.

Logistics Dispatch Framework

Delivery time: 2-7 days when payment finish validation is completed within the database interface. Dispatches route directly from the Xiamen, China transit depot utilizing international express couriers including DHL, FEDEX, or UPS. The hardware items travel protected inside heavy-duty anti-static industrial packaging enclosures layered inside rigid shock-insulated cartons with moisture desiccant packets to prevent physical deformation or electrostatic degradation during transit.
