Product Overview

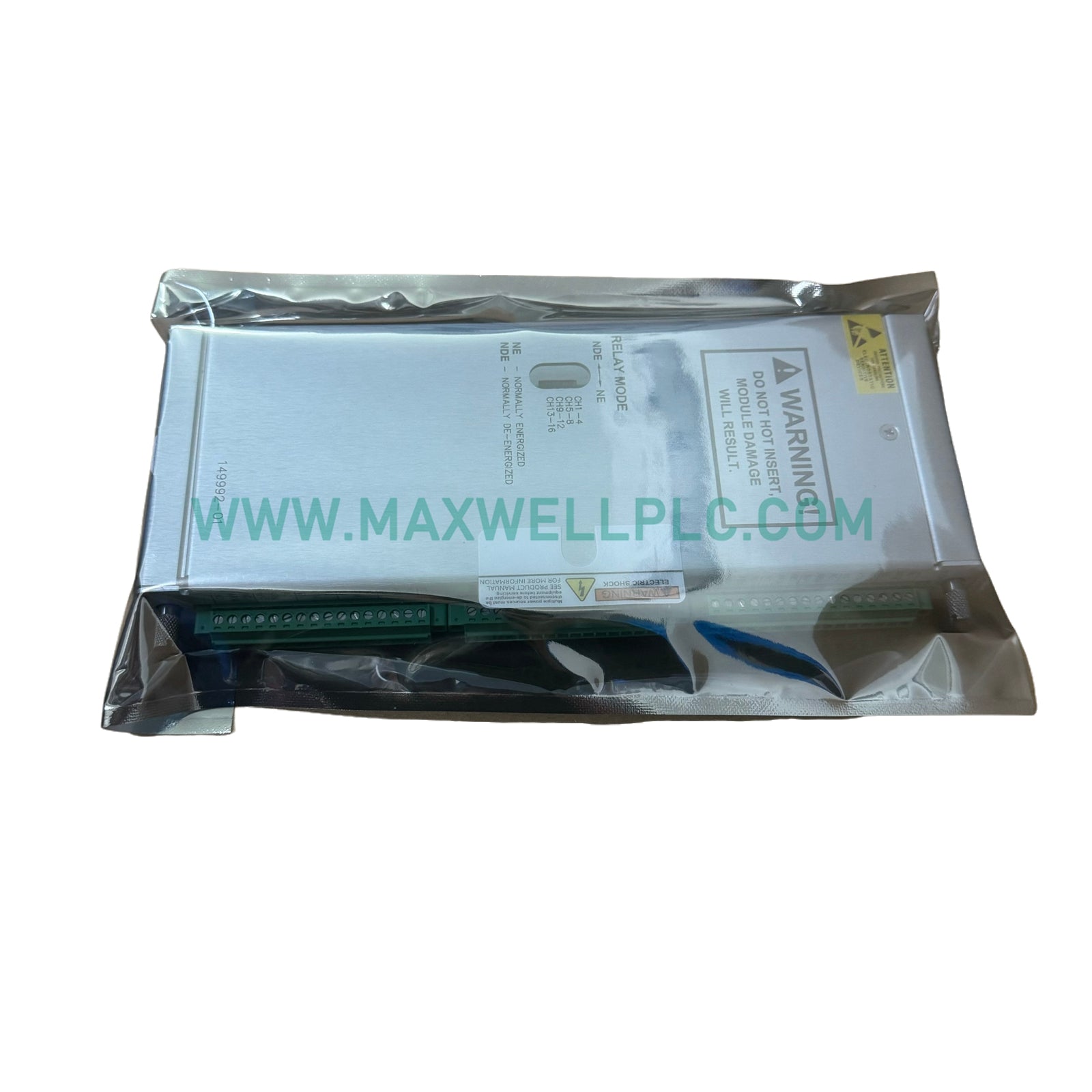

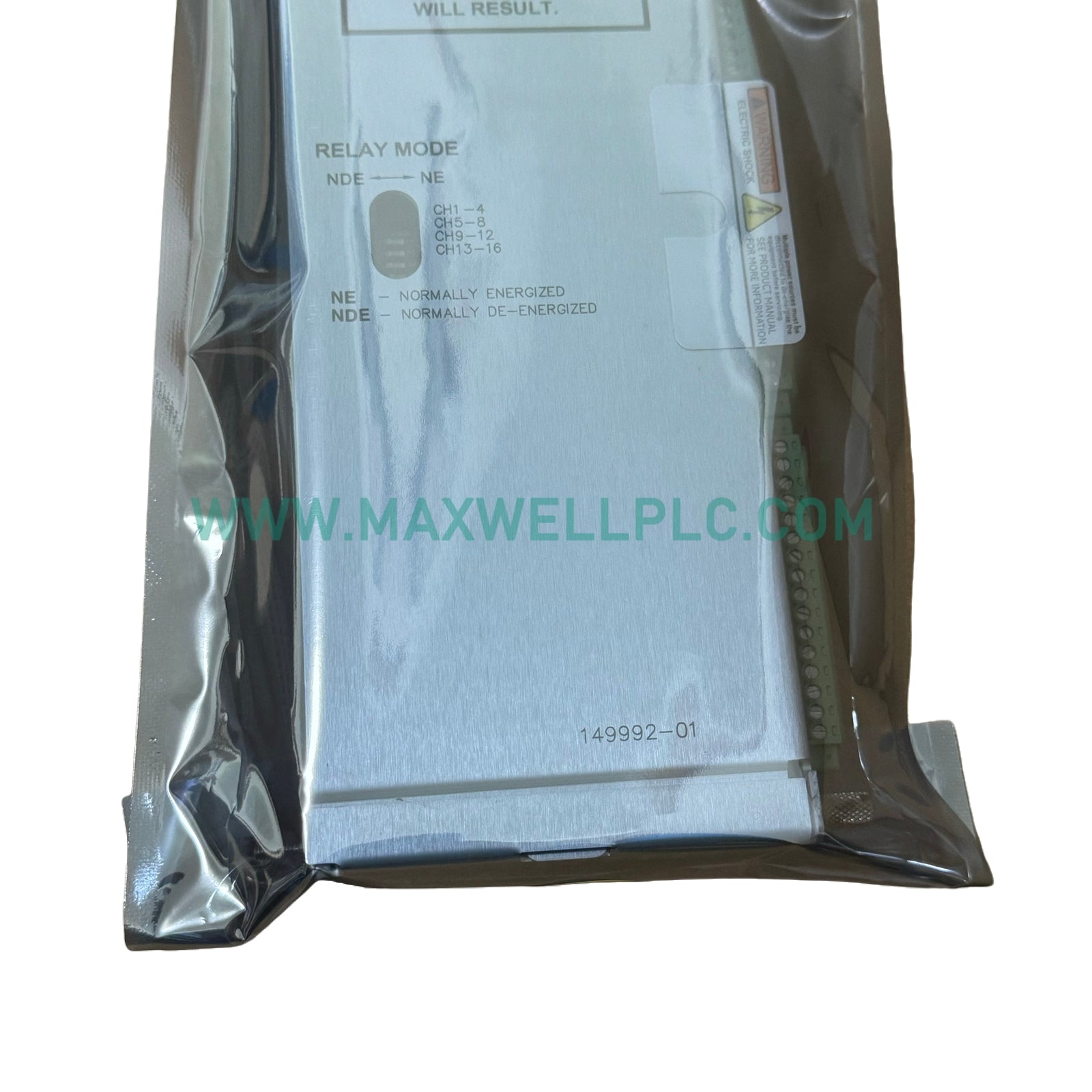

The Bently Nevada 149992-01 is a high-density 16-channel Relay Output I/O module designed for the 3500/33 Machinery Protection System. This module functions as the localized termination point for the 16-Channel Relay Module, providing the physical relay contacts necessary to interface the 3500 rack with external emergency shutdown (ESD) systems, control panels, and alarm annunciators. By facilitating hardware-based "voting" logic, the 149992-01 ensures that critical machinery—such as large turbines and centrifugal compressors—is protected through highly reliable, deterministic switching.

Unlike standard monitoring cards that merely process data, the 149992-01 is an active control component. It translates digital alarm states from the rack backplane into mechanical contact closures. This I/O module is typically installed in the rear of the 3500 rack, directly behind the primary 3500/33 control module, allowing for streamlined field wiring and enhanced system modularity.

Technical Characteristics

• Relay Density: 16 independent output channels for comprehensive alarm and trip management.

• Termination Type: External or Internal termination support for secure field wiring.

• Switching Logic: Fully compatible with 3500 rack "And/Or" voting logic configurations.

• Signal Integrity: Designed for high-availability condition monitoring and mechanical protection.

• System Series: Integrated with the Bently Nevada 3500 Series Machinery Protection System.

• Environmental Resistance: Built to operate in rigorous industrial environments with high vibration and thermal variance.

• Power Interface: Receives logic power and control signals directly from the 3500/33 main module.

• Operating Temperature: Engineered for stability in industrial cabinet temperatures.

• Dimensions: 20cm x 7cm x 2cm

• Weight: 1.5 kg (1500g).

• Origin: Manufactured in the USA.

Critical Machinery Protection and Automation

The 149992-01 plays a vital role in automated machinery protection by providing a physical break in control circuits when hazardous conditions are detected. Each of the 16 channels can be mapped to specific vibration, temperature, or displacement parameters across the entire rack. This allows for complex safety protocols, such as requiring two out of three (2oo3) sensors to trigger before a machine trip is initiated, thereby preventing costly downtime caused by sensor failure or transient noise.

Because this I/O module is part of the TSI (Turbine Supervisory Instrumentation) suite, it is built with high-grade materials to ensure contact reliability over thousands of cycles. Its integration into the 3500 backplane allows for continuous self-diagnostics; the system can detect if the I/O module is disconnected or if the internal relay coils have failed. This transparency is essential for plants operating under strict regulatory and safety standards, providing operators with the confidence that their protection system is always armed and functional.
