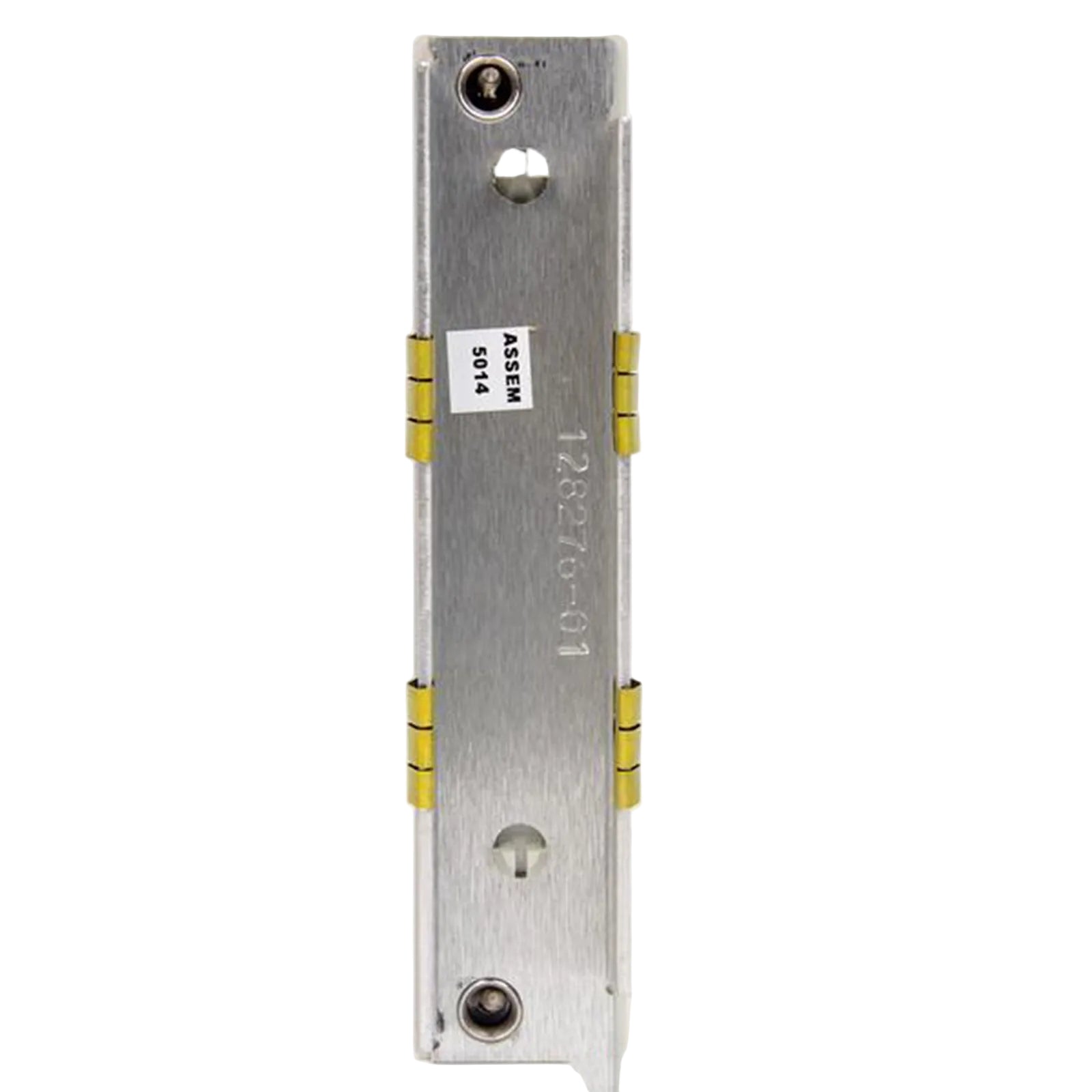

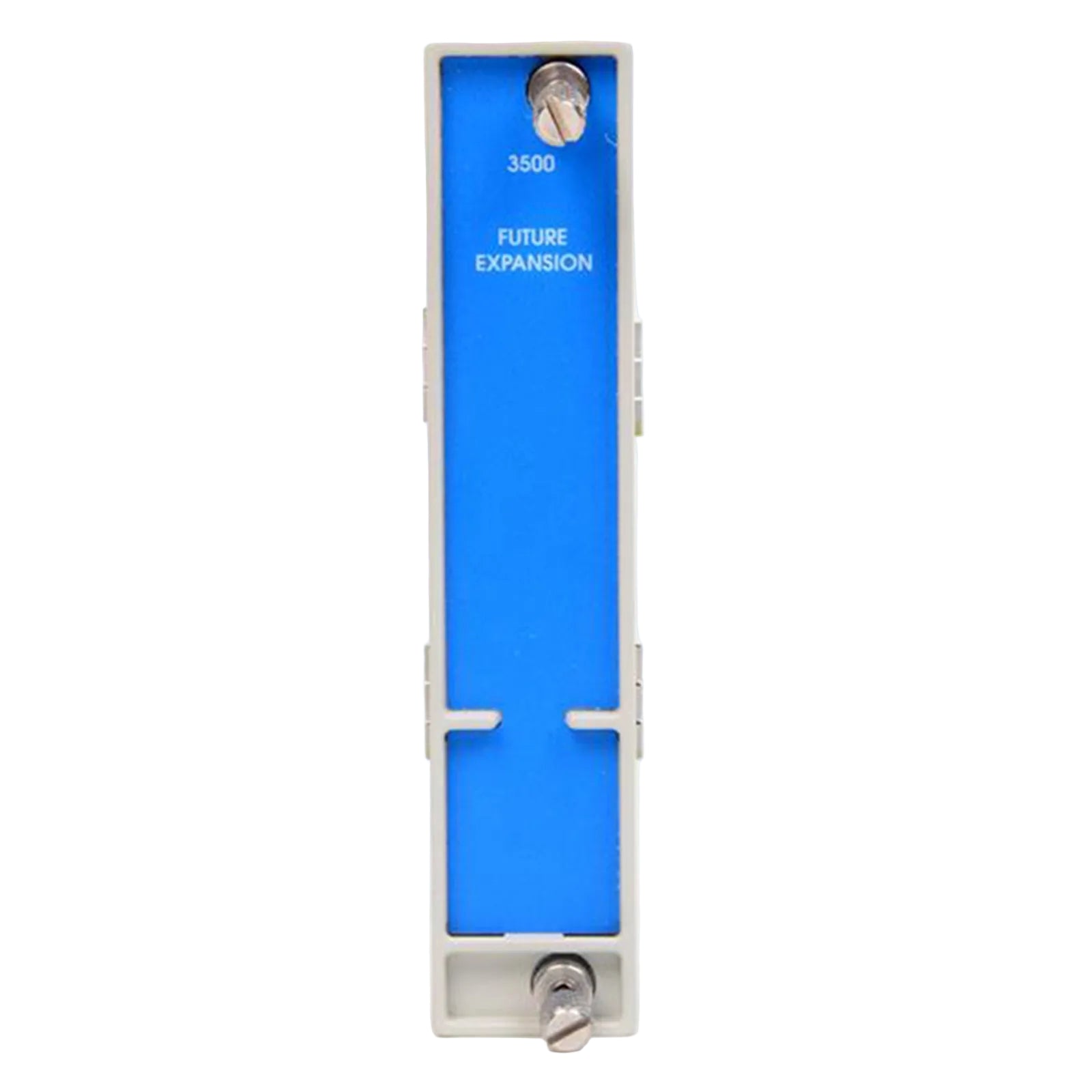

The Bently Nevada 128276-01E, also cataloged as the 128276-01 Half-Height Future Expansion Faceplate, operates as a dedicated hardware component for physical slot protection and chassis sealing within 3500/25 Series machinery protection system platforms.

Physical and Environmental Parameters

Cross-Talk Suppression and Rotor Dynamics Integrity

In high-density TSI (Turbine Supervisory Instrumentation) environments, maintaining the mechanical and electromagnetic integrity of the 3500 rack backplane is necessary for accurate rotor dynamics telemetry. This half-height faceplate provides critical cross-talk suppression by shielding adjacent active monitor channels—such as proximity probe inputs and magnetic pickups—from external electromagnetic interference (EMI) and radio frequency interference (RFI). By sealing the unpopulated half-slot of a 3500/25 Enhanced Keyphasor monitor configuration, the component ensures stable eddy-current probe scaling and prevents disruptions to gap voltage validation (-10 VDC targets), maintaining precise phase reference tracking without signal degradation.

Core Technical Inquiries

Q: What is the primary mechanical function of this half-height faceplate?

A: It secures unpopulated half-slots in a 3500 chassis when a half-height module like the 3500/25 is installed, ensuring correct cooling airflow profiles through internal convection and maintaining structural rigidity.

Q: Does this component affect the electrical load or backplane current consumption?

A: No. The faceplate is a completely passive mechanical asset and draws 0 mA from the 3500 rack backplane power supplies.

Q: Can this component be installed or removed while the rack is energized?

A: Yes, it can be handled during live rack operations (hot-swapped) without interrupting the operation of adjacent online monitoring channels or the rack interface module.

On-Site Deployment Procedures

• Verify that the target 3500 chassis slot contains a half-height module (e.g., 3500/25) leaving an open half-slot position.

• Align the faceplate with the chassis guide rails corresponding to the vacant upper or lower half-slot section.

• Slide the component horizontally into the rack until the front panel sits flush with the adjacent monitor faceplates.

• Tighten the integrated retaining screws to the specified chassis torque limits to ensure proper grounding and EMI seal engagement.

• Inspect the surrounding chassis boundary to confirm that no gaps remain that could disrupt internal cooling air velocity.

Logistics and Procurement Elements

• 128276-01E Half-Height Expansion Faceplate

• Integrated panel retention fasteners

• Factory certificate of conformance

Dispatch and Logistics Processing

Delivery time: 2-7 days when payment finish via global express couriers including DHL, FEDEX, and UPS. All components are packed in certified anti-static industrial packaging to mitigate electrostatic discharge risks during transit. Shipments originate from central logistics hubs in Xiamen, China.
