Product Overview

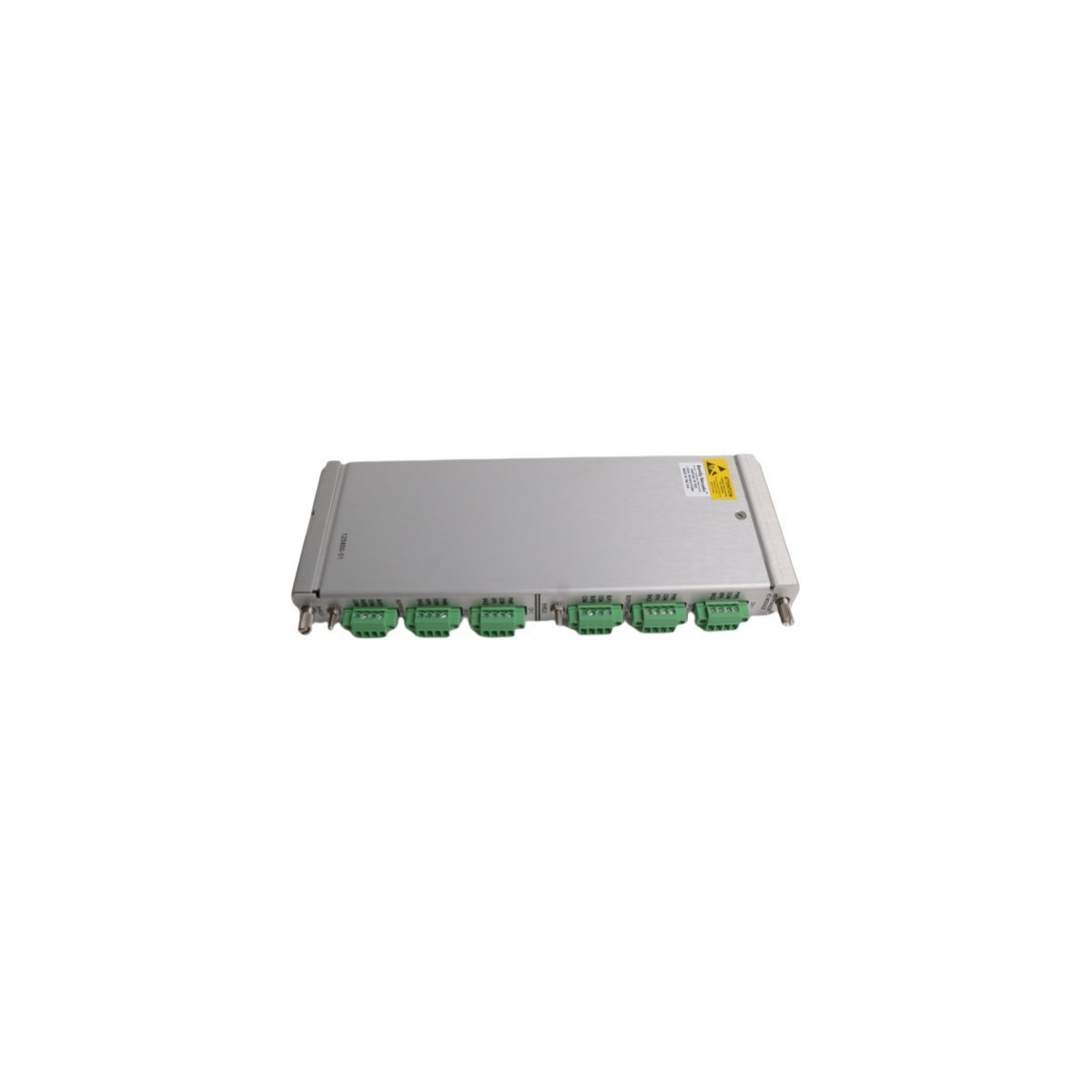

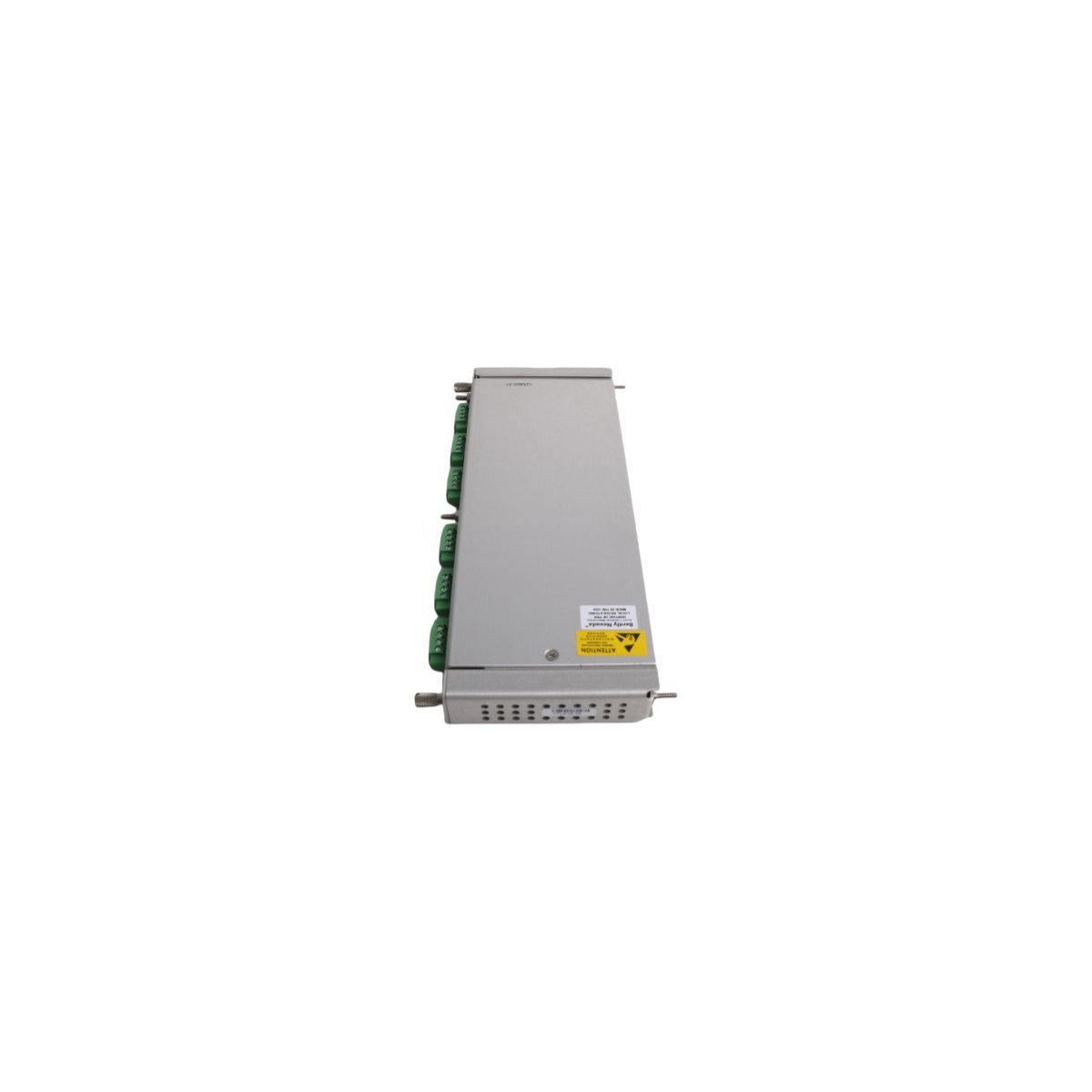

The Bently Nevada 125800-01 is a specialized Input/Output (I/O) module designed for the 3500/25 Enhanced Keyphasor system. This module serves as the primary physical interface for receiving once-per-turn timing pulses from proximity probes or magnetic pickups. By identifying the exact rotational position of a shaft, the 125800-01 provides the essential phase and speed references required for advanced machinery diagnostics and vibration analysis.

This specific variant features internal terminations, which allows field wiring to be connected directly to the module's screw terminals located at the rear of the 3500 rack. This design eliminates the need for external terminal blocks, significantly reducing cabinet space requirements and simplifying the overall wiring architecture. It is an indispensable component for Turbine Supervisory Instrumentation (TSI) and predictive maintenance programs.

Technical Characteristics

• Transducer Compatibility: Supports inputs from Proximitor sensors and magnetic pickups for once-per-turn pulse detection.

• Termination Style: Internal Terminations (direct screw terminal interface on the backplane).

• Channel Support: Facilitates signal routing for the two-channel 3500/25 Keyphasor monitor.

• Signal Integrity: Optimized for low-latency transmission of digital Keyphasor pulses across the rack backplane.

• System Integration: Distributes the timing reference to all vibration and position monitors in the 3500 rack for synchronized data sampling.

• Operating Temperature: Built for industrial resilience, maintaining accuracy from -30°C to +65°C.

• Isolation: Provides necessary electrical isolation to prevent field-side transients from affecting the main rack electronics.

• Installation: Mounts in the rear I/O slot directly behind the 3500/25 monitor module.

• Dimensions: 2.5 x 11.2 x 24.2 cm.

• Weight: 0.38 kg.

• Origin: USA.

Applications and Reliability

The 125800-01 is critical for any rotating equipment requiring phase-locked monitoring, such as steam turbines, gas turbines, and large centrifugal compressors. Without the precise timing pulse provided via this I/O module, the monitoring system cannot calculate 1X vibration phase or perform Bode and polar plots—data that is vital for detecting rotor unbalance, shaft cracks, or misalignment.

Beyond basic speed measurement, the 125800-01 is engineered to maintain signal purity in high-interference environments. Its internal termination design ensures a secure, vibration-resistant connection point for field wiring. When used in conjunction with Enhanced Keyphasor modules, it supports high-resolution transient data capture during machine startup and coast-down, providing engineers with a complete picture of machinery dynamics. The module’s reliability is a cornerstone of the 3500 Machinery Protection System, ensuring that critical safety and diagnostic data are never compromised.
