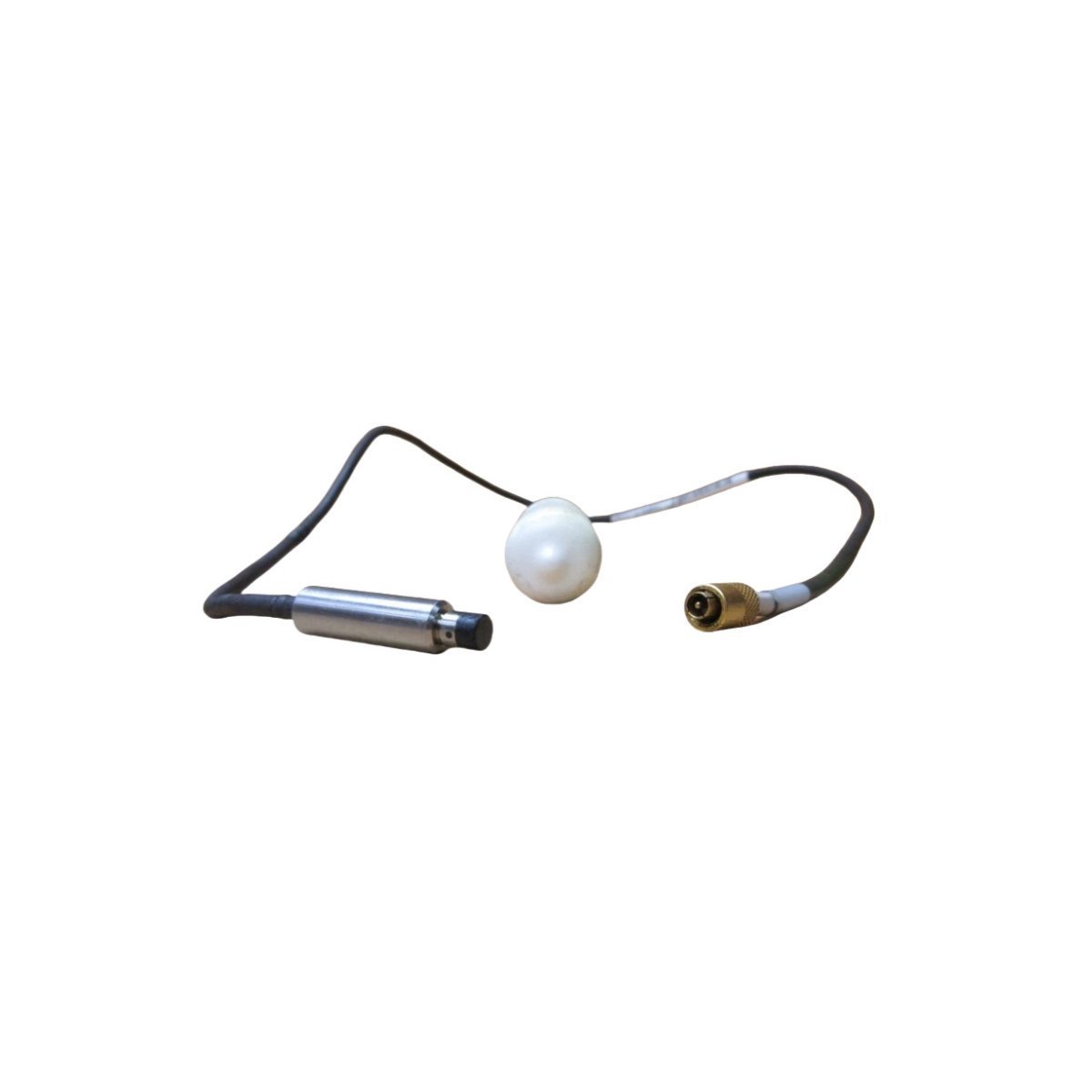

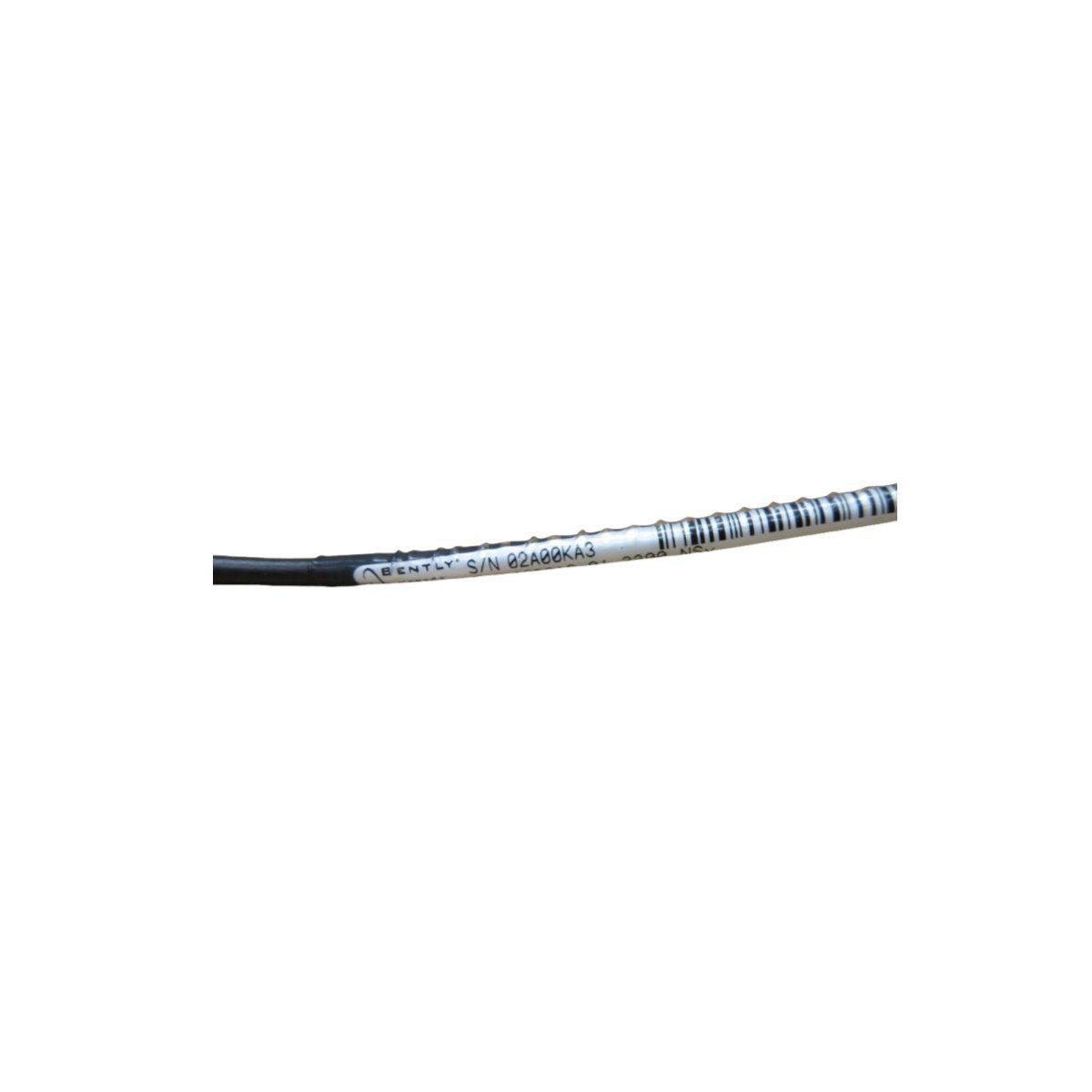

The Bently Nevada 123616-01, also cataloged as the 123616-01 Proximitor Sensor, operates as a dedicated hardware component for processing non-contacting displacement and vibration signals within Turbine Supervisory Instrumentation (TSI) systems. This active electronic module conditions high-frequency RF signals from a narrow side view (NSv) proximity probe, converting raw eddy-current field modulations into a continuous, linear analog voltage output directly proportional to the physical gap distance.

Technical Performance Matrix

Eddy-Current Probe Scaling & Gap Voltage Validation

The internal conditioning circuitry of this Proximitor sensor is calibrated to maintain linear eddy-current probe scaling across constricted target zones. For accurate assessment of shaft position and rotor dynamics, the loop setup requires strict gap voltage validation targeting a standard -10 VDC operational point. The specialized high-frequency oscillator structure provides superior cross-talk suppression, preventing signal modulation or beating anomalies when multiple NSv probes are deployed in close spatial proximity within confined bearing housings.

Diagnostic Logic & Technical Queries

Q: What output characteristics indicate a field wiring open-circuit or probe failure?

A: An open circuit in the probe coaxial loop or an untargeted probe tip causes the Proximitor voltage output to saturate at its maximum negative limit, typically reading between -17 VDC and -21 VDC.

Q: How does a variation in the input supply voltage affect the calibrated scale factor?

A: Internal voltage regulators protect the calibration loop against changes within the -22 to -26 VDC specification. Voltage drops below -22 VDC alter the constant-current drive loop, invalidating the 7.87 V/mm scaling curve and adding measurement drift.

Q: Can this Proximitor driver module be hot-swapped while the 3500 monitoring rack is fully powered?

A: Yes, the driver can be hot-swapped at the rack terminal blocks, but disconnecting live power rails should be avoided. Live insertion can generate transient signals that trigger false alert or danger thresholds on adjacent vibration loops if the module bypass isn't active.

Field Component Installation Protocols

• DIN-Rail Electrical Isolation: Mount the Proximitor sensor directly onto standard 35-mm DIN rails using the integrated insulating clips. Verify the aluminum chassis housing remains isolated from mechanical cabinet structures to prevent parasitic ground loops.

• Coaxial Interface Integrity: Secure the miniature coaxial connector from the extension cable using an approved torque wrench. Ensure the connection is insulated with clear self-fusing tape to block oil, moisture, and potential chassis shorts.

• Field Terminal Calibration: Connect the multi-conductor signal line to the terminal strip using insulated ferrule lugs. Use the dedicated coaxial test terminal points on the face of the module to verify the -10 VDC target gap calibration prior to commissioning.

Procurement Manifest

• 1 x Bently Nevada 123616-01 3300XL NSv Proximitor Sensor

• 1 x DIN-Rail Mounting Base Installation Adapter Kit

• Note: Companion NSv proximity probes, coaxial extension cables, and weatherproof field enclosure housings are separate catalog items.

Logistics Packaging Framework

Delivery time: 2-7 days when payment finish protocols are verified in the global transit network. Dispatches route from the Xiamen, China facility via prioritized express carriers including DHL, FEDEX, or UPS. The active electronics are sealed inside military-grade anti-static industrial packaging alongside moisture desiccant packets, then boxed in rigid shock-insulated cartons to eliminate electrostatic and physical hazards during transport.
