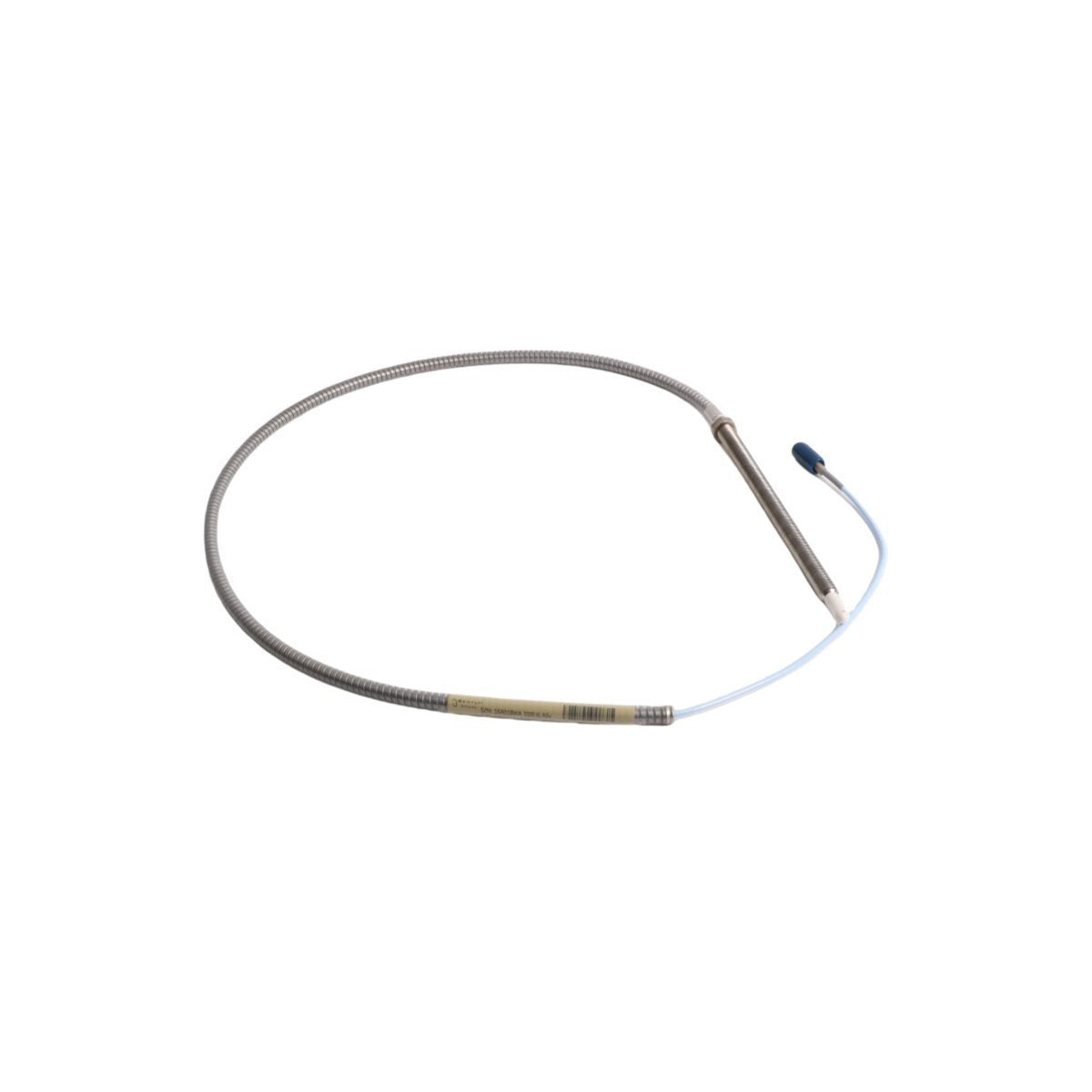

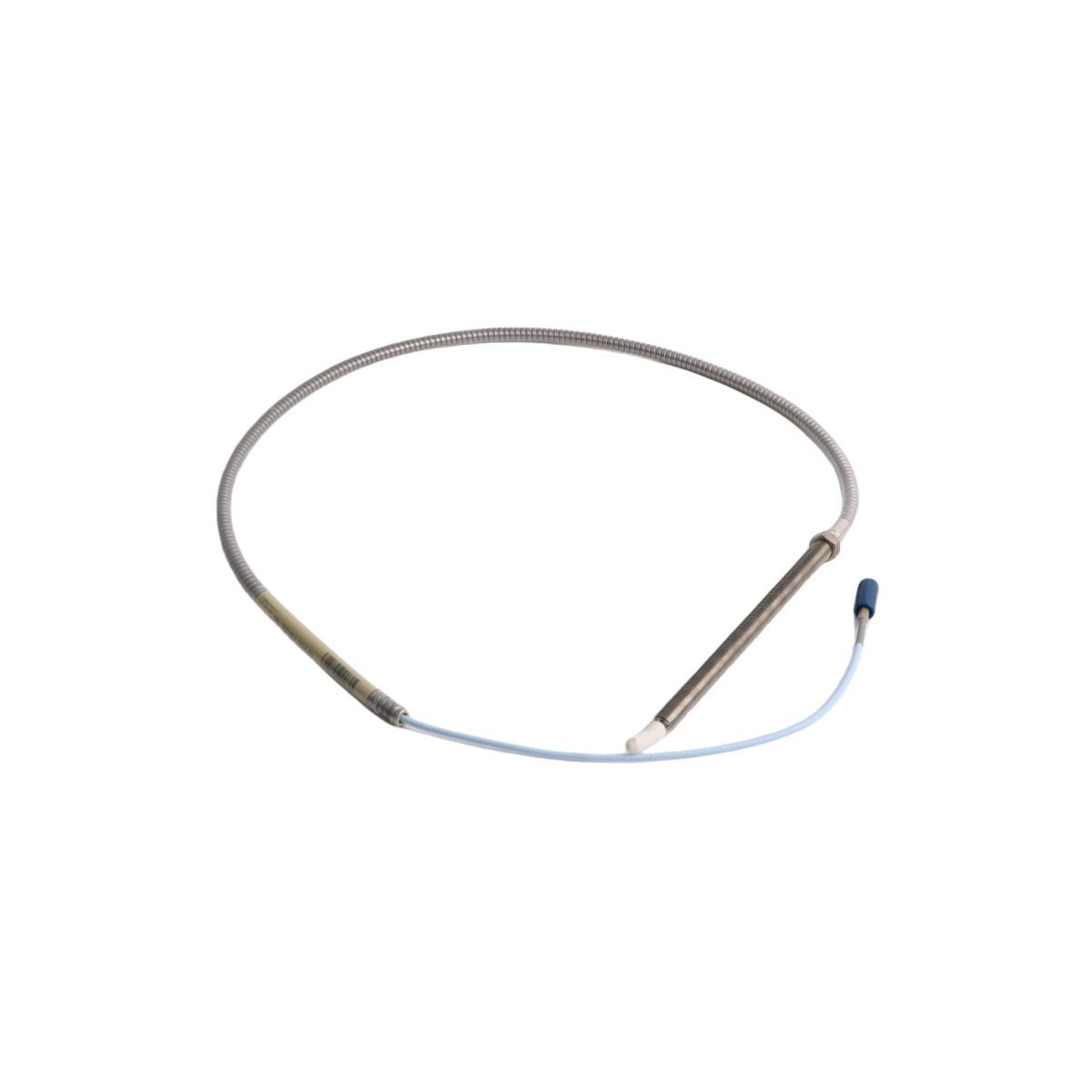

The Bently Nevada 109548-01 P1407030-00100 serves as the primary 109548-01 Proximity Probes utilized to execute non-contacting shaft displacement and vibration measurements across Turbine Supervisory Instrumentation (TSI) platforms. The hardware operates on the eddy-current principle, generating high-frequency magnetic fields to track the precise proximity of a conductive metallic target surface relative to the sensor tip assembly.

Technical Performance Matrix

Gap Voltage Validation & Eddy-Current Probe Scaling

The physical parameters of this transducer element dictate precise eddy-current probe scaling characteristics across its entire linear calibration window. To guarantee accurate tracking of rotor dynamics under operating loads, the baseline physical installation requires gap voltage validation hitting standard -10 VDC targets. This voltage center positioning optimizes the sensor capability to measure micro-inch mechanical movements while ensuring that ambient cross-talk suppression structures prevent signal distortion between adjacent radial probe positions.

Diagnostic Logic & Technical Queries

Q: What structural indications denote an out-of-tolerance gap configuration?

A: When connected to an active Proximitor, a raw DC gap voltage reading less negative than -4 VDC or more negative than -16 VDC indicates the probe tip is outside its verified linear scaling limits, requiring physical adjustment.

Q: How does the presence of stray magnetic fields alter the sensor accuracy?

A: Ambient low-frequency external magnetic fluxes interfere directly with the eddy-current generation at the probe tip. This distorts the linear calibration scale, skewing the dynamic AC voltage output used for rotor dynamics computations.

Q: Can this proximity probe be directly wire-spliced to standard field cables?

A: No. Splicing alters the calibrated coaxial line impedance and total loop capacitance. This mismatch invalidates factory eddy-current probe scaling, inducing measurement errors inside the monitoring rack module.

Mechanical Position & Installation Protocols

• Thread Engagement Calibration: Thread the probe body into the bracket housing manually to prevent cross-threading. Use a precise digital voltmeter connected to the Proximitor output terminals to verify the -10 VDC gap target before locking the jam nuts.

• Side Clearance Limitations: Maintain a minimum clear physical radius around the probe tip equal to three times the tip diameter to eliminate false side-view editing errors caused by adjacent structural metal faces.

• Coaxial Line Protection: Secure the integral cable lead using insulated clamps inside the machine housing. Route the connection paths inside dedicated flexible liquid-tight conduits to block oil ingress and mechanical shear forces.

Package Inventory List

• 1 x Bently Nevada 109548-01 P1407030-00100 Proximity Probe

• 2 x Hexagonal Mechanical Locking Jam Nuts

• Note: Extension cables, external Proximitor sensors, and specialized bulkhead connectors must be calculated and itemized under a separate requisition.

Component Shipping Protocols

Delivery time: 2-7 days when payment finish updates are recorded in the internal database. Consignments route from Xiamen, China using prioritized international air transport managed by DHL, FEDEX, or UPS. Each component is enclosed within specialized anti-static industrial packaging complete with shock-absorbent structural inserts to protect the internal coil windings from external mechanical forces during transit.
