Product Overview

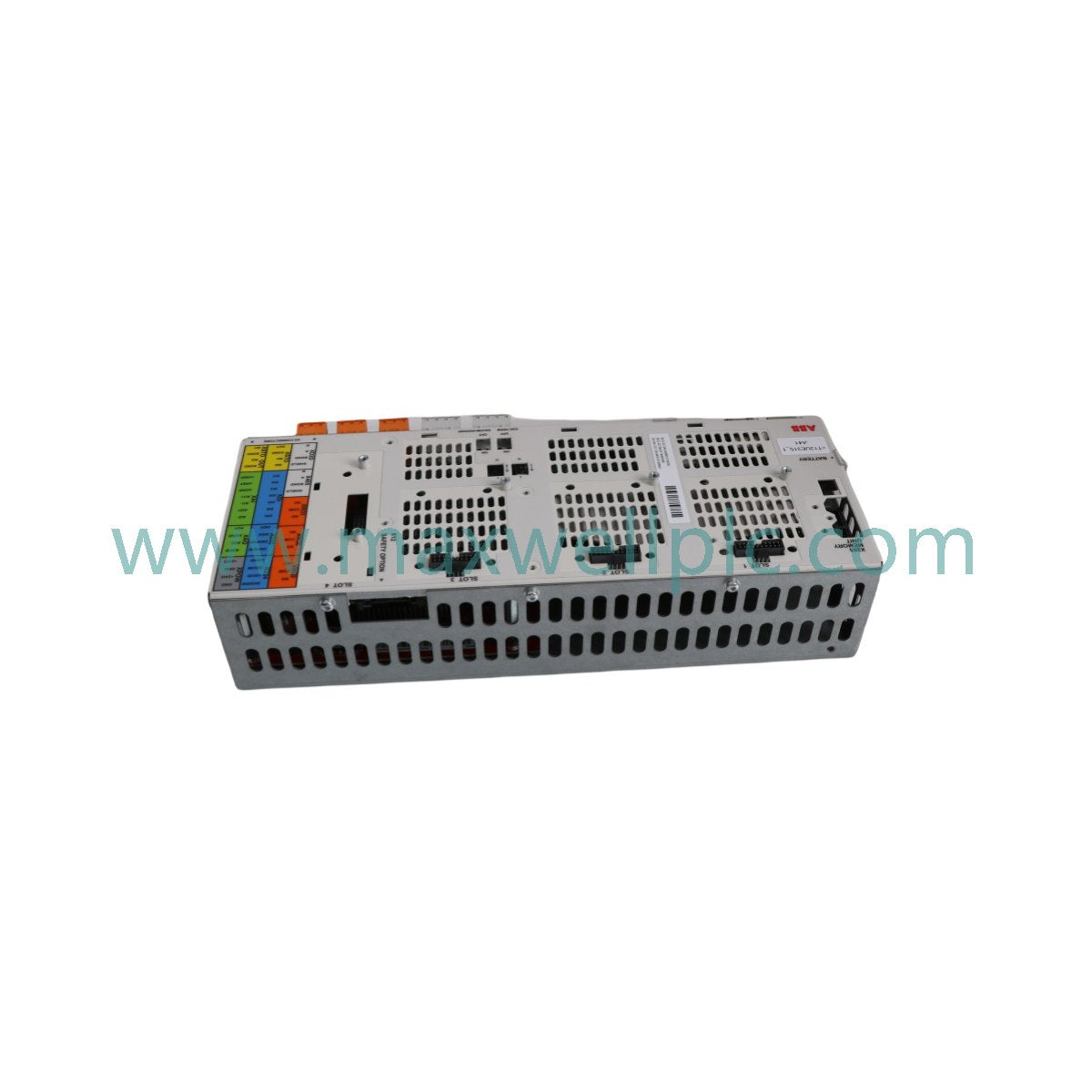

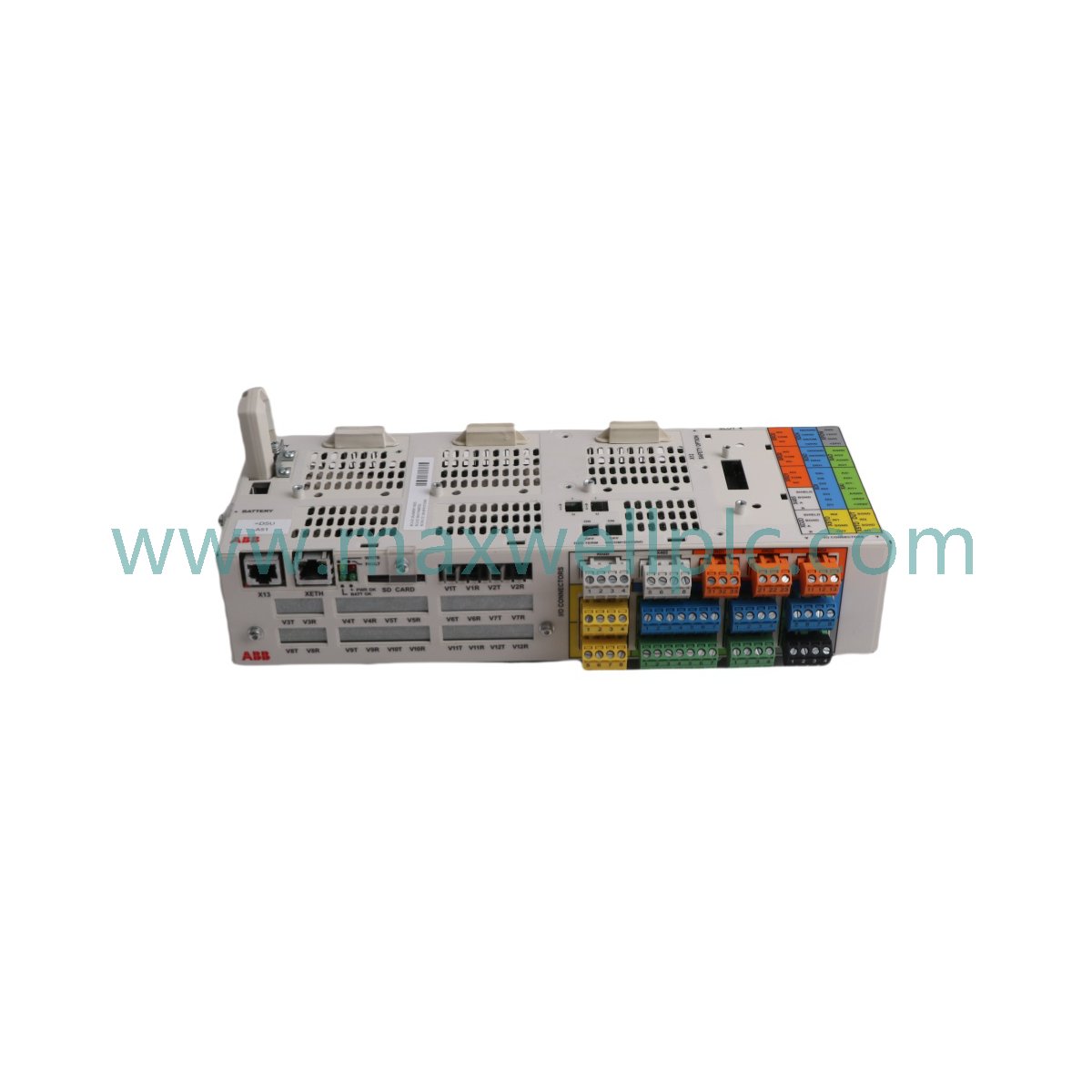

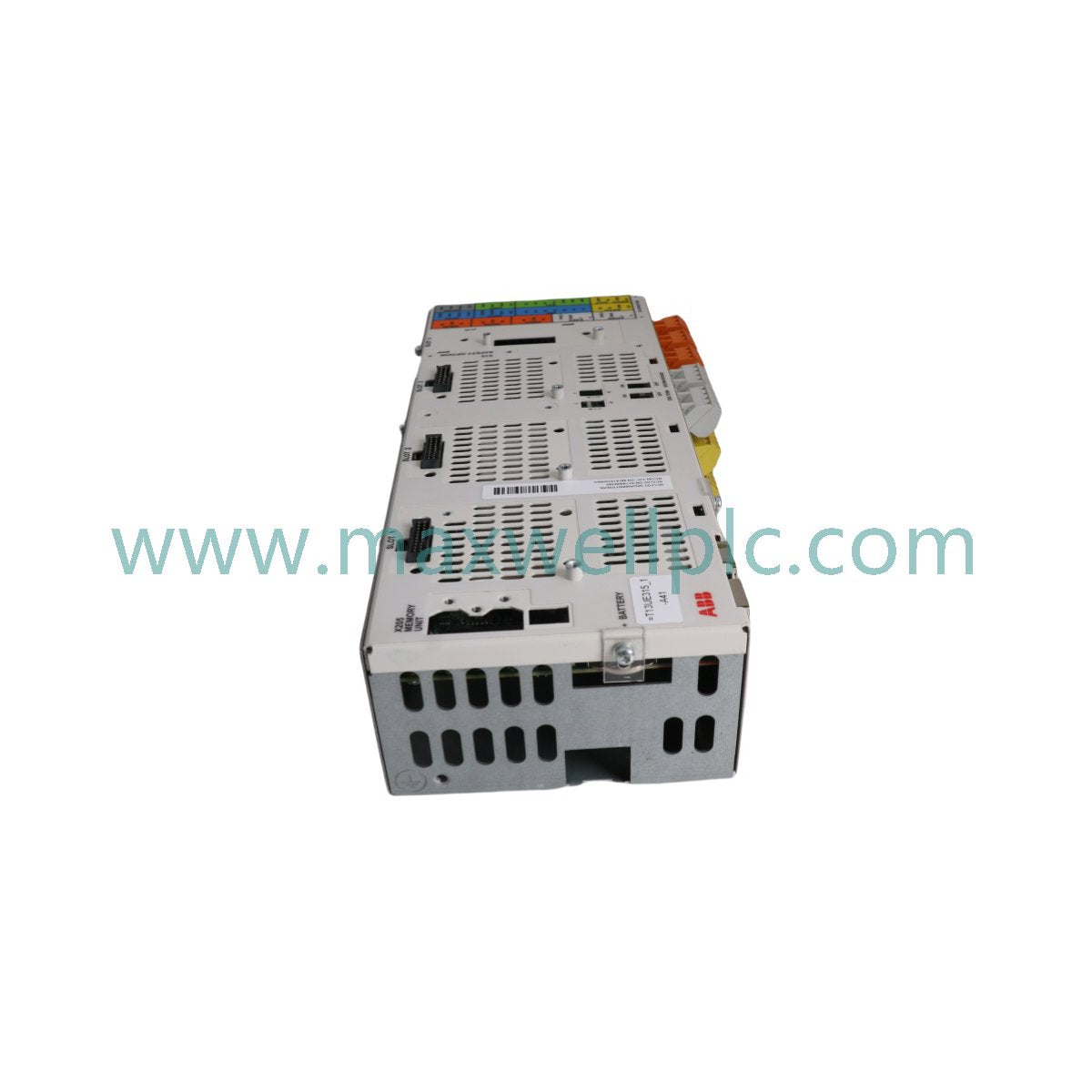

The ABB BCU-02, identified by part number 3AUA0000110429, functions as the primary external control unit for high-performance industrial drive systems, specifically engineered for the ACS880 series. Acting as the computational and communication hub, this module facilitates deterministic control and monitoring of power converter modules. It translates high-level process commands into precise gate pulses via high-speed fiber optic links, ensuring synchronous operation across multi-drive configurations.

In complex industrial environments, signal integrity and diagnostic transparency are paramount. The BCU-02 addresses these needs through advanced hardware architecture, including dedicated branching unit logic and a removable SDHC memory card for comprehensive parameter and diagnostic logging. Its modular design provides a scalable foundation for system integration, allowing engineers to expand I/O capability, incorporate encoder feedback, and interface with various fieldbus communication protocols. Designed for continuous-duty operation in demanding industrial settings, the BCU-02 delivers the high-availability performance required for modernized automation and motion control frameworks.

Technical Specifications

Model Configuration Explanation

The BCU-02 (3AUA0000110429) configuration is built upon a versatile platform designed for modularity within ABB's drive ecosystem. The unit contains three universal option slots, allowing the hardware configuration to be tailored to the specific automation requirements of the application—be it high-precision motion control requiring encoder feedback or large-scale DCS integration via fieldbus adapters (Profinet, EtherNet/IP, Modbus). The integration of the SDHC card slot provides parameter portability; in the event of a unit swap, the removal of the memory card allows for the near-instantaneous restoration of drive-specific logic and tuning parameters, minimizing MTTR (Mean Time To Repair).

Typical Applications

The BCU-02 is utilized in sectors where high-speed motion control and synchronized motor performance are critical:

• Paper & Pulp Machines: Managing multi-motor lines that require sub-millisecond synchronization to prevent material tearing.

• Winder & Rewinder Systems: Utilizing the XD2D link for load sharing and precise tension control between separate drive motors.

• Multi-Motor Conveyor Networks: Ensuring uniform speed and torque distribution across complex logistic lines.

• Power & Energy Infrastructure: Controlling high-power converter assemblies in grid-tie applications and renewable energy storage systems.

• Large-Scale Pumping Systems: Providing coordinated control for arrays of centrifugal pumps to optimize energy efficiency and flow rates.

System Compatibility

The BCU-02 is natively designed for the ABB ACS880 drive family. It provides seamless connectivity for distributed drive architectures, effectively acting as the central processing engine. Compatibility extends to various ABB option modules, ensuring that whether your control system communicates via PROFINET, EtherNet/IP, or PROFIBUS DP, the BCU-02 serves as a reliable gateway. The XD2D (Drive-to-Drive) link ensures compatibility with legacy master-follower configurations, making it a highly adaptable component for site-wide system upgrades.

Integration Guidelines

• Fiber Optic Management: Ensure clean fiber ends before connection. For runs under 35 meters, use 1 mm Plastic Optical Fiber (POF). For runs up to 100 meters, use 200 μm Hard-Clad Silica (HCS) fiber.

• Module Seating: When installing option modules into the three expansion slots, ensure the drive power is off and that the module is properly seated until the locking mechanism clicks.

• Parameter Migration: Always perform a full parameter backup to the SDHC card before any firmware update or hardware replacement to ensure a recovery path.

• XD2D Cabling: When using the RS-485 Drive-to-Drive link, utilize twisted-pair shielded cable and ensure a common ground reference between the units to minimize potential differences.

• Mounting: Secure the BCU-02 on a vibration-resistant surface within a ventilated control cabinet. Keep the unit away from high-heat sources to maintain the rated -10°C to +55°C operating range.

Product Advantages

• Deterministic Control: High-speed fiber optic interfaces provide rapid, reliable communication between the control unit and inverter modules, minimizing jitter and latency.

• Modular Versatility: Three option slots enable highly specific configurations, allowing the user to adapt the controller to specialized I/O or encoder requirements without replacing the core unit.

• Diagnostic Transparency: The SDHC logging capability captures detailed system behavior, enabling ABB service tools to perform granular fault analysis and predictive maintenance.

• Ease of Replacement: The removable memory unit design allows for rapid hardware swaps, as system-specific configurations are physically tied to the removable SDHC card rather than the controller board.

Ordering Information

The BCU-02 (3AUA0000110429) is a standard ABB drive component. When ordering, verify if your application requires specific fieldbus option modules, as these are typically sold separately. The unit is shipped in anti-static, protective packaging suitable for industrial logistics. Consult the ABB ACS880 manual or your regional sales representative to confirm compatibility with your drive’s firmware version.

Frequently Asked Questions

• Q: Can the BCU-02 operate without an SDHC card installed?

  A: It can operate, but the data logging and parameter portability features will be unavailable. It is highly recommended to use an SDHC card for system robustness.

• Q: What is the maximum length of the fiber optic cables?

  A: With 1 mm POF, up to 35 meters is supported; using 200 μm HCS fiber allows for distances of up to 100 meters.

• Q: How does the unit handle electromagnetic interference?

  A: The use of fiber optic interfaces ensures total electrical isolation between the control unit and power stages, providing immunity against high-frequency electrical noise.

• Q: Is the BCU-02 compatible with all ACS880 drives?

  A: It is designed for the ACS880 series, but compatibility may depend on the specific frame size and firmware version. Always check the system compatibility list.

• Q: What is the XD2D port used for?

  A: The XD2D port is an RS-485 interface used for Drive-to-Drive communication, which allows for fast synchronization and data exchange between multiple drive controllers.

• Q: Does the unit support third-party fieldbus protocols?

  A: Yes, the three option slots support a range of fieldbus adapters including Profinet, EtherNet/IP, and Modbus TCP, allowing for integration with various control systems.

• Q: Can the SDHC card be swapped between different BCU-02 units?

  A: Yes, this is a core design feature that allows the system configuration to follow the card, facilitating quick hardware replacement during maintenance.

• Q: What should I do if the unit displays a fiber optic link error?

  A: Check the fiber optic connectors for dust or damage, ensure the cable is not bent beyond its minimum radius, and verify that the connections to the inverter units are secure.
