ME203/CNW Bachmann M1 Processor Module Central Processing Unit

Product Overview

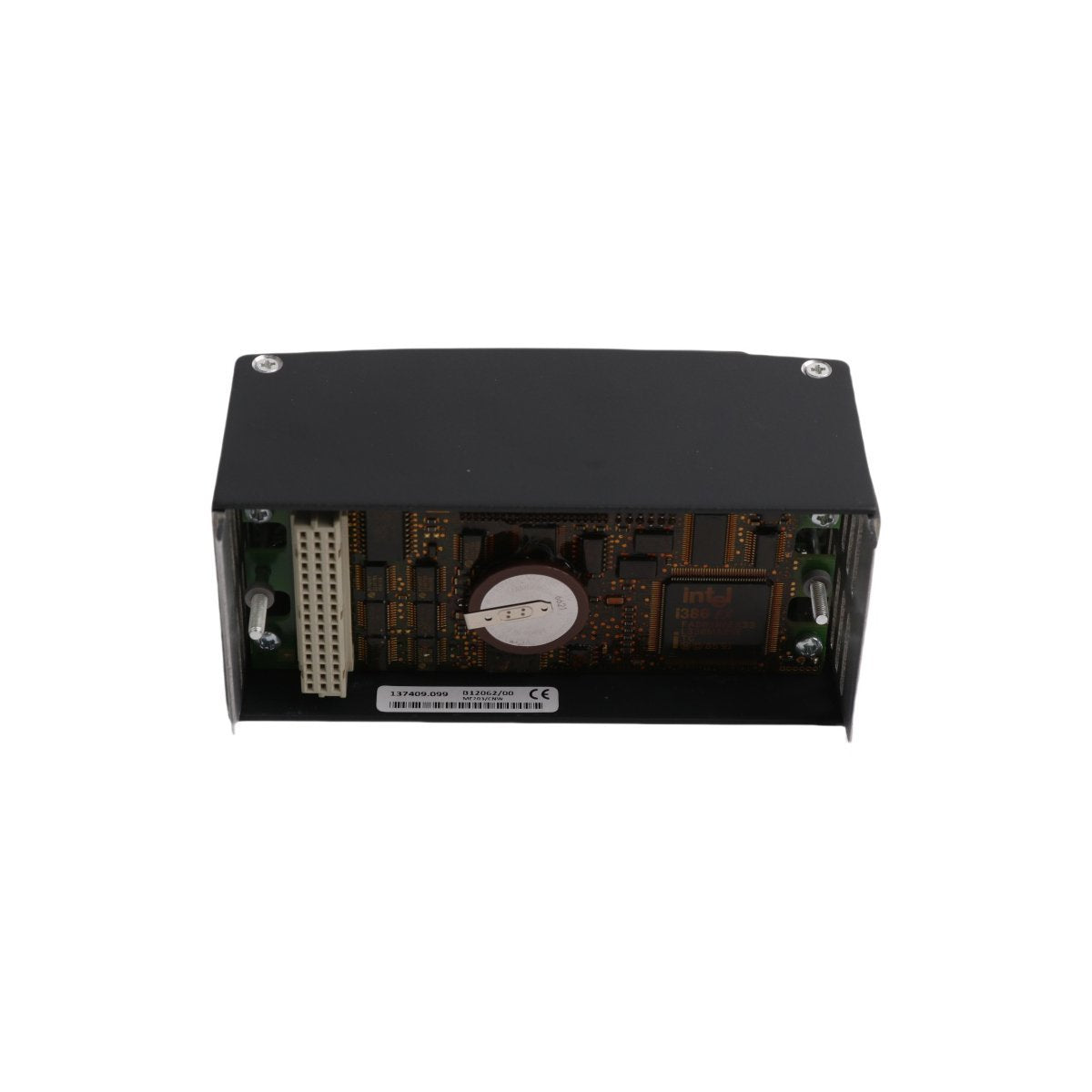

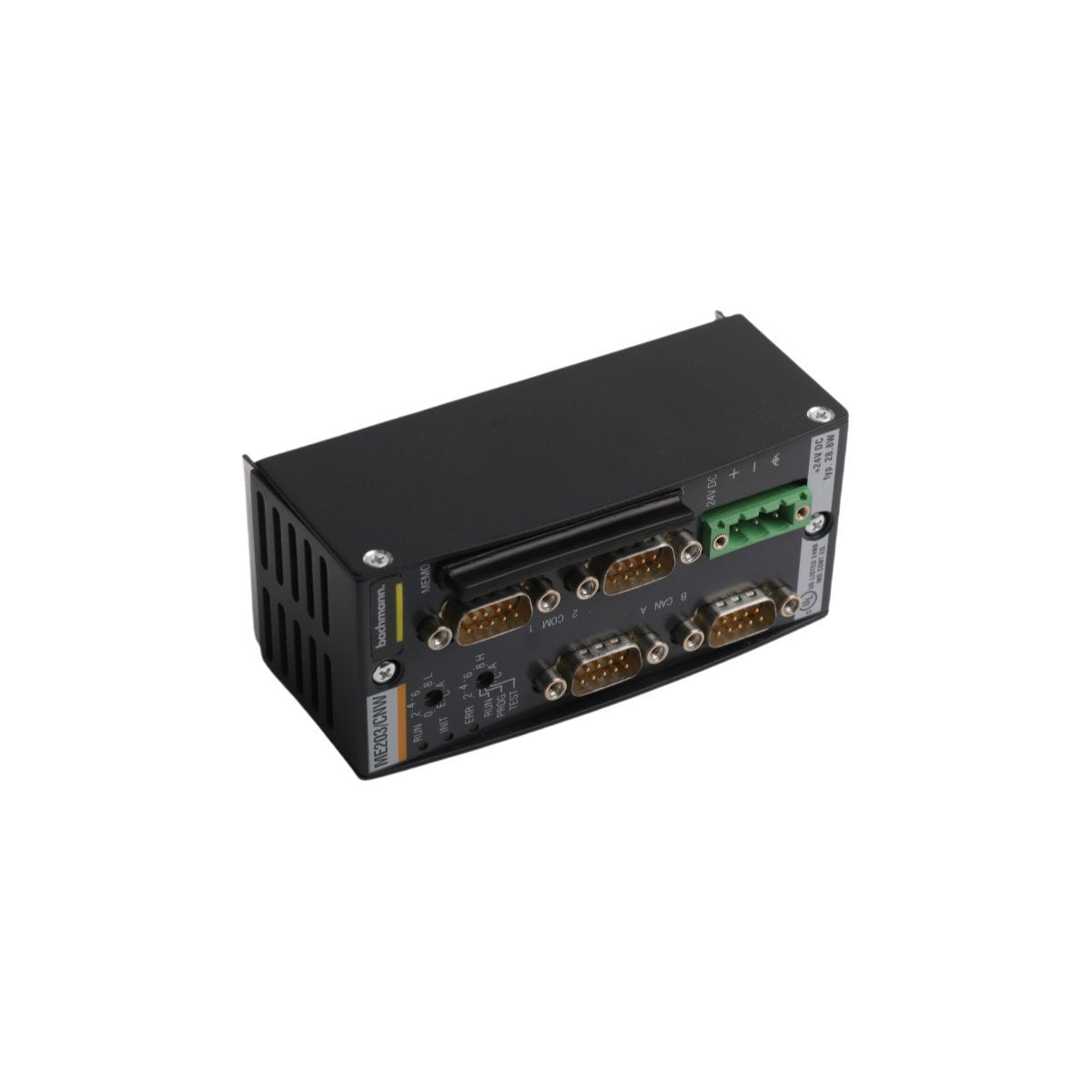

The Bachmann ME203/CNW is a compact and energy-efficient Central Processing Unit designed as the core controller for the M1 automation system. This module is engineered to provide professional-grade computational logic while maintaining a minimal physical and thermal footprint. Occupying only a single slot on the backplane, the ME203/CNW is an ideal solution for medium-scale industrial applications where cabinet space is limited but system reliability is non-negotiable.

A key technical advantage of this processor is its software continuity. It utilizes the standard Bachmann M1 programming environment, allowing for the direct reuse of existing application code and configuration libraries. This ensures that transitions from high-end processors to this more efficient model are seamless, reducing engineering time and project costs without sacrificing operational performance.

Integrated Power Supply and Connectivity

Beyond its processing capabilities, the ME203/CNW serves as a power hub for the local I/O cluster. It features an integrated power output of 17W, which provides voltage directly to the backplane to drive connected input and output modules. This consolidated design eliminates the need for auxiliary power distribution units in many configurations, leading to cleaner wiring and reduced hardware overhead.

For system networking and peripheral integration, the module is equipped with a high-speed 10/100 Mbit/s Ethernet port and two multi-standard serial interfaces. These serial ports support RS232, RS422, and RS485 protocols, making the unit a versatile gateway for connecting legacy field devices to a modern control network. Additionally, a front-side PC card slot allows for easy storage expansion, data logging, and rapid firmware management.

Technical Specifications

• Manufacturer: Bachmann Electronic

• Model Identification: ME203/CNW

• System Architecture: Bachmann M1 Controller Series

• Network Interface: 1x 10/100 Mbit/s Ethernet (RJ45)

• Serial Communication: 2x Ports (Configurable RS232 / RS422 / RS485)

• Backplane Power Output: 17W (Integrated supply for I/O modules)

• Storage Interface: Front-side PC Card Slot

• Mounting Requirements: Single slot width (5.3 cm)

• Module Weight: 0.3 kg

• Chassis Dimensions: 5.3 x 6.0 x 12.0 cm

Primary Field Applications

• Decentralized Control: Acting as an intelligent local node in large-scale distributed automation networks.

• Renewable Energy Assets: Providing low-power control and monitoring for solar or wind energy subsystems.

• Space-Constrained Installations: Implementing full PLC logic in compact enclosures or shallow electrical cabinets.

• Legacy Bridging: Integrating serial-based field equipment into modern Ethernet-based control architectures.
