Product Overview

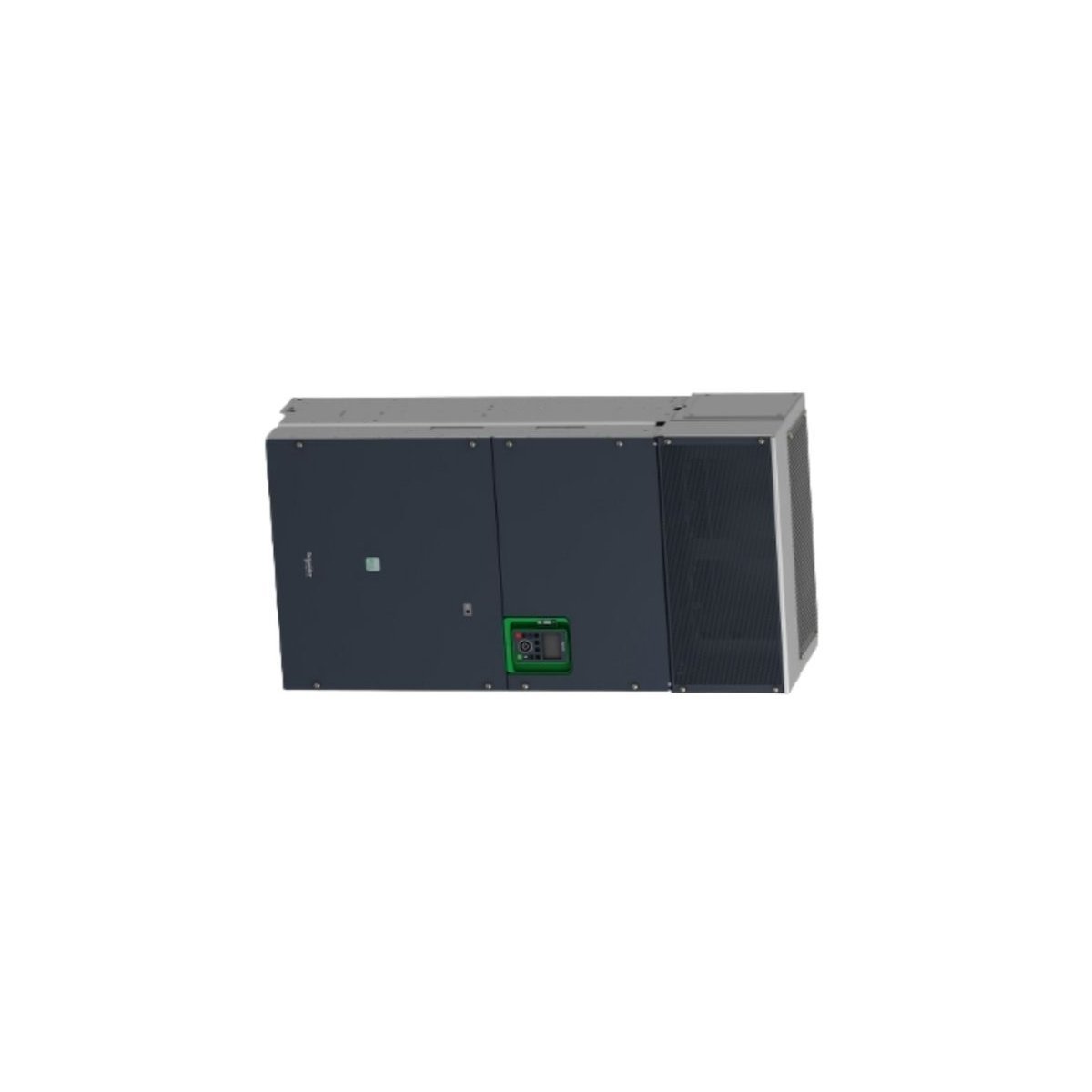

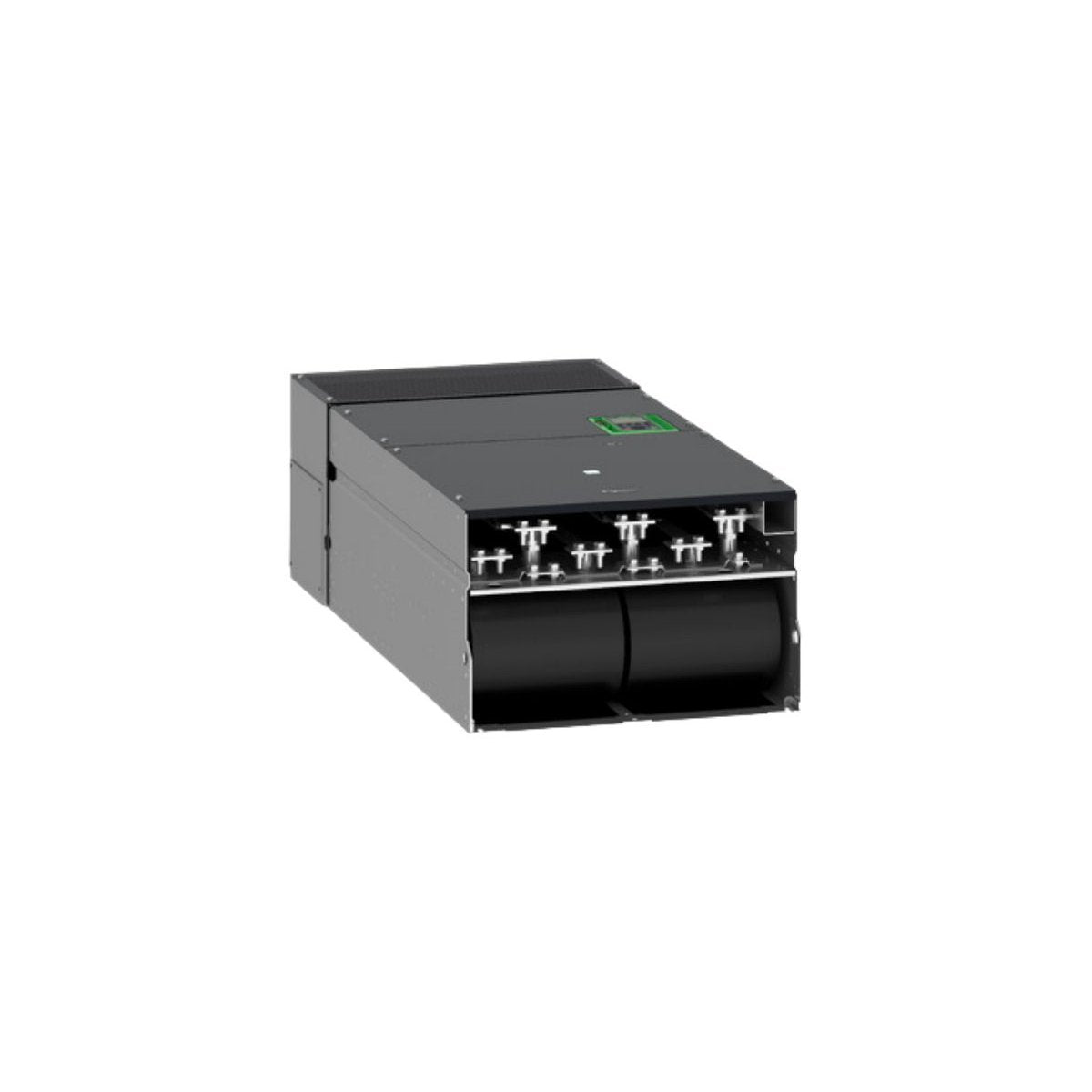

The Schneider Electric ATV930C25N4C is a high-performance power conversion solution from the Altivar Process ATV900 family, specifically engineered for complex, high-demand industrial motor control. This drive provides intelligent management for both asynchronous and synchronous three-phase motors, supporting power ratings up to 250 kW (400 HP) for normal duty and 200 kW (300 HP) for heavy-duty cycles. Designed as an "open-type" IP00 module, it is intended for integration into protected electrical enclosures. The ATV930C25N4C focuses on process optimization, featuring embedded intelligence to provide real-time data analytics and energy management for large-scale industrial assets.

Mechanical Integrity and Performance Constants

The ATV930C25N4C is built for heavy-capacity power handling while maintaining a streamlined footprint for cabinet installation.

• Power Handling (Normal Duty): 250 kW / 400 HP with 120% overload capacity.

• Power Handling (Heavy Duty): 200 kW / 300 HP with 150% overload capacity.

• Input Supply: Three-phase 380V to 480V AC.

• Mass and Volume: This unit weighs 1.9 kg and measures 27.9 x 21.6 x 6.3 cm (Note: Dimensions reflect the control and communication assembly footprint).

• Environmental Protection: IP00 open-type enclosure rating.

• Connectivity Suite: Dual-port EtherNet/IP and Modbus TCP for seamless IT/OT convergence.

• Maintenance Tools: Integrated web server and data logging for proactive system diagnostics.

Industrial Process Deployments

The ATV930C25N4C is a specialized asset for industries where motor uptime and energy efficiency directly correlate to operational profitability.

Mining and Ore Processing: Managing high-torque conveyor systems and grinders where master/slave configurations are required to synchronize multiple drive units for heavy-load transport.

Oil and Gas Infrastructure: Controlling high-capacity submersible pumps and compressors in extraction zones, utilizing advanced network resilience to prevent process trips during communication interference.

Water and Wastewater Management: Powering large-scale intake pumps and aeration systems with embedded energy monitoring to reduce total cost of ownership.

Food and Beverage Production: Coordinating complex motion for high-speed bottling or processing lines, ensuring smooth torque transitions and rapid response to load changes.

Coordinated Automation: Utilizing the built-in EtherNet/IP interface to integrate directly into PLC-based systems for real-time telemetry and remote maintenance, effectively reducing the need for on-site diagnostic intervention.
