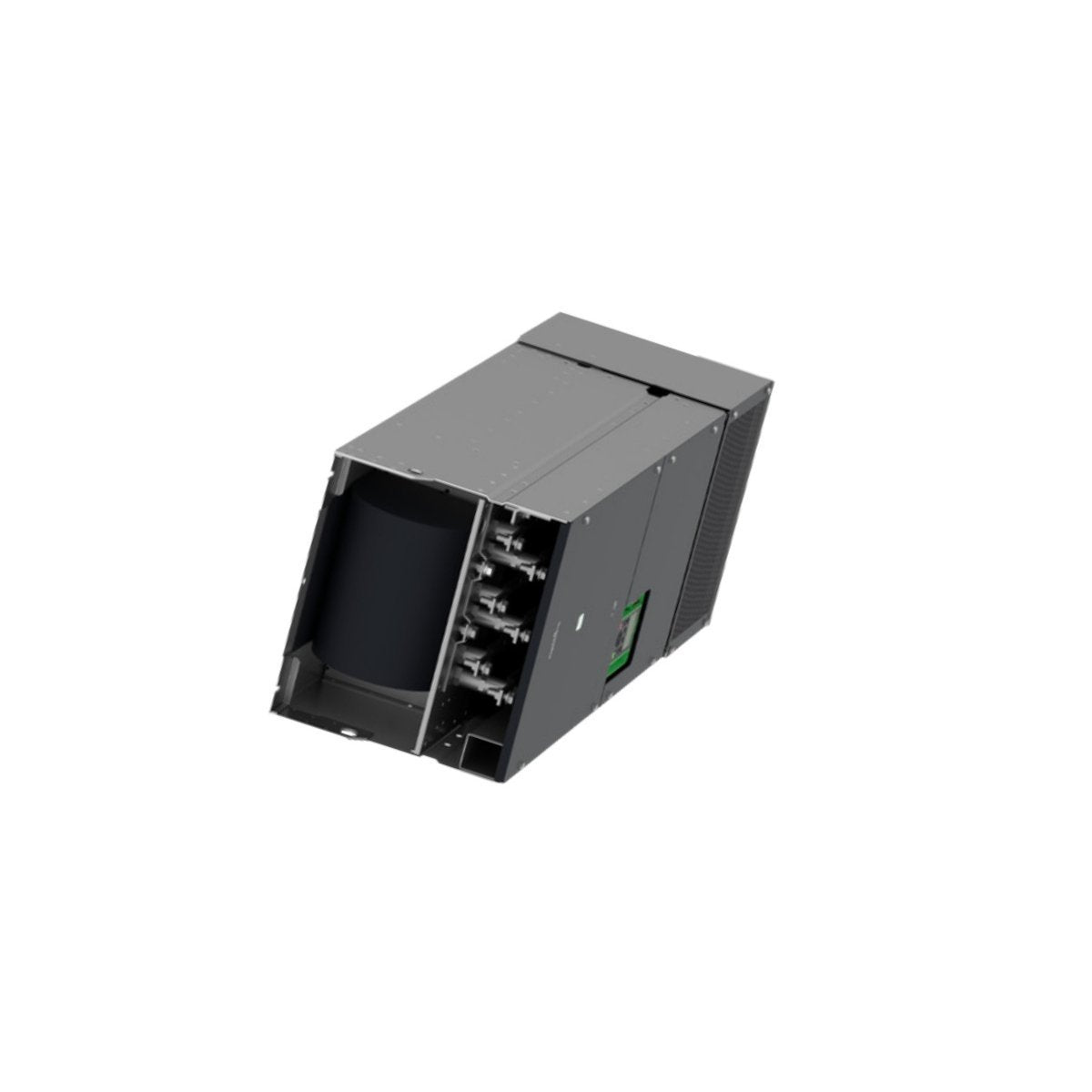

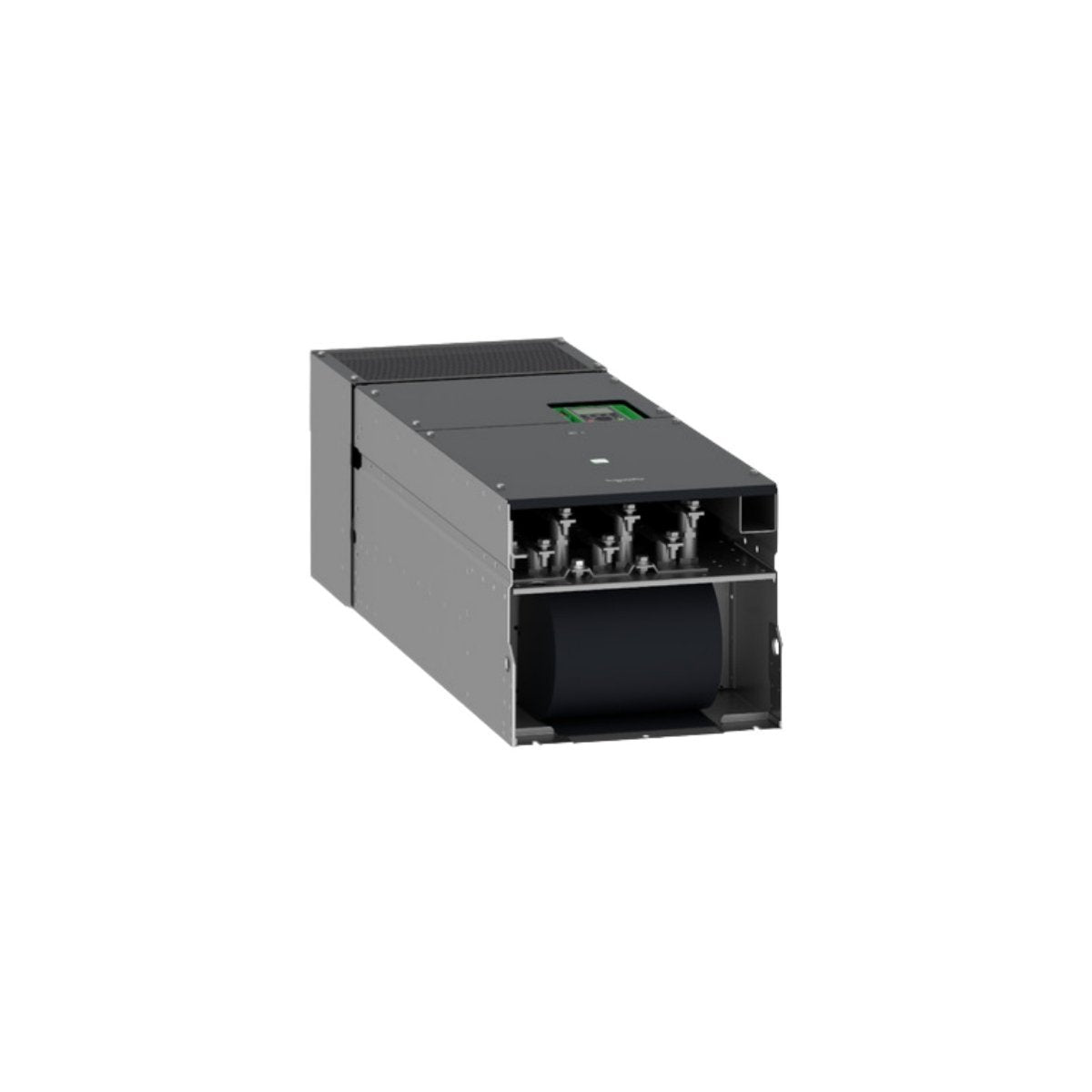

Product Overview

The Schneider Electric ATV930C22N4 is a high-performance variable speed drive belonging to the Altivar Process ATV900 family, specifically engineered to optimize demanding motor-driven processes. This 22 kW unit provides superior control for both asynchronous and synchronous motors across a voltage range of 380V to 480V AC. It is designed to act as an intelligent asset within a digital enterprise, offering embedded energy management and process monitoring. With its focus on high-torque applications and complex master/slave configurations, this drive ensures maximum productivity and operational uptime in rigorous industrial environments.

Technical Architecture and Hardware Specifications

The following table details the core physical and electrical parameters for the ATV930C22N4 drive:

• Embedded Intelligence: Includes an integrated web server for remote monitoring and data logging for predictive maintenance.

• Network Resilience: Advanced cybersecurity features and communication services ensure continuity during network interruptions.

• Control Precision: Optimized for high-torque performance without the need for an encoder in many heavy-duty scenarios.

• Sustainability: Built-in power measurement and energy dashboards to track real-time efficiency.




Industrial Applications and Deployment Scenarios

The ATV930C22N4 is specifically tailored for industries where process continuity is critical. In the oil and gas sector, it manages high-pressure pumping and extraction systems with precision. Within water and wastewater management, it optimizes the performance of large-scale treatment pumps and aeration blowers. The drive is also extensively used in mining and metal processing for conveyor systems and grinding mills, where its 120% overload capability and robust vibration resistance are essential. Its ability to integrate seamlessly into PLC-based architectures via Ethernet/IP makes it a preferred choice for modular machinery and large-scale factory automation projects.
