Product Overview

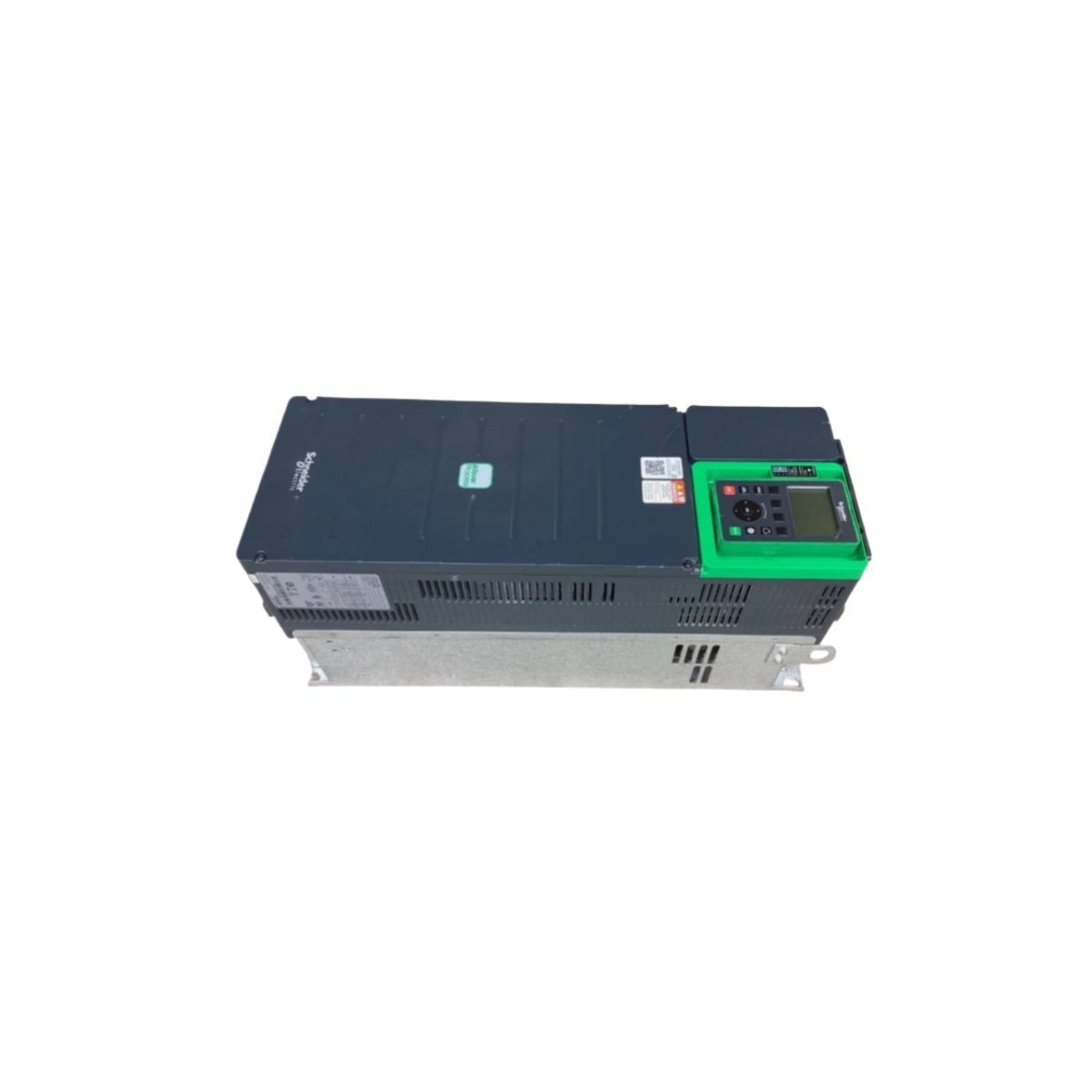

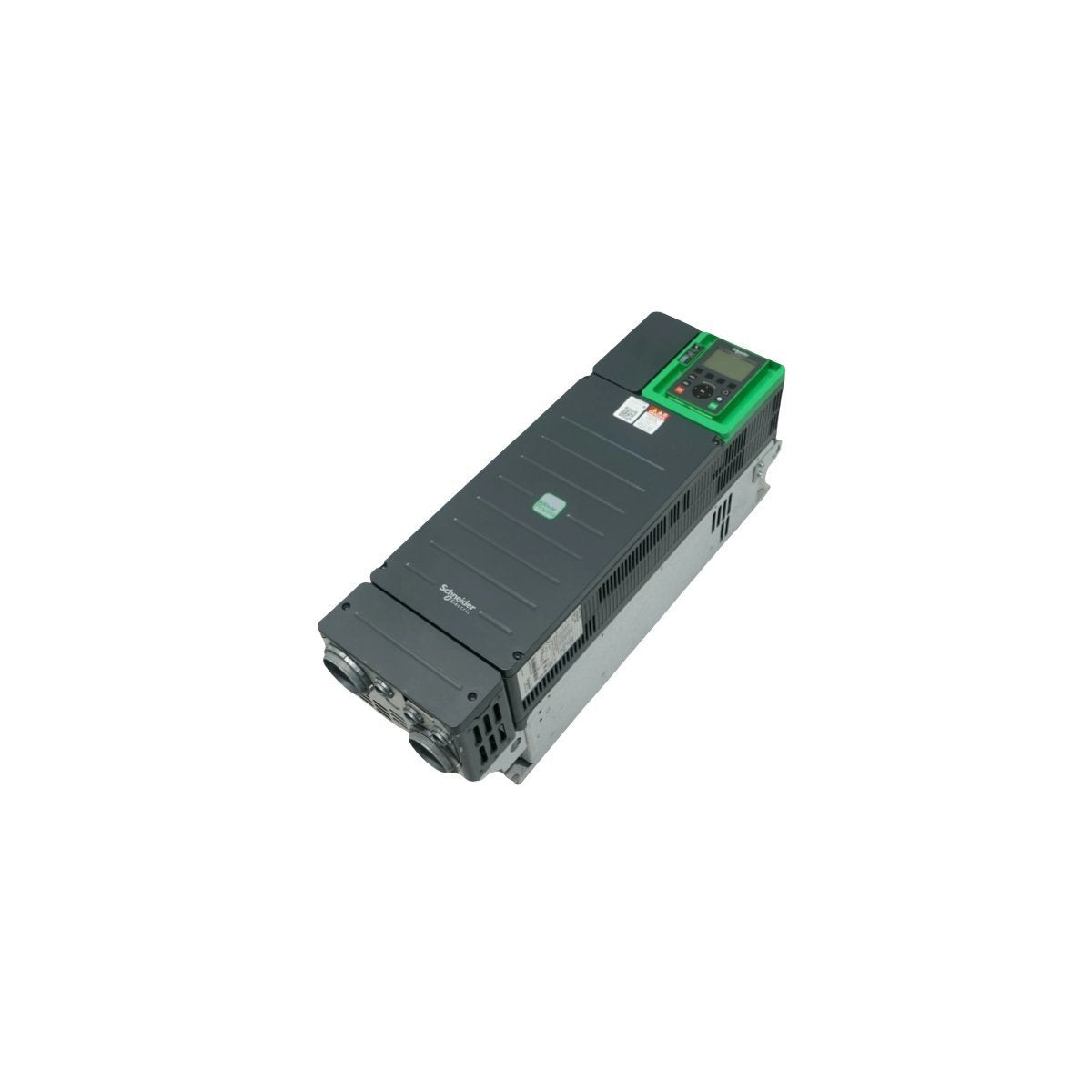

The ATV630D45N4 is a high-performance frequency inverter from the Schneider Electric Altivar Process 600 series, specifically engineered to optimize fluid management and process efficiency. Designed for wall-mount installation with an IP21 rating, this drive supports motors up to 45kW (60 HP) in normal duty applications. It is built to bridge the gap between asset management and motor control, providing embedded intelligence that tracks energy consumption and process performance in real-time. By supporting both asynchronous and synchronous motor architectures, the ATV630D45N4 serves as a flexible, high-efficiency solution for modern industrial plants aiming to reduce operational costs and carbon footprints.

Hardware Parameters and Core Capabilities

The Altivar Process architecture focuses on high-availability performance and advanced energy-saving logic.

• Power Range: 45 kW (Normal Duty) / 37 kW (Heavy Duty).

• Supply Voltage: 380V to 480V Three-Phase AC.

• Smart Energy Logic: Features a "Stop and Go" mode that reduces power consumption by up to 30% during idle states.

• Safety Integration: Includes built-in "Safe Torque Off" (STO) functionality meeting SIL 3 standards.

• Thermal Regulation: Forced convection cooling system designed for high-load industrial cycles.

• Native Connectivity: Equipped with dual Ethernet ports and Modbus TCP/Serial as standard.

Operational Scenarios and Industrial Utility

The ATV630D45N4 is a specialized tool for industries requiring precise fluid control and high-power motor regulation.

Water and Wastewater Management

This drive is extensively used for high-capacity pumping stations. Its embedded "Pump Curve" monitoring and anti-jamming functions prevent mechanical failure and optimize flow rates, significantly extending the lifecycle of centrifugal and submersible pumps.

Mining and Mineral Processing

In harsh mining environments, the ATV630D45N4 manages slurry pumps and ventilation fans. Its robust design handles the high torque requirements and dusty conditions typical of ore extraction and processing facilities.

Food and Beverage Production

Ideal for large-scale mixing and bottling lines, the drive provides 16 preset speeds and sophisticated acceleration/deceleration ramps. This ensures product consistency while the integrated energy dashboard helps plant managers track utility costs per batch.

Oil and Gas Infrastructure

Utilized in midstream applications for pipeline compression and fluid transport, the drive’s ability to interface with optional Profibus, Profinet, or DeviceNet cards allows it to integrate seamlessly into complex, multi-vendor DCS architectures.
