Product Overview

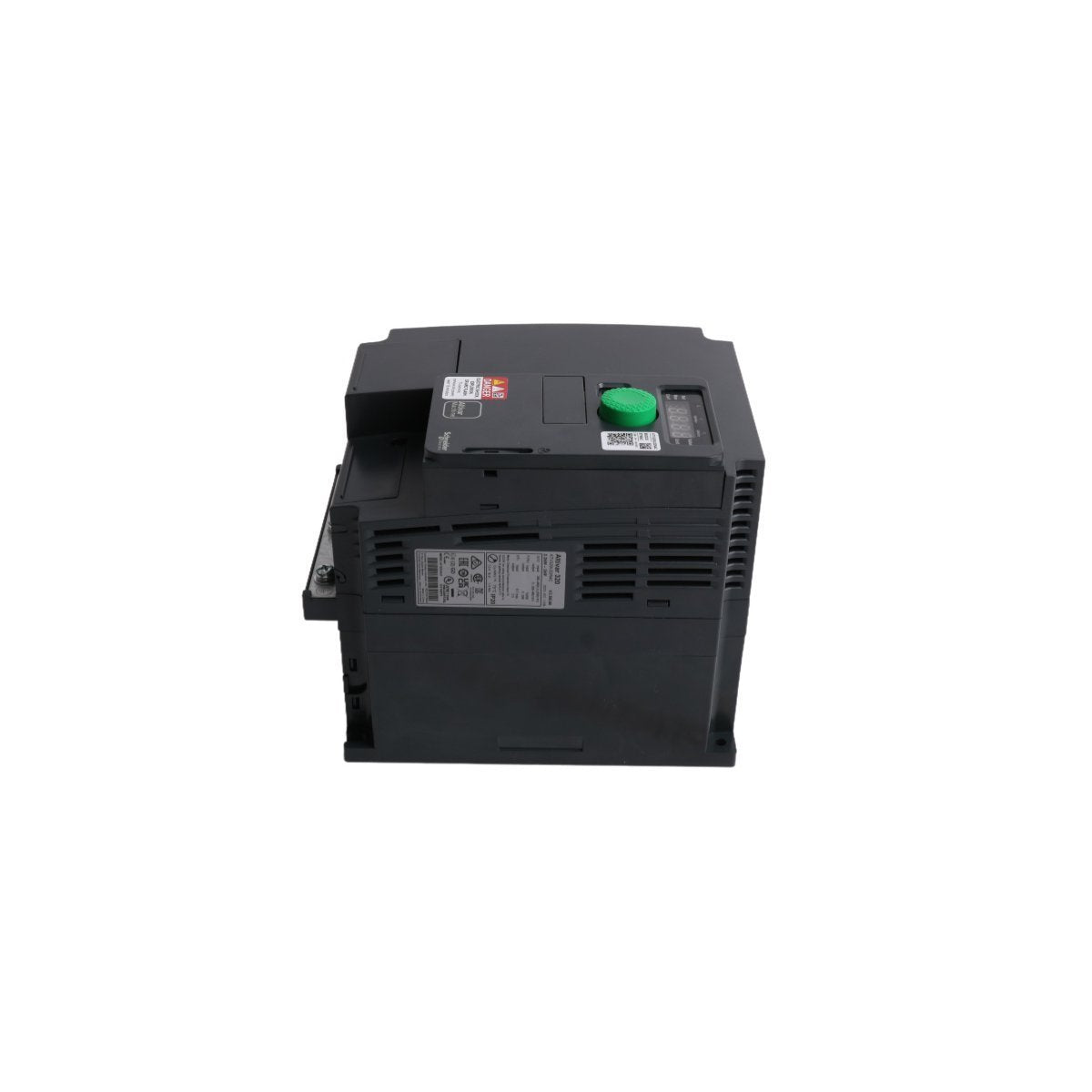

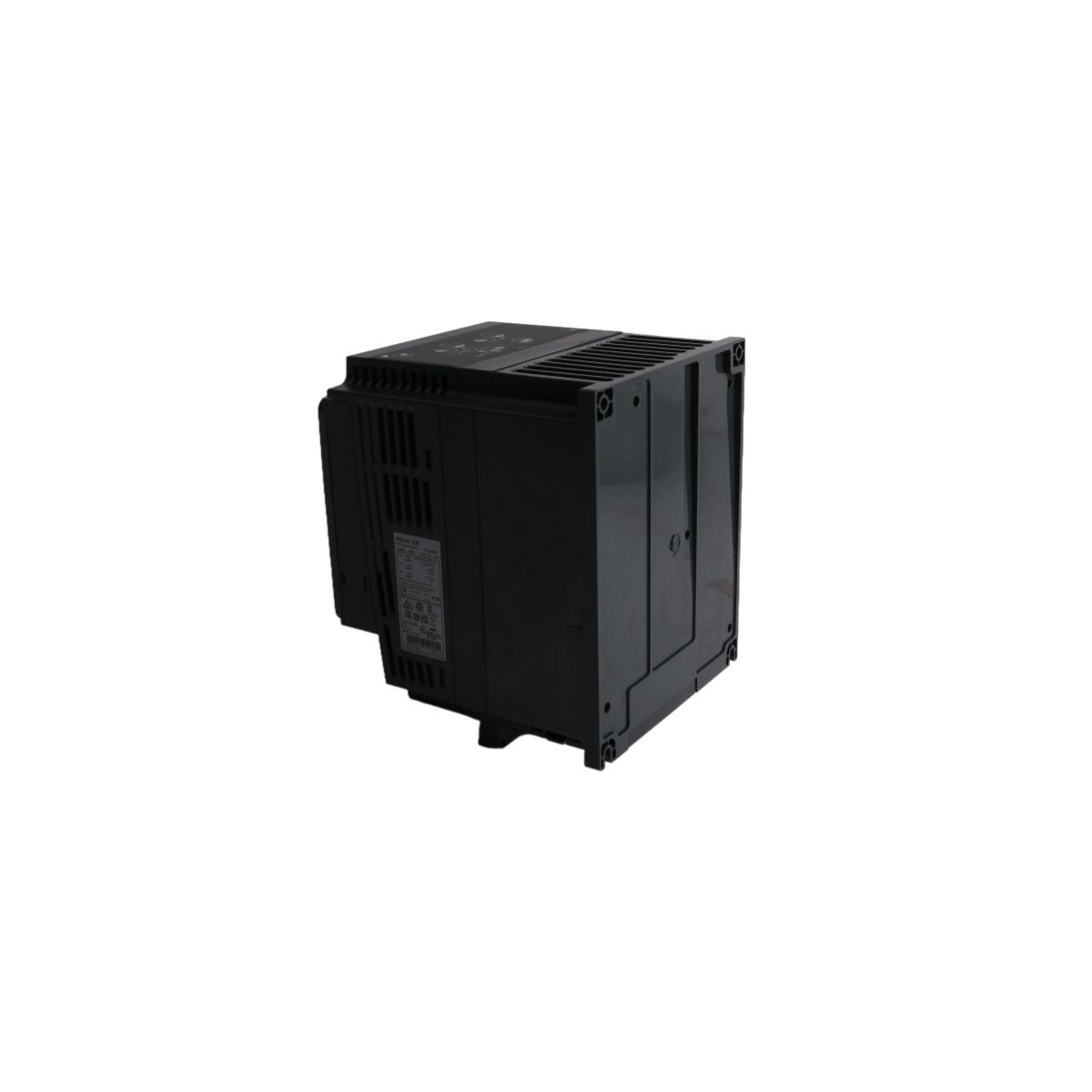

The Schneider Electric ATV630C22N4 is a specialized 22 kW (30 HP) motor controller from the Altivar Process ATV600 family, specifically engineered to optimize fluid management and industrial utility processes. This three-phase inverter operates within a 380V to 480V range and is designed to drive both asynchronous and synchronous motors with high precision. By focusing on asset management and energy efficiency, the unit provides deep insights into process performance through embedded power monitoring. As a central component of the EcoStruxure architecture, this drive enables digital transformation in traditional industrial environments by bridging the gap between field hardware and supervisory control systems.

Core Engineering Specifications and Physical Metrics

• Dynamic Performance: Supports an adjustable switching frequency from 2 to 16 kHz to minimize motor noise and heat.

• Smart Diagnostics: Features a built-in energy dashboard and predictive maintenance alerts for pump cavitation or dry run conditions.

• Connectivity Expansion: Compatible with optional fieldbus modules including Profinet, EtherCAT, and DeviceNet.

• Software Compatibility: Fully programmable via SoMove setup software for rapid commissioning and backup.

Strategic Process Deployments

This variable speed drive is predominantly utilized in sectors where fluid control is the primary operational requirement. In water and wastewater facilities, the ATV630C22N4 is used to manage high-flow pumps, ensuring smooth acceleration to prevent water hammer and reduce mechanical pipe stress. Within the HVAC sector, it regulates large industrial fans and cooling towers, adjusting speeds based on real-time demand to maximize energy savings. Furthermore, it is a reliable choice for the food and beverage industry and mining operations, where its ability to handle 110% overload and maintain torque at low speeds is essential for conveyor systems and heavy-duty mixing applications.
