Product Overview

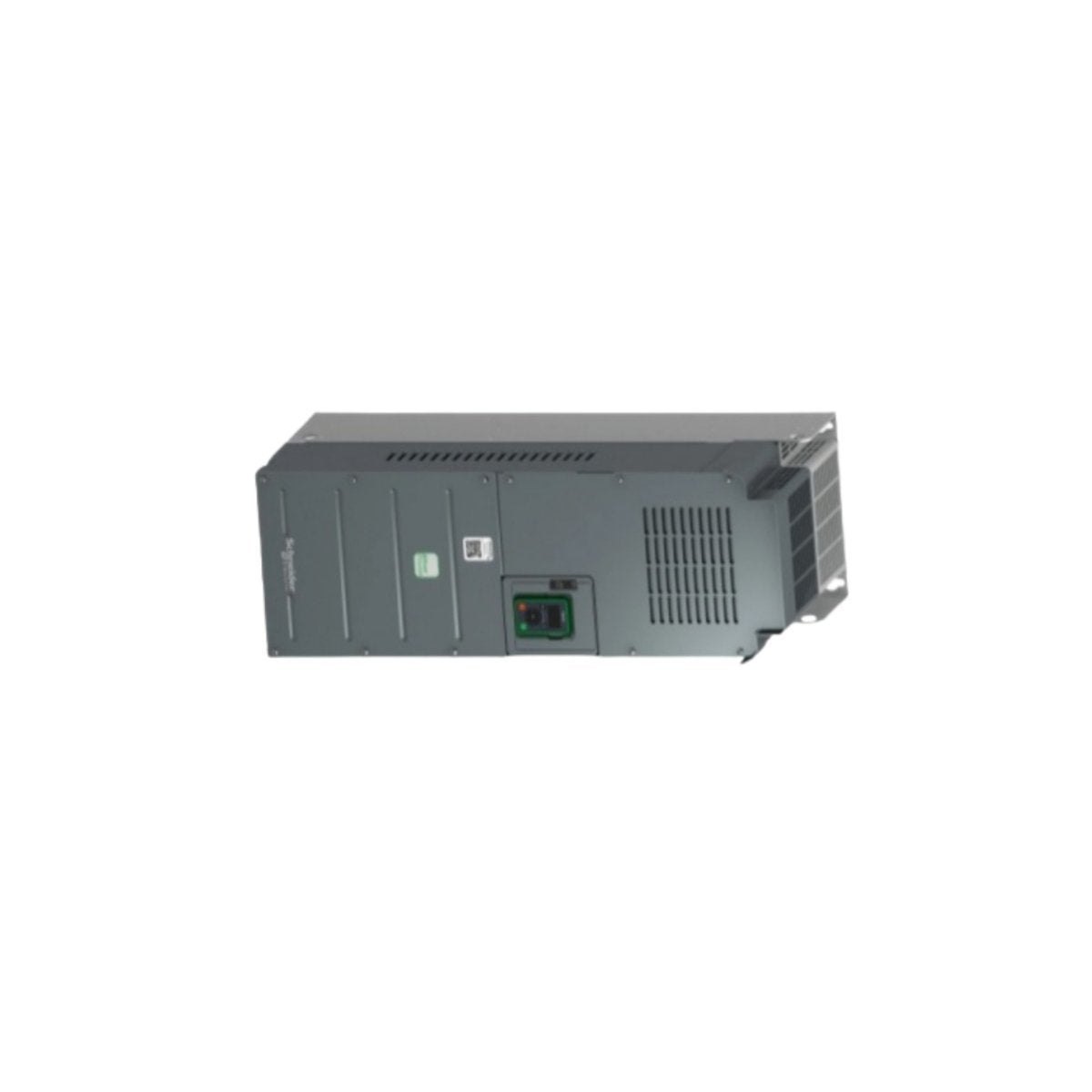

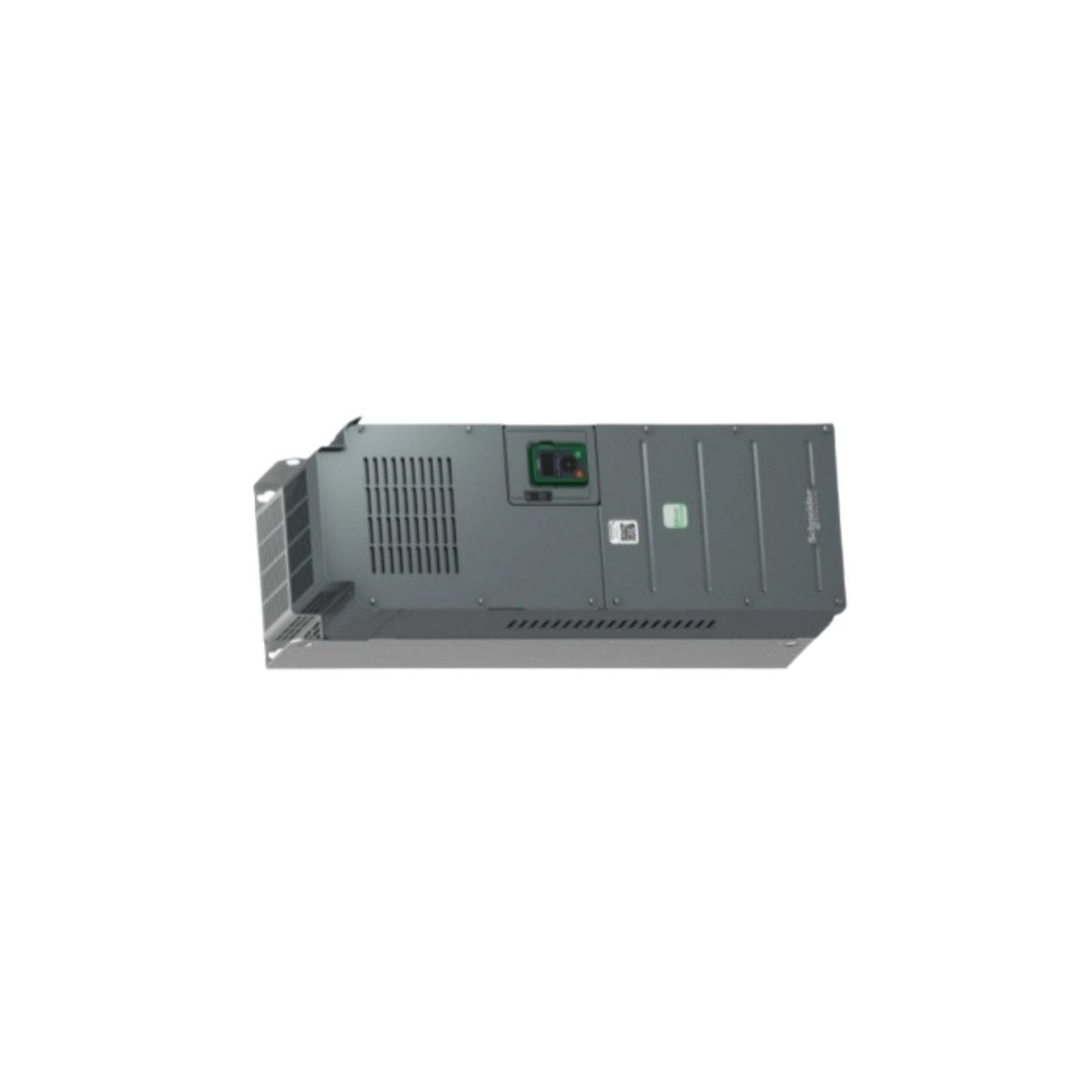

The Schneider Electric ATV610C16N4 is a specialized 160 kW (215 HP) frequency inverter from the Easy Altivar 610 series, engineered to optimize the performance of three-phase asynchronous motors. This drive is a cost-effective yet powerful solution for industrial processes requiring reliable speed regulation of heavy-duty machinery. Designed with a "plug-and-play" philosophy, the ATV610C16N4 comes with factory-loaded parameters to minimize integration time and labor costs. Its robust architecture is specifically tailored for the essential needs of the water, wastewater, and oil and gas industries, providing stable motor control while maintaining high energy efficiency in continuous-duty environments.

Technical Architecture and Hardware Attributes

• Input Power Supply 380V to 460V AC (3-Phase)

• Nominal Motor Power 160 kW (Normal Duty)

• Continuous Output Current 302 A

• Frequency Regulation Range 0.1 Hz to 500 Hz

• Motor Control Profiles Optimized for Variable Torque and Constant Torque applications

• Integrated Protection Built-in Category C3 EMC Filter (IEC 61800-3 compliant)

• Switching Frequency User-adjustable from 1 to 8 kHz

• Environmental Sealing IP20 rating for cabinet-enclosed mounting

• Communication Interface Standard Modbus RS485 serial; expandable via Profibus DP V1 cards

• Cooling System High-capacity forced convection for enhanced thermal stability

• Chassis Dimensions 320mm x 852mm x 390mm

• Net Weight 82.0 kg

• Manufacturing Origin France

Industrial Applications and Deployment

The ATV610C16N4 is ideally suited for bulk fluid and air movement where operational uptime is mandatory:

Municipal Water ManagementEfficiently controlling high-capacity centrifugal pumps in water treatment plants. The drive's variable torque profile reduces mechanical stress on pipes and energy consumption during low-demand periods.

Petrochemical Process ControlManaging large-scale compressors and cooling fans. The integrated C3 EMC filter ensures that the drive does not interfere with sensitive instrumentation found in refining environments.

Mining and Bulk Material HandlingPowering heavy-duty conveyor systems. The 16 preset speed functions allow for precise synchronization with production line requirements and gradual starting to protect belts and motors.

Commercial Building InfrastructureOperating massive air handling units (AHUs) and chillers within HVAC systems. Its forced convection cooling ensures reliable performance even when mounted in dense electrical cabinets.

General Industry PumpingOptimizing the performance of irrigation systems and industrial fluid transport where simple commissioning and durable construction are primary requirements for long-term ROI.
