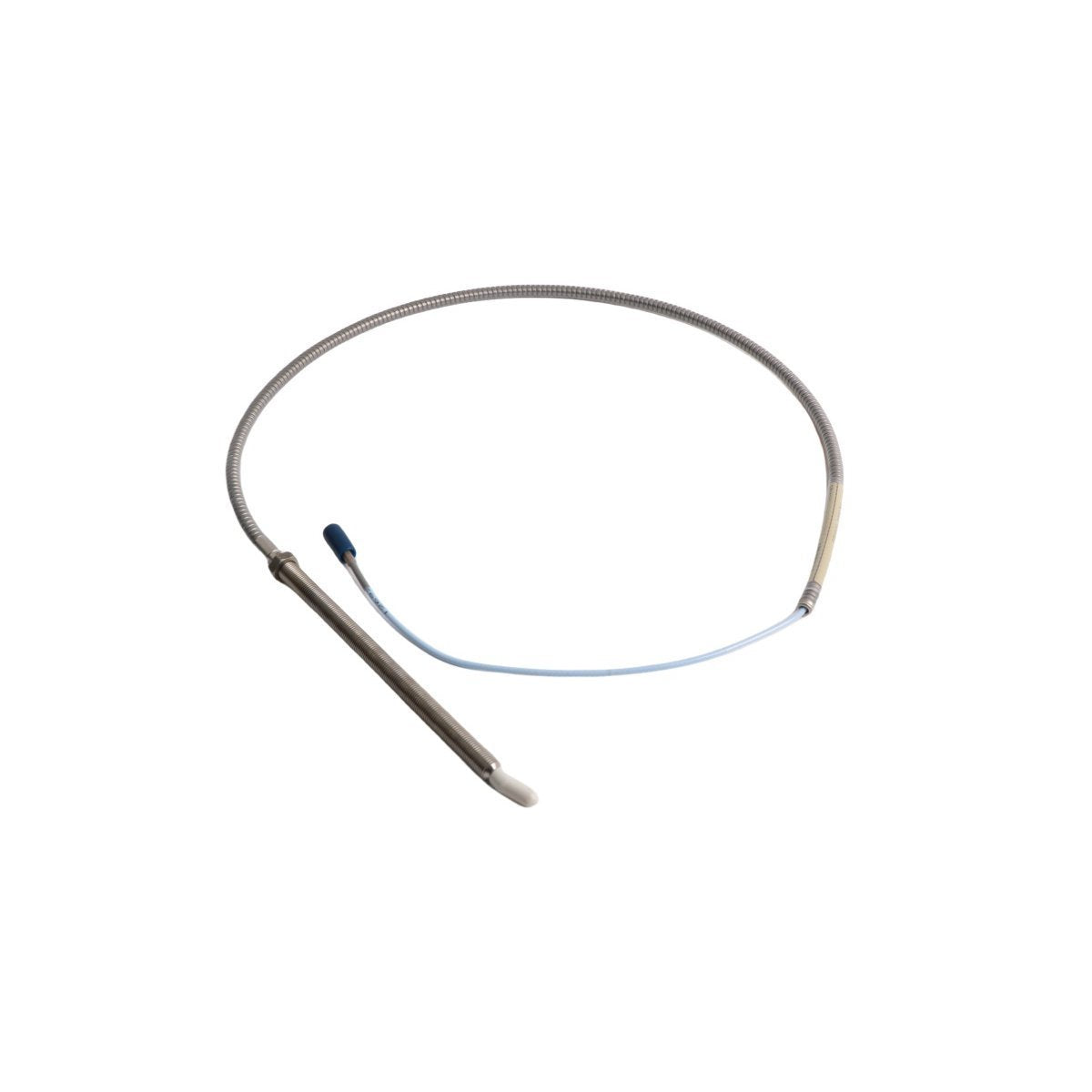

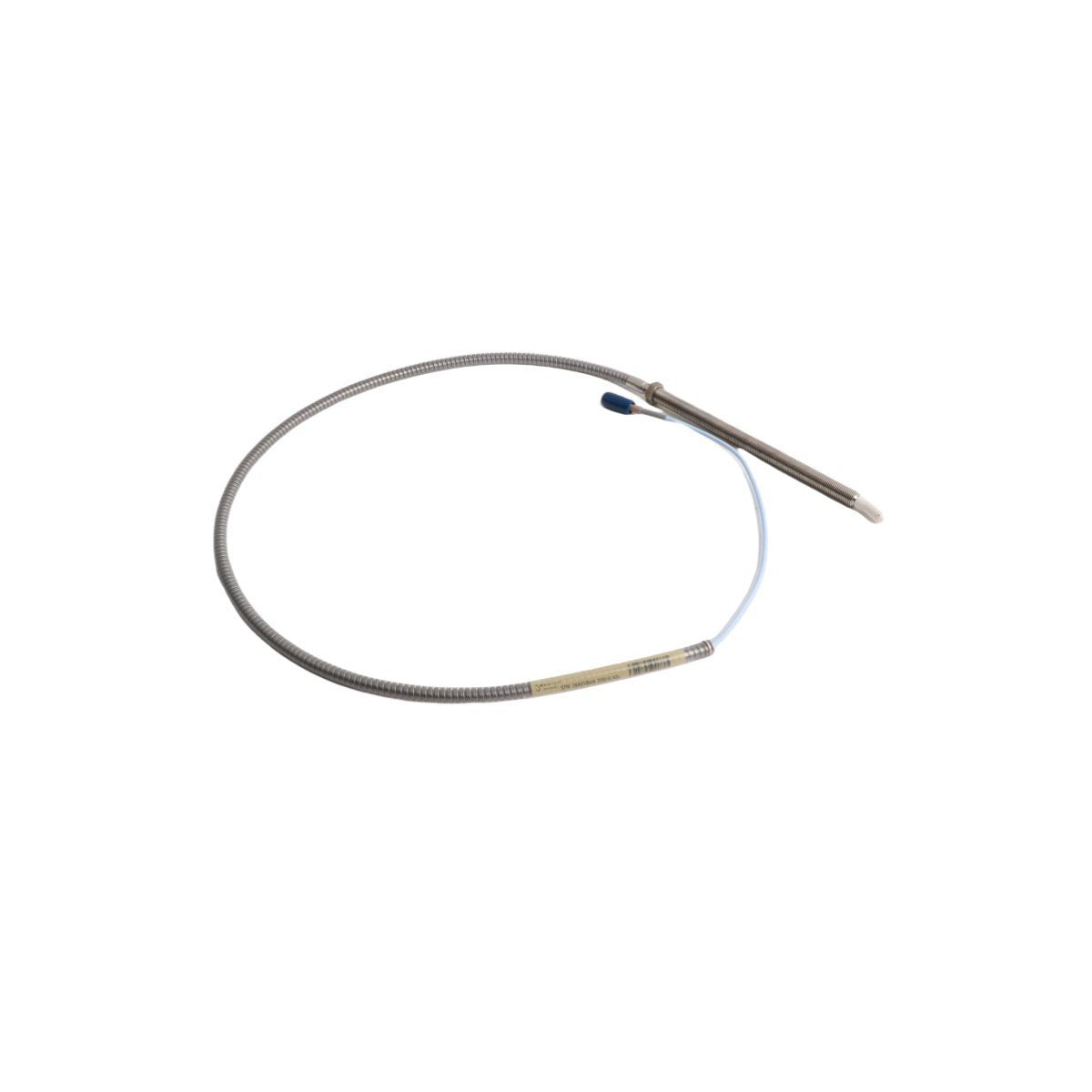

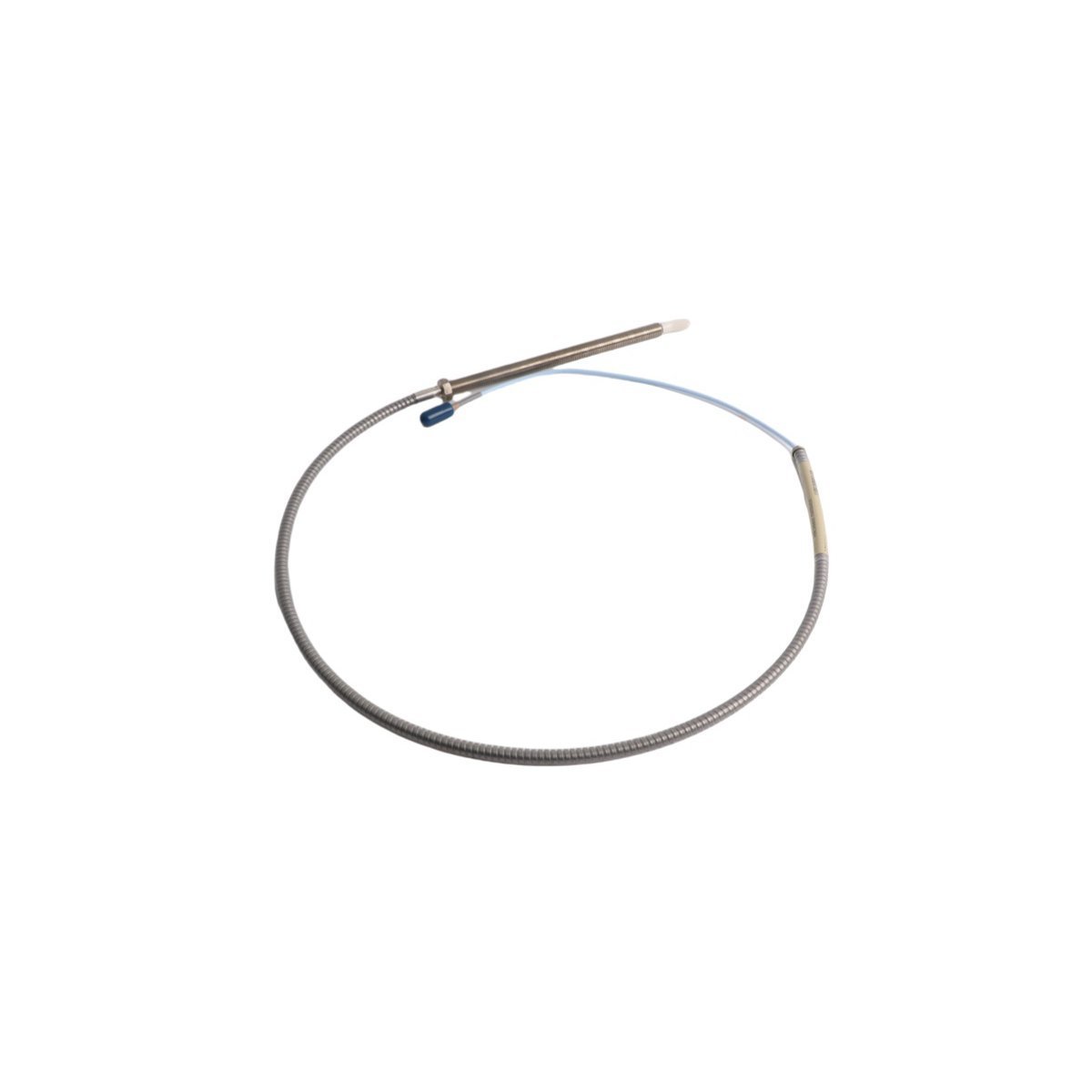

Configured for vibration detection in rotational monitoring applications, the Bently Nevada APP1407030-00100 (APP1407030-00100 Vibration Probe) provides direct physical/electrical execution for capturing dynamic displacement signals from machine shafts.

Model Identification Matrix

The APP1407030-00100 denotes a specialized probe assembly designed for integration within specific Cooper machinery interface architectures. This model utilizes a defined mechanical thread and cable configuration to ensure precise air-gap management and signal fidelity.

Technical Hardware Specifications

Transducer Electrical Integrity

Operational precision is contingent upon correct eddy-current probe scaling to ensure the voltage output tracks linear shaft displacement. During installation, technicians must perform gap voltage validation (-10 VDC targets) to verify the transducer is centered within the linear operational range. To maintain rotor dynamics data integrity, cross-talk suppression must be implemented by keeping the signal path clear of inductive coupling and ensuring the coaxial shield is grounded only at the monitor termination point.

Ordering Inclusions

• APP1407030-00100 Vibration Probe

• Integral coaxial cable assembly

• Mounting lock nuts

• Technical installation data

Field Installation Protocols

• Surface Conditioning: Ensure the target shaft area is free of mechanical defects, paint, or oxidation to maintain eddy-current field uniformity.

• Mounting Depth: Advance the probe until contact with the shaft is achieved, then retract to the specified operational gap.

• Cabling: Secure all cable runs using non-conductive clamps to prevent vibration-induced abrasion.

• Signal Path: Route signal leads through dedicated, grounded conduits away from high-current AC power cables.

Frequently Asked Questions

• Can this probe be interchanged with standard 3300 XL probes? No, the probe-to-Proximitor impedance matching is specific to the Cooper series interface.

• How is the probe housing grounded? The stainless steel housing is intended to be electrically continuous with the machine frame.

• What signifies a cable short? A drop in gap voltage to 0 VDC or a shift in the baseline noise floor typically indicates a cable or connector failure.

• Are the internal coils field-repairable? No, internal transducer coils are encapsulated; structural damage necessitates unit replacement.

• Why is PPS used for the probe tip? PPS provides the necessary dielectric strength and chemical resistance for long-term immersion in industrial lubricants.

• Is the connector waterproof? The interface is designed for typical industrial environments; use protective caps if installation is delayed.

• What frequency response does this probe support? The assembly is designed for frequencies from DC to 10 kHz, sufficient for most rotor dynamic monitoring.

• Does orientation affect readings? For radial measurements, probes should be mounted at a 45 degree angle relative to the bearing vertical axis.
