Targeted at multi-loop actuation tasks within distributed control nodes, this ABB AO815 (3BSE052605R1) hardware unit manages proportional current transmission with superimposed diagnostic messaging.

Identification & Version Metrics

• Catalog Designation: AO815
• Part Code: 3BSE052605R1
• Circuit Architecture: Eight-channel current output stage with HART modulation
• Hardware Series: S800 Distributed I/O Family

Technical Parameters

System Data Exchange & Bus Behavior

• ModuleBus Interconnection: Links directly to the high-speed S800 internal bus structure for rapid command execution across rack tiers.
• HART Signal Overlay: Modulates digital frequency shift keying onto the analog current loop without disturbing primary control variables.
• Drift Mitigation: Utilizes internal reference correction to restrict thermal output drift to 50 ppm/deg C maximum.
• Span Tolerance: Accepts scaled command inputs allowing output excursions from -12.5 percent under-range to +15 percent over-range.

Shipment Configuration

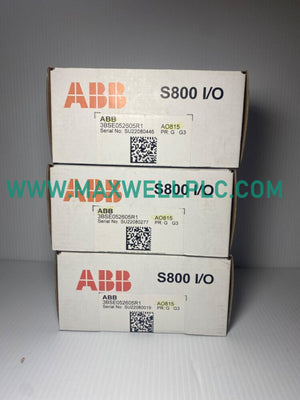

• 1 x AO815 3BSE052605R1 Analog Output Board
• Protective factory packaging container (Interconnect bases and terminal blocks ordered separately)

Mechanical Positioning & Wiring Rules

• Guide Slot Insertion: Slide the printed circuit board squarely into the base unit tracks to prevent lateral stress on the backplane connector pins.
• Shielding Practice: Terminate foil-wrapped twisted pair drain wires directly to the cabinet ground bus to block induced high-frequency noise.
• Resistance Monitoring: Total loop resistance, including barriers and actuator coils, must stay below 750 Ohm to avoid current limiting saturation.
• Convection Clearance: Keep upper and lower duct spaces open to permit unrestricted airflow for the 3.5 W thermal load dissipation.

Technical Inquiry & Troubleshooting

• How many control loops are handled by a single board?

  The unit provides eight active output channels structured within a single galvanic group.

• Does the hardware support smart field device communication?

  Yes, every channel integrates HART protocol capability over the standard 4-20 mA output.

• What is the digital conversion depth of the output channels?

  Internal processing utilizes a 12-bit conversion architecture.

• What is the upper limit for external loop resistance?

  Field wiring and load devices combined must not exceed 750 Ohm.

• How is electrical safety maintained against ground faults?

  Channels are group-isolated from system ground with an insulation design rating of 50 V.

• What is the update frequency for channel data updates?

  The module refreshes output values every 10 ms across all channels.

• Are there specific ambient temperature constraints for certification?

  While functional operation begins at 0 deg C, formal regulatory approvals specify a starting threshold of +5 deg C.

• What are the physical dimensions and weight of the unit?

  The hardware measures 5.1 x 15.2 x 15.2 cm and weighs 0.3 kg.
