Product Overview

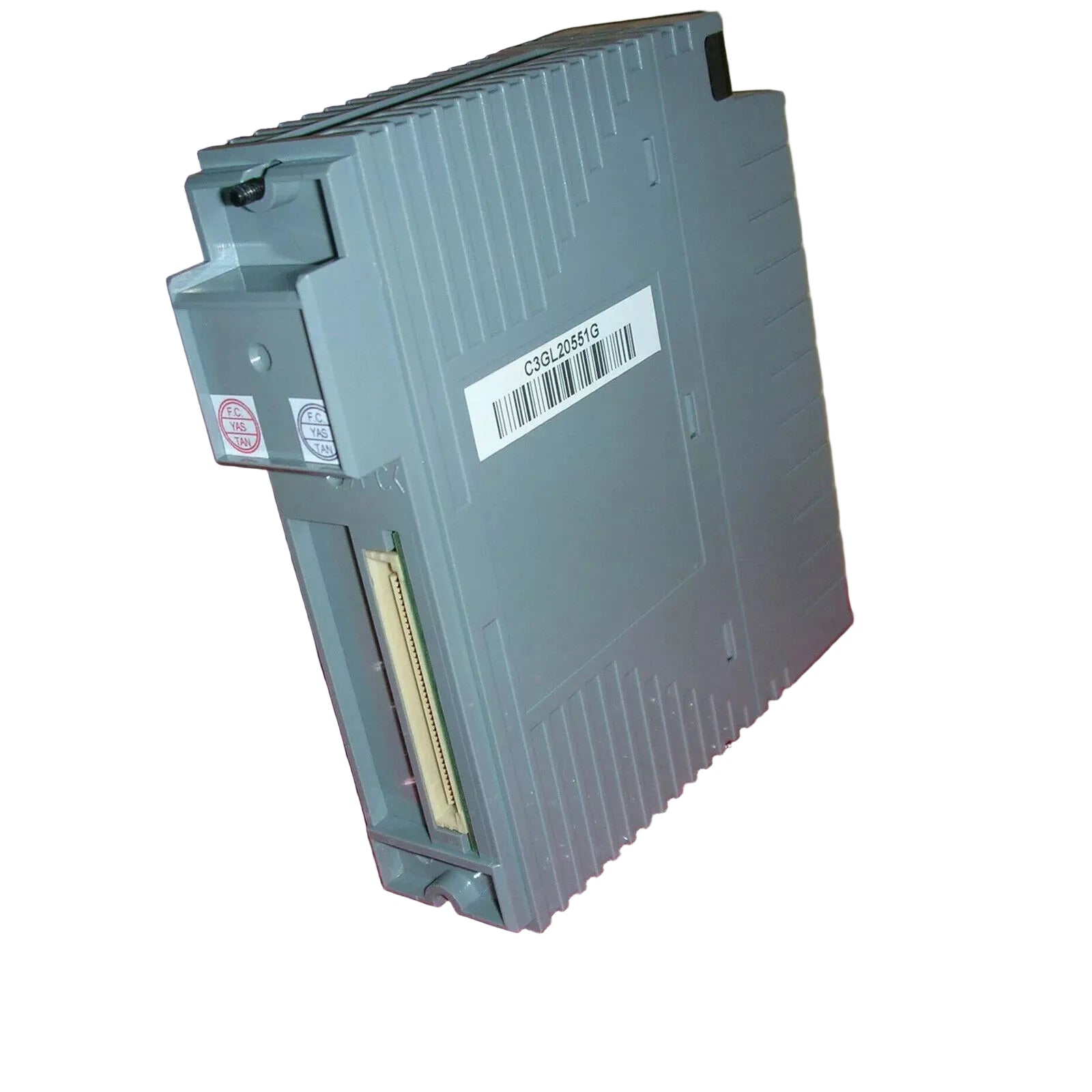

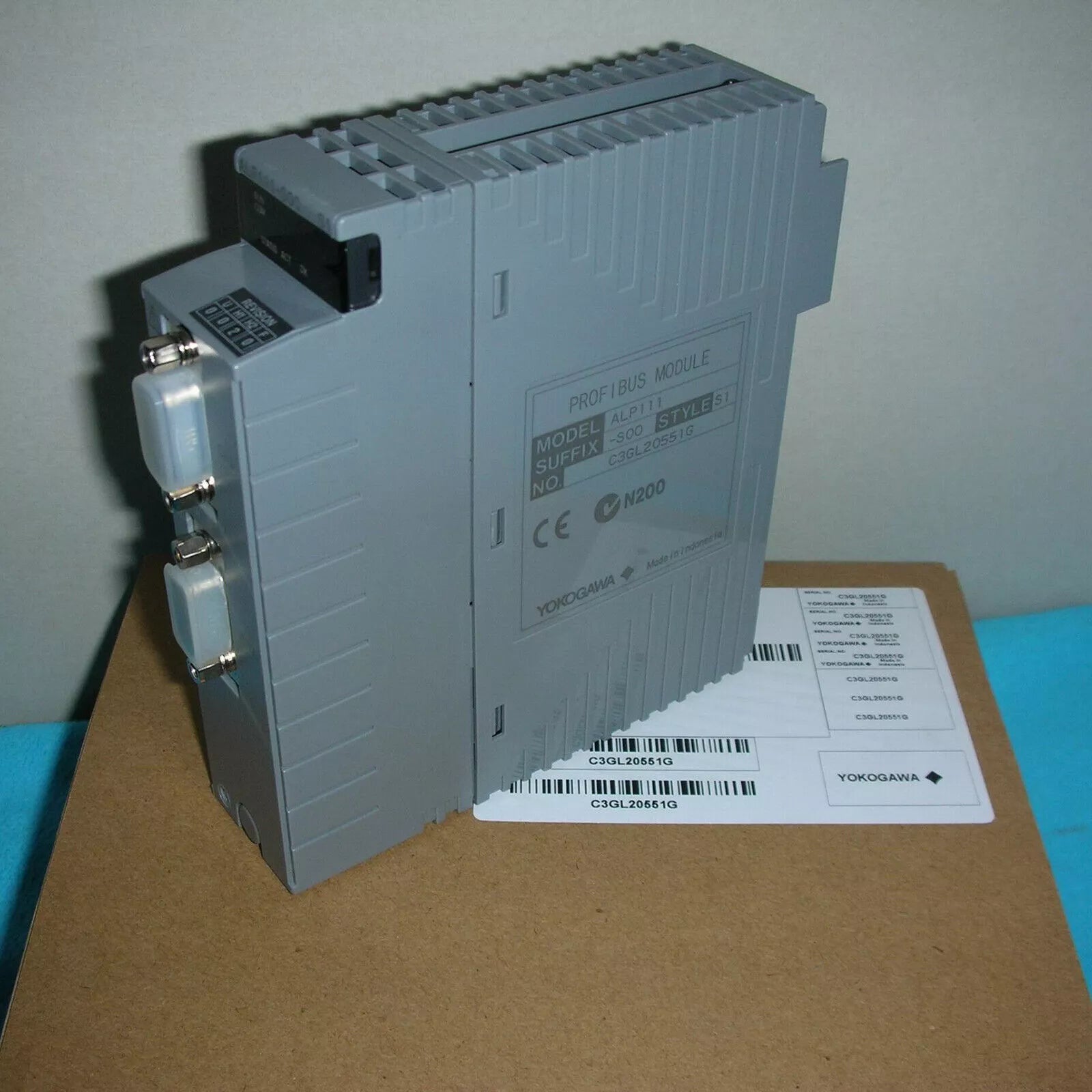

The ALP111-S00 is a high-performance communication interface engineered by Yokogawa to bridge Distributed Control Systems (DCS) with field-level automation networks. Specifically designed for PROFIBUS-DP integration, this module enables seamless data exchange between a central controller and various field devices such as sensors, actuators, and motor starters. By utilizing the Vnet/IP network architecture, the ALP111-S00 ensures deterministic communication and high-speed data throughput, which are essential for maintaining process stability in complex industrial environments. The module features robust galvanic isolation to protect system integrity against electrical noise and ground loops.

Technical Architecture and Hardware Attributes

Industrial Integration and Practical Deployment

This communication gateway is widely deployed in sectors requiring high-density fieldbus integration and stringent reliability standards. It is a critical component for:

• Interfacing CENTUM VP controllers with third-party motor control centers (MCCs).

• Large-scale water treatment facilities managing remote valve actuators.

• Petrochemical refineries utilizing PROFIBUS-DP for instrumentation clusters.

• Integrated manufacturing plants requiring high-speed deterministic field data for real-time monitoring.

FAQ

Q: Can the ALP111-S00 operate at different transmission speeds?

A: Yes, the module supports a wide spectrum of transmission rates ranging from 9600 bps to 12 Mbps, allowing it to adapt to various fieldbus cable lengths and device requirements.

Q: What is the maximum distance supported for a single PROFIBUS segment?

A: At the lowest transmission speed of 9600 bps, the module can support a distance of up to 1.2 kilometers per segment using standard shielded twisted-pair cabling.

Q: Does the module require separate power for signal isolation?

A: The module is designed with internal isolation; however, it draws a maximum of 0.7 A from the system backplane to power its internal logic and communication circuitry.

Q: What is the purpose of the maintenance port on the ALP111-S00?

A: The secondary D-sub 9-pin male port provides an RS-232C interface specifically for diagnostic tools and local maintenance, separate from the primary PROFIBUS data traffic.

Q: Is this module compatible with standard rack mounting?

A: Yes, the ALP111-S00 is specifically designed for control cabinet integration and standard Yokogawa DCS rack mounting configurations.
