Product Overview

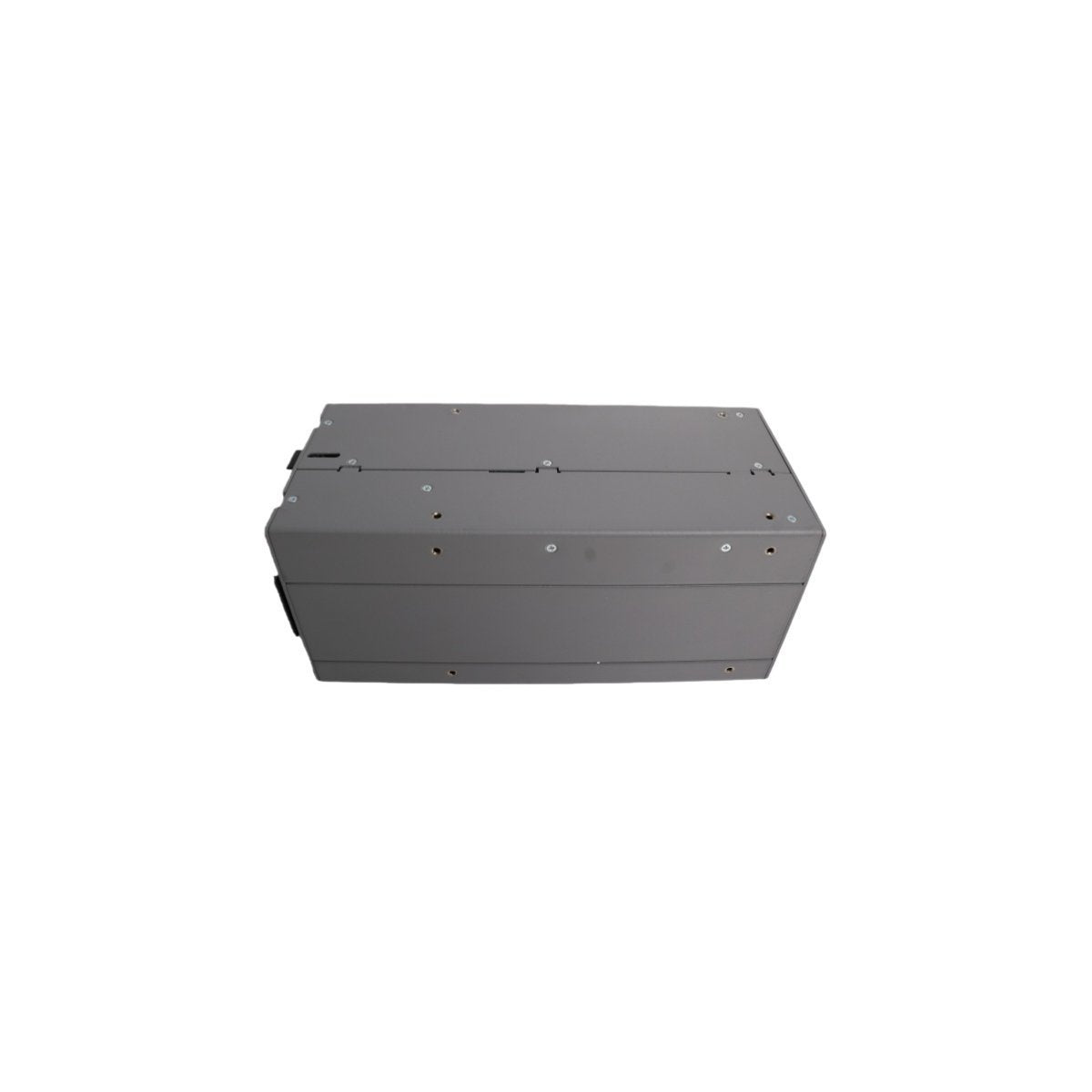

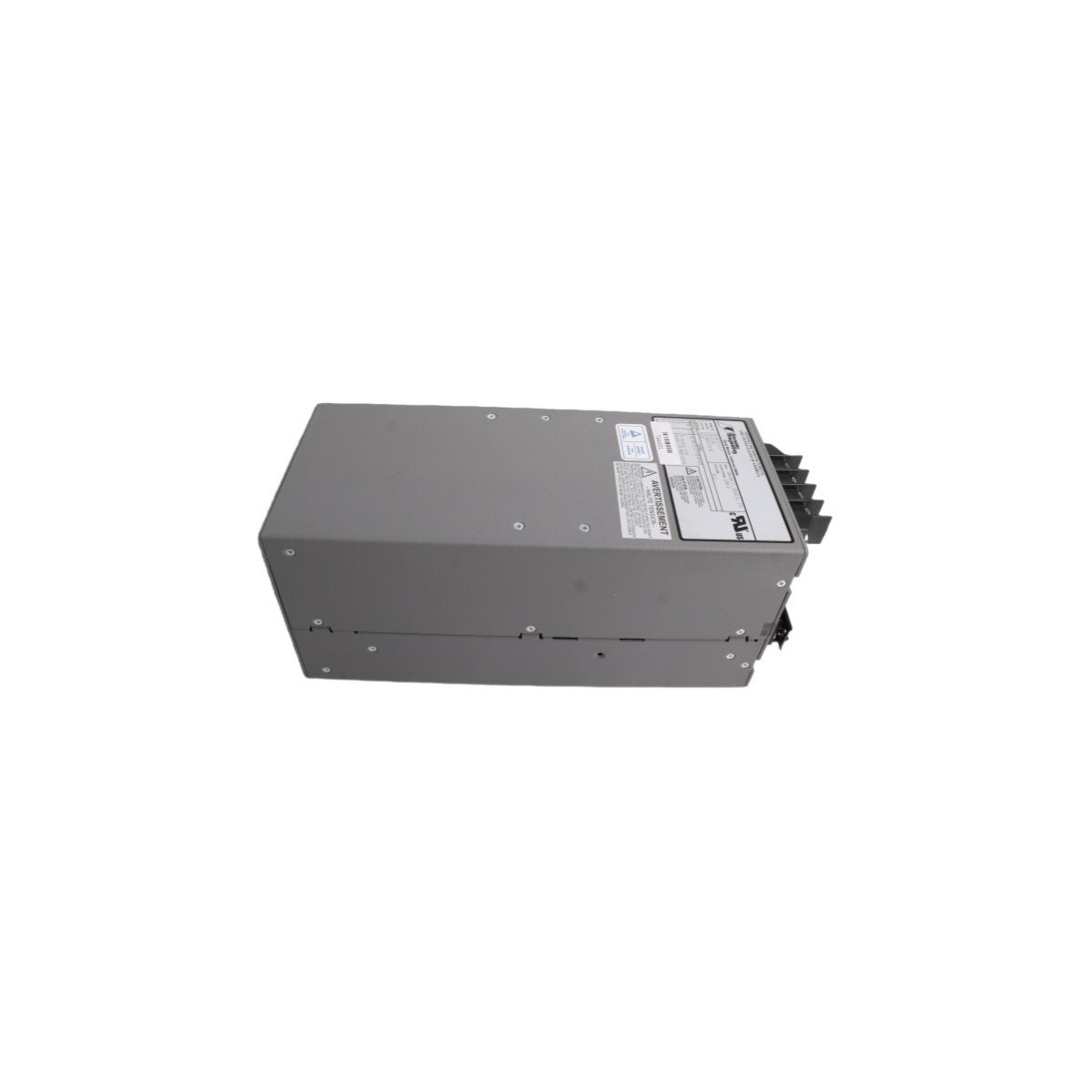

The Allen-Bradley PM3326B-6-1-2-E 80026-529-01 is a high-capacity industrial power supply designed for reliable operation in automation and control systems. It provides a stable 24V DC output with a current range of 6–8A, delivering up to 192W of continuous power. Its wide input voltage range of 100–240V AC at 50/60Hz allows for global deployment in diverse industrial environments.

Engineered for durability, the module features industrial-grade components that maintain consistent performance across temperatures from -25°C to +70°C. Its compact design, measuring 12.5 × 25 × 27.5 cm and weighing 5.9 kg, enables easy installation in control panels, motor control centers, and machinery enclosures.

The PM3326B-6-1-2-E includes comprehensive protection mechanisms, such as overcurrent, short-circuit, and overtemperature shutdown, ensuring safe operation for both the module and connected equipment. Thermal management systems optimize heat dissipation during continuous operation, maintaining stability even at maximum load. This makes the module ideal for critical manufacturing processes and industrial automation systems where uninterrupted DC power is essential.

Key Features

• Model Number: PM3326B-6-1-2-E 80026-529-01

• Brand: Allen-Bradley

• Type: Industrial Power Supply Module

• Output Voltage: 24V DC

• Output Current: 6–8A

• Typical Output Power: 144–192W

• Input Voltage: 100–240V AC, 50/60Hz

• Operating Temperature: -25°C to +70°C

• Weight: 5.9 kg

• Dimensions: 12.5 × 25 × 27.5 cm

• Country of Origin: USA

• Availability: In Stock, Active Model

• Minimum Order Quantity: 1

• Protection Features: Overcurrent, short-circuit, overtemperature

Applications

• PLC-based industrial automation systems

• Motor control centers and machinery power supply

• Continuous process control and manufacturing operations

• Equipment requiring stable 24V DC power for sensors and control electronics

Technical Description

The PM3326B-6-1-2-E 80026-529-01 Power Supply is engineered to deliver consistent DC output for industrial automation applications. Its high-efficiency design minimizes energy loss, while robust thermal management ensures optimal heat dissipation. Integrated protection features safeguard both the module and connected systems from electrical faults. Compact yet powerful, this module is suitable for global industrial deployment, providing reliable power in manufacturing, process automation, and machine control applications.
