Product Overview

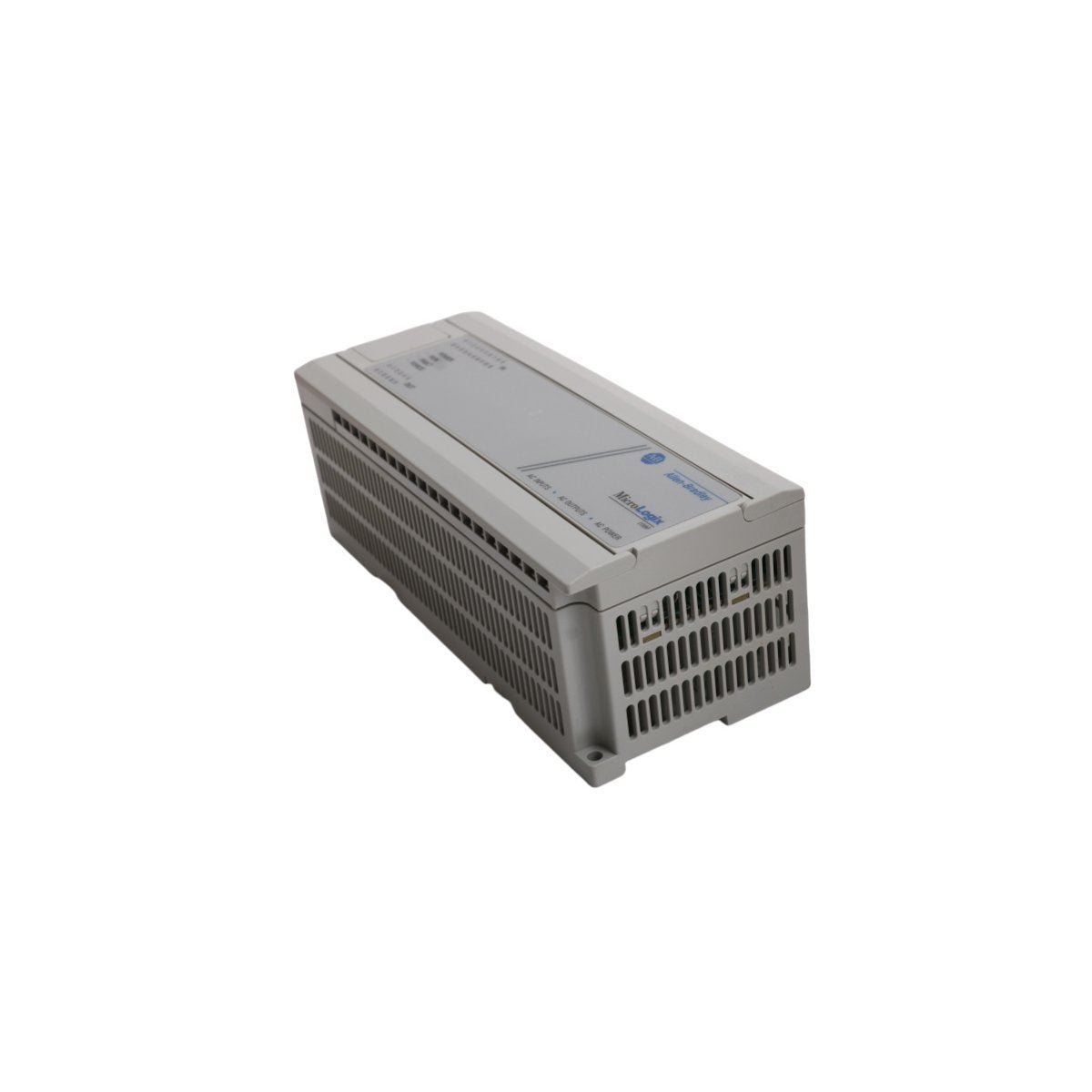

The Allen-Bradley 1761-L32AWA is a standalone, micro-programmable logic controller from the established MicroLogix 1000 family. Specifically configured for AC-powered environments, this unit integrates power supply, logic processing, and a high-density I/O count into a single compact chassis. It features 20 discrete 120V AC inputs and 12 robust relay outputs, making it an ideal "all-in-one" solution for machine-level control where simplified wiring and space conservation are priorities.

Equipped with a 1KB EEPROM for program storage, the 1761-L32AWA supports a sophisticated instruction set that includes bit-level logic, timers, counters, and data handling. Its execution speed of approximately 1.56ms per 1K of program ensures responsive control for high-speed discrete applications such as packaging machinery, material handling conveyors, and basic building automation.

Technical Characteristics

• I/O Configuration: 32 total points (20 Inputs at 120V AC / 12 Relay Outputs).

• Power Supply: Integrated 120/240V AC universal line power.

• Output Rating: Relays support 24V to 240V AC/DC, allowing for a mix of different load types on a single controller.

• Memory Architecture: 1KB non-volatile EEPROM (no battery required for program retention).

• Communication Port: Single RS-232 (8-pin mini-DIN) supporting DF1 and DH-485 protocols.

• Networking Options: Compatible with 1761-NET-AIC for DH-485 network integration or 1761-NET-DNI for DeviceNet connectivity.

• Logic Speed: Rapid 1.56ms scan time for optimized machine performance.

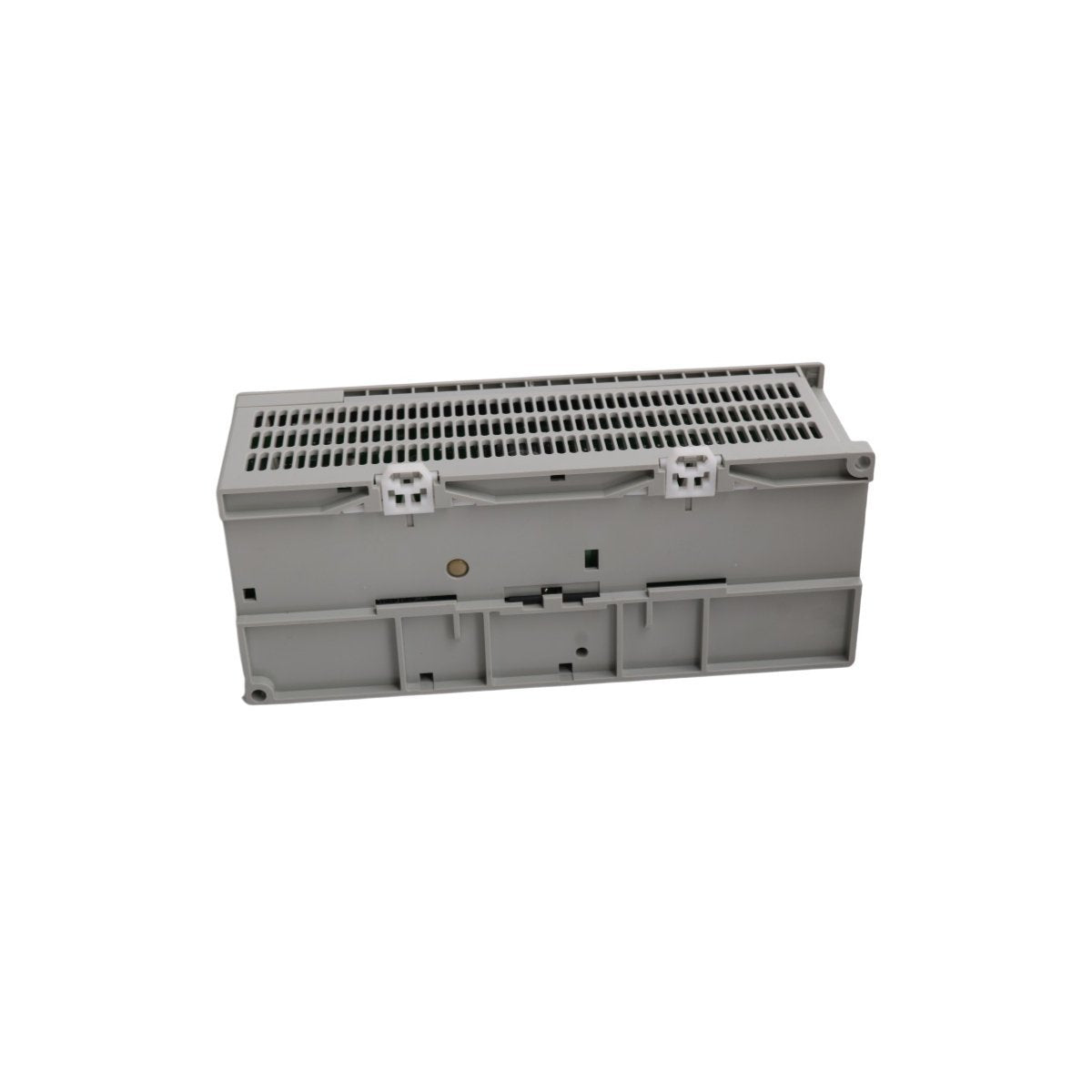

• Mounting Options: Dual-purpose design for 35mm DIN-rail or panel mounting.

• Shock and Vibration: Industrial-grade resistance (up to 9g depending on mounting) for harsh floor environments.

• Dimensions: 10.2 x 7.6 x 20.3 cm.

• Weight: 0.5 kg.

Operational Utility and Deployment

The 1761-L32AWA excels in applications requiring reliable discrete control without the complexity of modular chassis systems. By utilizing relay outputs, the controller provides inherent isolation and the flexibility to switch varied voltages for solenoids, contactors, and pilot lights. The non-volatile memory ensures that automation logic is preserved during power outages, a critical feature for remote or unmanned installations.

For maintenance and engineering teams, the unit is fully programmable via RSLogix 500 software. While the MicroLogix 1000 series reached its end-of-life status in 2016, the 1761-L32AWA remains a vital component for sustaining legacy systems or implementing cost-effective updates to existing machinery. Its support for the DF1 protocol allows for easy interfacing with modern HMIs and SCADA systems, ensuring that even legacy hardware can remain part of a connected industrial enterprise.
