Product Overview

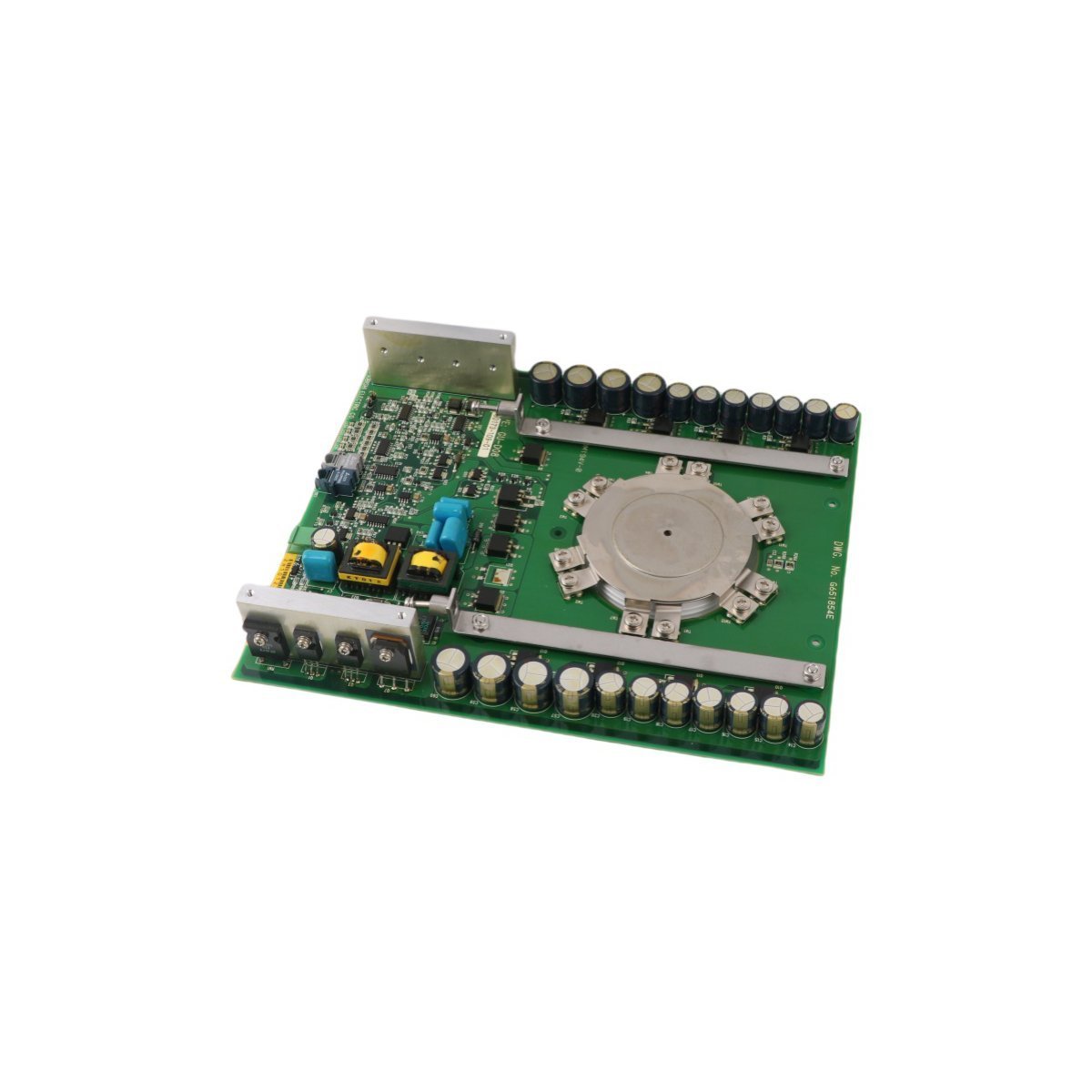

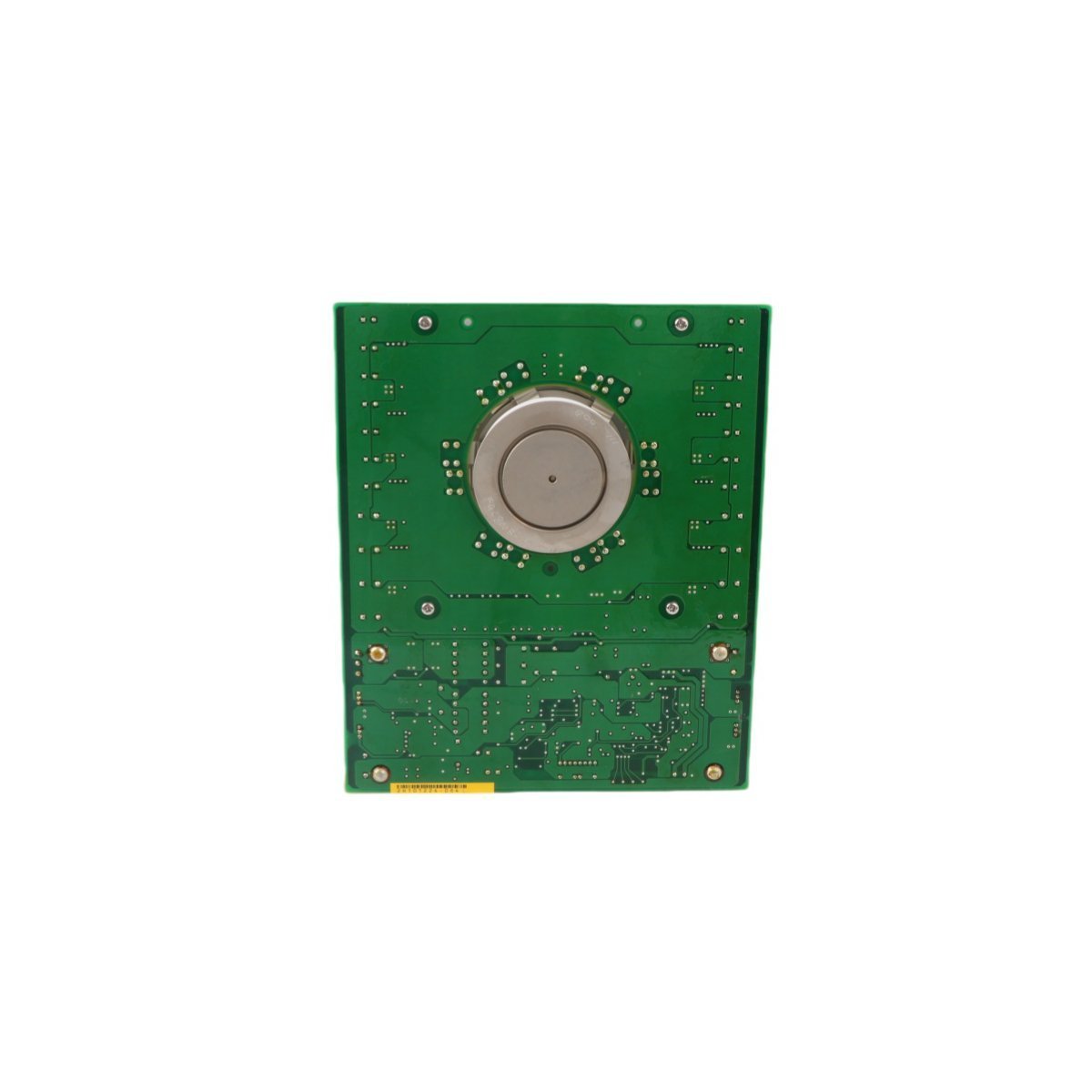

The Allen Bradley GCU08CB-130 (Part Number 80173-109-01-3) is a specialized Gate Control Unit (GCU) designed for high-power thyristor management within industrial drive systems and heavy-duty power conversion units. This board module serves as a critical interface in Rockwell Automation ecosystems, providing the precise timing and pulse generation required to regulate large electrical loads. Engineered for long-term stability, the module facilitates efficient switching and power regulation, ensuring that complex motor control and energy distribution systems operate with peak electrical efficiency.

The hardware is constructed to meet the rigorous demands of industrial environments, featuring advanced electromagnetic interference (EMI) shielding and high-integrity circuit paths. Its primary function involves processing control signals from the PLC and converting them into high-accuracy firing pulses for power semiconductors, making it an essential component for synchronized power control.

Technical Characteristics

• Precision Gate Control: Optimized for GCT (Gate Commutated Thyristor) firing sequences, ensuring accurate phase angle control and load balancing.

• Environmental Resilience: Built with industrial-grade substrates to withstand high-vibration settings and significant thermal fluctuations common in power electronics cabinets.

• System Integration: Designed for direct compatibility with Allen Bradley power modules and large-scale programmable logic controller (PLC) networks.

• Advanced Monitoring: Incorporates localized diagnostic feedback loops to report circuit status and prevent semiconductor failure through early fault detection.

Specifications

• Brand: Allen Bradley (Rockwell Automation)

• Model Number: GCU08CB-130

• Part Number: 80173-109-01-3

• Component Type: GCT Control Board / Thyristor Unit

• Weight: 1.14 kg

• Dimensions: 25.0 x 20.7 x 5.5 cm

• HS Code: 8537101190

• Origin: USA

• Condition: Brand New, Factory Original

• Mounting Type: Internal System Rack / Board Mount

Application Field

This module is utilized in high-capacity industrial applications where precise power modulation is required, including:

• Medium Voltage Variable Frequency Drives (VFDs)

• Large-scale Induction Heating Systems

• Grid-tie Power Inverters and Renewable Energy Converters

• Industrial Soft Starters for High-Torque Motors

• Heavy Manufacturing Power Distribution Units
