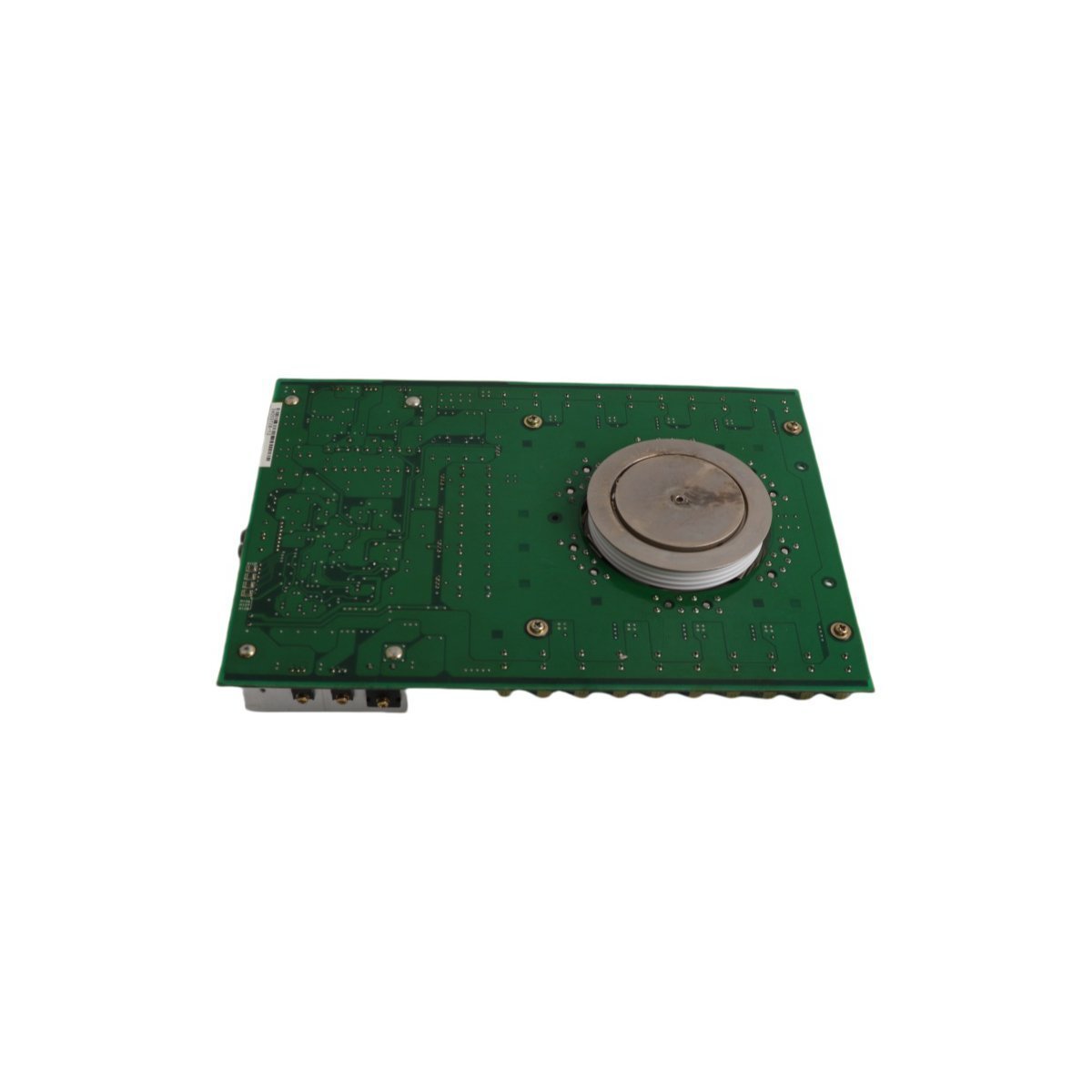

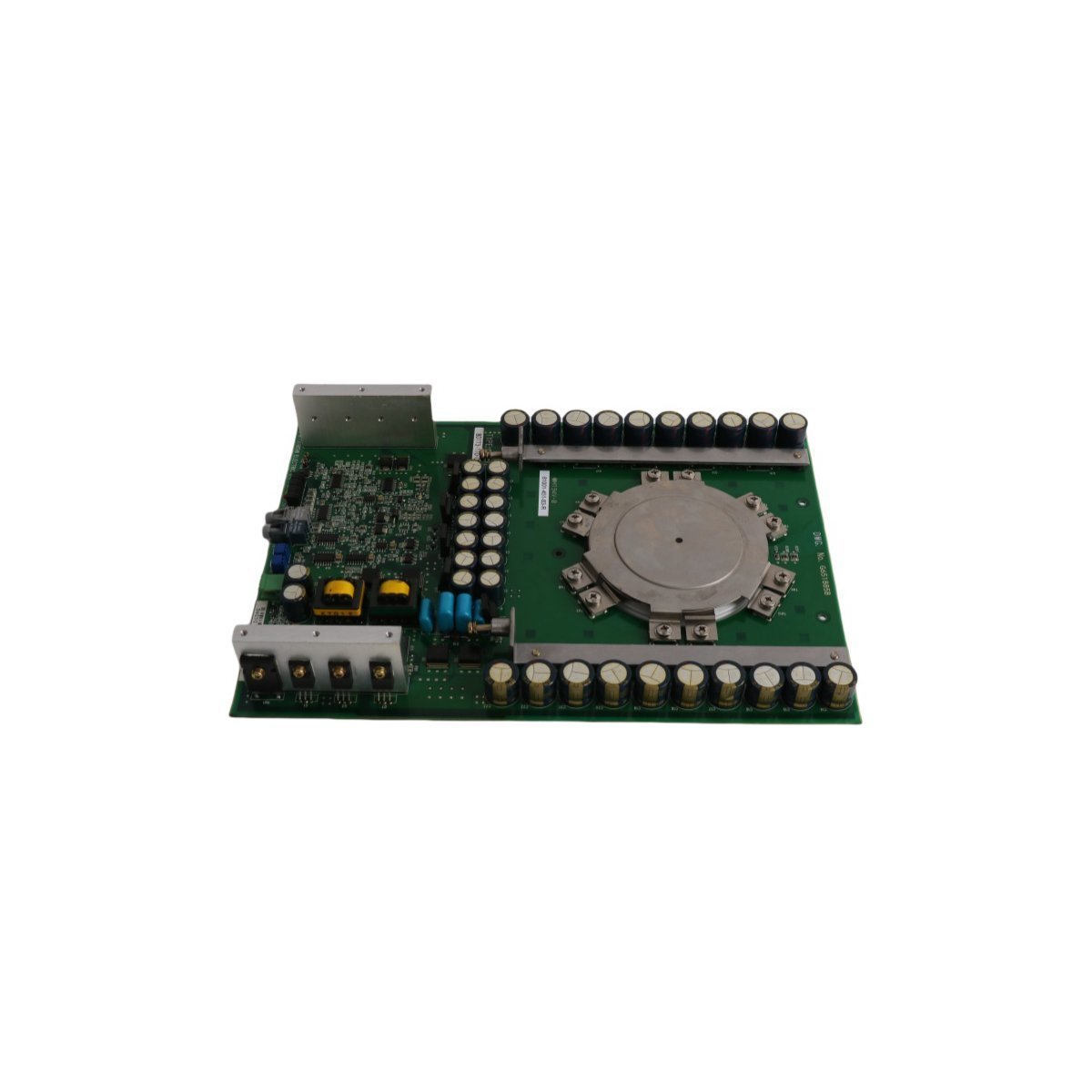

Allen-Bradley 81001-451-63-R PowerFlex 7000 SGCT Control Board
-
Dimensions: 25.1 cm x 19.0 cm x 2.6 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The Allen-Bradley 81001-451-63-R is a specialized Symmetrical Gate Commutated Thyristor (SGCT) control interface engineered for the PowerFlex 7000 medium voltage drive series. Designed for high-capacity power conversion, this printed circuit board manages the rapid switching sequences of thyristors in systems with current demands up to 1500A. To ensure precise gate timing and synchronized firing across all phases, these boards are supplied as a factory-matched set of three.
This component is essential for regulating torque and velocity in heavy-duty industrial motors. By maintaining tight control over the power semiconductors, the 81001-451-63-R optimizes energy efficiency and minimizes harmonic distortion within the drive's inverter or rectifier sections.
Technical Characteristics and Application
The 81001-451-63-R is built to withstand the rigorous electrical stresses of medium voltage environments. Its layout is specifically hardened against electromagnetic interference (EMI), ensuring signal integrity for the gate drive signals even during high-transient switching events.
-
Phase Synchronization: The matched set configuration eliminates timing skews between the three phases, preventing unbalanced current distribution that could lead to motor resonance or thermal overstress.
-
Legacy Integration: While the manufacturer has introduced the 81001-451-83-R as a successor, the 81001-451-63-R remains the primary choice for maintenance professionals performing "like-for-like" repairs to keep legacy systems within original engineering tolerances.
-
Operational Safety: Proper installation requires the simultaneous replacement of all three boards in the set to maintain the calibrated firing characteristics necessary for safe braking and startup cycles.
Technical Specifications
-
Manufacturer: Rockwell Automation / Allen-Bradley
-
Model Identification: 81001-451-63-R
-
Component Class: SGCT Gate Driver / Control PCB
-
Drive Compatibility: PowerFlex 7000 Medium Voltage Series
-
Current Capacity: 1500 Amperes (1500A)
-
Shipping Configuration: Matched set of 3 units
-
Physical Mass: 0.32 kg
-
Module Dimensions: 25.1 cm x 19.0 cm x 2.6 cm
