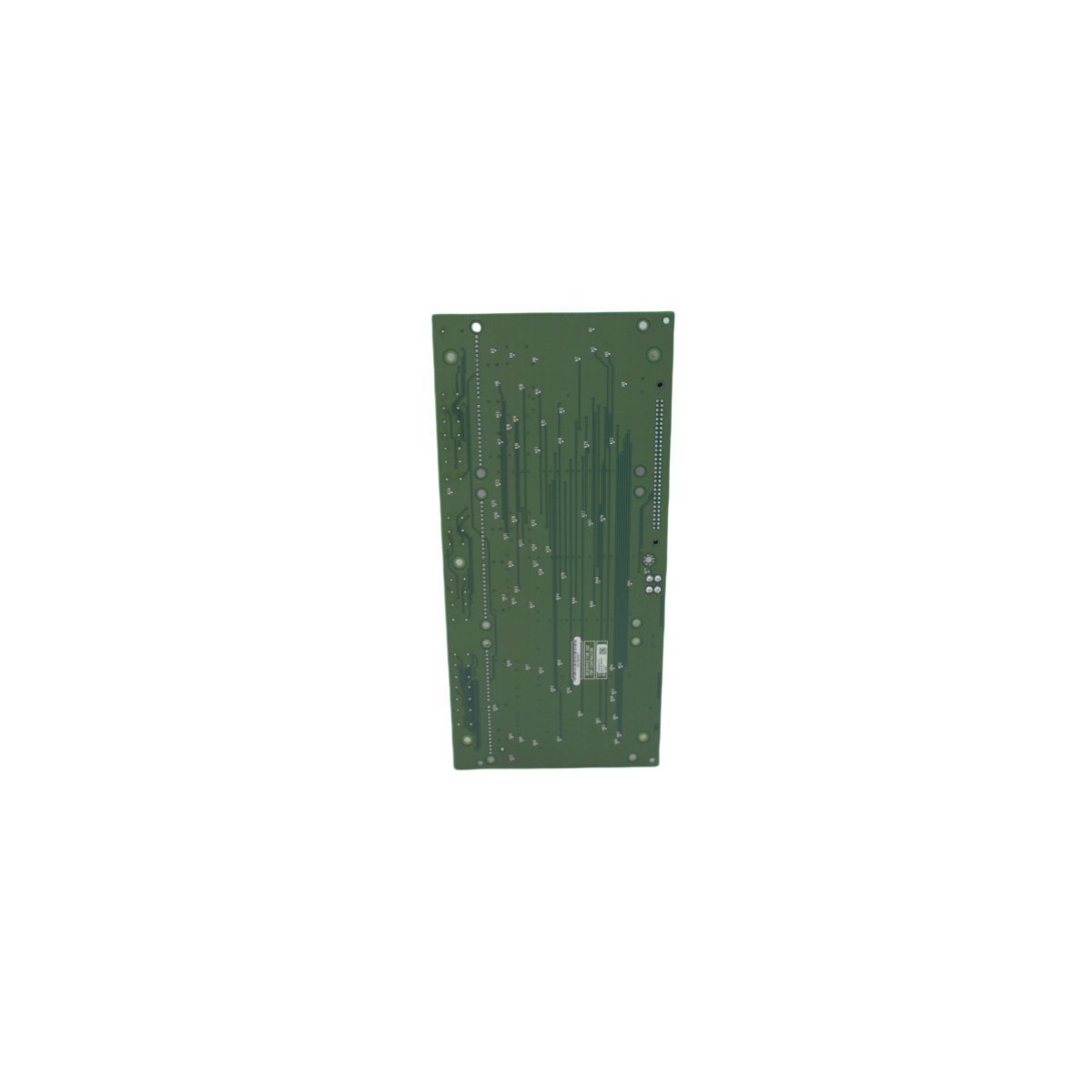

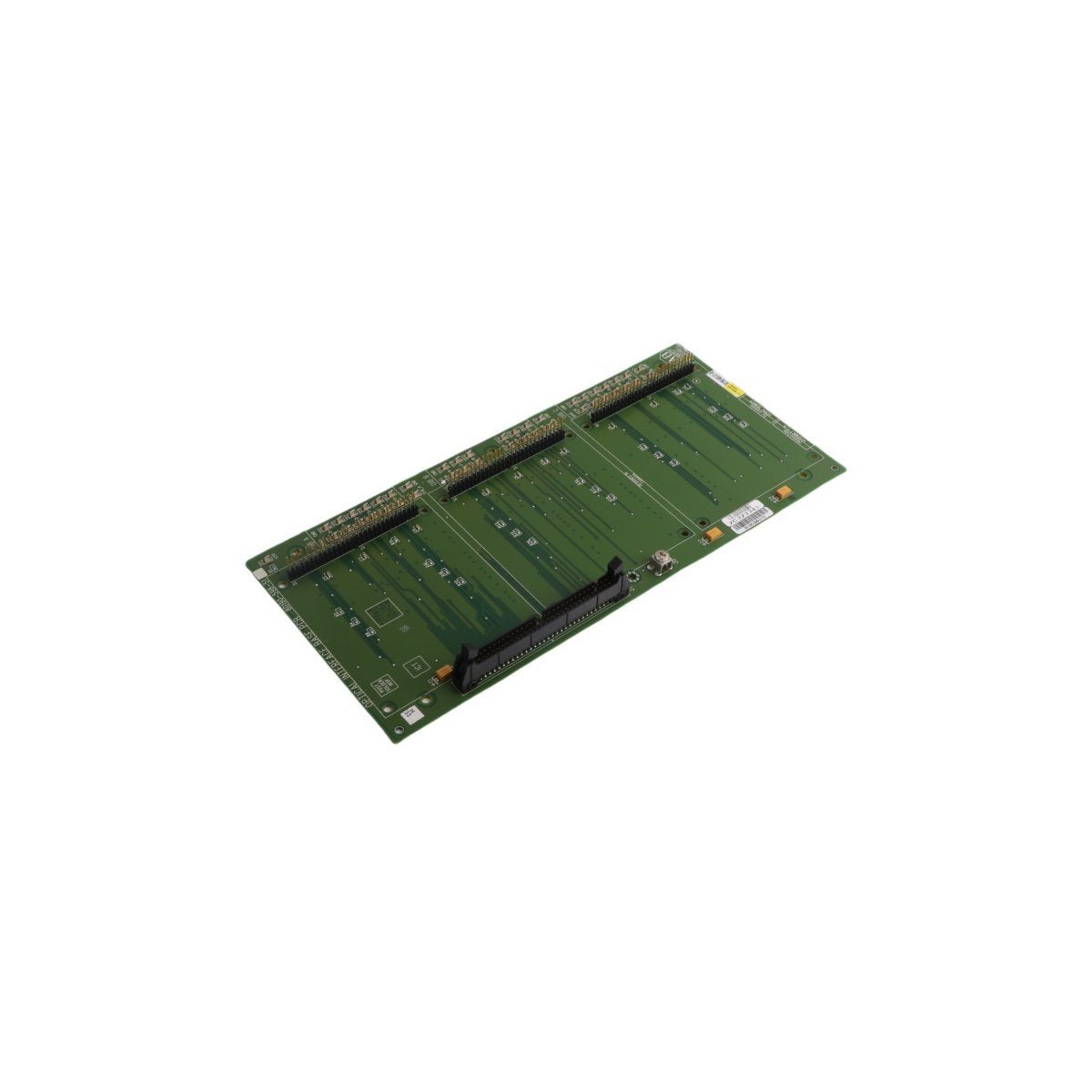

Allen-Bradley 80190-600-01-R Kinetix Optical Interface Base PC Board

Product Overview

The Allen-Bradley 80190-600-01-R is a specialized Optical Interface Base Printed Circuit Board (PCB) designed for high-performance motion control within the Kinetix® servo drive ecosystem. This critical hardware component facilitates high-speed data transmission and optical isolation between the drive's control logic and the power stages. By utilizing optical interfacing, the 80190-600-01-R ensures superior signal integrity and immunity to electromagnetic interference (EMI), which is essential for maintaining micron-level positioning accuracy in high-voltage industrial environments.

As a core assembly in Rockwell Automation’s motion control portfolio, this board supports synchronized multi-axis operations. It is engineered to handle the complex processing required for real-time torque, velocity, and position loops, making it a foundational element for precision-heavy sectors such as semiconductor fabrication, automotive robotics, and high-speed primary packaging.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Model Number: 80190-600-01-R

• Module Type: Optical Interface Base PCB / Servo Drive Control Board

• Series Compatibility: Kinetix Motion Control Systems

• Connectivity: Integrated support for EtherNet/IP and high-speed feedback protocols

• Dimensions: 25.1 x 19.0 x 2.6 cm

• Weight: 0.32 kg

• Condition: Brand New

• Country of Origin: USA

• HS Code: 8537101190

Key Technical Characteristics

• Optical Isolation Technology: Employs advanced optical components to decouple control signals from power circuitry, protecting sensitive logic components from high-voltage transients and noise.

• High-Speed Feedback Processing: Designed to interface with a variety of feedback devices, allowing the servo system to maintain high-resolution motion profiles even at maximum velocities.

• Sophisticated Diagnostics: Fully compatible with Studio 5000 Logix Designer® software, the board enables real-time monitoring of drive health, thermal status, and axis performance data.

• Industrial Hardening: The PCB layout and component selection are optimized for longevity in harsh manufacturing zones characterized by vibration, ambient dust, and thermal cycling.

• Energy-Efficient Motion Control: Supports advanced algorithms that optimize motor current and reduce heat dissipation, contributing to overall machine efficiency and reduced operational costs.

Application and System Integration

The 80190-600-01-R is intended for direct integration into Kinetix drive enclosures. It serves as the primary communication bridge for synchronized motion tasks where sub-millisecond response times are required. In modern smart factories, this board allows for seamless connectivity between the motion layer and the broader enterprise network via EtherNet/IP, supporting the data requirements of Industry 4.0 and predictive maintenance strategies.
