Product Overview

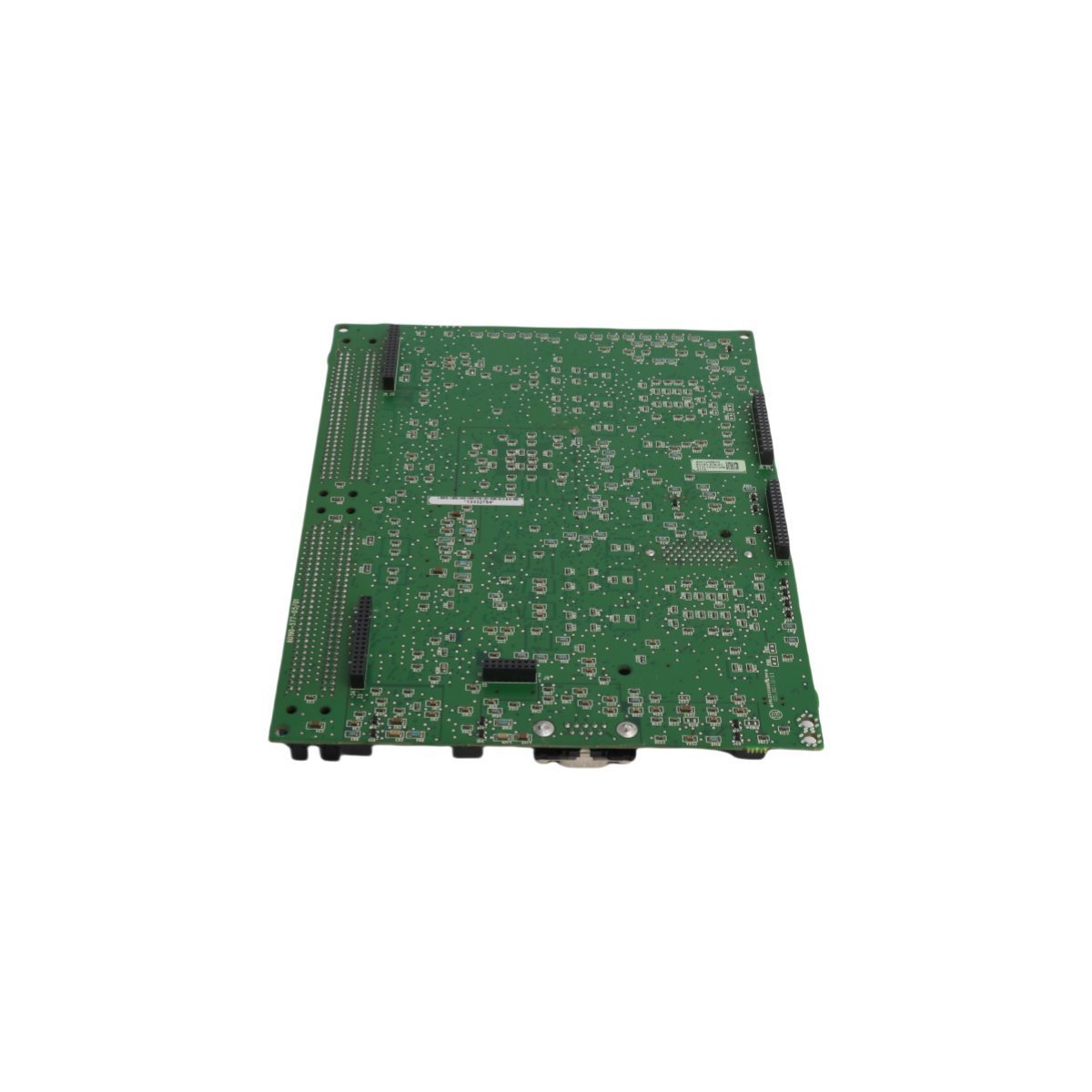

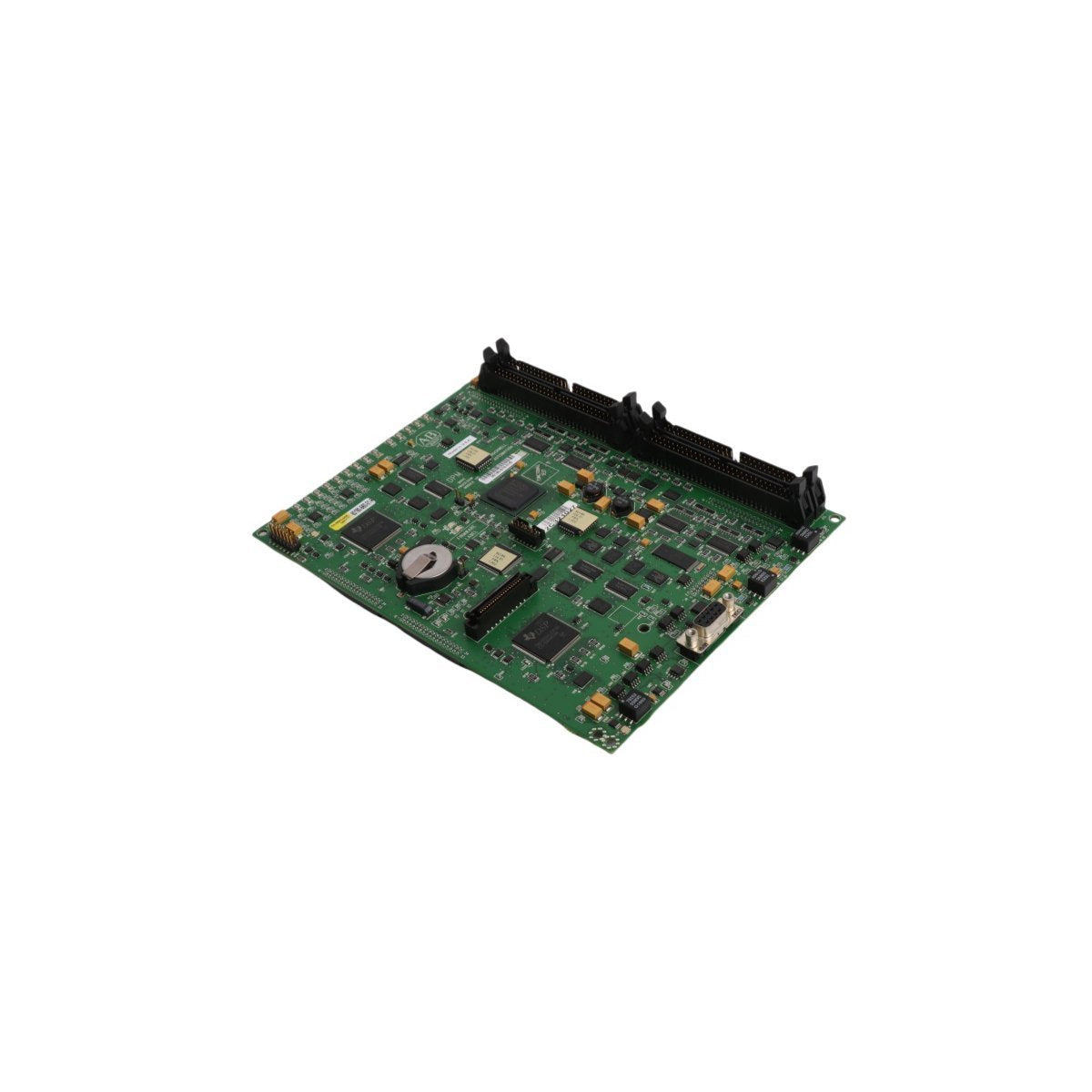

The Allen-Bradley 80190-560-01-R is a high-precision analog control PC board engineered for advanced motion control within industrial servo drive systems. This module serves as the primary processing interface for regulating motor velocity, torque, and positioning in complex automation environments. Designed by Rockwell Automation, the 80190-560-01-R translates high-level control commands into precise analog signals, ensuring smooth and responsive motor performance. Its architecture is specifically optimized for high-speed motion tasks where deterministic behavior and minimal signal latency are essential for maintaining production throughput and product quality.

Technical Characteristics

The 80190-560-01-R board is distinguished by its sophisticated signal processing and industrial-grade resilience:

High-Fidelity Analog Regulation The module utilizes advanced control loops to provide exceptional speed regulation. By processing real-time feedback from motor encoders or resolvers, the 80190-560-01-R can make micro-adjustments to the power stage, resulting in vibration-free motion and ultra-precise positioning even under fluctuating load conditions.

Comprehensive Thermal Management Designed for continuous heavy-duty cycles, the PCB layout incorporates efficient heat dissipation paths and high-grade capacitors. This robust thermal design prevents signal drift caused by component overheating, ensuring that the control logic remains accurate during 24/7 manufacturing operations.

Advanced Diagnostic Integration The 80190-560-01-R features embedded circuitry for real-time fault detection. It monitors critical parameters such as signal integrity and power stability, allowing for predictive maintenance. These diagnostic tools help maintenance teams identify potential issues before they lead to system-wide failures or unplanned downtime.

Seamless Drive Integration This control board is designed for easy installation within modular servo drive enclosures. Its compact form factor and standardized headers allow for rapid field replacement or system upgrades. The board is compatible with a wide range of feedback devices and motor types, providing a versatile solution for diverse motion control applications.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation

• Model Number: 80190-560-01-R

• Product Type: Analog Control PC Board

• Function: Servo Drive Motion Control

• Interface: High-speed Analog / Logic Headers

• Thermal Range: Optimized for industrial enclosures

• Vibration Resistance: Industrial Grade

• Weight: 0.4 kg

• Dimensions: 19.1 x 18.8 x 6.5 cm

• Origin: USA

Application Areas

The 80190-560-01-R is a critical component for high-performance motion in various sectors:

• Automotive Manufacturing: Driving robotic precision in welding and assembly stations.

• Packaging Machinery: Synchronizing high-speed labeling, filling, and capping motions.

• Material Handling: Regulating specialized sortation systems and high-speed pick-and-place robots.

• Textile & Printing: Maintaining precise tension control and registration in continuous web applications.
