Product Overview

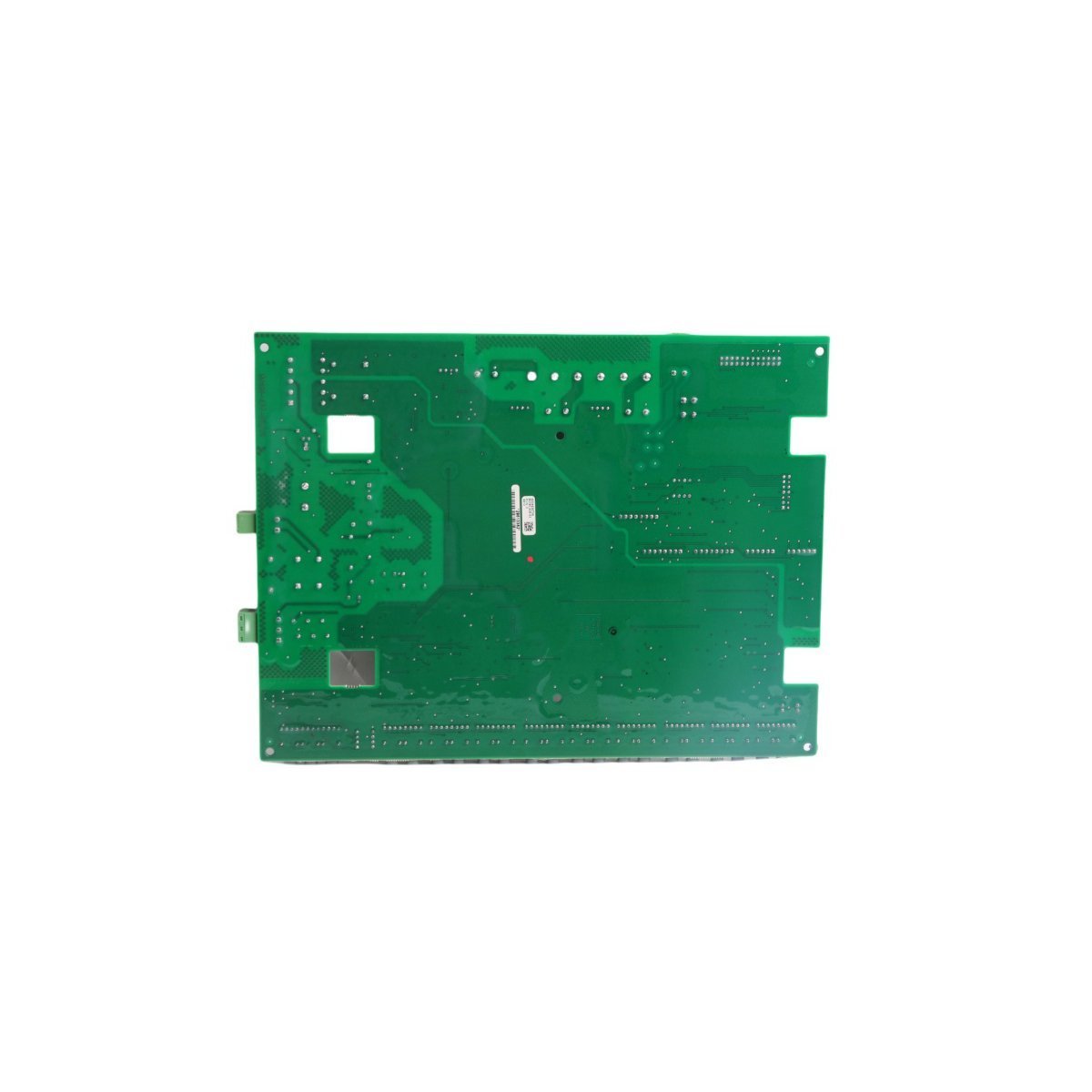

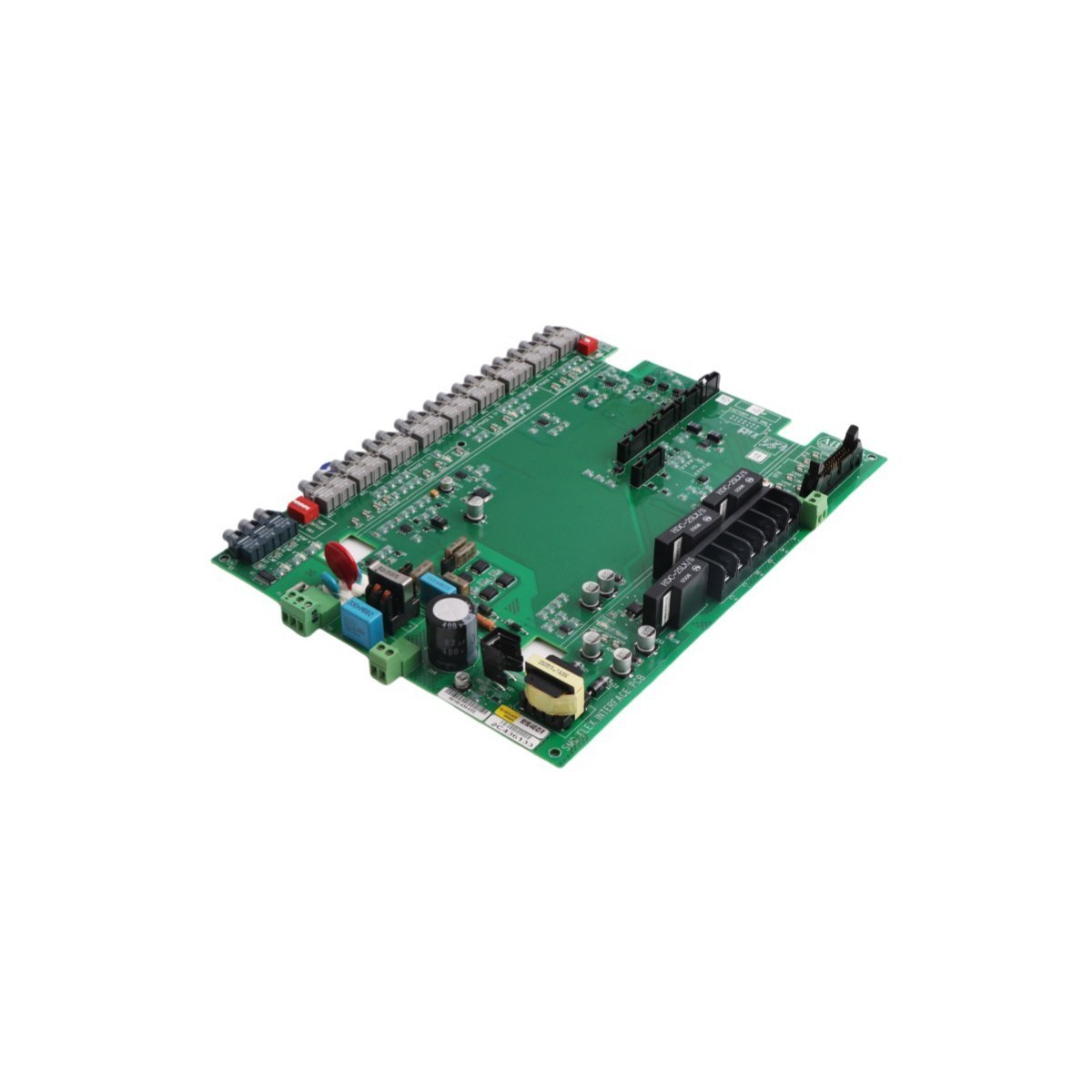

The Allen-Bradley 80190-440-03-R is a precision-engineered interface PCB specifically developed for the SMC Flex series of smart motor controllers. This module functions as the primary communication and signal processing bridge between the central logic processor and the power-switching electronics. By managing critical data paths for motor acceleration, deceleration, and protective monitoring, the 80190-440-03-R ensures that the soft starter operates with the deterministic accuracy required for high-torque industrial loads. Its integration is essential for systems utilizing advanced starting modes, such as torque control, pump control, and current limit starting.

Technical Characteristics

The 80190-440-03-R interface board is distinguished by its high-density circuit architecture and specialized motor control logic:

Optimized Signal Distribution This interface board serves as the internal routing hub for the SMC Flex unit. It coordinates high-speed feedback from current and voltage sensors to the main control logic, allowing for real-time adjustments to the SCR firing angles. This precise regulation is what enables the "soft" start capability, effectively eliminating mechanical water hammer in piping and reducing belt slippage in conveyor systems.

Resilient Industrial Architecture Constructed with high-grade industrial laminates, the board is designed to survive the harsh electrical noise and thermal fluctuations common in motor control centers (MCC). It features surface-mount components that offer superior vibration resistance, ensuring signal integrity even when the starter is mounted near heavy rotating machinery.

Comprehensive System Protection The 80190-440-03-R manages the hardware-level diagnostic routines of the SMC Flex. It monitors for phase imbalance, underload, and overcurrent conditions. In the event of a detected fault, the board facilitates an immediate trip response to protect the motor windings and the controller’s power components from permanent damage.

Legacy System Maintenance As a critical spare part for the SMC Flex family, this board allows for the cost-effective repair of established motor control systems. Its standardized mounting footprint and header configurations allow for direct field replacement, minimizing downtime and extending the lifecycle of the overall automation investment.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation

• Model Number: 80190-440-03-R

• Product Type: Interface Board / Controller PCB

• Compatibility: SMC Flex Smart Motor Controllers

• System Logic: Analog and Digital Control Interface

• Thermal Management: Passive Convection Optimized

• Weight: 0.46 kg (approx. 1.0 lb)

• Dimensions: 27.8 x 21.4 x 2.8 cm

• Product Origin: USA

Application Areas

The 80190-440-03-R is a foundational component for power control in several key industries:

• Water & Wastewater: Regulating high-capacity centrifugal pumps to manage pressure surges.

• Mining & Aggregates: Controlling heavy-duty conveyors, crushers, and grinders.

• HVAC & Cooling: Managing large industrial fans and chillers in commercial infrastructure.

• Manufacturing: Providing controlled torque for mixers, centrifuges, and precision machinery.
