Product Overview

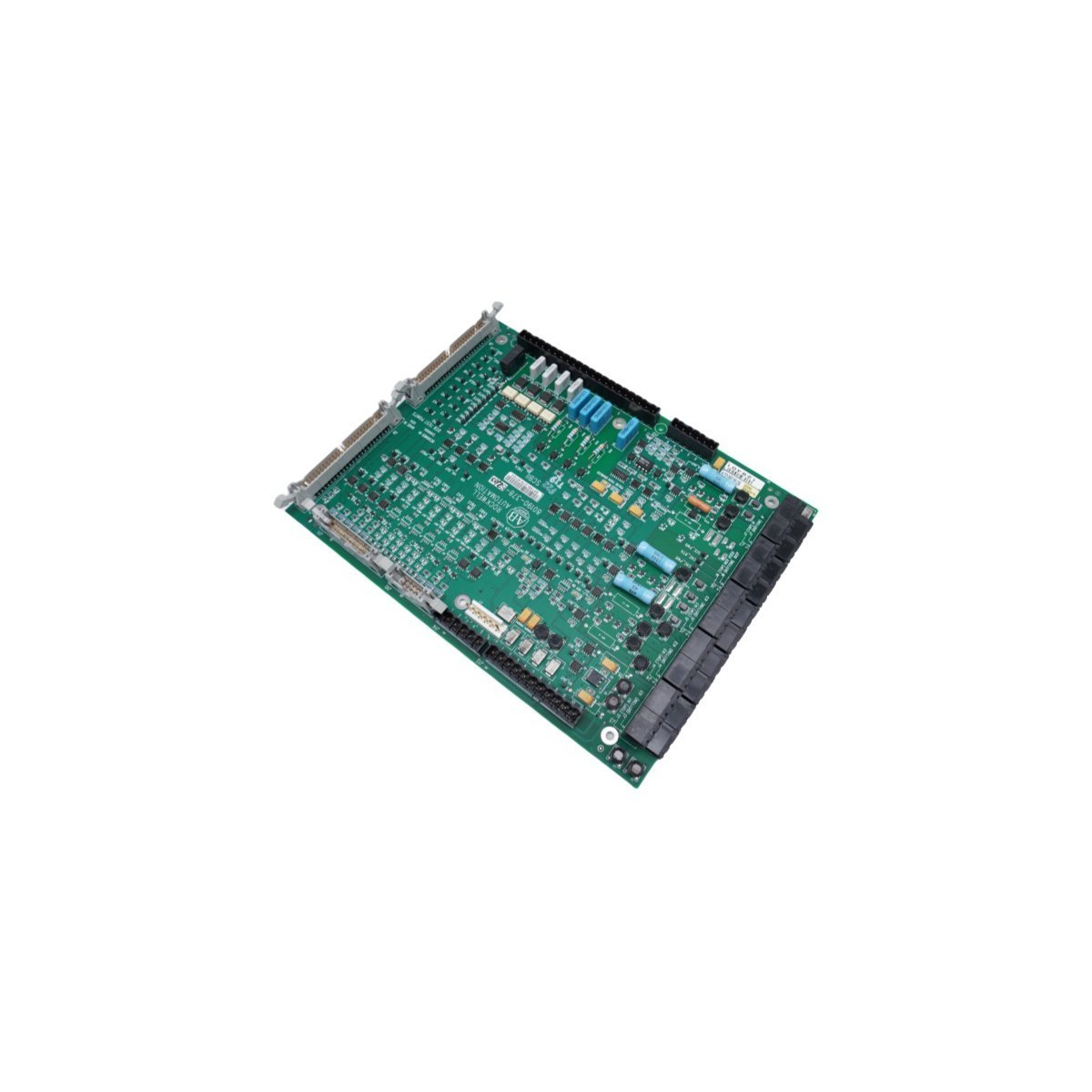

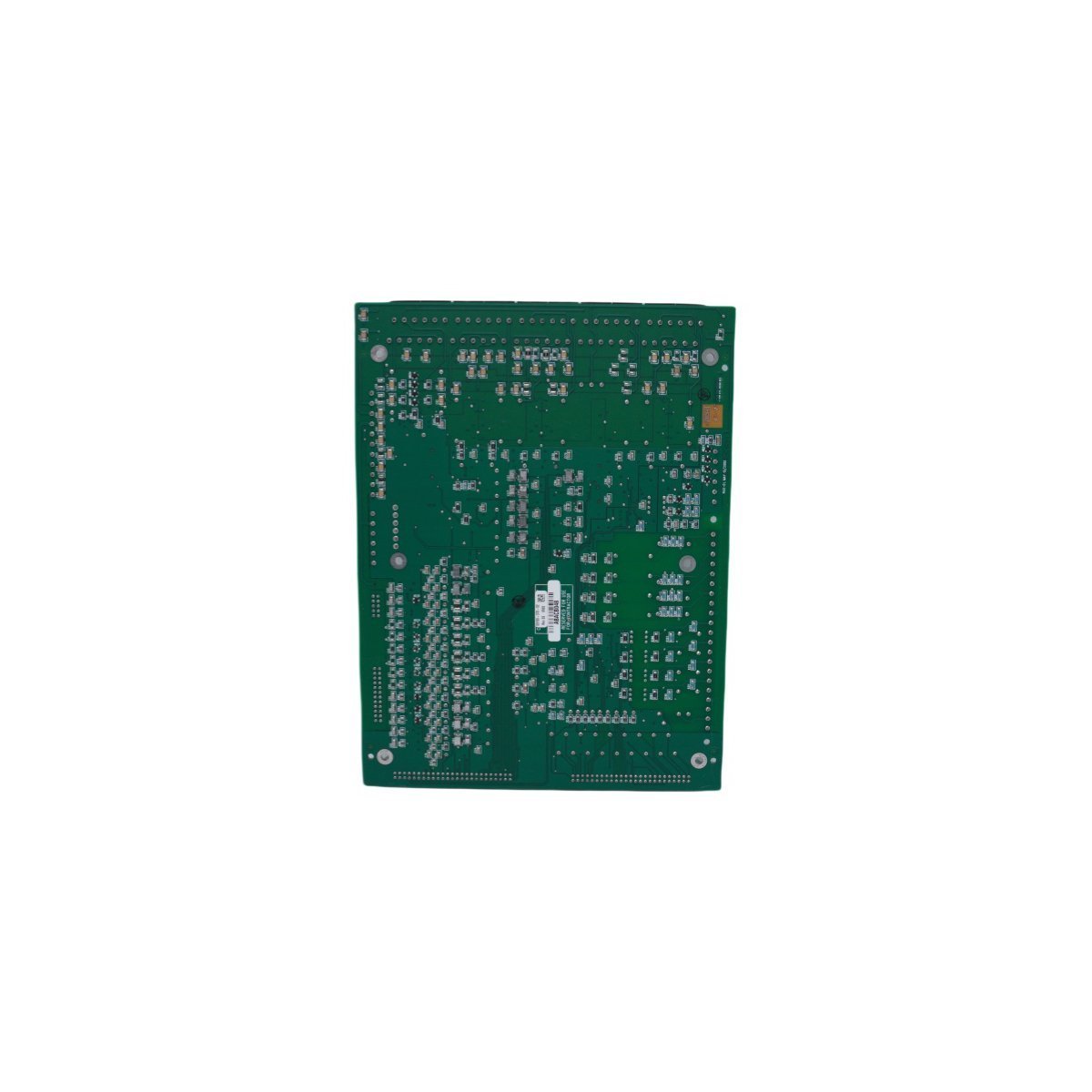

The Allen-Bradley 80190-378-52 is a specialized Inverter Control Board engineered for the PLC-5 automation platform and high-capacity industrial drive assemblies. This high-density printed circuit board (PCB) serves as the primary regulation layer for power inversion processes, translating complex control logic into precise gate-firing signals. Designed by Rockwell Automation for mission-critical manufacturing, the 80190-378-52 ensures stable voltage and frequency modulation within large-scale motor control systems. Its robust architecture is specifically built to bridge the gap between digital processing and high-power execution, making it a cornerstone component for maintaining the operational integrity of legacy PLC-5 infrastructures.

Technical Characteristics

The 80190-378-52 is defined by its superior signal conditioning and industrial-grade resilience:

High-Precision Signal Processing This board features advanced micro-circuitry designed to handle high-speed data throughput. It provides the deterministic control required for synchronized inverter operations, ensuring that motor torque and velocity remain consistent even under varying load conditions on the plant floor.

Ruggedized PCB Construction To survive the rigors of heavy industrial environments, the 80190-378-52 is manufactured with heat-resistant laminates and vibration-resistant solder points. It is engineered to operate reliably in cabinets subjected to mechanical stress and significant electrical noise, maintaining signal clarity where standard electronics would fail.

Seamless System Integration The module is designed for direct compatibility with PLC-5 system backplanes and standardized inverter chassis. Its flexible interface allows it to communicate effectively with various industrial communication protocols, facilitating a unified control strategy across the factory's Ethernet or ControlNet architecture.

Integrated Diagnostic Capabilities For proactive facility management, the board incorporates localized fault-detection circuits. These features allow the system to monitor inverter health in real-time, providing early warnings of thermal anomalies or signal degradation. This capability is essential for implementing predictive maintenance routines and maximizing Overall Equipment Effectiveness (OEE).

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation

• Model Number: 80190-378-52

• Product Type: Inverter Control Board / PCB

• System Family: PLC-5 System

• Application: Inverter Modulation and Process Control

• Installation: Chassis or Rack Integrated

• Cooling Requirement: Passive/Forced Air (System Dependent)

• Weight: 0.46 kg

• Dimensions: 27.8 x 21.4 x 2.8 cm

• Origin: USA

Application Areas

The 80190-378-52 is a vital component for power regulation in diverse sectors:

• Metal & Mining: Controlling high-torque motor drives for grinders and conveyor systems.

• Chemical Processing: Managing variable speed pumps and mixers in hazardous environments.

• Automotive Assembly: Driving precision synchronized motion in robotic paint and welding lines.

• Legacy Infrastructure Support: Maintaining and upgrading existing PLC-5 control systems in utility and power plants.
