Product Overview

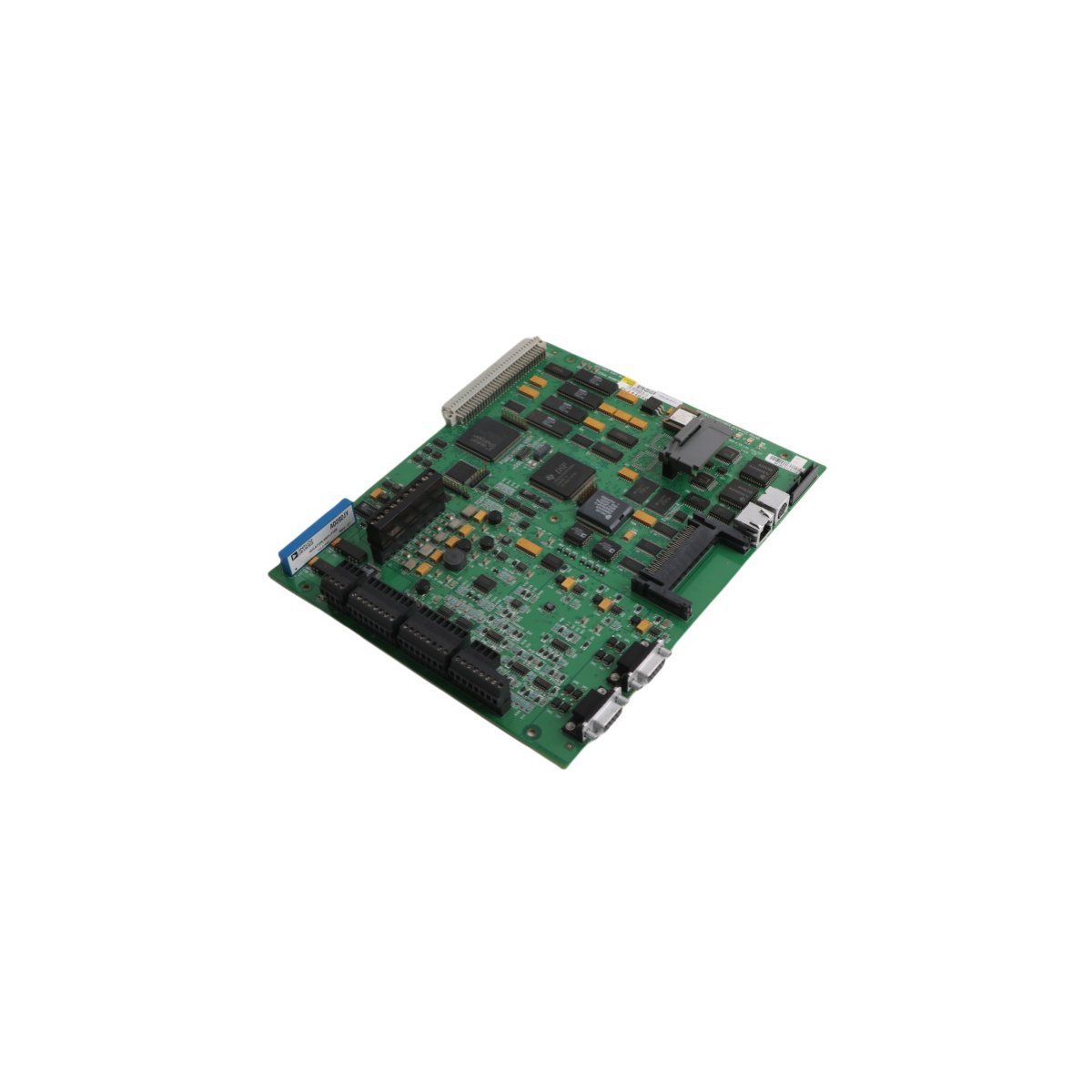

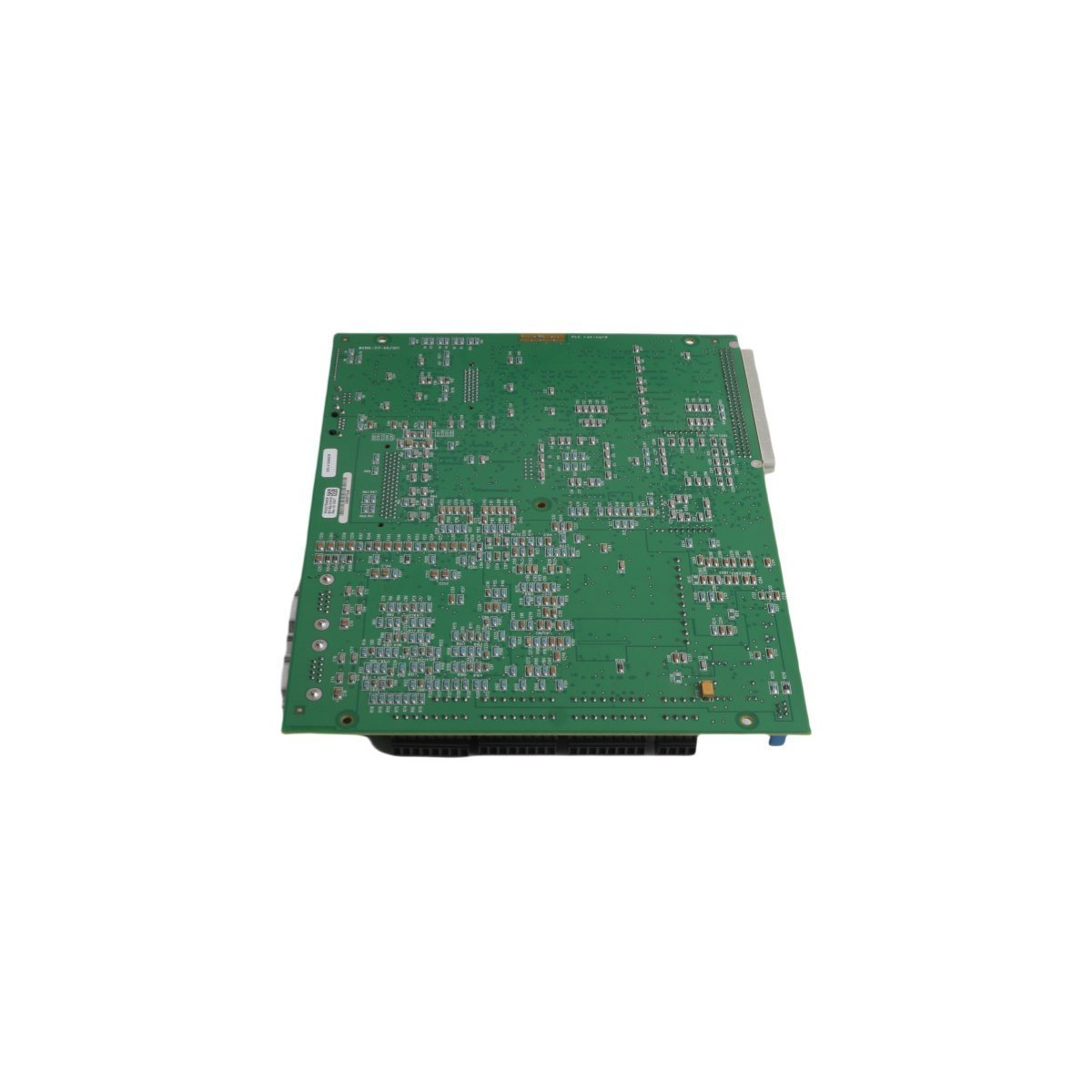

The Allen-Bradley 80190-320-03-R serves as a primary Control Motherboard designed for the legacy PLC-5 platform and associated high-performance industrial controller assemblies. This module acts as the central nerve center for specialized control systems, providing the critical physical and electrical infrastructure required for high-speed logic execution and data routing. Engineered by Rockwell Automation, the 80190-320-03-R facilitates seamless communication between the processor and auxiliary interface boards, ensuring that time-critical control signals are distributed with deterministic precision. Its robust PCB architecture is optimized for long-term reliability in aging infrastructure, providing a modern bridge for facilities maintaining established automation standards.

Technical Characteristics

The 80190-320-03-R is built to withstand the rigors of heavy industrial operation while maintaining high-speed signal integrity:

Centralized Data Management As a master interface board, this module coordinates complex data flows across multiple system layers. It is designed to handle large volumes of real-time operational data, supporting the execution of advanced control algorithms and high-speed motion tasks without bottlenecking the system’s overall throughput.

Ruggedized Environmental Performance The board is specifically engineered to operate in unconditioned industrial environments. It maintains functional stability across a wide temperature spectrum from -20°C to +60°C and features specialized vibration damping to withstand mechanical stress up to 5g. This makes it suitable for mounting directly on or near heavy machinery and assembly lines.

Network and System Versatility The 80190-320-03-R supports a variety of industrial communication protocols, including EtherNet/IP, ControlNet, and legacy DeviceNet. This flexibility allows plant engineers to integrate older PLC-5 era architectures into more modern, data-driven Ethernet networks for better facility-wide visibility.

Advanced System Diagnostics To reduce unplanned downtime, the motherboard includes integrated diagnostic reporting capabilities. These features allow maintenance teams to identify potential hardware faults or signal interruptions at the board level, facilitating a more proactive maintenance strategy and improving Overall Equipment Effectiveness (OEE).

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation

• Model Number: 80190-320-03-R

• Module Type: Control Motherboard / Interface Board

• System Platform: PLC-5 System

• Operating Temperature: -20°C to +60°C

• Vibration Resistance: Up to 5g

• Communication Support: EtherNet/IP, ControlNet, DeviceNet

• Weight: 0.48 kg

• Dimensions: 25.0 x 21.8 x 3.5 cm

• Origin: USA

Application Areas

The 80190-320-03-R is an essential component for critical control paths in several sectors:

• Automotive Assembly: Coordinating multi-axis robotic movements and conveyor logic.

• Pharmaceuticals: Managing high-precision batch processing and environmental monitoring.

• Food and Beverage: Controlling high-speed packaging and bottling lines where cycle time is critical.

• Energy Infrastructure: Reliable monitoring and control in distributed power and utility substations.
