Product Overview

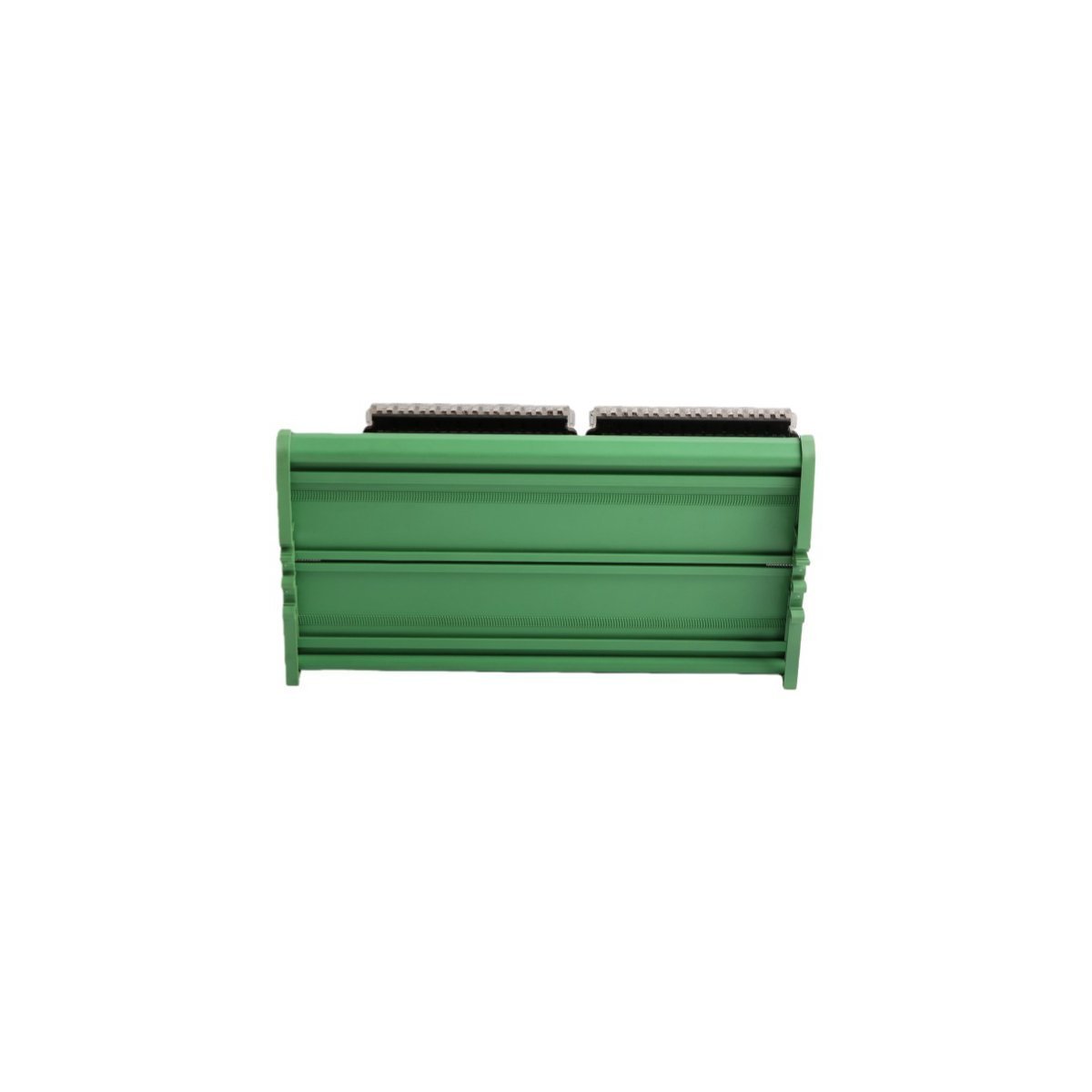

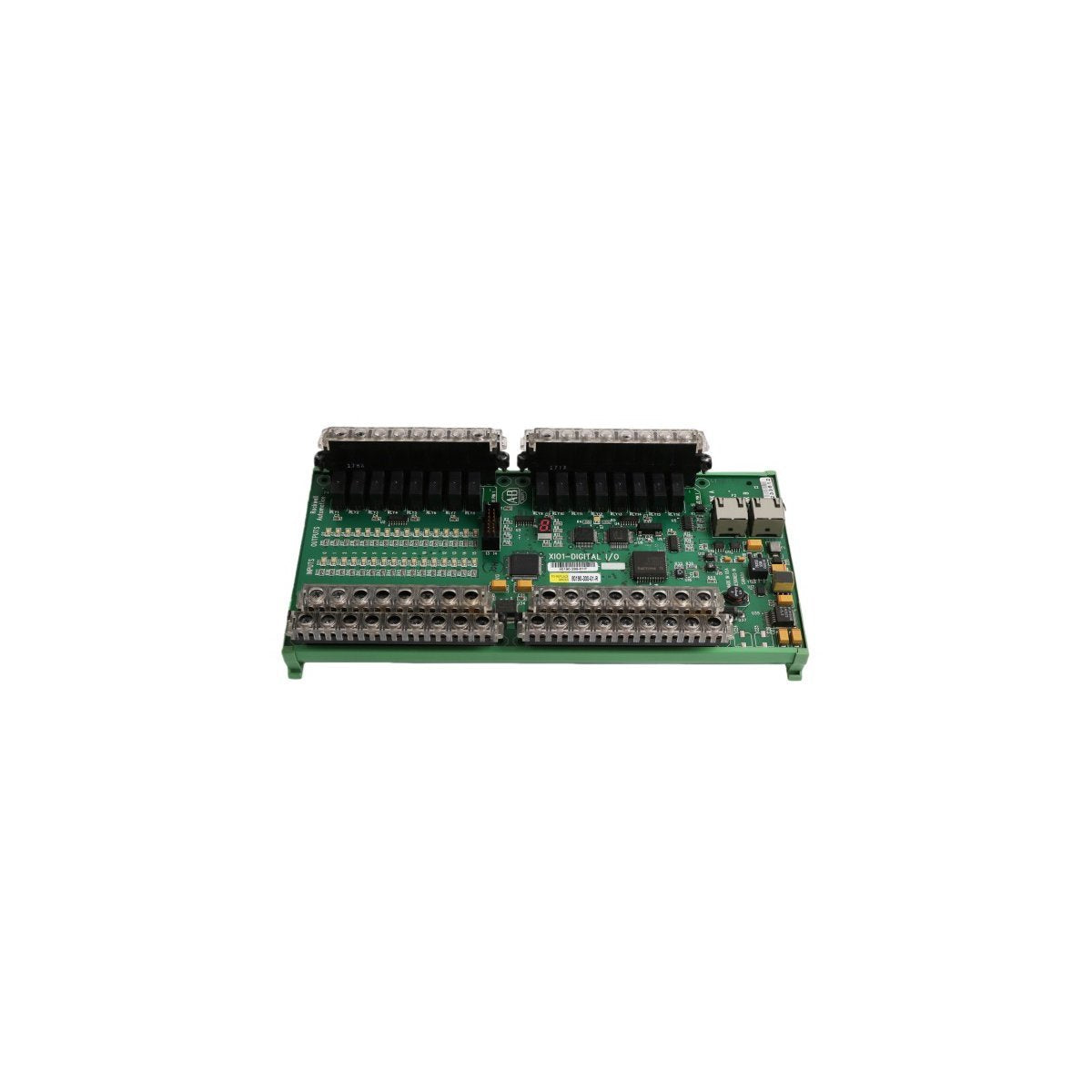

The 80190-300-01-R is a specialized Integrated Gate-Commutated Thyristor (IGCT) interface module designed specifically for the PowerFlex 7000 Medium Voltage Drive series. Functioning as an Extended I/O and Driver Circuit Board, this assembly acts as the critical bridge between the drive's control logic and the high-power semiconductor components. It is engineered to manage high-speed switching signals while providing the necessary electrical isolation and diagnostic feedback required for stable motor control.

This module is essential for applications requiring precise torque and speed regulation in heavy industrial environments. By integrating advanced digital I/O expansion, the 80190-300-01-R allows for enhanced monitoring of drive parameters, ensuring that the PowerFlex 7000 system operates within safe thermal and electrical limits. Its design emphasizes signal integrity, utilizing high-grade components to resist electromagnetic interference (EMI) typical of medium voltage power conversion systems.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Model Number: 80190-300-01-R

• Component Type: IGCT Driver / Extended I/O Board

• System Compatibility: PowerFlex 7000 Medium Voltage Drives

• Dimensions: 3.5 x 13 x 14.5 cm

• Weight: 0.9 kg (approx. 2.2 lbs)

• Communication Support: Integration via Drive Backplane (supports EtherNet/IP and Modbus protocols through drive gateway)

• Hazardous Area Ratings: ATEX and IECEx certified for specialized enclosures

• HS Code: 8537101190

• Country of Origin: USA

Technical Characteristics and Functionality

The 80190-300-01-R board features a sophisticated PC board assembly optimized for thermal dissipation and long-term durability. It serves several core functions within the drive architecture:

• Gate Drive Control: Provides the precise current pulses required to trigger IGCT semiconductors, ensuring synchronized switching across all phases.

• Isolated Signal Processing: Protects low-voltage control circuits from high-voltage transients through robust galvanic isolation.

• Environmental Resilience: Engineered for reliable operation in hazardous locations and high-interference zones, maintaining performance across a wide industrial temperature spectrum.

• Status Monitoring: Includes onboard diagnostic capabilities that report real-time I/O status to the primary drive controller, facilitating rapid fault detection and reducing system downtime.

Application and Installation

This module is typically deployed in heavy industries such as oil and gas, mining, and water treatment, where PowerFlex 7000 drives manage large motors. The compact form factor allows for direct mounting within the drive's internal control bay. Its "plug-and-play" compatibility with Rockwell Automation's existing firmware ensures that replacement or expansion projects can be completed with minimal configuration overhead.
