Product Overview

The Allen-Bradley 80173-110-02-3 is a high-reliability PLC module engineered for demanding industrial automation applications. Designed to manage high-current loads, it supports an input voltage range of 100–480V AC and delivers output currents between 15–25A, making it suitable for AC motor soft starters, heating systems, and power factor correction circuits.

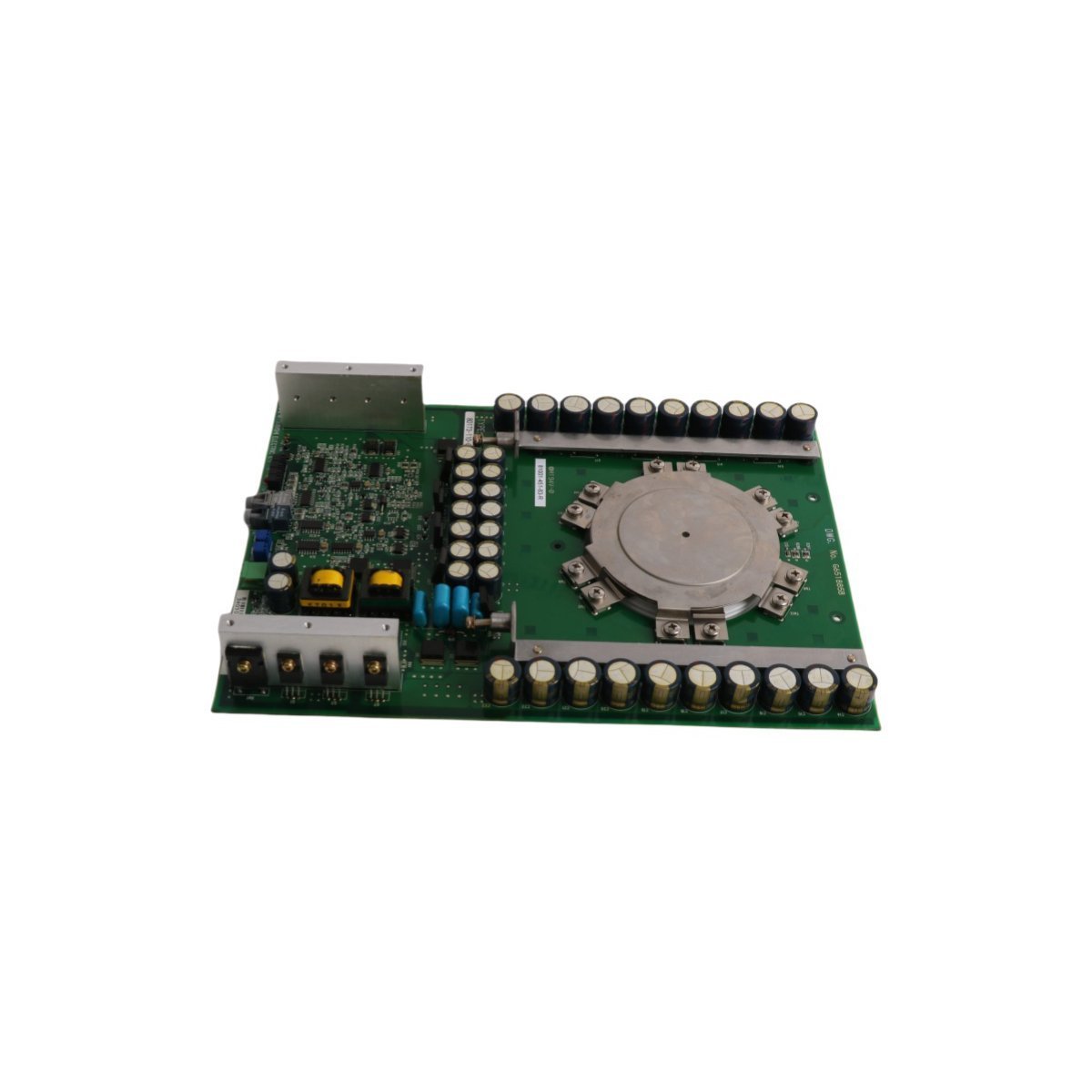

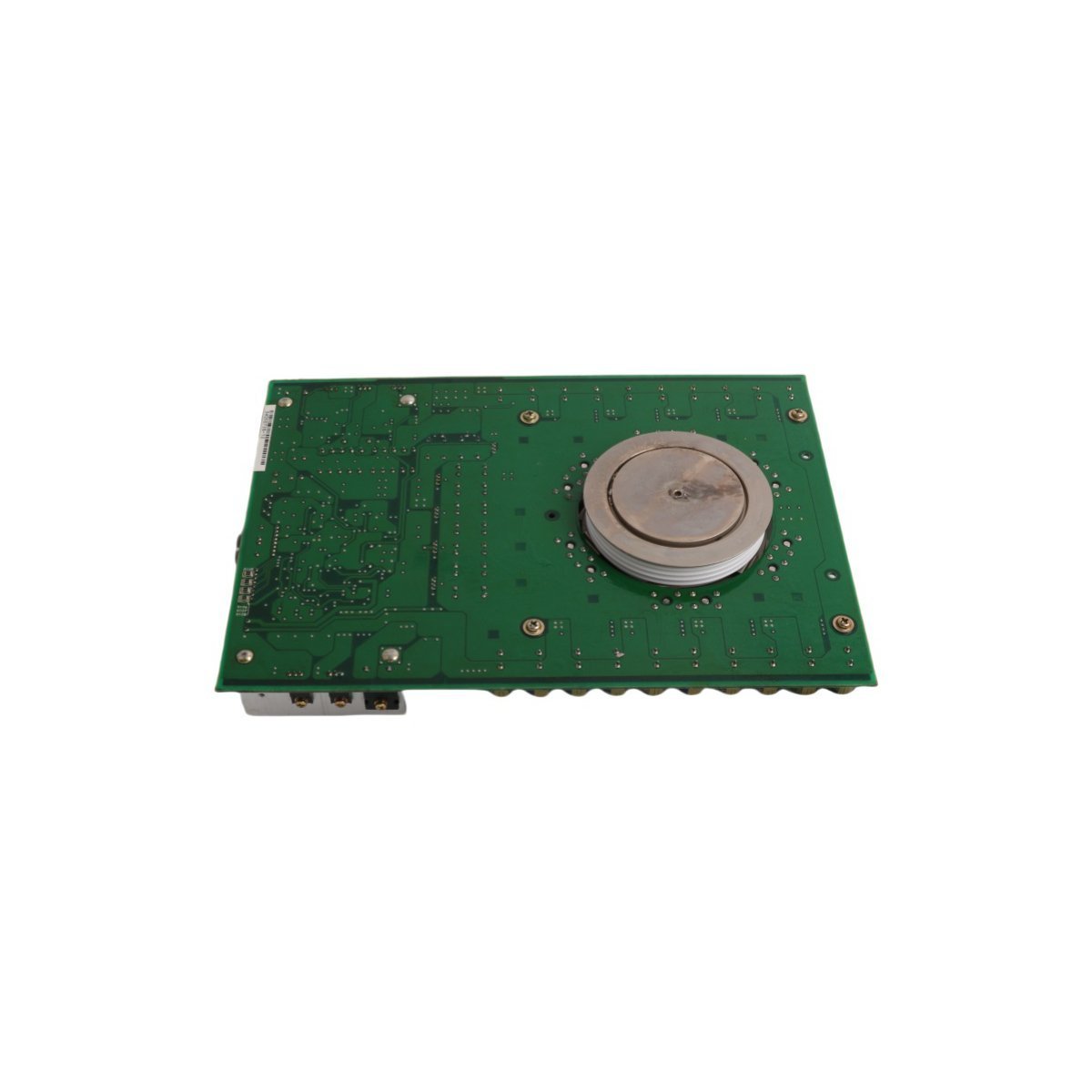

This GU-D15 / GUD15 thyristor board features precise gate triggering, accepting 3–12V DC gate voltage and 50–150mA trigger current. It accommodates both 4–20mA and 0–10V DC control signals, allowing seamless integration with a variety of industrial control systems. The module’s high 2500V AC isolation rating ensures safe operation and minimal interference in complex electrical setups.

Engineered for durability, the 80173-110-02-3 operates reliably in environments from -20°C to +60°C and can be stored at temperatures ranging from -40°C to +85°C. Its compact, panel-mounted design simplifies installation while maintaining robust performance. Trusted globally, this module combines advanced thyristor technology with Allen-Bradley’s reputation for industrial-grade quality and long-term operational reliability.

Key Features

• Model Number: 80173-110-02-3

• Brand: Allen-Bradley

• Type: PLC Module / Thyristor Board

• Input Voltage: 100–480V AC

• Output Current: 15–25A

• Gate Trigger Voltage: 3–12V DC

• Trigger Current: 50–150mA

• Control Signals: 4–20mA, 0–10V DC

• Isolation Voltage: 2500V AC

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Weight: 0.38 kg

• Dimensions: 25.1 × 19 × 2.6 cm

• Country of Origin: USA

• Availability: In Stock, Active Model

• Minimum Order Quantity: 1

Applications

• AC motor soft starters and speed control

• Industrial heating and power management systems

• Power factor correction circuits

• Panel-mounted industrial control systems requiring high-current switching

Technical Description

The 80173-110-02-3 combines high-current thyristor switching with robust PLC integration. Its precise gate control, high isolation rating, and support for multiple control signal types make it ideal for industrial power electronics applications. The compact, durable design ensures reliable long-term operation even in harsh industrial environments.
