Product Overview

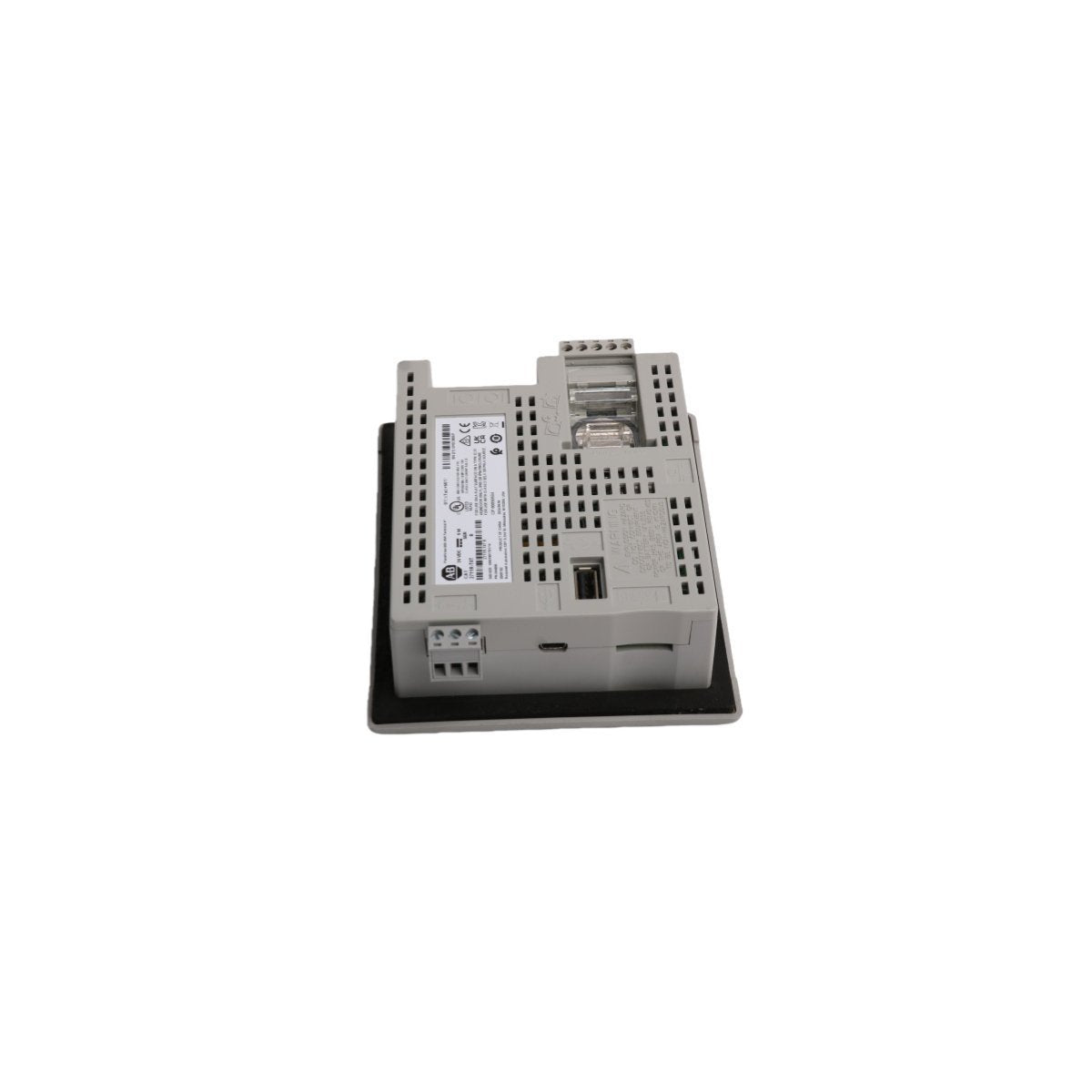

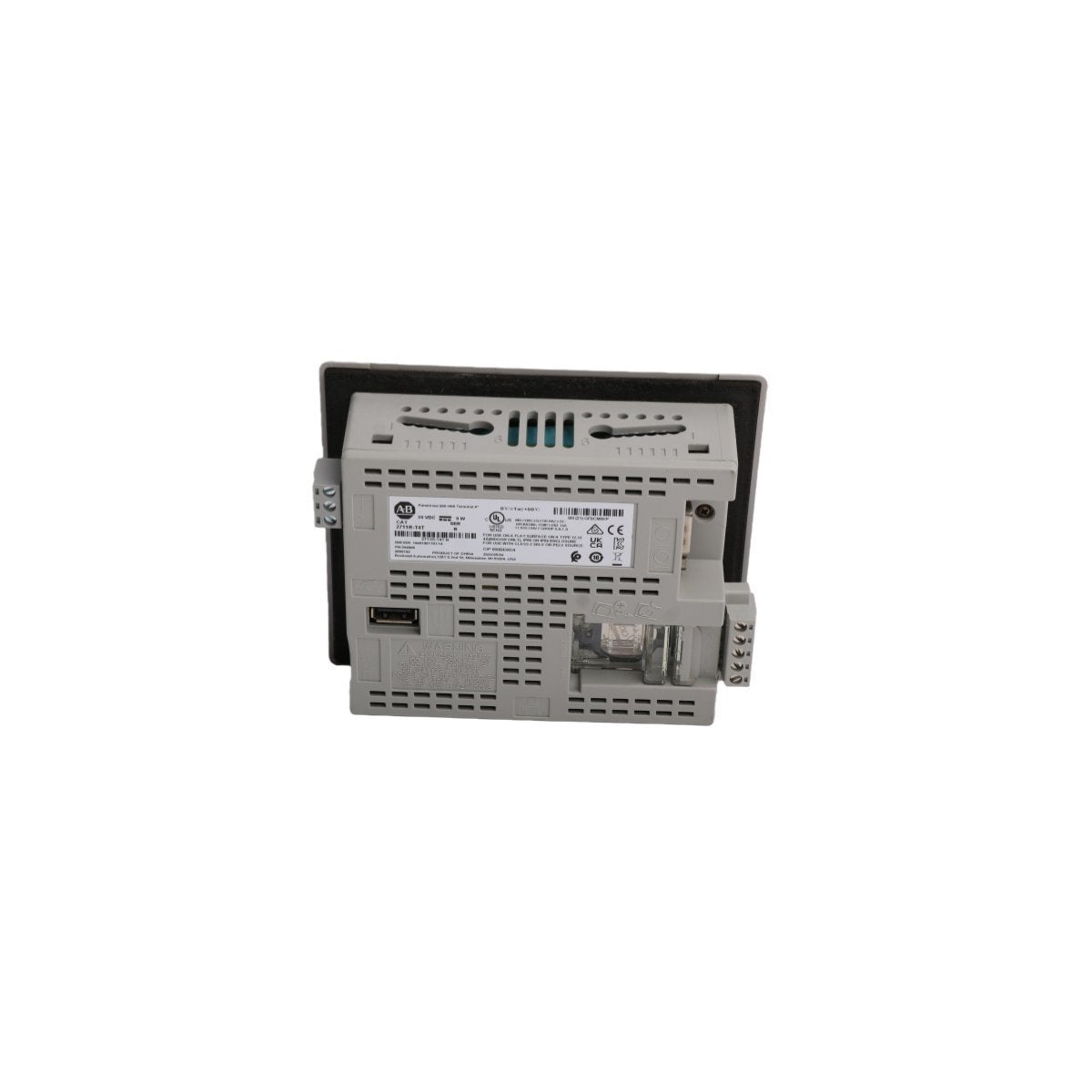

The Allen-Bradley 2711R-T4T is a space-efficient, high-performance Human-Machine Interface (HMI) part of the PanelView™ 800 family. Optimized for use with small control systems, this graphic terminal features a 4.3-inch widescreen TFT color display that provides sharp visualization for machine-level monitoring. It combines a responsive analog touch interface with dedicated physical function keys, offering operators multiple modes of interaction for improved input accuracy in industrial environments.

Driven by an 800 MHz processor, the 2711R-T4T is engineered for rapid boot times and fluid screen transitions. It is specifically designed to integrate seamlessly with Micro800® and MicroLogix™ controller families, providing a cost-effective solution for standalone machines that require robust data visualization and parameter management.

System Performance and Core Features

The 2711R-T4T is built to deliver reliable performance with an emphasis on versatility and high-speed processing.

• Advanced Hardware Architecture: Equipped with 256 MB of DDR RAM and 256 MB of non-volatile Flash memory, ensuring ample storage for complex screen graphics and extensive data logs.

• Flexible Orientation: Uniquely supports both landscape and portrait mounting configurations, allowing engineers to optimize panel space based on specific machine designs.

• Communication Versatility: Features an integrated 10/100 Mbps Ethernet port and a multi-protocol serial port (RS-232/RS-422/RS-485), facilitating diverse network architectures.

• Long-Life Illumination: The white LED backlight is rated for 40,000 hours of service, ensuring consistent visibility over years of continuous operation.

• Efficient Recipe Management: Includes built-in recipe capabilities that allow for the bulk uploading and downloading of parameter sets, which simplifies product changeovers and configuration backups.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 2711R-T4T

• Display Type: 4.3-inch Color Transflective TFT

• Resolution: 480 x 272 WQVGA

• Input Voltage: 18–32V DC (24V DC nominal)

• Touchscreen: Analog Resistive

• Function Keys: 4 user-definable keys

• Processor: 800 MHz

• Memory: 256 MB RAM / 256 MB Flash

• Environmental Rating: IP65, NEMA 4X (indoor use)

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Weight: 0.9 kg (1.98 lbs)

• Dimentions: 4.5x15x15cm

Industrial Durability and Connectivity

• Rugged Construction: The terminal's front bezel meets stringent NEMA 4X and IP65 standards, protecting internal electronics against dust, pressurized water spray, and chemical exposure.

• Micro-Controller Integration: Optimized for native communication with the Connected Components Workbench™ (CCW) software environment, streamlining the development of HMI and PLC code within a single project file.

• USB Peripheral Support: Includes a USB 2.0 host port for connecting external storage devices, allowing for easy firmware updates and the export of logged data files.

• Reliability: Designed for high-vibration and shock resistance, ensuring the screen remains functional on active material handling and packaging equipment.
