Product Overview

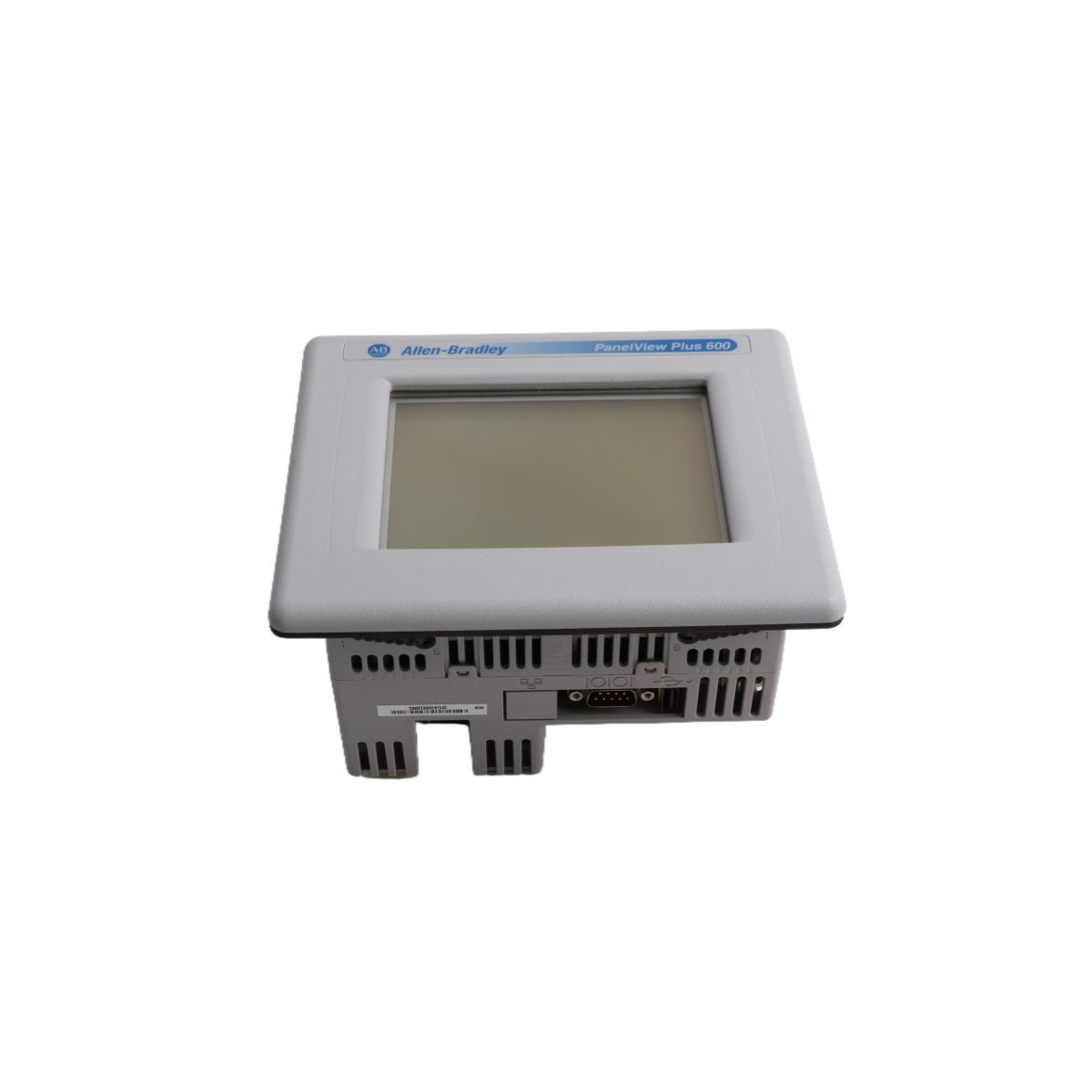

The Allen-Bradley 2711P-T6M5D8 is a compact and resilient operator interface from the PanelView Plus 6 600 series. Featuring a 5.7-inch grayscale TFT LCD, this terminal provides high-contrast process visualization with 16 levels of gray, making it an excellent choice for applications where color is not required but clarity is essential. The unit is equipped with an analog resistive touchscreen designed for heavy industrial use, offering 1 million actuations for long-term durability. By integrating essential monitoring and control functions into a small-footprint device, the 2711P-T6M5D8 serves as an efficient bridge between the operator and the PLC logic.

Technical Characteristics

The 2711P-T6M5D8 is engineered for reliability in dedicated machine-level control:

Efficient Grayscale Display The 5.7-inch screen features a 320 x 240 QVGA resolution. The monochrome 16-level grayscale palette is optimized for readability under various industrial lighting conditions, ensuring that alarms, status icons, and data trends remain sharp and legible.

Reliable Serial Communication This terminal is equipped with an RS-232 port that supports standard Allen-Bradley protocols, including DF1 and DH-485. This enables seamless point-to-point communication with SLC 500, MicroLogix, and ControlLogix controllers over distances up to 15 meters, as well as support for printing and application transfers.

Flexible Memory and Data Management Standard internal resources include 256MB of RAM and 512MB of non-volatile storage. For applications requiring extensive data logging or large graphic libraries, the module includes an SD card slot compatible with 1784-SD1 and 1784-SD2 cards, providing easy field updates and backup options.

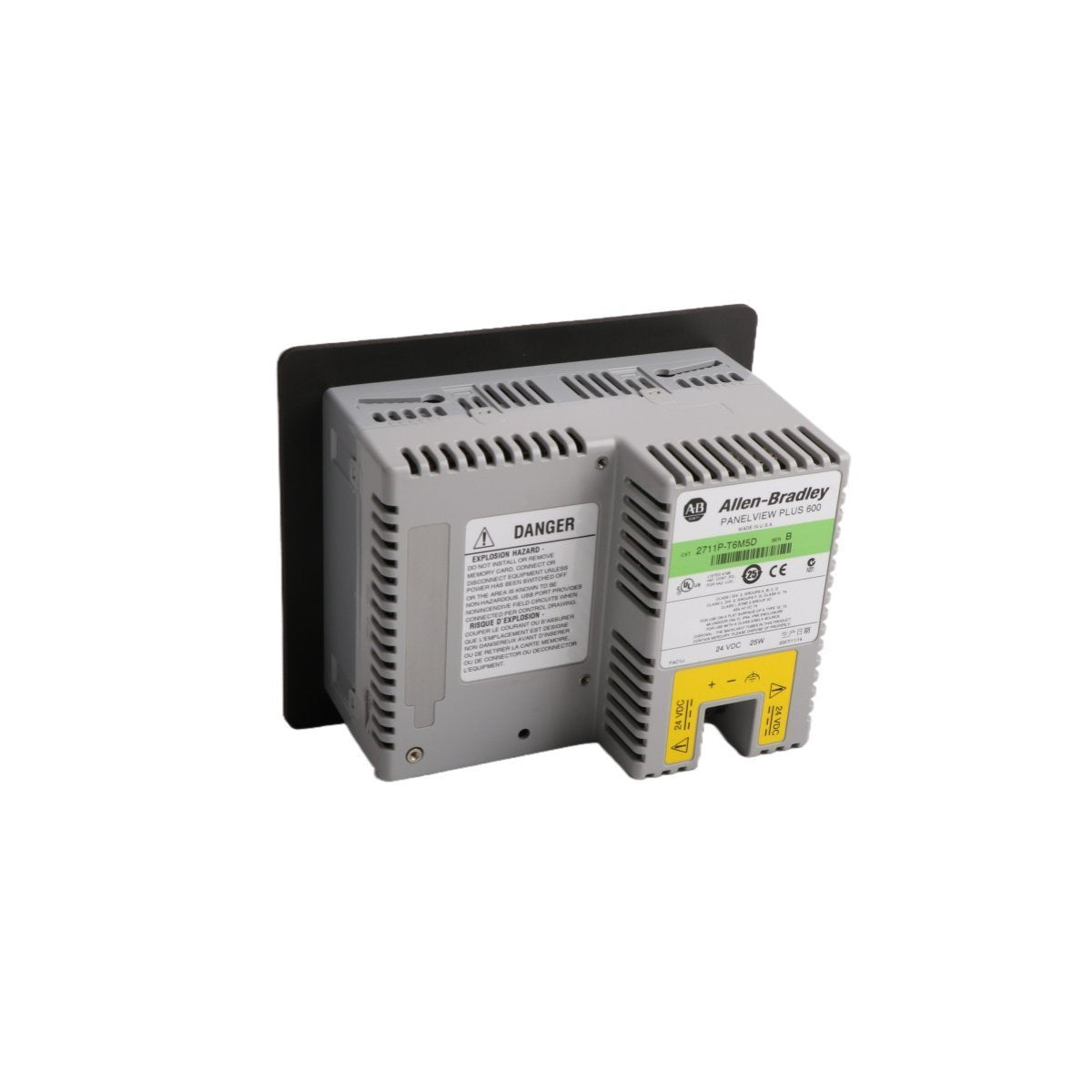

Ruggedized Hardware Design Built for the factory floor, the 2711P-T6M5D8 accepts a standard 24V DC input (18-30V DC range). Its compact enclosure is designed for panel mounting, offering high resistance to shock and vibration. The inclusion of USB host and device ports allows for the quick connection of external peripherals like keyboards, mice, or flash drives for data extraction.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation

• Model Number: 2711P-T6M5D8

• Product Type: Operator Interface Terminal

• Series: PanelView Plus 6 600

• Display: 5.7-inch Grayscale TFT

• Resolution: 320 x 240 QVGA

• Input Device: Analog Resistive Touchscreen

• Input Voltage: 24V DC (Nominal)

• Memory: 256MB RAM / 512MB Flash

• Communication Ports: RS-232, USB Host, USB Device

• Operating Temperature: 0°C to 55°C

• Weight: 0.58 kg

• Dimensions: 21 x 13.6 x 4.4 cm

Application Areas

The 2711P-T6M5D8 is a preferred HMI solution for cost-effective machine control:

• OEM Machinery: Standardized operator panels for small-scale industrial equipment.

• Material Handling: Monitoring conveyor speeds and sortation status.

• HVAC Systems: Centralized control for industrial cooling and ventilation units.

• Pumping Stations: Visualizing pressure levels and pump run-time data in water management.
